Fastest 5.0 (pushrod) Kenne Bell Mustang?

[Bullitt347]

....i mean if i can do it a cave man can do it ...right?.

No truer words have been spoken!



[92rohcp]

On the 2.8L compressor I noticed the my manifold bolts from the 2.1L for the discharge manifold don't fit. Do you guys remember the bolts size and thread pitch you had to use there.



[wp331]

My outlet manifold bolts are 8mm. Not sure about the thread but it is common. ... picked mine up at ACE hardware



[92rohcp]

I just checked with KB tech on the tap needed to tap and drill the case for the oil level dipstick and they said it's R 1/4-19 BSPT British pipe taper. Would you guys be able to find this tap and loan it to me I'll pay shipping cost as these are very hard to find and the ones I have found are close to $40.



[wp331]

I have mine somewhere. I will mail it to you pm me your address.



[Bullitt347]

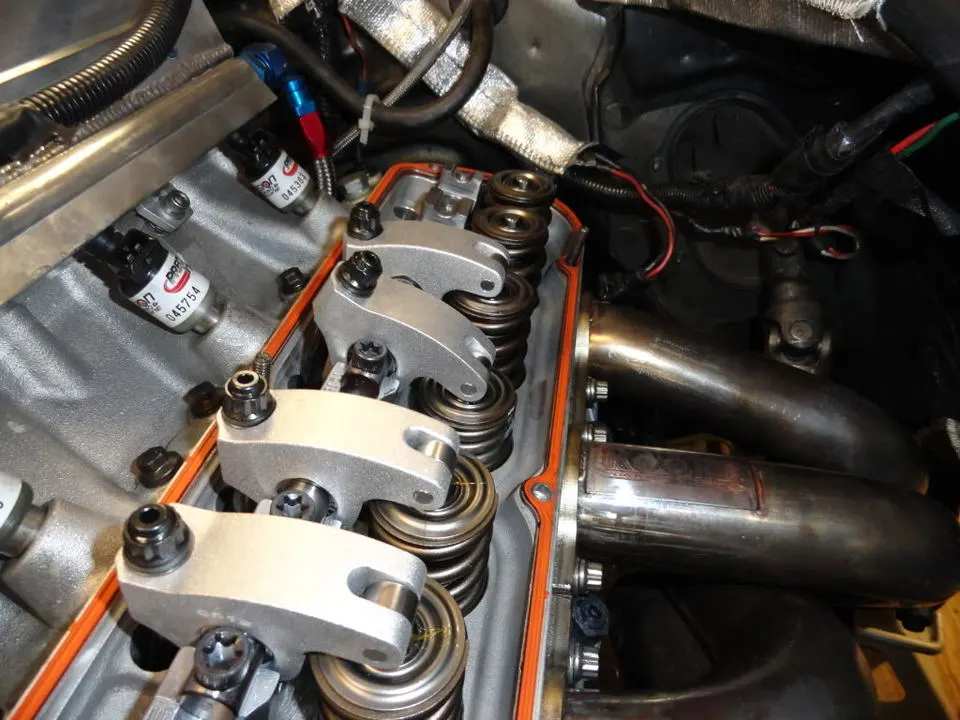

This is the Jesel shaft mount roller rocker arm set up



[Bullitt347]

More pictures to come as we get Walters engine finished assembled and up and running.



[Bullitt347]

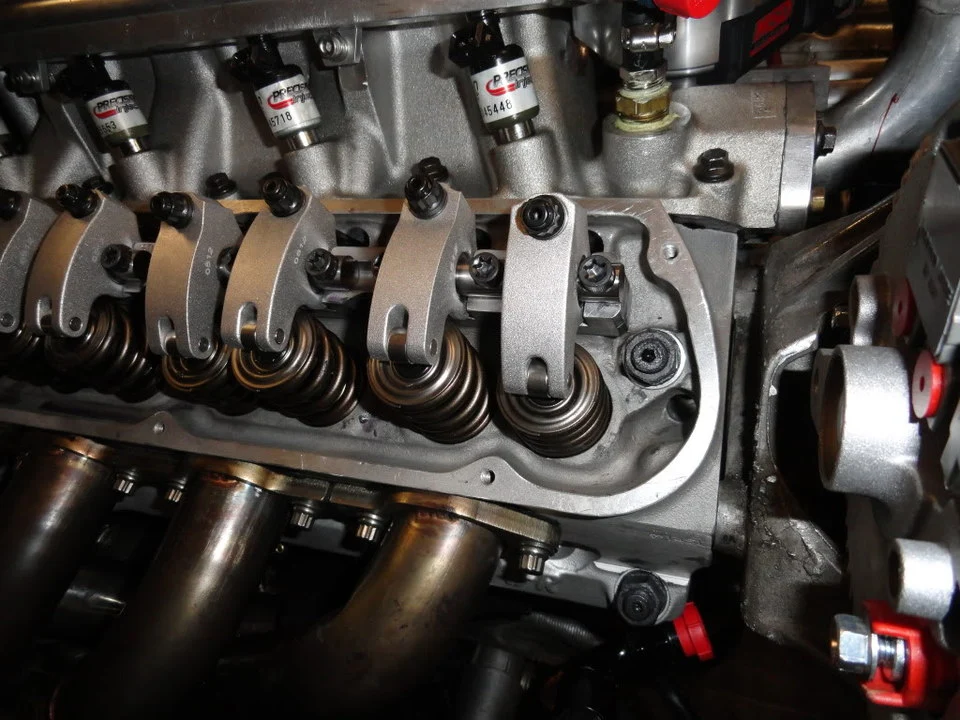

Got Lift? Exhaust valve open



[Bullitt347]

Intake valve open



[Bullitt347]

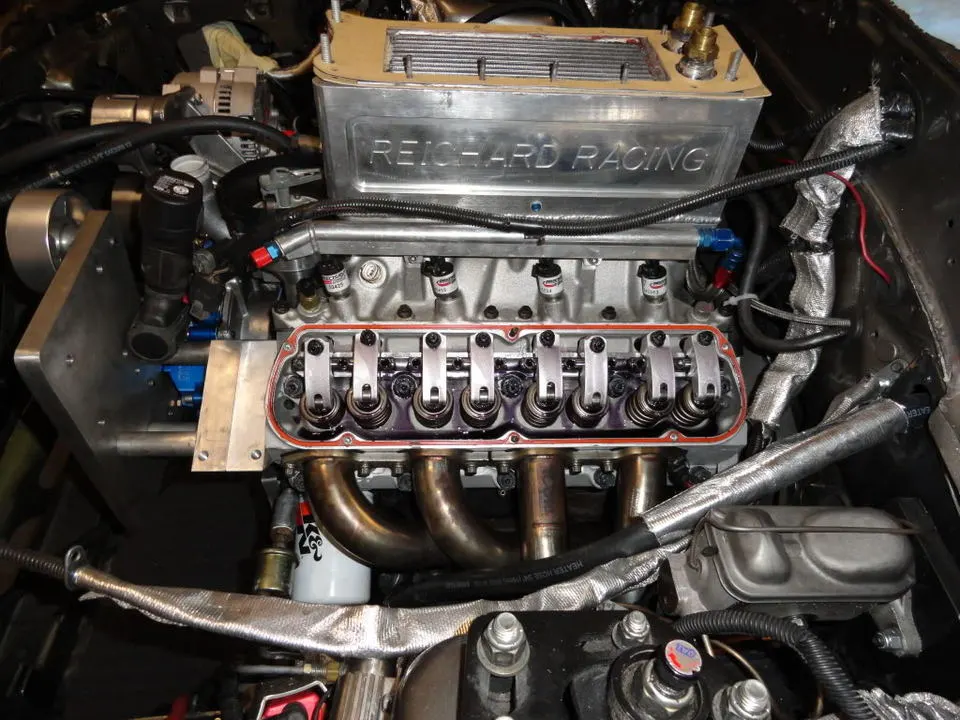

And it all will fit under the stock valve cover



[Bullitt347]

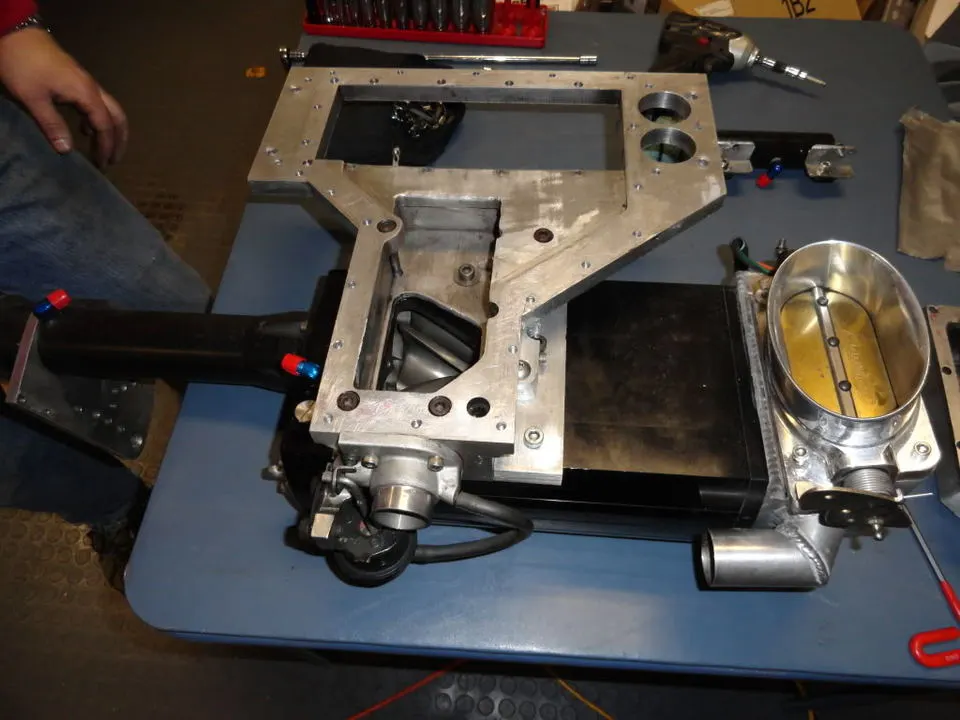

Getting ready to set the 2.8 LC Kenne Bell on the engine



[Bullitt347]

Top of outlet manifold or "hat" about 3" tall



[Bullitt347]

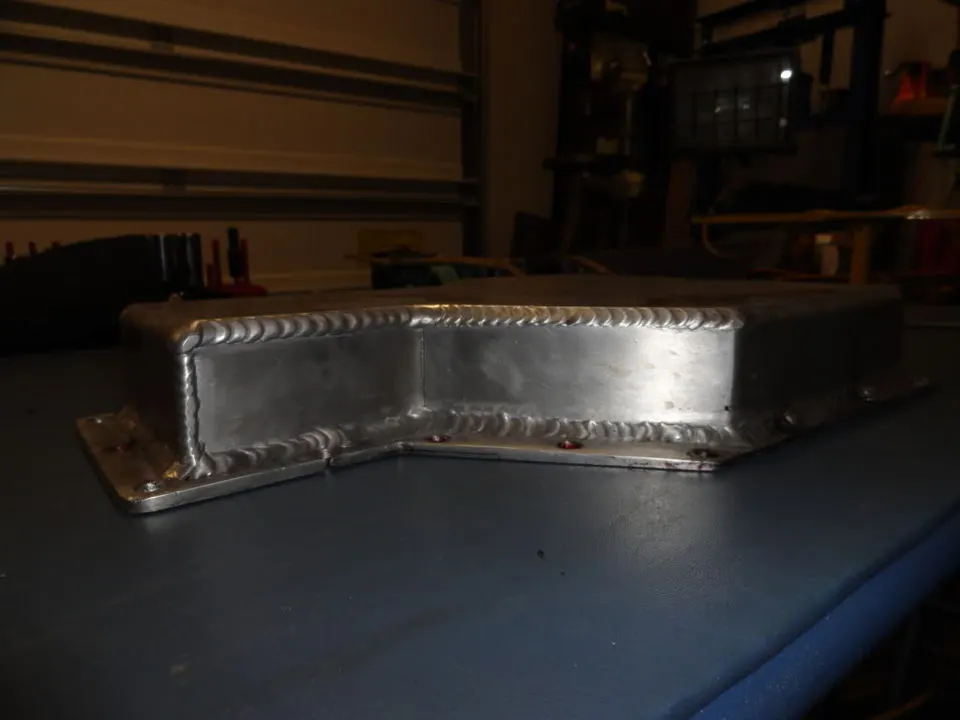

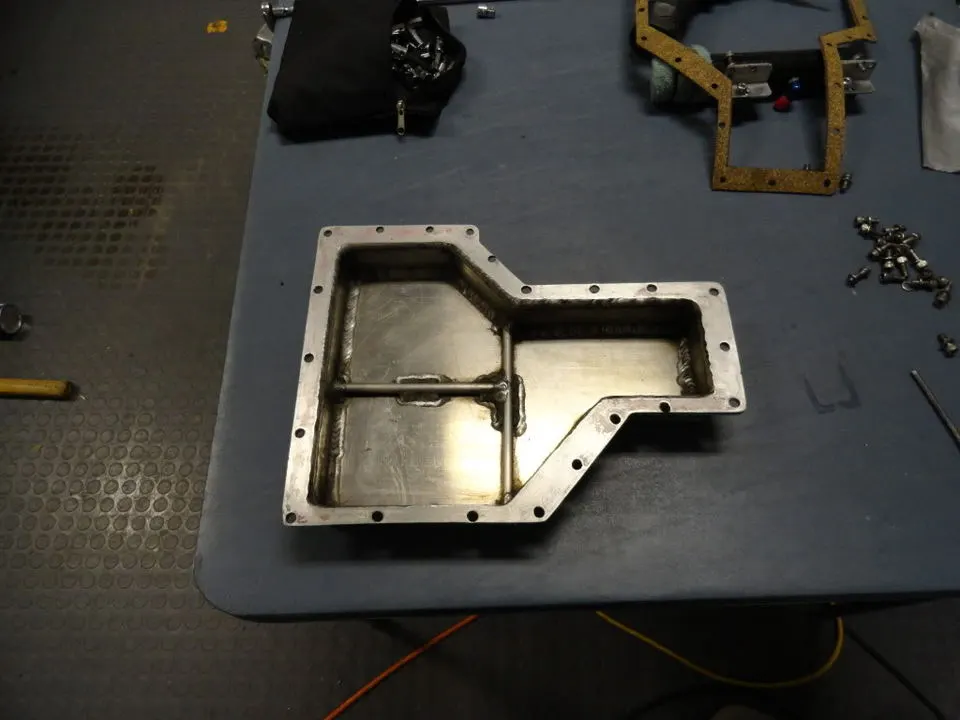

Inside of "hat" shows bracing to keep the aluminum top from vibrating apart, without it the top will crack



[Bullitt347]

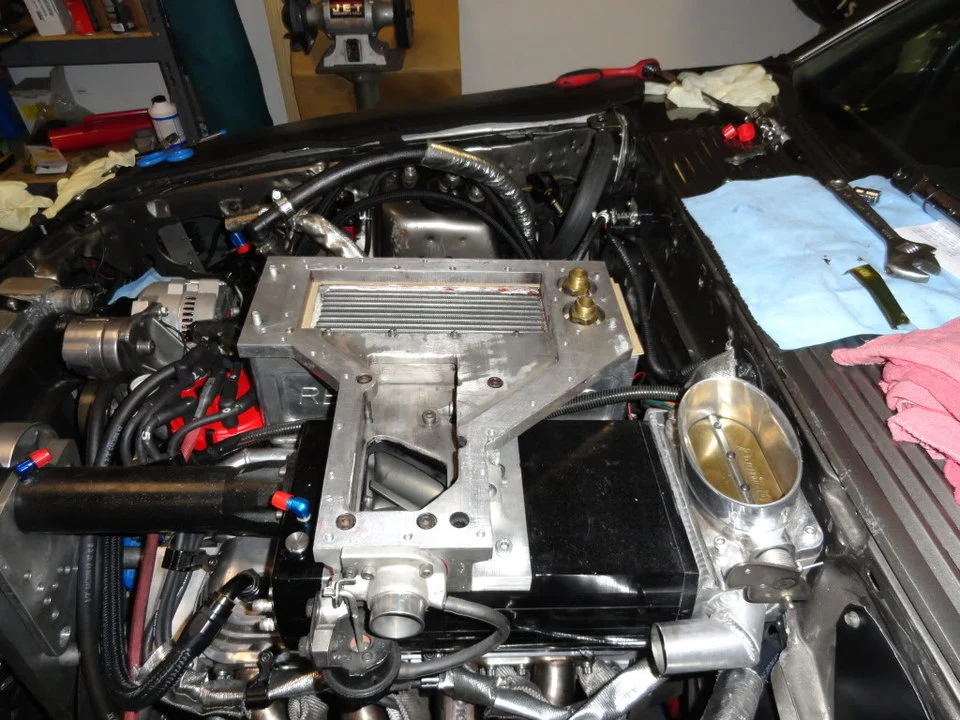

Supercharger set in place, if you look close you can see how the inlet manifold/throttle body almost touch the firewall.



[Bullitt347]

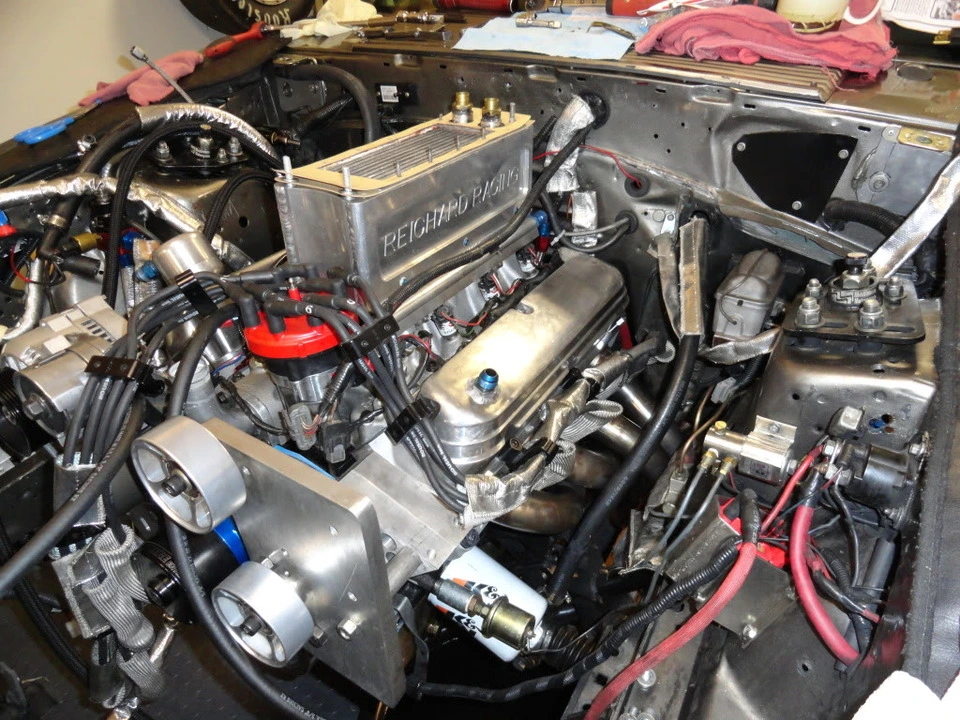

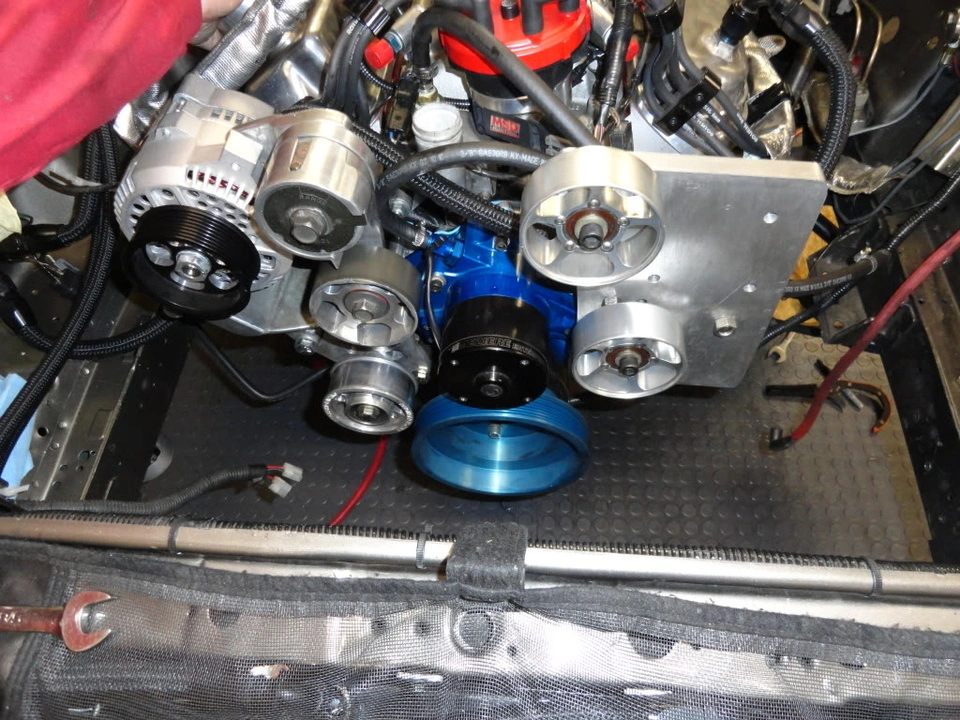

Front drive pulleys and accessories in place



[92rohcp]

Looks like you guys tapped a vent in the top of the front cover near your oil filler hole. Can you tell me why you needed that vent there and how does it work out for you.

Also I took off the front cover in prep to tap and drill the new oil filler hole and noticed that the coolant holes have a recessed area that looks like a rubber O ring would work well there. KB had just used the red sealant and I thought that could be a leak point.



[wp331]

The vent on the case is the return from the overflow cannister for the blower snout. At high rpm's for extended pulls, such as a quarter mile, the sc can push a significant amount of oil out the snout vent. The cannister collects it and gravity drains it back into the case. My sc had o rings on the water bypass tubes.....



[92rohcp]

I can't believe KB left them out on mine would have been a matter of time and that would have leaked and my gears would have been filled with fluid. Was is a regular O ring type seal.



[wp331]

Just black o rings



[92rohcp]

Thanks my friend, still can't believe KB left them out. Good thing I had to open it up.
