Fuel Fuel pressure help! So lost!

anorth93

Member
May 15, 2020
28
2
13
27
florida
hey all so I'm having some issues and I'm completely lost. I have a 93 hatch 5.0 mostly stock having some issues with cold start and seems like its lacking power on the low end. Anyways I got a autometer fuel pressure gauge and went out to mount and hook it up, went to drain the Schrader valve and no fuel came out. I got the gauge hooked up turned the key on engine still off shows no pressure. So i then started it up. As it idles it shows 10-15psi fuel pressure. Put a new filter still no change. So i left the fuel like on and unhooked the gauge turned the key on nothing came out. Turned the car on and it stared to spray but very little and it was it bursts almost like air in-between squirts of fuel. Im just lost on what to check now. You guys have any ideas?? This is my first foxbody so I'm not super familiar with all the tech stuff on these. Thanks in advance

  • Sponsors(?)


Feb 26, 2018
13
10
13
46
Sounds like a bad fuel pump or ground to the pump. Load the circuit, I use an old head lamp bulb, unplug fuel module use 2 jumper wires , power and ground, to the bulb and turn the key on. If bulb lights the circuit is good and you need to replace the pump. If not check ground side.


anorth93

Member
May 15, 2020
28
2
13
27
florida
I didnt think about the fuel pump because I can jump in it and drive around fine. It doesn't have low end power but from about 30mph up seems to run fine. But it also has some 265/50s and stock 2.73 gears. I got new 4.10s but trying to figure all the issues first... anyways. Ill check the fuel pump tommrow thanks for the help


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
17,849
5,793
193
polk county florida
There is a hose between the fuel pump and the line on the hanger that is prone to splitting, good time to replace the pump anyway, filter too and blow out the fuel line just to be on the safe side.

  • Like
Reactions: nickyb

jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,316
2,649
234
74
Dublin GA
lowendmac.com
Fuel Pump Troubleshooting for 91-93 Mustangs

Revised 6-Feb-2016 to add fuse link diagram

Ignition switch in the Run position, engine not running tests.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on.
It should run for 2-5 seconds and shut off. To trick the fuel pump into running, find the ECC test connector and jump the connector in the upper RH corner to ground.

Foxbody Diagnostic connector


Foxbody Diagnostic connector close up view





If the fuse links are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. A tire pressure gauge can also be used if you have one - look for 37-40 PSI. Beware of fire hazard when you do this.


No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – press reset button on the inertia switch. The hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch

B.) Fuel pump Relay:
On 91 cars, it is located under the driver's seat.
On 92 and 93 cars it is located under the MAF. Be careful not to confuse it with the A/C WOT cutoff relay which is in the same area. See the diagram to help identify the fuel pump relay wiring colors.
Be sure to closely check the condition of the relay, wiring & socket for corrosion and damage.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) Blown fuse link in wiring harness.
F.) Fuel pressure regulator failed. Remove vacuum line from regulator and inspect
for fuel escaping while pump is running.

Theory of operation:
Read this section through several times. If you understand the theory of operation, this will be much easier to troubleshoot. Refer to the diagram below frequently.

Diagram of the fuel pump wiring for 91-93 cars.


The electrical circuit for the fuel pump has two paths, a control path and a power
path.

Remember that the computer does not source any power to actuators, relays or injectors, but provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.

Control Path
The control path consists of the computer, and the fuel pump relay coil. It turns the fuel pump relay on or off under computer control. The switched power (red wire) from the ECC relay goes to the relay coil and then from the relay coil to the computer (light blue\orange wire). The computer provides the ground path to complete the circuit. This ground causes the relay coil to energize and close the contacts for the power path. Keep in mind that you can have voltage to all the right places, but the computer must provide a ground. If there is no ground, the relay will not close the power contacts.

Computer power path
The computer power relay must properly function to provide power for the fuel pump relay. That means you must check the operation of the computer power relay (PCM Power Relay) before chasing any problems with the fuel pump circuit. The computer power relay is located above the computer under the passenger side kick plate cover. . It is not easy to get to, you must have small hands or pull the passenger side dash speaker out to access it.
With the Ignition switch in the Off position, check the resistance between the black/white wire and a clean bare spot on the car body metal. You should see less that 1 Ohm. More than 1 Ohm is a broken wire, or bad connection of the black/white wire and the car body metal.
Check for 12 volts at the yellow wire. Good 12 volts and the fuse link is OK. No voltage or low voltage, bad fuse link, bad wiring, or connections.
With the Ignition switch in the Run position, look for good 12 volts on the red/green wire. No voltage or low voltage, bad fuse link, bad wiring, or connections.
Good 12 volts on the red/green wire, look for good 12 volts on the red wire or any of the red fuel injector wires. No 12 volts or low voltage and the relay isn’t closing, or relay socket contacts are dirty/corroded. Water has been known to run down the radio antenna wire or leak from the windshield and get into the relay and relay contacts.

Fuel pump power path
The power path picks up from a fuse link near the starter relay. Fuse links are like fuses, except they are pieces of wire and are made right into the wiring harness. The feed wire from the fuse link (pink/black wire) goes to the fuel pump relay contacts. When the contacts close because the relay energizes, the power flows through the pink/black wire to the contacts and through the dark green\yellow wire to the inertia switch. The other side of the inertia switch with the brown\pink wire joins the pink/black wire that connects to the fuel pump. The fuel pump has a black wire that supplies the ground to complete the circuit.

Fuse links at starter solenoid


Fuse links come with a current rating just like fuses. A clue as to what current they are designed for is to look at the size wire they protect.

Fuse link material is available at most good auto parts stores. There may even be a fuse link already made up specifically for your car. Just be sure to solder the connection and cover it with heat shrink tubing.

Heat shrink tubing is available at Radio Shack or other electronics supply stores.

See the video below for help on soldering and heat shrinking wiring. There is a lot of useful help and hints if you don’t do automotive electrical work all the time.

View: http://youtu.be/uaYdCRjDr4A

Power feed: Look for 12 volts at the pink/black wire (power source for fuel pump relay).
No voltage or low voltage, bad fuse link, bad wiring, or connections. Remember that on 92 or later models the fuel pump relay is located under the Mass Air meter. Watch out for the WOT A/C control relay on these cars, as it is located in the same place and can easily be mistaken for the fuel pump relay.

Relay: Turn on the key and jumper the ECC test connector as previously described. Look for 12 volts at the dark green\yellow wire (relay controlled power for the fuel pump). No voltage there means that the relay has failed, or there is a broken wire in the relay control circuit.

Inertia switch:
The location for the inertia switch is under the plastic for the driver's side taillight.
There should be a round plastic pop out cover over it, remove it to access the switch button.
With the test connection jumpered and ignition switch in The Run position as described above, check the brown/pink wire. It should have 12 volts. No 12 volts there, either the inertia switch is open or has no power to it. Check both sides of the inertia switch: there should be power on the dark green\yellow (inertia switch input) and brown/pink wire (inertia switch output). Power on the dark green\yellow wire and not on the brown/pink wire means the inertia switch is open.
Press on the red plunger to reset it to the closed position. Sometimes the inertia switch will be intermittent or will not pass full power. Be sure that there is 12 volts on both sides of the switch with the pump running and that the voltage drop measured across the switch is less than .75 volts.

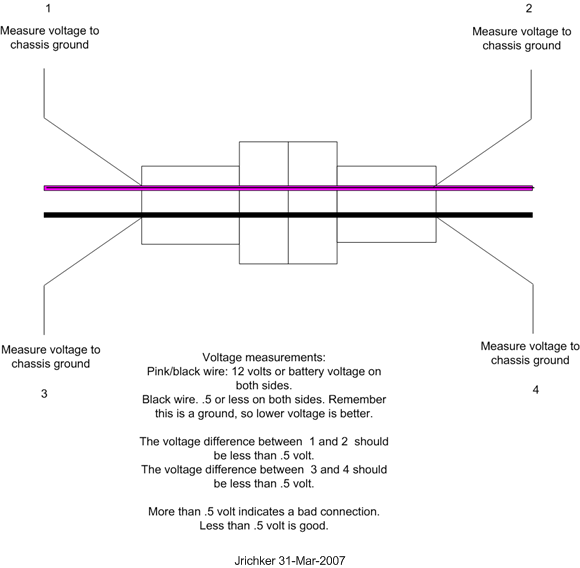

Pump wiring: Anytime the ignition switch is in the Run position and the test point is jumpered to ground, there should be at least 12 volts present on the black/pink wire. With power off, check the pump ground: you should see less than 1 ohm between the black wire and chassis ground.

Make sure that the power is off the circuit before making any resistance checks.
If the circuit is powered up, your resistance measurements will be inaccurate.





Control path:
Relay: The light blue/orange wire provides a ground path for the relay power. With the test connector jumpered according to the previous instructions, there should be less than .75 volts.
Use a test lamp with one side connected to battery power and the other side to the light blue/orange wire on the fuel pump relay. The test light should glow brightly. No glow and you have a broken wire or bad connection between the test connector and the relay. To test the wiring from the computer, remove the passenger side kick panel and disconnect the computer connector. It has a 10 MM bolt that holds it in place. Remove the test jumper from the ECC test connector.
With the test lamp connected to power, jumper pin 22 to ground and the test lamp should glow.
No glow and the wiring between the computer and the fuel pump relay is bad.

Computer: If you got this far and everything else checked out good, the computer is suspect.
Remove the test jumper from the ECC test connector located under the hood. Probe computer pin 22 with a safety pin and ground it to chassis. Make sure the computer and everything else is connected. Turn the ignition switch to the Run position and observe the fuel pressure. The pump should run at full pressure.
If it doesn't, the wiring between pin 22 on the computer and the fuel pump relay is bad.
If it does run at full pressure, the computer may have failed.

Keep in mind that the computer only runs the fuel pump for about 2-3 seconds when you turn the key to the Run position. This can sometimes fool you into thinking the computer has died.
Connect one lead of the test light to power and the other lead to computer pin 22 with a safety pin.
With the ignition switch Off, jumper the computer into self test mode like you are going to dump the codes. Turn the ignition switch to the Run position. The light will flicker when the computer does the self test routine. A flickering light is a good computer. No flickering light is a bad computer. Remove the test jumper from the ECC test connector located under the hood.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host)
for help on 88-95 wiring Mustang FAQ - Engine Information

Fuel pump runs continuously:
The fuel pump relay contacts are stuck together or the light blue/orange wire (pin 22) has shorted to ground. Remove the fuel pump relay from its socket. Then disconnect the computer and use an ohmmeter to check out the resistance between the light blue/orange wire and ground. You should see more than 10 K Ohms (10,000 ohms) or an infinite open circuit. Be sure that the test connector isn’t jumpered to ground.
If the wiring checks out good, then the computer is the likely culprit.





Prior to replacing the computer, check the computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire. You'll find it up next to the starter solenoid where the wire goes into the wiring harness.

The picture shows the common ground point for the battery , computer, & extra 3G alternator ground wire as described above. A screwdriver points to the bolt that is the common ground point.

The battery common ground is a 10 gauge pigtail with the computer ground attached to it.
Picture courtesy timewarped1972


anorth93

Member
May 15, 2020
28
2
13
27
florida
Ok so I did the jumper wire and the fuel pump kicked on and shows about 15psi but as soon as I take it off and the key is still on shows no pressure and pump kicks off. I can't hear it even prime when I turn the key on


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,316
2,649
234
74
Dublin GA
lowendmac.com
Ok so I did the jumper wire and the fuel pump kicked on and shows about 15psi but as soon as I take it off and the key is still on shows no pressure and pump kicks off. I can't hear it even prime when I turn the key on
That's pretty much what it is supposed to do in the electrical behavior dept.
The pump should hold pressure after it stops running.


Fuel pump pressure & regulator test

Check fuel pressure:
The local auto parts store may rent or loan a fuel pressure test gauge if you don't have one.
Disconnect the vacuum line from the fuel pressure regulator. Check it for evidence of fuel present in the line by removing it and blowing air through it. If you find fuel, the fuel pressure regulator has failed. Reinstall the line; leave the fuel pressure regulator end of the vacuum line disconnected. Then cap or plug the open end of the vacuum line and stow it out of the way.
Connect the fuel pressure test gauge to the Schrader port located just behind the alternator.
Turn the ignition switch on & start the engine. Observe the pressure: you should see 38-41 PSI at idle.
Turn the ignition off; reconnect the vacuum line to the fuel pressure regulator. Then disconnect the fuel pressure test gauge. Watch out for squirting gas when you do this.

Fuel pump pressure test
Disconnect the larger of the two fuel lines up by the Schrader valve. It is the return line and does not have the Schrader valve on it. Find a piece of rubber fuel hose and clamp it on the return line coming from the regulator. Stick a bolt in the other end of the hose and make sure that all your connections are tight and leak proof as possible. When this powers up, you don't want fuel squirting everywhere. Hook up the fuel pressure test gauge. Turn the ignition switch on and watch for leaks. You may want to use a helper inside the car to cut the switch off quickly if you have a leak. To trick the fuel pump into running, find the EEC test connector and jump the connector in the Upper RH corner to ground.



Caution!!! You have blocked the return line for the fuel pump! Pressure will rise very quickly past safe levels with a good pump
If the pressure goes up past 55 PSI, the pump is good and the fuel pressure regulator is bad. If the fuel pressure does not hit 55 PSI or more in a few seconds, the pump is bad or you have electrical problems.


LX Dave

Active Member
Jul 2, 2017
156
80
38
46
Ok so I did the jumper wire and the fuel pump kicked on and shows about 15psi but as soon as I take it off and the key is still on shows no pressure and pump kicks off. I can't hear it even prime when I turn the key on

Just by hearing the pressure isn't holding when you turn off the key or remove the jumper wire indicates a leak. If not external of the fuel tank, you will have to drop the tank for either a cracked hose or a bad check valve in the pump. If you have to drop the tank, just get a fuel pump kit right away and replace the strainer, pump and hose. Get the Walbro branded pump, it's probably the best replacement for stock(ish) cars. Might as well replace the regulator too right away. Parts are getting old and they don't last forever.


Is your cranking time longer than normal? I noticed that on my '87, and checked fuel pressure. Dropped to zero right after pump prime. Replaced the pump, screen, hose and regulator and all was good again. Turned out the check valve in the pump wasn't holding pressure any more.


anorth93

Member
May 15, 2020
28
2
13
27
florida
No fuel in the regulator vaccum line got up to about 20 lbs at idle. I dont have a fuel line removal tool to test the pump so im running to the store real quick to buy one ill get back with you shortly


anorth93

Member
May 15, 2020
28
2
13
27
florida
Just by hearing the pressure isn't holding when you turn off the key or remove the jumper wire indicates a leak. If not external of the fuel tank, you will have to drop the tank for either a cracked hose or a bad check valve in the pump. If you have to drop the tank, just get a fuel pump kit right away and replace the strainer, pump and hose. Get the Walbro branded pump, it's probably the best replacement for stock(ish) cars. Might as well replace the regulator too right away. Parts are getting old and they don't last forever.


Is your cranking time longer than normal? I noticed that on my '87, and checked fuel pressure. Dropped to zero right after pump prime. Replaced the pump, screen, hose and regulator and all was good again. Turned out the check valve in the pump wasn't holding pressure any more.
Ya it takes a good 3 or 4 tries to get it fired up, then it struggke to stay running for about 20 sec i gotta keep tapping the gas to keep it running. But yes as soon as I click the key on I hear the pump prime but its showing no pressure on the gauge. And if i disconnect the autometer gauge and leave the line open nothing comes out, so its definitely not making it up to the motor . No leaks externally tho I do know that much


LX Dave

Active Member
Jul 2, 2017
156
80
38
46
When I was diagnosing the problem with the '87, I found out it started better when cycling the key twice for two primes. That's how I found out it was a fuel problem.


anorth93

Member
May 15, 2020
28
2
13
27
florida
Ok so for the life of me I cant get the fuel line disconnected been trying for 20 min. But lx Dave I did what you said and primed it twice and it fired up so much better then normal. I disconnected the autometer fuel gauge and primed it now im getting fuel but its not enough pressure to even show when i do hook the gauge up. Its like its not holding the pressure it primes and goes away. Thinking it is a bad check valve in the pump


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
17,849
5,793
193
polk county florida
You will be replacing the pump, take the opportunity to replace the filler tube seal at the tank, I think there is a kit that contains a bunch of stuff that deteriorates.


anorth93

Member
May 15, 2020
28
2
13
27
florida
You will be replacing the pump, take the opportunity to replace the filler tube seal at the tank, I think there is a kit that contains a bunch of stuff that deteriorates.
I'll get that ordered tonight is the 155lph ok for mostly stock?? Hci is all stock, has exhaust and a few small things. Thank you all for the help!


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,316
2,649
234
74
Dublin GA
lowendmac.com
I'll get that ordered tonight is the 155lph ok for mostly stock?? Hci is all stock, has exhaust and a few small things. Thank you all for the help!
Fuel pump replacement 5.0 Fox body Mustangs

Here are some useful tips...

I have done the tank removal three times, and the main issues are getting the car up on jack stands and getting the gas out of the tank. DO NOT try to do this job without jack stands. Becoming a pancake is not part of the repair process.

Pumping out the old gas:
If the old pump still works, you can use it to pump the tank out.
1.) Separate the pressure line (the one with the Schrader valve on it) using the fuel line tools.
Look in the A/C repair section for the fuel line tools. They look like little plastic top hats. You will need the 1/2" & 5/8" ones. The hat shaped section goes on facing the large part of the coupling. Then you press hard on the brim until it forces the sleeve into the coupling and releases the spring. You may need someone to pull on the line while you press on the coupling.



OR



View: https://www.youtube.com/watch?v=vRTjYAxvaCs

Use a piece of garden hose to run from the pressure line to your bucket or gas can. Make sure it is as leak proof as you can make it. Fire and explosion are not part of the repair process...

2.) Jumper the fuel pump test point to ground.



Turn the ignition switch to the Run position. the fuel pump will pump the tank almost dry unless the battery runs down first.

Some 5 gallon paint pails lined with garbage bags are good to hold the gas. The garbage bags provide a clean liner for the pails and keep the loose trash out of the gas so you can reuse it. If you decide to use a siphon, a piece of 1/2" garden hose stuck down the filler neck will siphon all but a gallon or so of the gas.

Remove the filler neck bolts and put them in a zip bag. Disconnect the supply & return lines by removing the plastic clips from the metal tubing. If you damage the clips, you can get new ones form the auto part store for just a few dollars. I have used tie-wraps, but that is not the best choice. Then you remove the two 9/16" nuts that hold the T bolts to the straps. Put the nuts in the zip bag with the filler bolts. Pull the plastic shield down and away from the tank. Once the tank drops a little bit you can disconnect the wiring for the pump & fuel quantity sender.

The pump assembly comes out by removing a large metal ring that unscrews from the tank. You are supposed to use a brass punch to tap on the ring so that you don't make sparks. Look closely at the rubber O ring gasket when you remove the sender: it is very easy to damage on reinstallation. If it gets damaged, the car will smell like gasoline when you fill the tank up. The pump assembly requires some twisting and turning to get it out the hole.

Look very closely at the electrical wiring. The stock fuel pump wiring can overheat and melt the insulation. Mine had some really crummy plastic tubing slid over the quick disconnects. If the wires ever got together, there would be sparks inside the fuel tank and no more Mustang. I eliminated the splice in the middle of the wiring and went straight from the pump to the feed through connectors for the wiring. It required some soldering and crimping of new tabs on the wires, but it made a neater job.

Inspect the pump mount to metal tubing bracket. Mine broke and I couldn't get it to solder back together. I drilled a small hole for a machine screw & self locking nut to hold the clamp and bracket together.

The pump is easy to get off the mount but is somewhat difficult to get back it the tank without damaging the sock filter or tearing it on the tank baffle. When you install the metal ring that holds the pump in place, watch out for the gasket O ring. Some RTV may be helpful if the ring is not in excellent condition.

The tank to filler pipe seal is a large rubber grommet. Inspect it for hardening, tears and damage. At $20 from the Ford dealer, it might be a good idea to replace it.

I used a floor jack to help lift the tank back in place. A piece of ¾” plywood cut to about the same size as the tank will help insure that you don’t damage the tank by using the floor jack to lift it in place. You may find that it is the only time you really can make good use of a helper.
