Ground Effect Bracket Location On Fender

Martman

Active Member
Jun 20, 2016
162
23
28
43
Louisville, KY
#1
In the process of doing body work and the fenders on the car don't have the vertical ground effect brackets on them and no holes.

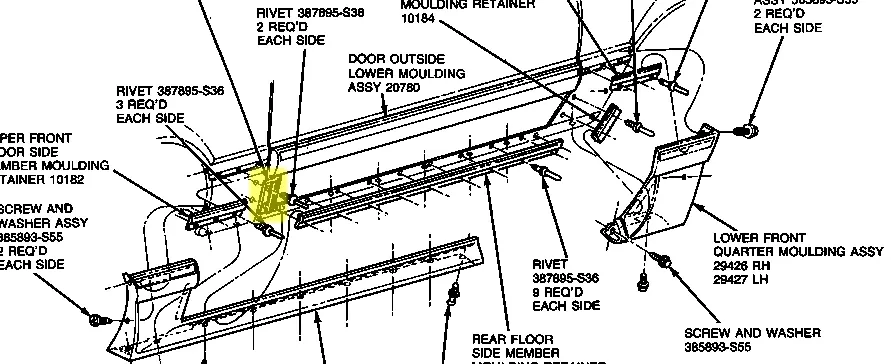

Anyone have the measurement/location of where the holes/brackets need to go on the fenders from the image below? I highlighted the bracket in question in yellow.

  • Sponsors (?)

billison

I like tinted tail
10 Year Member
Feb 27, 2006
2,171
663
184
stl
#2
My Gt fenders are off the car right now. I can send some detailed pics and measurements tonight if you’d like.


Martman

Active Member
Jun 20, 2016
162
23
28
43
Louisville, KY
#3
Yeah that would be great! I have searched all over the net with no luck!

Much appreciated!


billison

I like tinted tail
10 Year Member
Feb 27, 2006
2,171
663
184
stl
#4
Crap, had a busy night. I’ll make a note and do it as soon as I get home


Martman

Active Member
Jun 20, 2016
162
23
28
43
Louisville, KY
#5
No problem at your convenience. I am still a little ways away from getting to point of putting these on for paint.I appreciate your help!


billison

I like tinted tail
10 Year Member
Feb 27, 2006
2,171
663
184
stl
#6

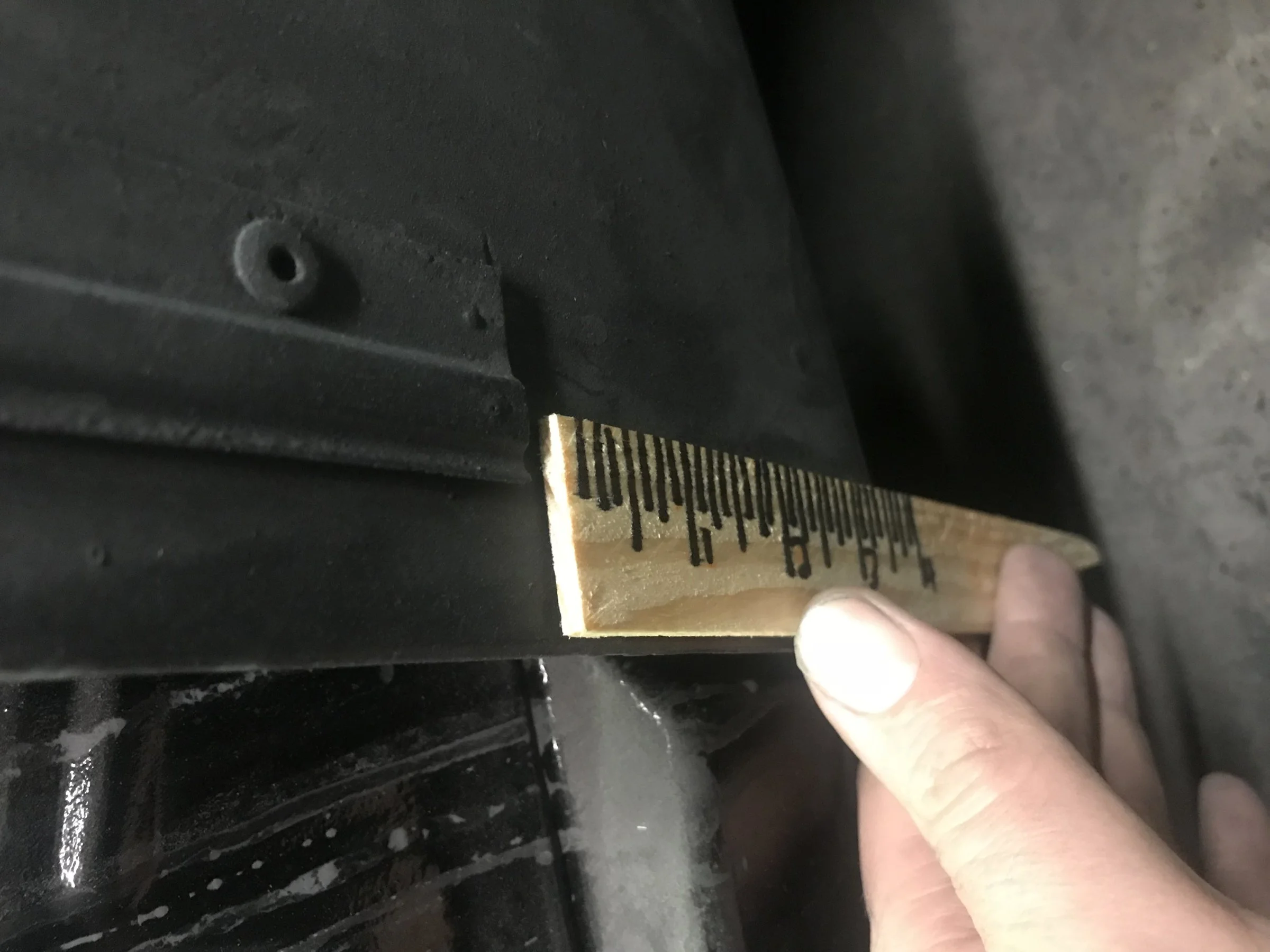

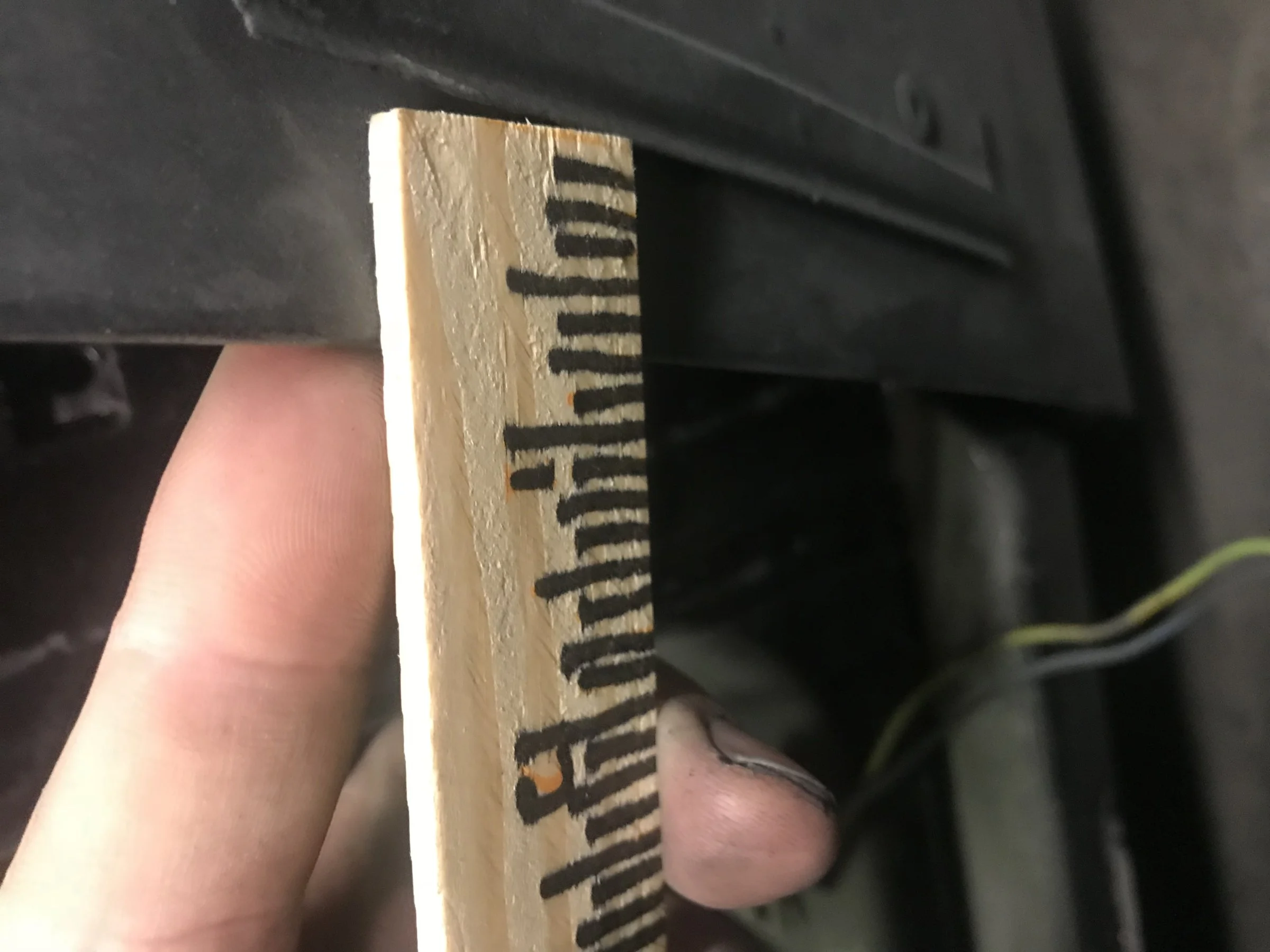

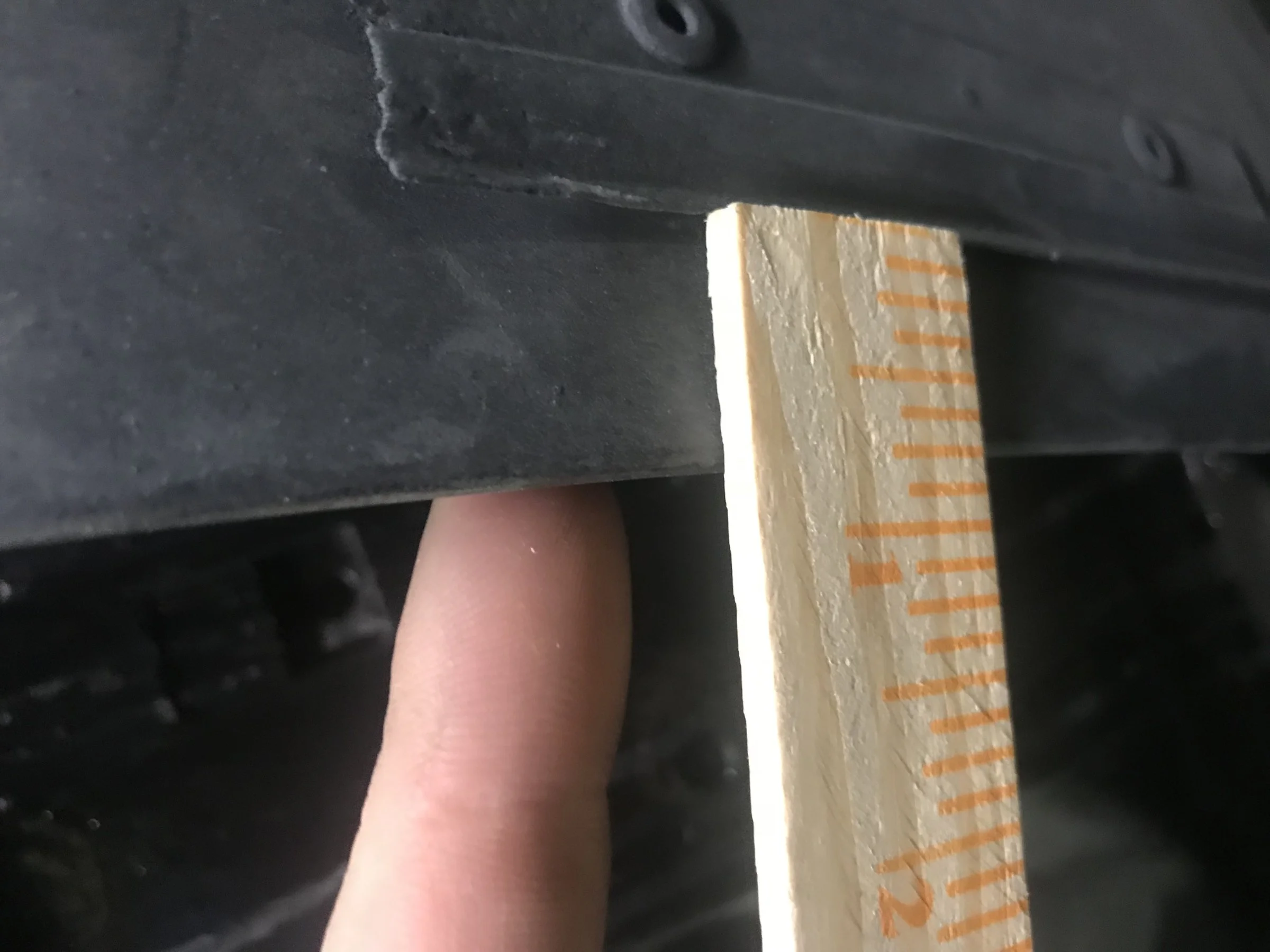

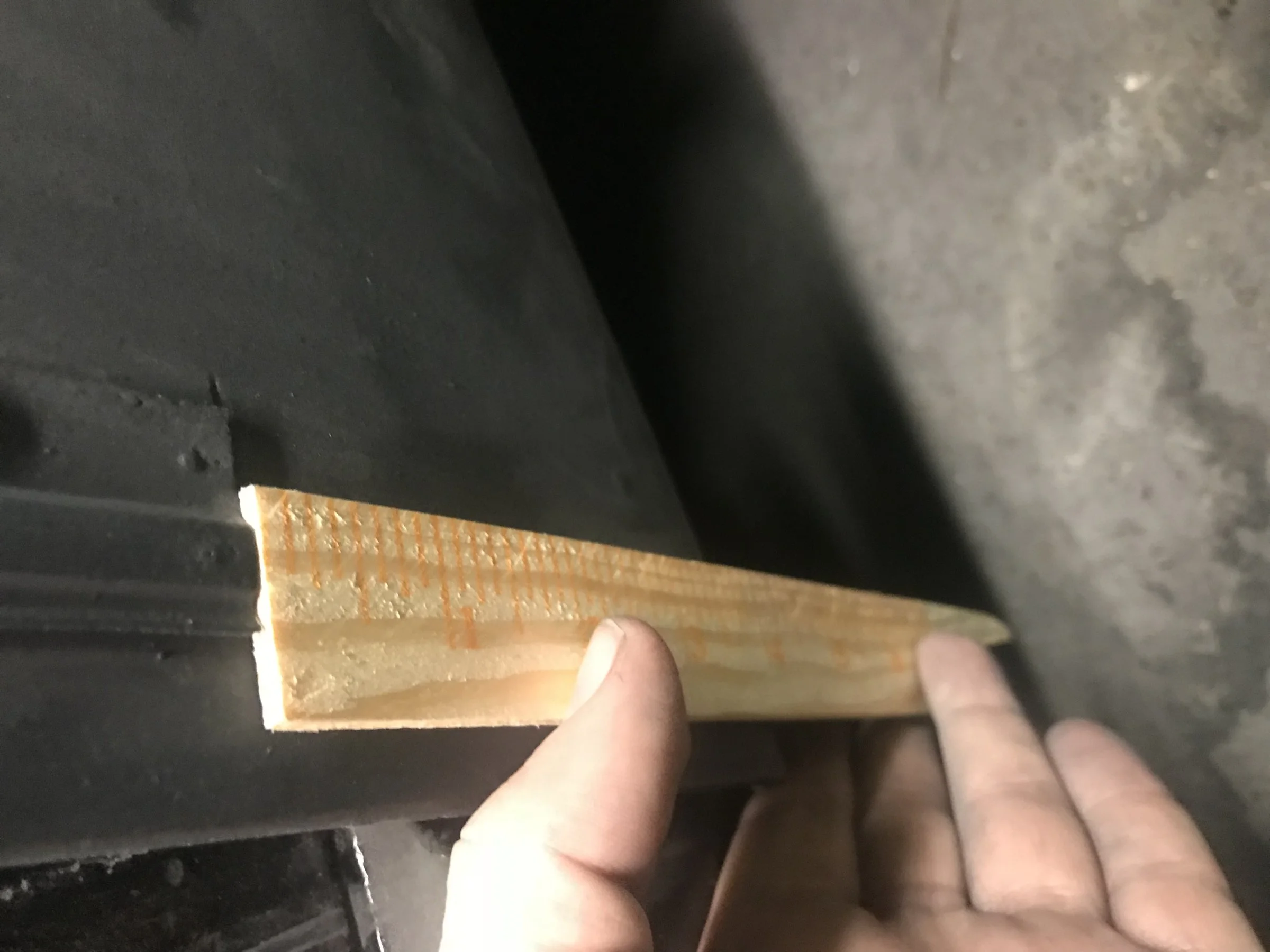

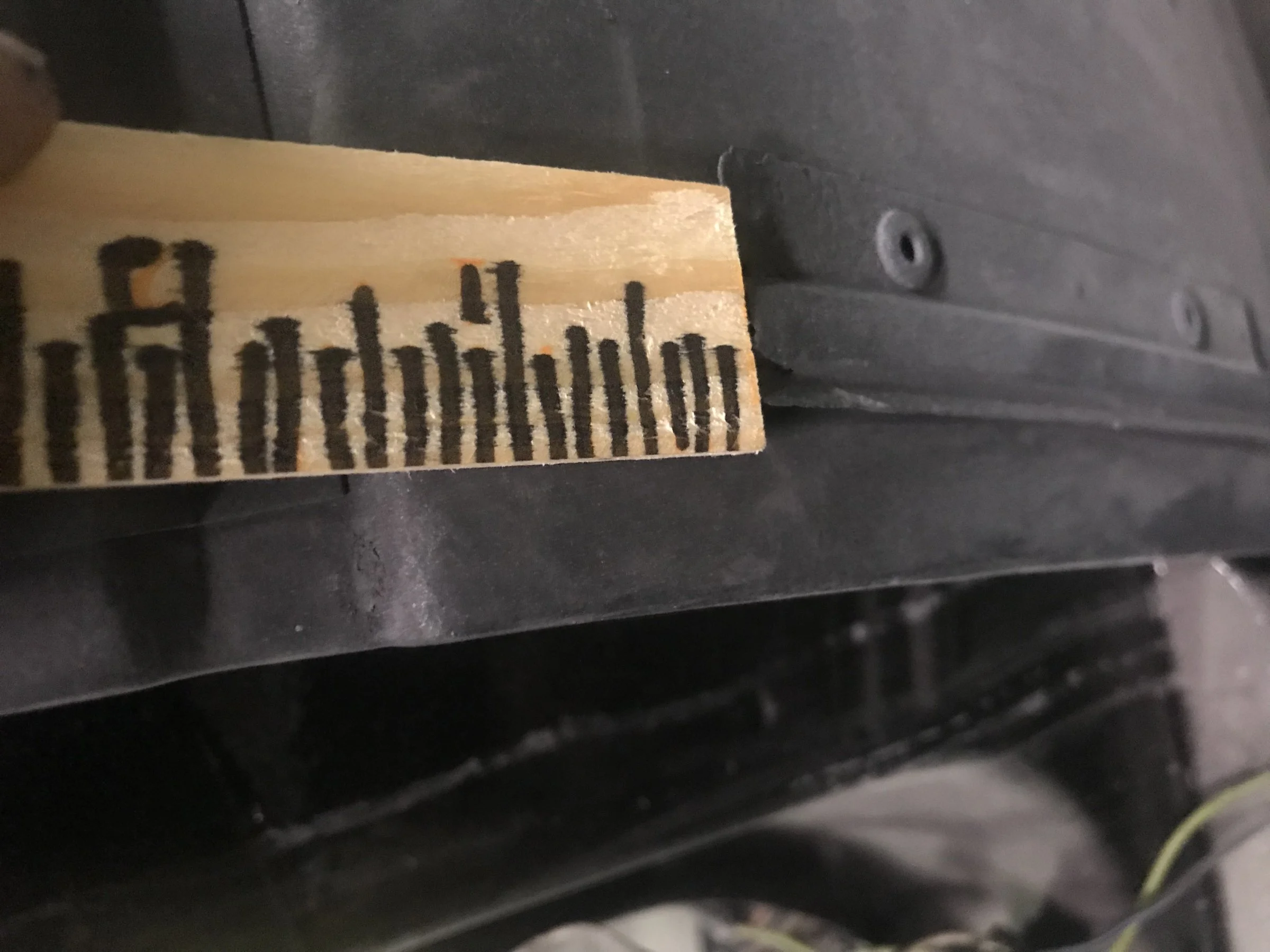

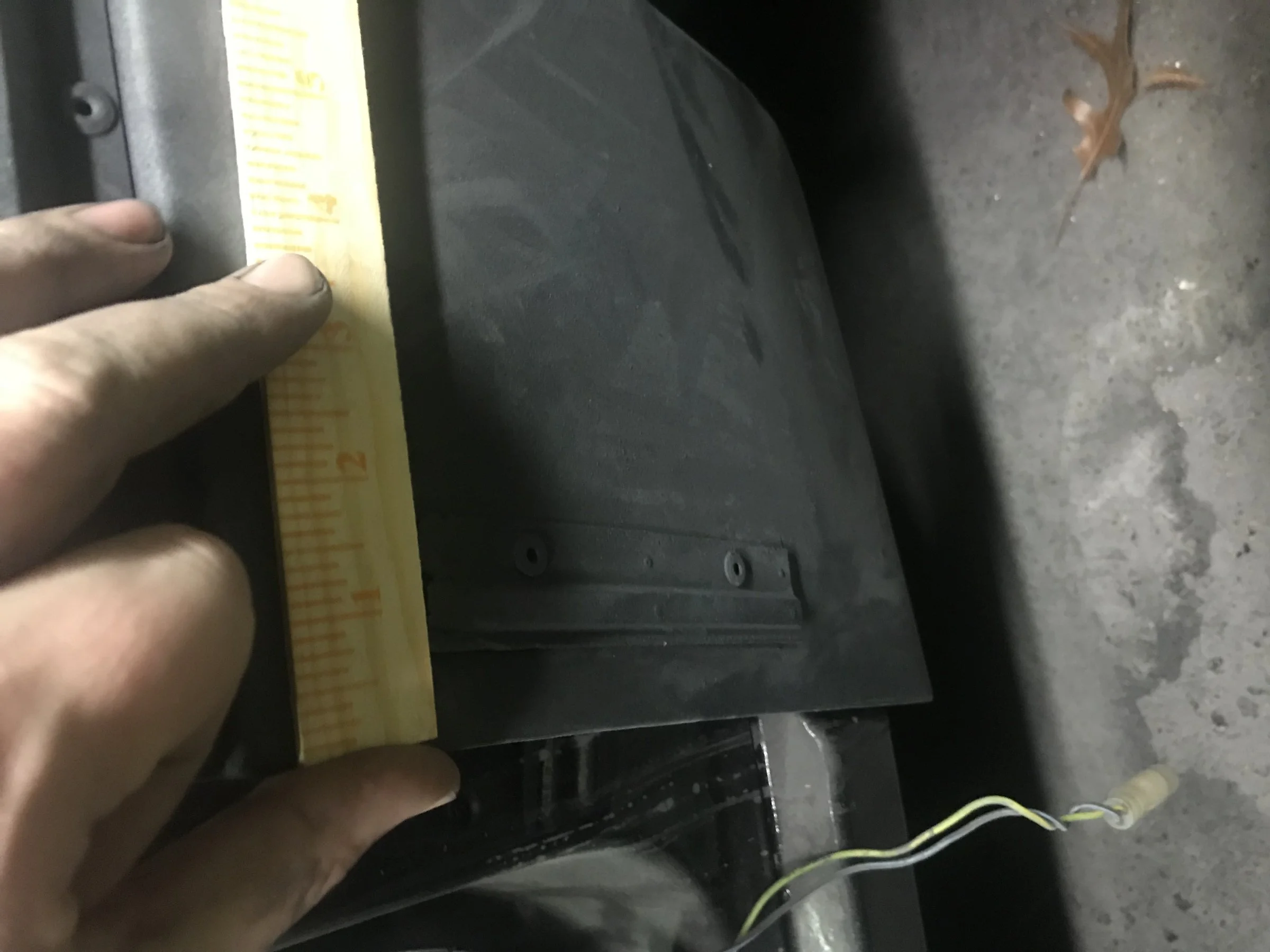

I grabbed a few pics while I could. I colored in the markings just in case. I’ll try to get it on a stand to get better ones soon.


Attachments

Martman

Active Member
Jun 20, 2016
162
23
28
43
Louisville, KY
#7
that is sweet! I can probably figure it out from those. With the measurement from edge of fender and the one from top to crease in fender I can do some taping and double check before drilling and mounting.


Martman

Active Member
Jun 20, 2016
162
23
28
43
Louisville, KY
#8
@billison thanks a bunch for the measurements. Put the drivers side on tonight and everything fits good. Much appreciated!
