HELP! Cranks won't start!

ProfSnakes

New Member
Nov 4, 2011
1
0
0
Alright at my wits end here...

I've spent a bit of time on this and so far I haven't made much progress.
A couple days ago it started taking longer to start. Then yesterday it decided to stall and then refused to start again as I was about to pull out of a parking lot.

The first thing I did was replace the distributor. As I have had similar problems before and its been the culprit most of the time.

After that I found the sticky on here and went through some of it.

Cranks OK, but No Start Checklist for Fuel Injected Mustangs

Revised 14-Sept-2008 to add warning about over fusing circuits
All text applies to all models unless stated otherwise.

Note: 94-95 specific changes are in red

1.) Remove push on connector (small red/blue wire) from starter solenoid and turn ignition switch on. Place car in neutral or Park and set the parking brake. Remove the coil wire from distributor & and hold it 3/8” away from the engine block. Jumper the screw to the big bolt on the starter solenoid that has the battery wire connected to it. You should get a nice fat blue spark.
Most of the items are electrical in nature, so a test light, or even better, a voltmeter, is helpful to be sure they have power to them.

No spark, possible failed items in order of their probability:
A.) MSD or Crane ignition box if so equipped. Do have a 6al, the red light flashes when the ignition is turned. Disconnected it to remove it from the equation.
B.) Coil Pulled spark plug and connected to the coils wire. Laid it against the engine and turned the ignition. Getting spark here.
C.) TFI module
D.) PIP sensor in distributor. The PIP sensor supplies the timing pulse to trigger the TFI and injectors. See paragraph 5A - a noid light will tell if the pip is working by flashing when the engine is cranking. This is what has always caused the problem in the past. replaced the Distributor and the problem remains. I have gotten a bad one before when I replaced it though...
E.) No ECC or computer power - ECC or computer relay failure
86-93 models only: ECC relay next to computer - look for 12 volts at the fuel injector red wires
94-95 models only: EEC or PCM power relay in the constant control relay module. Look for 12 volts at the fuel injector red wires. Checked 12V from injector red wire to ground. 12V present.
F.) No ECC or computer power - fuse or fuse link failure
86-93 models only: Fuse links in wiring harness - look for 12 volts at the fuel injector red wires. All the fuse links live in a bundle up near the starter solenoid.
94-95 models only: 20 amp EEC fuse in the engine compartment fuse box. Look for 12 volts at the fuel injector red wires. Checked 12V from injector red wire to ground. 12V present.
G.) Ignition switch - look for 12 volts at the ignition coil red/lt green wire. No 12 volts, blown fuse link or faulty ignition switch. Remove the plastic from around the ignition switch and look for 12 volts on the red/green wire with the switch in the Run position. No 12 volts and the ignition switch is faulty. If 12 volts is present in the Run position, then the fuse or fuse link is blown.
Note: fuses or fuse links blow for a reason. Don’t replace either a fuse or fuse link with one with a larger rating than stock. Doing so invites an electrical fire.
Ignition fuse links may be replaced with an inline fuse holder and 5 amp fuse for troubleshooting purposes.
94-95 models only: Check inside fuse panel for fuse #18 blown – 20 amp fuse
H.) Bad or missing secondary power ground. It is located between the back of the intake manifold and the driver's side firewall. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges.
I.) Missing or loose computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire. You'll find it up next to the starter solenoid where the wire goes into the wiring harness
J.) Computer
K.) Engine fires briefly, but dies immediately when the key is released to the Run position. Crank the engine & when it fires off, pull the small push on connector (red wire) off the starter relay (Looks like it is stuck on a screw). Hold the switch in the crank position: if it continues to run there is a problem with either the ignition switch or TFI module. Check for 12 volts at the red/green wire on the coil with the switch in the Run position. Good 12 volts, then replace the TFI. No 12 volts, replace the ignition switch.

See the following links for wiring diagrams...

AutoZone Auto Parts Stores | Motor Oil, Exhaust Systems, Suspension Parts, Car Starters, Car Stereo, Radiator Hoses, Headlights, Car Accessories, and More - AutoZone.com for 79-88 model Mustangs
Computer/fuel pump/ignition wiring diagram, 86 model http://www.autozone.com/images/cds/gif/large/0900823d80167158.gif
Computer/fuel pump/ignition wiring diagram, 87 model http://www.autozone.com/images/cds/gif/large/0900823d8016715e.gif
Ignition wiring diagram, 87 model http://www.autozone.com/images/cds/gif/large/0900823d8016715f.gif
Computer/fuel pump wiring diagram, 88 model http://www.autozone.com/images/cds/gif/large/0900823d80167162.gif[
Ignition wiring diagram, 88 model http://www.autozone.com/images/cds/gif/large/0900823d80167163.gif

AutoZone Auto Parts Stores | Motor Oil, Exhaust Systems, Suspension Parts, Car Starters, Car Stereo, Radiator Hoses, Headlights, Car Accessories, and More - AutoZone.com for 89-93 model Mustangs
Computer/fuel pump/ignition wiring diagram, 89-90 cars http://www.autozone.com/images/cds/gif/large/0900823d8019595f.gif
Computer/fuel pump/ignition wiring diagram, 91-93 cars
http://www.autozone.com/images/cds/gif/large/0900823d80195960.gif

http://www.autozone.com/servlet/UiBroker?ForwardPage=/az/cds/en_us/0900823d/80/1d/db/3c/0900823d801ddb3c.jsp for 94-98 model cars

2.) Spark at coil wire, pull #1 plug wire off at the spark plug and check to see spark. No spark, possible failed items in order of their probability:

A.) Moisture inside distributor – remove cap, dry off & spray with WD40
B.) Distributor cap Replaced
C.) Rotor Replaced
D.) Spark Plug wires
E.) Coil weak or intermittent - you should see 3/8" fat blue spark with a good coil Coil is a fairly new MSD coil. I was getting sparks off a plug that was plugged into the wire that normally goes from the coil to the distributor.

3.) Spark at spark plug, but no start.
Next, get a can of starting fluid (ether) from your local auto parts store: costs a $1.30 or so. Then pull the air duct off at the throttle body elbow, open the throttle, and spray the ether in it. Reconnect the air duct and try to start the car. Do not try to start the car without reconnecting the air duct.

Two reasons:
1.) If it backfires, the chance for a serious fire is increased.
2.) On Mass Air cars, the computer needs to measure the MAF flow once the engine starts.
If it starts then, you have a fuel management issue. Continue the checklist with emphasis of fuel related items that follow. If it doesn’t, then it is a computer or timing issue: see Step 4.

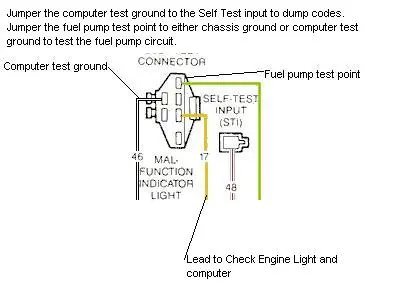

Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 5-20 seconds and shut off. To trick the fuel pump into running, find the EEC test connector and jump the connector in the Upper RH corner to ground. The EEC connector is near the wiper motor and LH hood hinge.

If the relay & inertia switch are OK, you will have power to the pump. Check fuel pressure – remove the cap from the schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. Beware of fire hazard when you do this. In a pinch, you can use a tire pressure gauge to measure the fuel pressure. It may not be completely accurate, but you will have some clue as to how much pressure you have. If you have any doubts about having sufficient fuel flow/pressure, rent a fuel pressure test gauge from the auto parts store. That will tell you for sure if you have adequate fuel pressure.


4.) No fuel pressure, possible failed items in order of their probability: I do have fuel pressure. I don't know how much but it squirts out of the valve if I depress the pin a bit. I also hear the fuel pump. and smell fuel on any plug I pull.
A.) Tripped inertia switch – Coupe & hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch
B.) Fuel pump power relay – located under the driver’s seat in most stangs built before 92. On 92 and later model cars it is located below the Mass Air Flow meter. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) 86-90 models only: Blown fuse link in wiring harness. Look for 12 volts at the Orange/Lt Blue wire on the fuel pump relay.
91-93 models only Blown fuse link in wiring harness. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
The fuse links for all model years 86-93 live in the wiring harness near the starter solenoid.
94-95 models only: 20 amp fuel pump fuse in the engine compartment fuse box. Look for 12 volts at the Dark green/yellow wire on the constant control relay module.
F.) Engine seem to load up on fuel and may have black smoke at the tailpipe. Fuel pressure regulator failed. Remove the vacuum line from the regulator and inspect for fuel escaping while the pump is running. If fuel is coming out the vacuum port, the regulator has failed. Check the regulator vacuum line for fuel too. Disconnect it from the engine and blow air though it. If you find gas, the regulator has failed.

5.) Fuel pressure OK, the injectors are not firing.
A.) A noid light available from any auto parts store, is one way to test the injector wiring.
The noid light plugs into the fuel injector harness in place of any easily accessible injector. Plug it in and it will flash if the injector is firing. Don't have a noid light. Used a led strip I had on hand, pulled an injector and plugged the wires into the connector, the strip flashed when I turned the ignition.
B.) I like to use an old injector with compressed air applied to the injector where the fuel rail would normally connect. I hook the whole thing up, apply compressed air to the injector and stick it in a paper cup of soapy water. When the engine cranks with the ignition switch on, if the injector fires, it makes bubbles. Cheap if you have the stuff laying around, and works good too.
D.) Pull an injector wire connector off and look for 12 volts on the red wire when the ignition switch is on. 12V present
E.) No power, then look for problems with the 10 pin connecter (salt & pepper shakers at the rear of the upper manifold).
F.) No power and the 10 pin connections are good: look for broken wiring between the orange/black wire on the ECC relay and the red wire for the 10 pin connectors.
G.) TPS voltage exceeds 3.7 volts with the throttle closed. This will shut off the injectors, since the computer uses this strategy to clear a flooded engine. Use a DVM, a pair of safety pins, and probe the black/white and green wires to measure the TPS voltage.
On a 94-95 Mustang, probe the black/white and grey/white wires to measure the TPS voltage.
It should be .5-.99 volts with the key on, engine not running. Note that if the black/white wire (signal ground) has a bad connection, you will get some strange readings. Make a second measurement using the battery post as the ground to eliminate any ground problems. If the readings are different by more than 5%, you may have a high resistance condition in the black/white signal ground circuit.

6.) Spark & fuel pressure OK.
A.) Failed IAB or improperly set base idle (no airflow to start engine). Press the throttle ¼ way down and try to start the car. See the "Surging Idle Checklist for help with all your idle/stall problems.
B.) Failed computer (not very likely)
C.) Engine ignition or cam timing off: only likely if the engine has been worked on recently). Messed with the timing briefly after replacing the distributor and cleaning the cap and rotor. it started briefly but quit in less than a minute. then wouldn't stat again.
D.) Firing order off: HO & 351 use a different firing order from the non HO engines.
HO & 351W 1-3-7-2-6-5-4-8
Non HO 1-5-4-2-6-3-7-8
E.) No start when hot - Press the throttle to the floor & try starting it if you get this far. If it starts, replace the ECT.
F. ) Engine that has had the heads off or valves adjusted. Do a compression test to make sure the valves are not adjusted too tight. You should have a minimum of 90 PSI on a cold engine.


As far as recent work goes. Last weekend I pulled the intake off and replaced the valve cover gaskets. While I was doing that I pulled the distributor to get to the heater pipe. I've been removing the emissions equipment and capped off some open vacuum lines. After I was done last weekend the car ran better than it has in years.

I did check the rotor position with the #1 cyl at TDC.
