Brakes Hydroboost Conversion On Fox

Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,345
7,602
224
Massachusetts
I think I want to start looking into a hydroboost conversion. Notice the MC/booster combo on Ebay tends to fetch around $200 for the pair, and that's what the parts go for new/reman on rockauto.com.

Anyway, I know they share the typical Sn95 booster mount pattern. Shouldn't be an issue as I've already installed an SN95 booster, so I modified for the bolt pattern already.

Big issue is the brake pedal arm. It shares the same straight pedal arm as the 96-98 vac booster which usually you want to avoid for binding reasons. How do people address this?

  • Sponsors(?)


2000xp8

SN Certified Technician
Aug 8, 2003
6,574
857
194
NJ
I drilled a 4th hole (if I remember correctly), hooked it on the brake pedal and I think that was it.
The arm had a little angle to it, but had no effect on how it worked.
I considered heating it up and bending it a little, but I never did.


For the hoses, the ends are what is most important, a hydraulic shop can cut, extend, shorten and join them as necessary.

I can't remember which hydro I used, I think the earlier model, at some point it changed, I can check later.

Do not buy the hydroboost with the hoses, the hoses cost quite a bit individually and some are discontinued from ford.

Last edited:
  • Like
Reactions: Mustang5L5

Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,345
7,602
224
Massachusetts
So are the hoses all pretty much custom? No off the shelf lines?


Sent from my iPhone using Tapatalk


2000xp8

SN Certified Technician
Aug 8, 2003
6,574
857
194
NJ
So are the hoses all pretty much custom? No off the shelf lines?


Sent from my iPhone using Tapatalk
Well, you will be hooking it to the fox power steering pump, I doubt that is in the same location as the 03 cobra pump.
The 4.6 hoses are all oddball to go around a much wider engine with a lot more in the way.
The 4.6 also has a reservoir and if I remember correctly the fox fluid just goes in the pump.

I only cut one line and had it altered ($40), but mine were all meant for the engine I was using.

And I meant in the first post, don't buy WITHOUT the hoses.


Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,345
7,602
224
Massachusetts
Ah. Gotcha. Makes sense now considering the cost of hoses on eBay.


Sent from my iPhone using Tapatalk


2000xp8

SN Certified Technician
Aug 8, 2003
6,574
857
194
NJ
I think you could always make up your own hoses, i'm pretty sure russel has all the fittings necessary.

I'm not so sure I've ever seen anyone run the hydro with a fox pump.

And i do have the earlier 96-98 hydroboost, that's why i had to cut the one line.


Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,345
7,602
224
Massachusetts
I'm not so sure I've ever seen anyone run the hydro with a fox pump.
Found a couple guys over on Corral.net using it with the stock fox pump. Also a few guys are running earlier Mark7/continental hydroboost setups.

More of a direct bolt in, but the downside here is parts are a bit harder to find. Even if you buy a reman unit, you need a few unique parts that don't come with the remans, so you are scouring ebay/yards for them.

The problem I'm finding is that nobody really has documented this well. Pictures are broken links, and it seems as if everyone does it a different way

Last edited:

2000xp8

SN Certified Technician
Aug 8, 2003
6,574
857
194
NJ
I can see the documentation being an issue. I know i'm not a documenting type of guy, I fly by the seat of my pants sometimes and i'm more concerned with getting it done than taking pics.

I think if you get the hoses to the right ports and they don't leak it doesn't really matter how you get it done.

Another problem I found was all the damn diagrams were one dimensional and sometimes it was confusing on where the hoses went.

When it came to the plunger angle many people chose to make some type of change, but I couldn't find anyone that physically tried it at an angle. There was no engine in my car at the time so I figured what the hell..


Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,345
7,602
224
Massachusetts
Well, I mean more of parts used and such. For instance, on another forum it was stated that the 96-98 units are more preferred due to the hoses for the PS being on the driver's side while the 99-04 units hoses would interfere with the wiper motor. Not sure if this was the case as I've found no mention elsewhere, but I also notice a lot of guys swapping in hydroboost on their terminator/coyote swaps aren't running wiper motors either, so they could simply not care. While I don't drive my car in the rain ever, I still want to keep the wipers intact, so this little detail would be critical to me.

Still exploring this for now. Haven't pulled the trigger on buying a part...yet


baileygruwell

New Member
May 22, 2019
11
0
1
20
Indiana
sorry to revive this post, but looking to do this conversion on my 5.0. no plans for a coyote or a mod motor swap as of right now, mainly looking to work my 4 wheel disc but without putting a huge vacuum booster in it and “massaging” my shock tower seeing how i just spent houra upon hours shaving and painting my engine bay. i wanted to go hydroboost but don’t have any idea on how i would mount the 4.6 power steering pump so i thought about the 5.0 pump, but if you used the stock 5.0 power steering pump how would it get plumbed since there aren’t any holes made in the pump for a hydroboost provision. i thought of maybe putting tee’s in certain lines but then would i push enough pressure to work the hydroboost system and the power steering at the same time?


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,076
2,624
224
73
Dublin GA
sorry to revive this post, but looking to do this conversion on my 5.0. no plans for a coyote or a mod motor swap as of right now, mainly looking to work my 4 wheel disc but without putting a huge vacuum booster in it and “massaging” my shock tower seeing how i just spent houra upon hours shaving and painting my engine bay. i wanted to go hydroboost but don’t have any idea on how i would mount the 4.6 power steering pump so i thought about the 5.0 pump, but if you used the stock 5.0 power steering pump how would it get plumbed since there aren’t any holes made in the pump for a hydroboost provision. i thought of maybe putting tee’s in certain lines but then would i push enough pressure to work the hydroboost system and the power steering at the same time?
I had a 4 wheel disk brake setup using 73 MM Lincoln calipers up front, a 94-95 V6 master cylinder, and 87-88 Turbo Coupe or 93 Cobra rear disks with a stock booster from a 5.0 Mustang (87-93 model) . I have had people tell me that is won't work, but it did and it was great.

Last edited:

Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,345
7,602
224
Massachusetts
You can get the larger booster in without resorting to beating your fender. All depends on the angles you take and how clear your bay is.

I got mine in by removing the upper intake, trimming the booster studs slightly and slotting the firewall holes slightly to the pass side. Never touched the fender.


Compuguy2142

Member
Jun 12, 2019
12
2
13
61
Westchester, IL 60154
sorry to revive this post, but looking to do this conversion on my 5.0. no plans for a coyote or a mod motor swap as of right now, mainly looking to work my 4 wheel disc but without putting a huge vacuum booster in it and “massaging” my shock tower seeing how i just spent houra upon hours shaving and painting my engine bay. i wanted to go hydroboost but don’t have any idea on how i would mount the 4.6 power steering pump so i thought about the 5.0 pump, but if you used the stock 5.0 power steering pump how would it get plumbed since there aren’t any holes made in the pump for a hydroboost provision. i thought of maybe putting tee’s in certain lines but then would i push enough pressure to work the hydroboost system and the power steering at the same time?

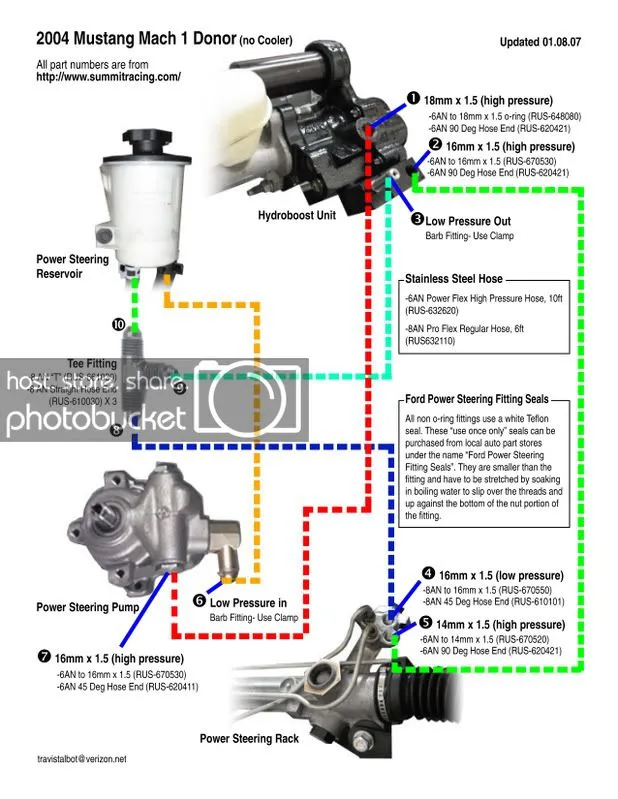

I'm looking to do this as well. Searching for documentation. Maximum Motorsports has a conversion kit. They have some tech data on what to use. They suggest 99-04 Mustang for donor to get the best pedal feel. I found a really good picture for the line hookup.
