Fox Installing Maximum Motorsport 4-point Roll Bar + Low Slung Door Bars In My '91 Vert

ReplayMan

Member
Jan 11, 2010
23
10
24
Long Island, NY
www.cardomain.com
I've got a '91 Mustang LX convertible with a Coyote swap and independent rear suspension. I want to move up from local autox to occasional HPDE track days with NASAne, and in order to participate, I need a proper 4-point roll bar.

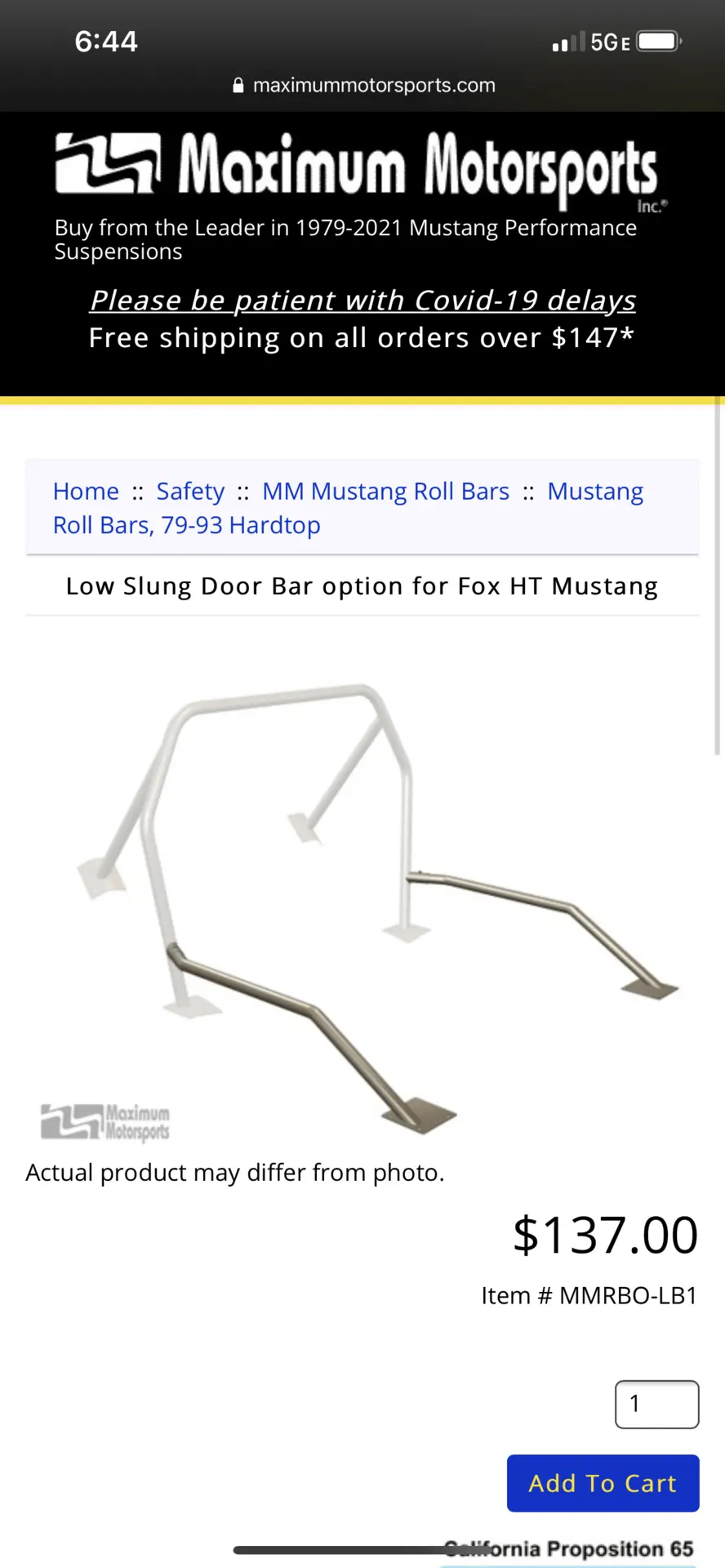

So I ordered Maximum Motorsport's with the fixed harness bar + diagonal bar for added support & protection. MM also has a low slung door bar, but for hardtops only, convertibles can only get the standard high door bars. Low door bars would be better for me, I use my car regularly, so I ordered them just in case they could be tweaked.
I had Rob at Real Speed Automotive do the job, same place that did the Coyote swap and IRS.

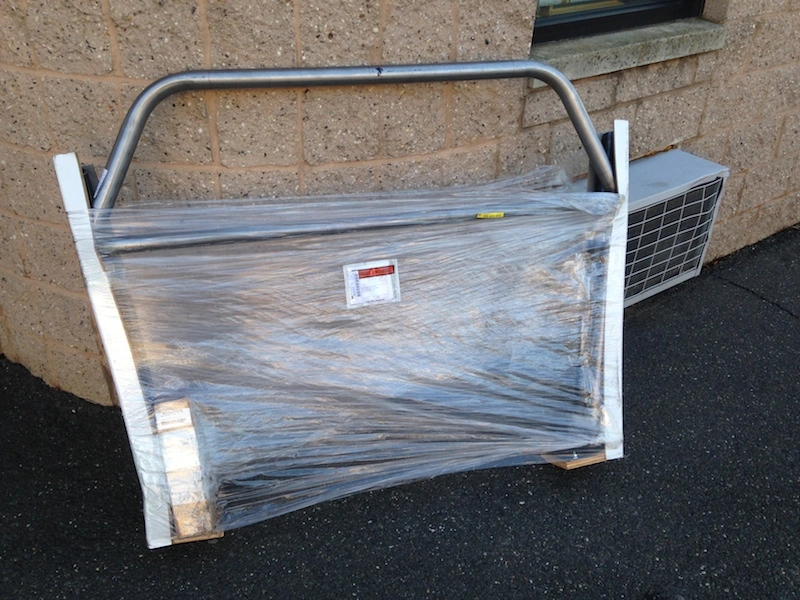

Shipped everything to Real Speed Automotive

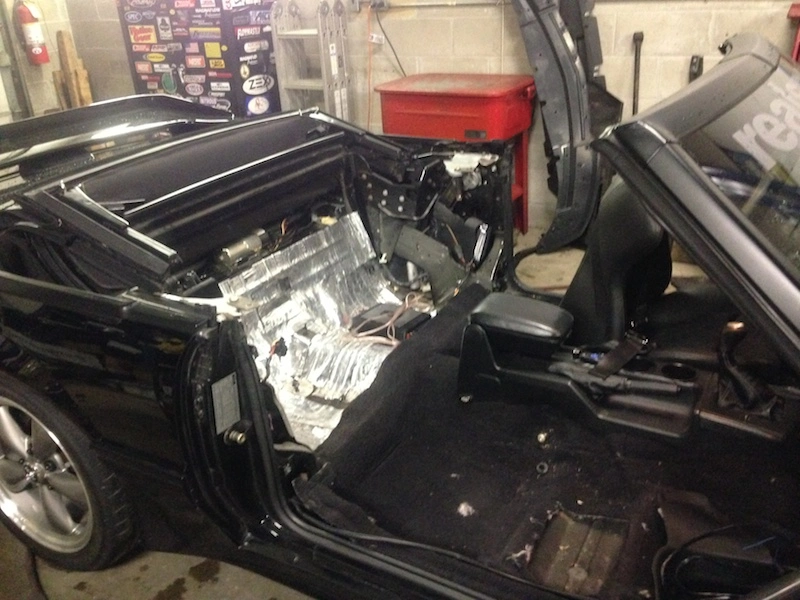

Stripped the interior

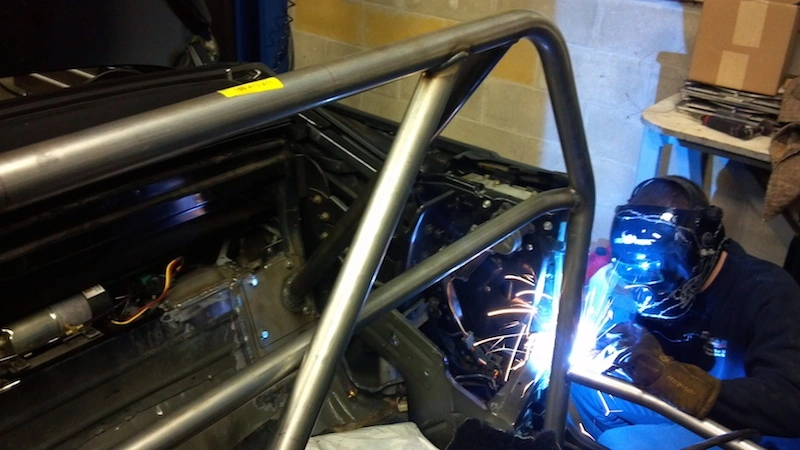

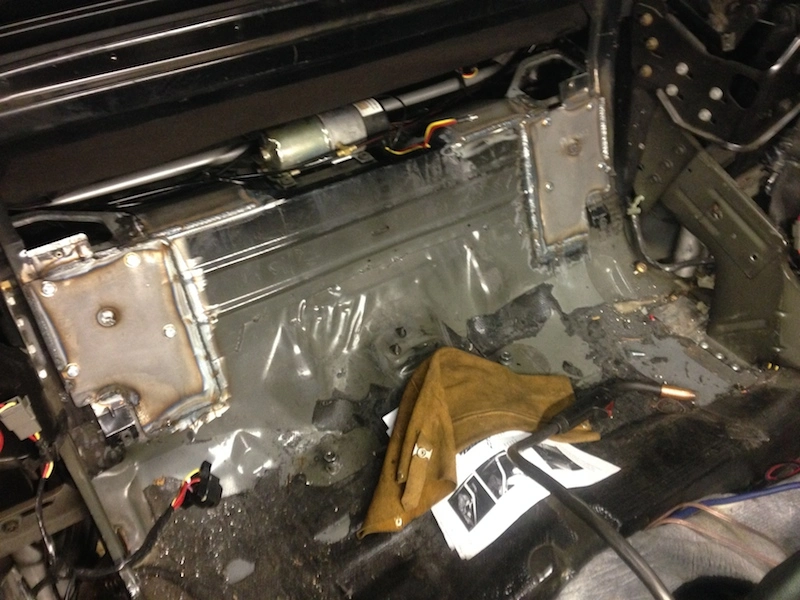

Rob welded support braces for added strength and support, rather than bolting the roll bar to the car.

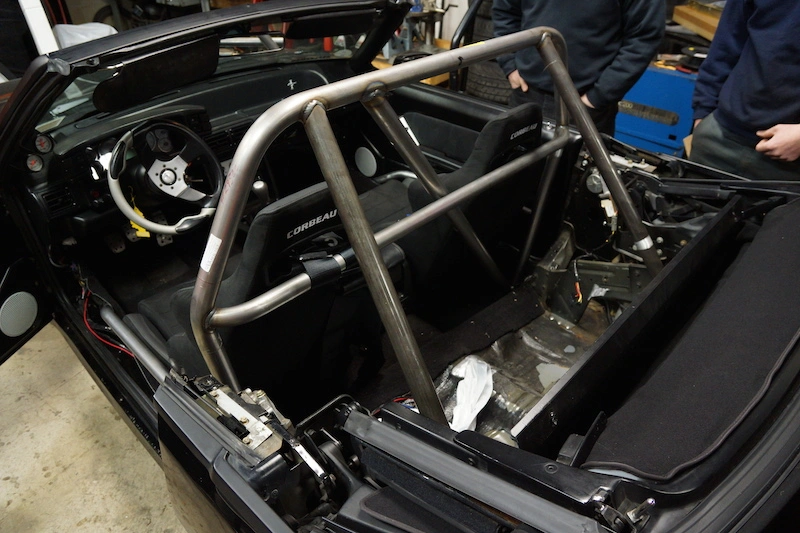

The 4-point roll bar, harness bar & diagonal bar fit great.

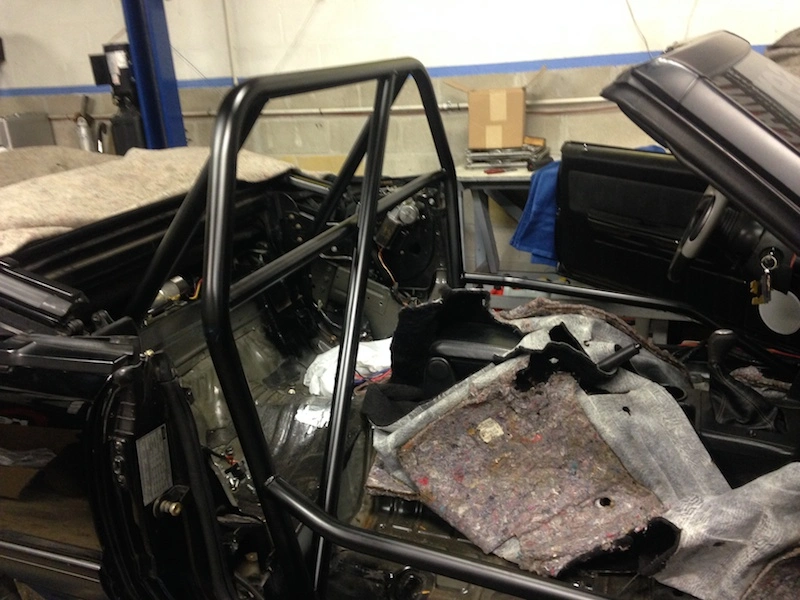

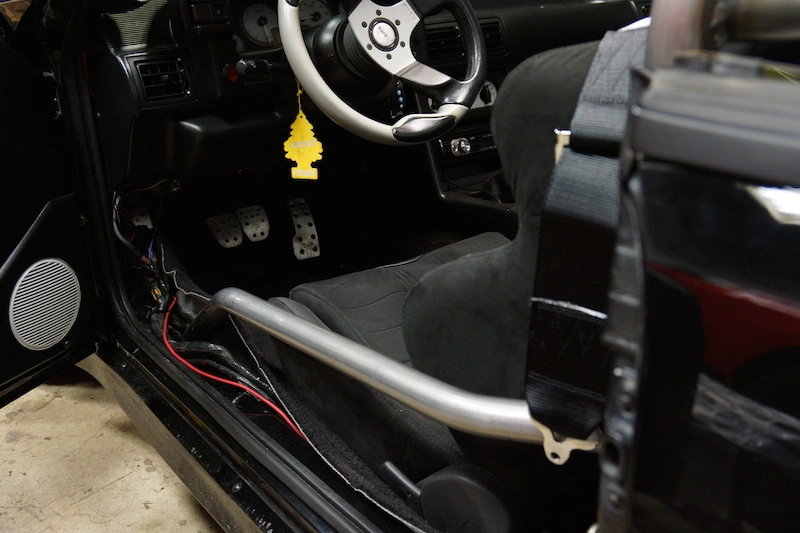

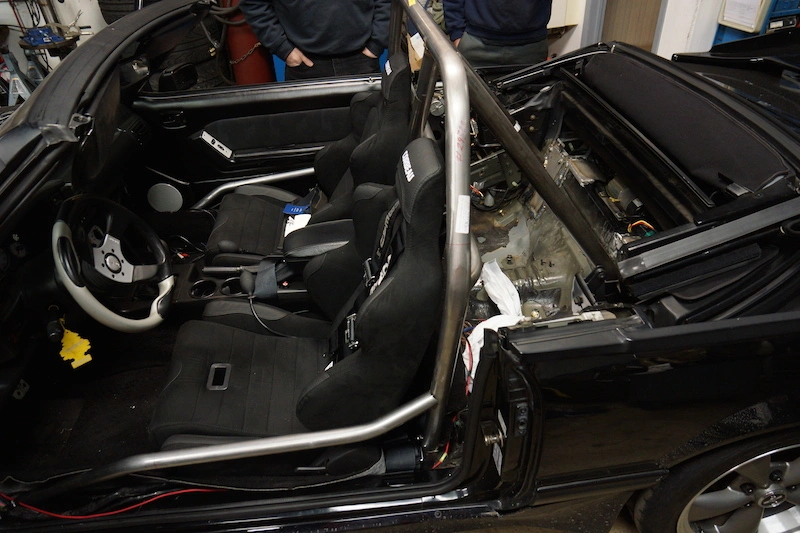

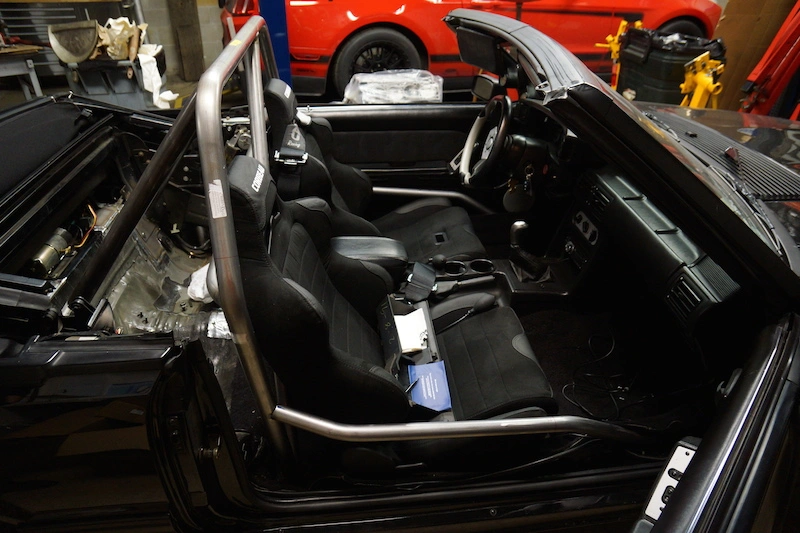

Yes, the low slung bars did not fit properly in the vert. You couldn't close the doors. Sorry, I don't have any before pics, but above are after the bars have been slightly bent, and fit great

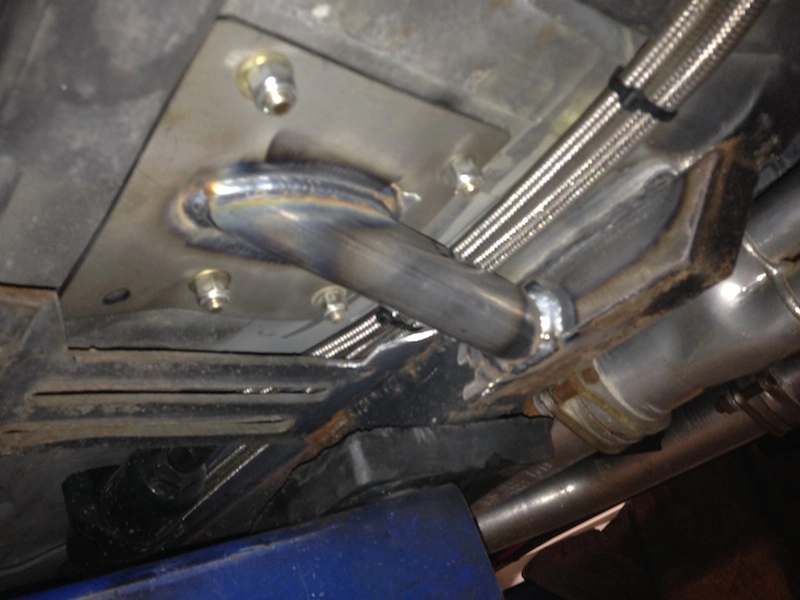

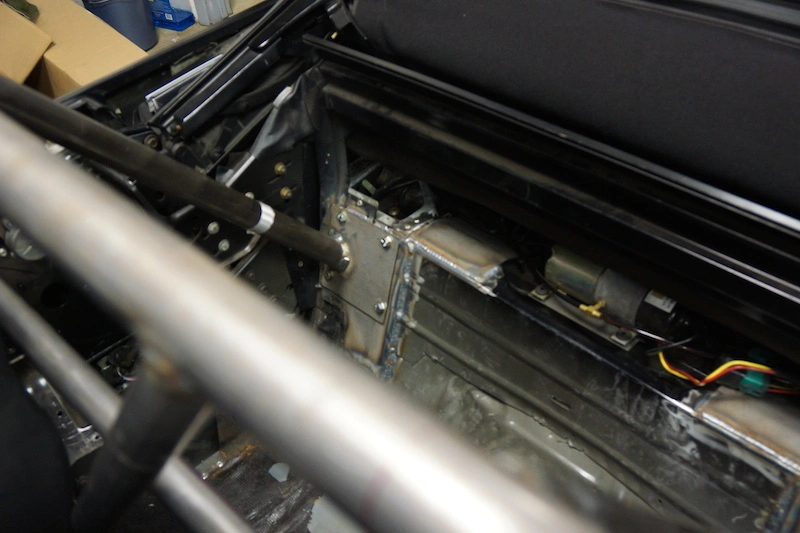

Underneath the car, Rob creates a bracket that is bolted the roll bar, and is welded directly to the MM full frame connectors.




After final fitment and tweaks, the roll bar is removed and sent out to be painted

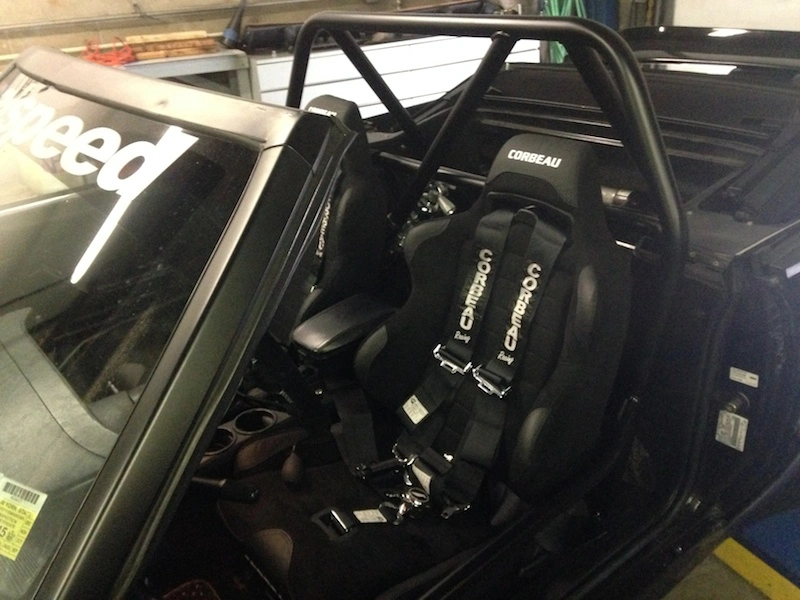

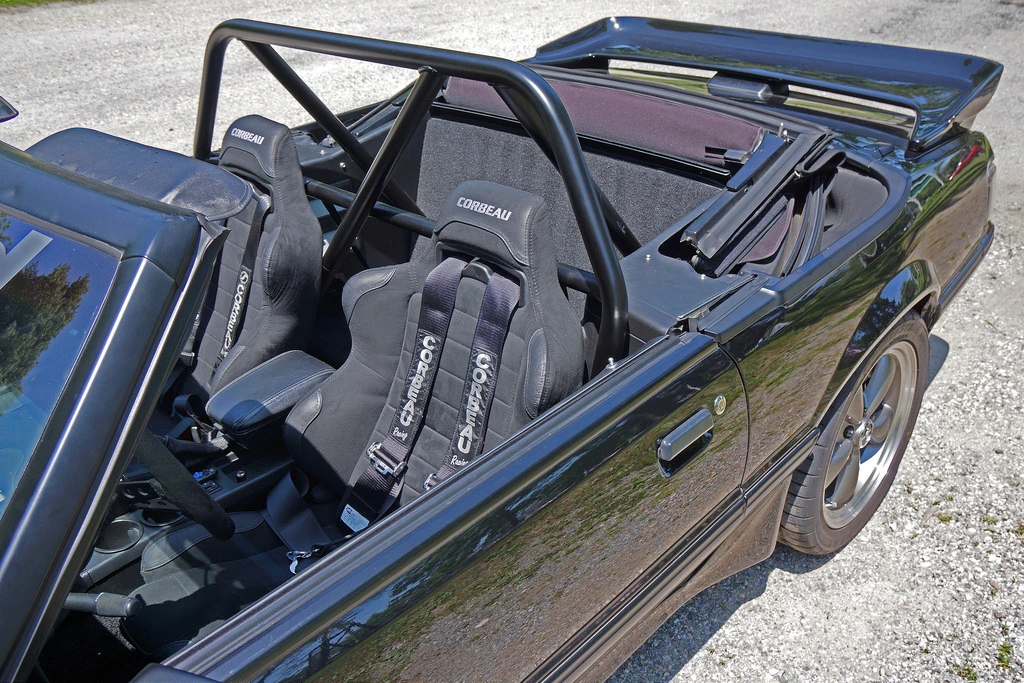

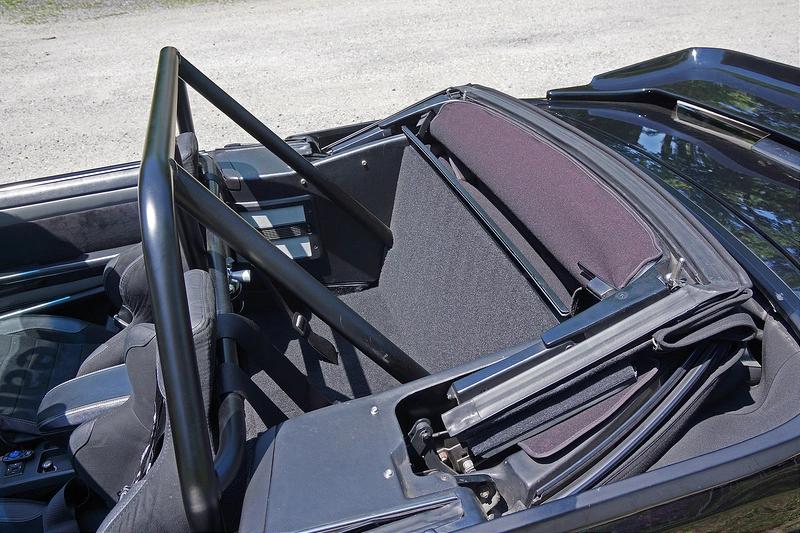

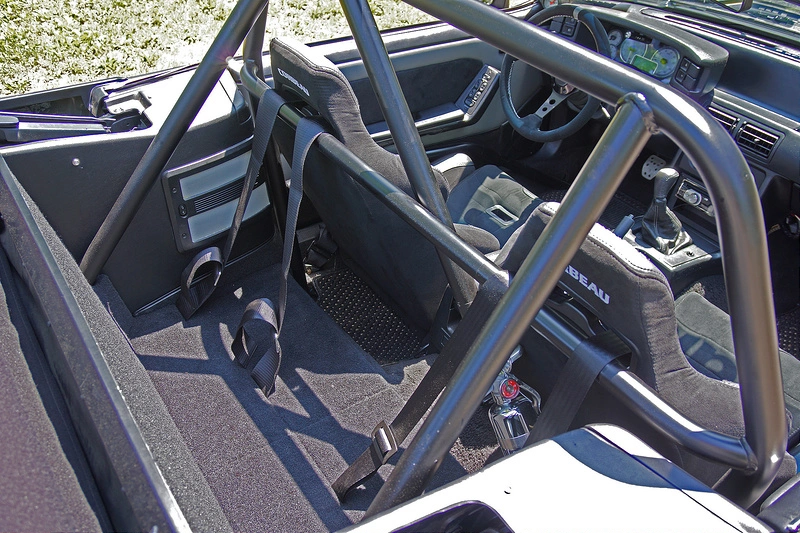

Looks and fits great. It has proper function and safety.

  • Like
Reactions: 5 users
  • Sponsors(?)


stykthyn

I want to measure mine. It doesn't look that tall.
10 Year Member
Jul 6, 2006
5,232
2,652
223
gainesville
Are you going to put padding on there?

  • Like
Reactions: 1 user

MFE92

5 Year Member
Aug 25, 2010
1,094
373
114
Phoenix
After all that effort and expense, you should have the shoulder belts mounted by having them wrapped around the harness bar, not going over it and tied into the floor. Waaaaaaaay less stretch that way when push comes to crash.

  • Like
Reactions: 1 user

Onefine88

Previously 89SSC18
10 Year Member
Aug 3, 2006
1,422
796
154
The roll bar looks Great! Clean install:nice:

How are liking the IRS? I just bought one from a '99 Cobra. Hope to find time to install it in my vert in the next couple months.

  • Like
Reactions: 1 user

ReplayMan

Member
Jan 11, 2010
23
10
24
Long Island, NY
www.cardomain.com
The roll bar looks Great! Clean install:nice:

How are liking the IRS? I just bought one from a '99 Cobra. Hope to find time to install it in my vert in the next couple months.
Love the IRS. You will enjoy it, but be aware...'99 have a weaker version.

After all that effort and expense, you should have the shoulder belts mounted by having them wrapped around the harness bar, not going over it and tied into the floor. Waaaaaaaay less stretch that way when push comes to crash.
Yes, gonna do that. An issue was, the harness bar is to close to the seat to actually wrap the belts around. Stay tuned.


FoxMustangLvr

I love my Pimp
SN Certified Technician
Oct 14, 2012
4,971
3,529
194
45
Spokane, Wa
Love the IRS. You will enjoy it, but be aware...'99 have a weaker version.


Yes, gonna do that. An issue was, the harness bar is to close to the seat to actually wrap the belts around. Stay tuned.
I have a 99' IRS in my hatch and love it.

@ReplayMan Your video of your IRS install was a great help. Thanks for that and also for this thread to show us how you're continuing to push your car to the extreme. Nice car!!


femurphy77

Member
Nov 9, 2011
11
5
13
Sorry about resurrecting this zombie thread but if the OP is still around will you please give a little more info on the low bar interference with the doors? I would think that the 'vert and coupe/hatches/verts would all have the same dimensions in these areas. Curious where you had to bend the bar to get the clearance, by your elbow, further down? TIA!


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
5,795
4,889
203
43
That bar should be higher. It's supposed to pass between the drivers elbow and shoulder. Those bars are way too low.

I used a S & W 10 point roll bar kit in my convertible. The rear bars went to the frame at each side in the trunk welded to plates. The front bars came down through the notched speaker holes in the dash to the floor plate. The door bars were straight and went down to the floor at the front bars. That plate was reinforced to the frame rail under the floor. The bars at the b pillar were welded to a plate and that plate was welded on the bottom with bar stock to the suffrage connectors.

I think the OPs installer had a geometry issue because of where the OP wanted the door bars.


CarMichael Angelo

my rearend will smell so minty fresh,
15 Year Member
Nov 29, 1999
10,442
8,935
234
63
Birmingham, al
m.imdb.com
OP hasn’t been on the forum since 2017
Well then,...we can criticize w/o concern for hurting anybody’s feelings. ;)

I’ve never liked the look of a roll bar in a vert. If somebody just has to have a convertible, or just has to go racing, then I think they need a second car........with a steel roof.
The Diagonal bar seems wrong to me. Everyone of those things I’ve seen were always welded inside the main hoop from corner to corner, and intersect the mid bar.

There..time to insert the appropriate emoji now..
:dead:


femurphy77

Member
Nov 9, 2011
11
5
13
Sickfox, yes the diagonal would be more effective if mounted higher like you suggest but the low bar design is for old people that don't want to climb over cage tubing in their "Sunday drive to the beach" car.

Toolow91, the link you provided is the same bar the OP used but they say specifically not for ragtops, I'm not opposed to massaging it in place but trying to get an idea of the definition of "massage".

CMA, anonymity makes people brave doesn't it? I like the look myself but don't care for the "light bar" or whatever they call the faux bar that many people put in. If you're going to do one at least get a little benefit from it. Yeah I'm still torn on all of the diagonal and cross bars but since my backseat has never been used for anything but a place to hold my CD case it's not a big issue for me. And yes, I do have a second car for racing; 66 mustang fully caged, 13" slicks front and rear and all kinds of noise, tire smoke, and fun whenever I hit the loud pedal!:banana:

Just noticed they show me as a new member! I may not be active but I've been a registered member since '11 IIRC!!! Insert indignant emojii here!

  • Like
Reactions: 1 user

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
20,136
6,800
203
polk county florida
Member since 2011 but only 3 posts
Got any pics of that 66 you can post in the classic forums?
BTW the 'classic' forums are for the 65-73 stangs not for us 'older' members
Just say'n :jester:

  • Like
Reactions: 1 user

femurphy77

Member
Nov 9, 2011
11
5
13
Member since 2011 but only 3 posts
Got any pics of that 66 you can post in the classic forums?
BTW the 'classic' forums are for the 65-73 stangs not for us 'older' members
Just say'n :jester:
I gettin' smarter not older, at least that's what I keep telling myself!:scratch::scratch:

  • Like
Reactions: 1 user

CarMichael Angelo

my rearend will smell so minty fresh,
15 Year Member
Nov 29, 1999
10,442
8,935
234
63
Birmingham, al
m.imdb.com
Sickfox, yes the diagonal would be more effective if mounted higher like you suggest but the low bar design is for old people that don't want to climb over cage tubing in their "Sunday drive to the beach" car.

Toolow91, the link you provided is the same bar the OP used but they say specifically not for ragtops, I'm not opposed to massaging it in place but trying to get an idea of the definition of "massage".

CMA, anonymity makes people brave doesn't it? I like the look myself but don't care for the "light bar" or whatever they call the faux bar that many people put in. If you're going to do one at least get a little benefit from it. Yeah I'm still torn on all of the diagonal and cross bars but since my backseat has never been used for anything but a place to hold my CD case it's not a big issue for me. And yes, I do have a second car for racing; 66 mustang fully caged, 13" slicks front and rear and all kinds of noise, tire smoke, and fun whenever I hit the loud pedal!:banana:

Just noticed they show me as a new member! I may not be active but I've been a registered member since '11 IIRC!!! Insert indignant emojii here!
Oh,..Im far from anonymous. People know where I work, where I live, what car is mine ( which is even further from anonymous) and in a lot of instances where i’ll be at a given time with regard to a regional car event. If someone with a bowl of pissed in wheaties wanted to find me, and it was convenient for them to do so, they could.
And on that note, if somebody gets all bent up because I said I didn’t like the look of a roll bar in a vert, or that I thought the diag bar was installed incorrectly....They need to stop watching the WE channel.

  • Like
  • Agree
Reactions: 1 users

femurphy77

Member
Nov 9, 2011
11
5
13
Oh,..Im far from anonymous. People know where I work, where I live, what car is mine ( which is even further from anonymous) and in a lot of instances where i’ll be at a given time with regard to a regional car event. If someone with a bowl of pissed in wheaties wanted to find me, and it was convenient for them to do so, they could.
And on that note, if somebody gets all bent up because I said I didn’t like the look of a roll bar in a vert, or that I thought the diag bar was installed incorrectly....They need to stop watching the WE channel.
Preach it brudda!
