Electrical Is there a reason the fuel pump circuit isn't fused?

evintho

Active Member
Nov 12, 2003
318
13
28
64
Santa Rosa, CA.
Visit site
Yep, I'm back with another dumb electrical question. See title. Is it because the inertia switch is part of the circuit? '93 5.0/AOD.
What I'm doing is integrating a Painless wiring harness into the factory Mustang engine control harness. The Painless fusebox has a provision for a 15a fuel pump fuse.
Can someone straighten this out for me? Thanks!

  • Sponsors(?)


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,018
11,124
224
Massachusetts

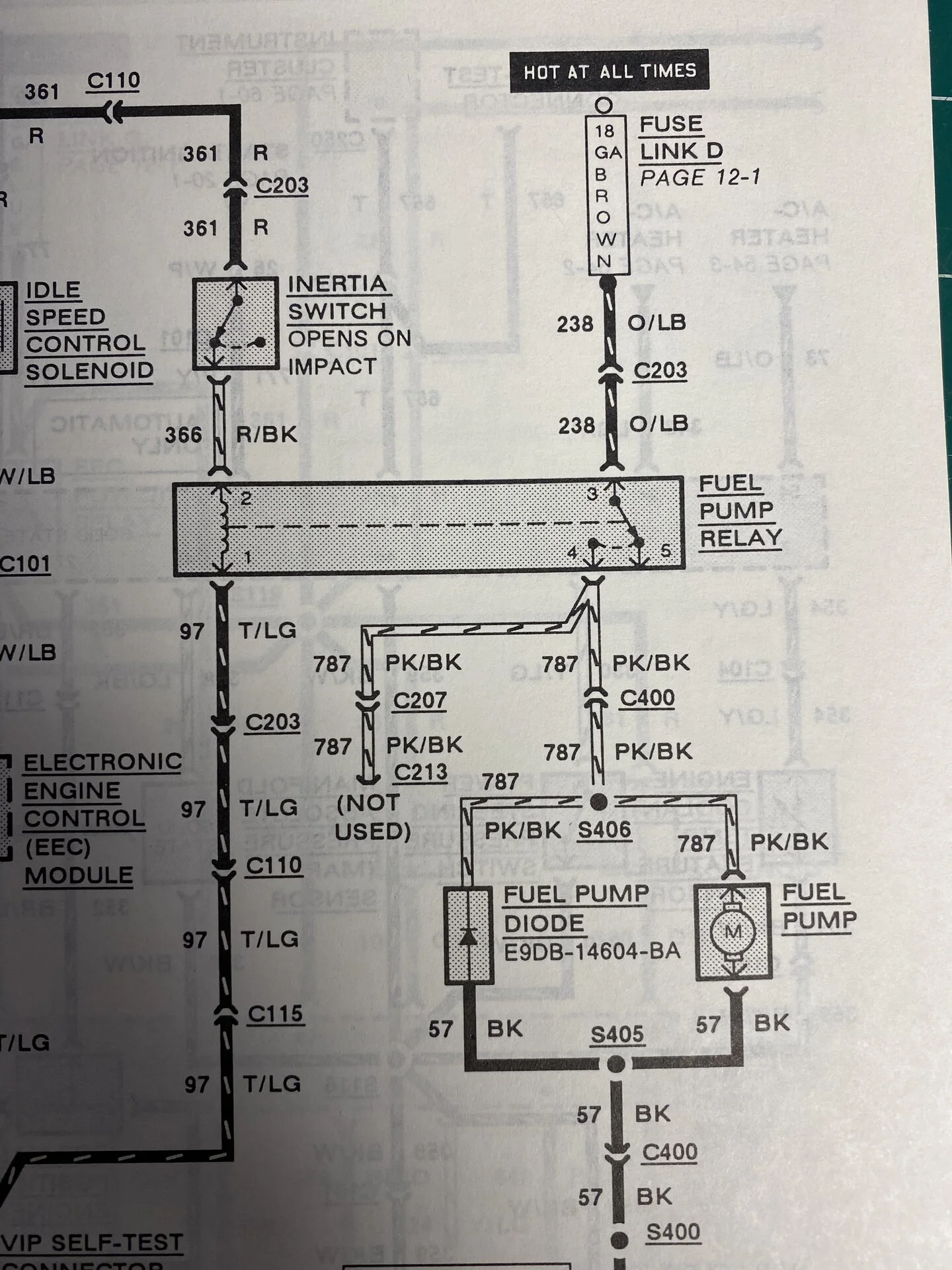

The fuel pump power circuit passes through a 18ga fusible link. It's in the bundle of links off the big think yellow wire off the starter relay

The inertia switch is not part of the circuit.


evintho

Active Member
Nov 12, 2003
318
13
28
64
Santa Rosa, CA.
Visit site
Roger that. Thank you!
I also noticed the Painless fusebox has a 30a fuse for the coil. I assume that's for a regular coil, not an E-coil like the Mustang has? I noted a fusible link in the Mustangs rd/grn wire that runs from the coil. That must be the circuit protector for that line, correct?
