Engine Is this vacuum line hose clamp normal?

ReefBlueGT

Member
Oct 4, 2018
29
5
13
44
California

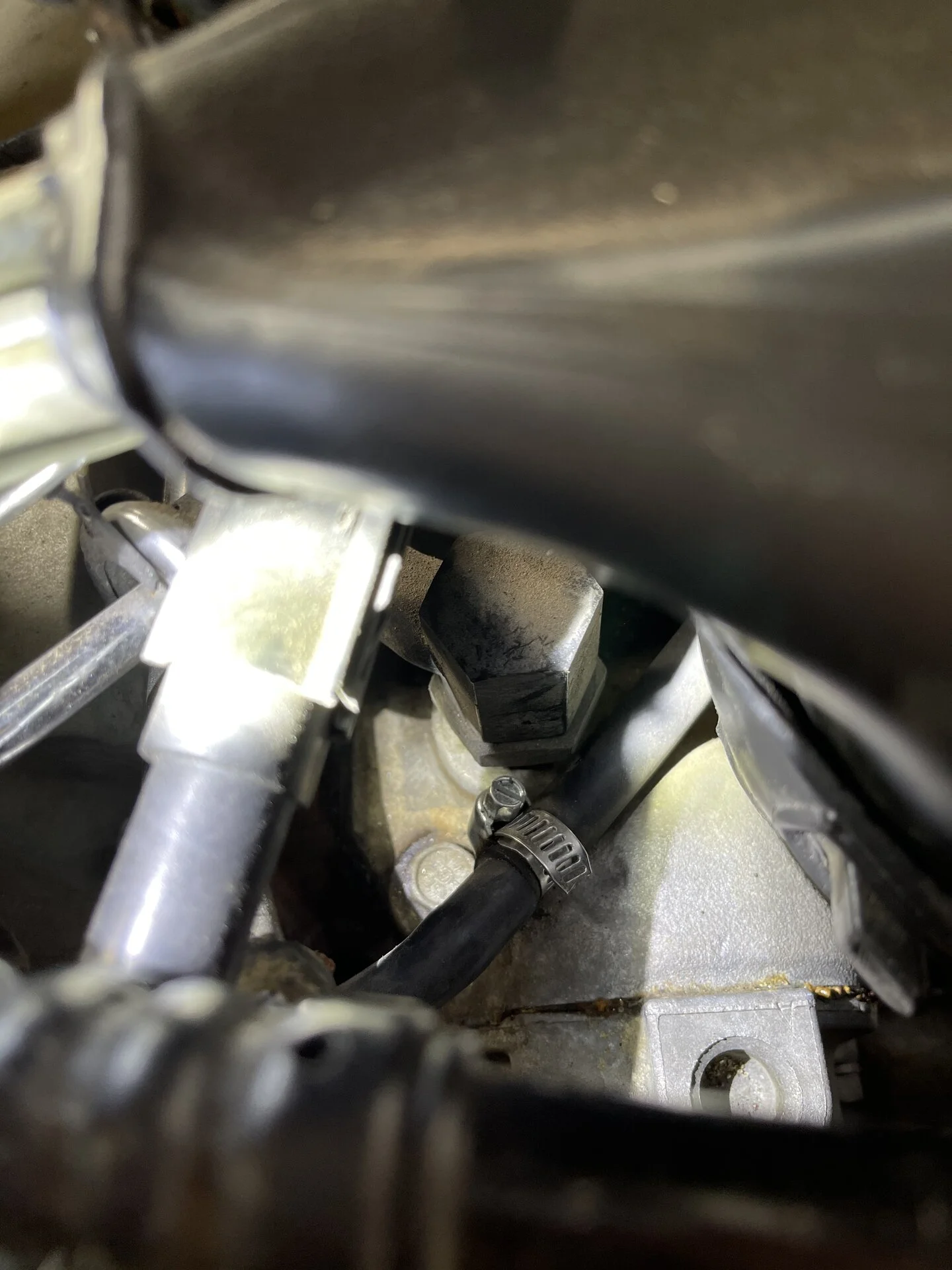

While examining my engine bay before I go to the trouble of a vacuum and smoke test, I came across this on the line from the upper intake to the charcoal canister. There’s some kind of union piece where the lines meet, with a hose clamp on the end nearest the intake. I gave it a small tug and it wasn’t loose, but wondering if this is normal, or if it indicates a repair, possibly a half-ass one, was done at some point instead of just replacing the whole line...


  • Sponsors(?)


KRUISR

5 Year Member
Apr 16, 2015
920
349
83
51
I think it is a repair. If I recall correctly, it is a single hose from cannister solenoid to intake.


Dan02gt

10 Year Member
Mar 2, 2003
745
317
113
Greenville, NC
There should be a coupler at that location. It allows you to remove the upper intake without having to dig under it to disconnect the vacuum line. The hose clamp is not normal though.

  • Like
Reactions: 1 user

ReefBlueGT

Member
Oct 4, 2018
29
5
13
44
California
Interesting. So possibly the coupler broke and they used something else with the hose clamp for added strength. In a stock setup, is that coupler one of the typical vacuum fittings found elsewhere in the engine bay?


ReefBlueGT

Member
Oct 4, 2018
29
5
13
44
California
Was thinking of some of the connections on the RH side of the bay, like the white nylon couplers/tees on some of the emissions or AC lines. Can’t wait to get my smoke machine hooked up and see what all is leaking.


Dan02gt

10 Year Member
Mar 2, 2003
745
317
113
Greenville, NC
Interesting. So possibly the coupler broke and they used something else with the hose clamp for added strength. In a stock setup, is that coupler one of the typical vacuum fittings found elsewhere in the engine bay?
Yes it is normal to have one there. I recall seeing any other vacuum couplers in the engine bay. The vacuum port that hose connects to is a pain to get to on the bottom of the intake. Ford didn’t want to have someone fiddling under the intake trying to connect it when they installed the engine in the car so they added a coupler there to speed up the process. It’s been on every stock fox body I’ve ever seen and really helps removing and reinstalling the upper intake.

I would get new vacuum hose and a new coupler and replace it. The fuel vapors are rough on that hose and probably why it needed repair.

  • Like
Reactions: 1 user

ReefBlueGT

Member
Oct 4, 2018
29
5
13
44
California
I took a closer look at it yesterday, removed the clamp, and took apart the hoses where they meet. There was a long, barbed connector inside, doubt its leaking. But there was some residue on the bottom side of the hose, I think from a small coolant leak off the heater tubes near there. What I didn’t like is that the hose was laying right on top of the engine block. That’s a lot of heat. So when I hooked it back up I at least got it up off there for now.
