KZGUNS tuning

Blown88GT

Founding Member
Nov 13, 1999
1,282
168
104
Palm Beach Gardens, FL
#61
I agree "vagueness associated with the settings". It is the hallmark of hardware/software developers.

To the OP, use the tool tips in Tuner Studio, i.e. the little blue question marks.

Tool Tip:
Frequency to operate at. This varies with valve type. Ford/Bosch valves typically operate 50-100Hz. Miata valves are closer to 300Hz.
Be aware that above 78Hz the output becomes less precise.


Sine there is no 78, just 31, 62, 92 then 124....I've been using 124 Hz.

  • Sponsors (?)

KZGUNS

Active Member
Jul 23, 2018
317
64
38
42
chardon, Ohio
#62
I've been working on cars damn near my entire 42 years of life. Buying my first car at 14 (70 Torino) fixing it up and driving it when i was 16. My bro raced fords and had many over the years and we built many engines in that time. This Fuel Injection systems and computers etc is mostly new to me. Seeing you guys talk about all the fine points of these tunes makes me feel like the guy who cant even change his own oil. Lots to learn for me but i'm eager as i like to know everything i can about my cars. You guys are a wonderful resource!! I'm glad you're willing to spread your knowledge.


KZGUNS

Active Member
Jul 23, 2018
317
64
38
42
chardon, Ohio
#63

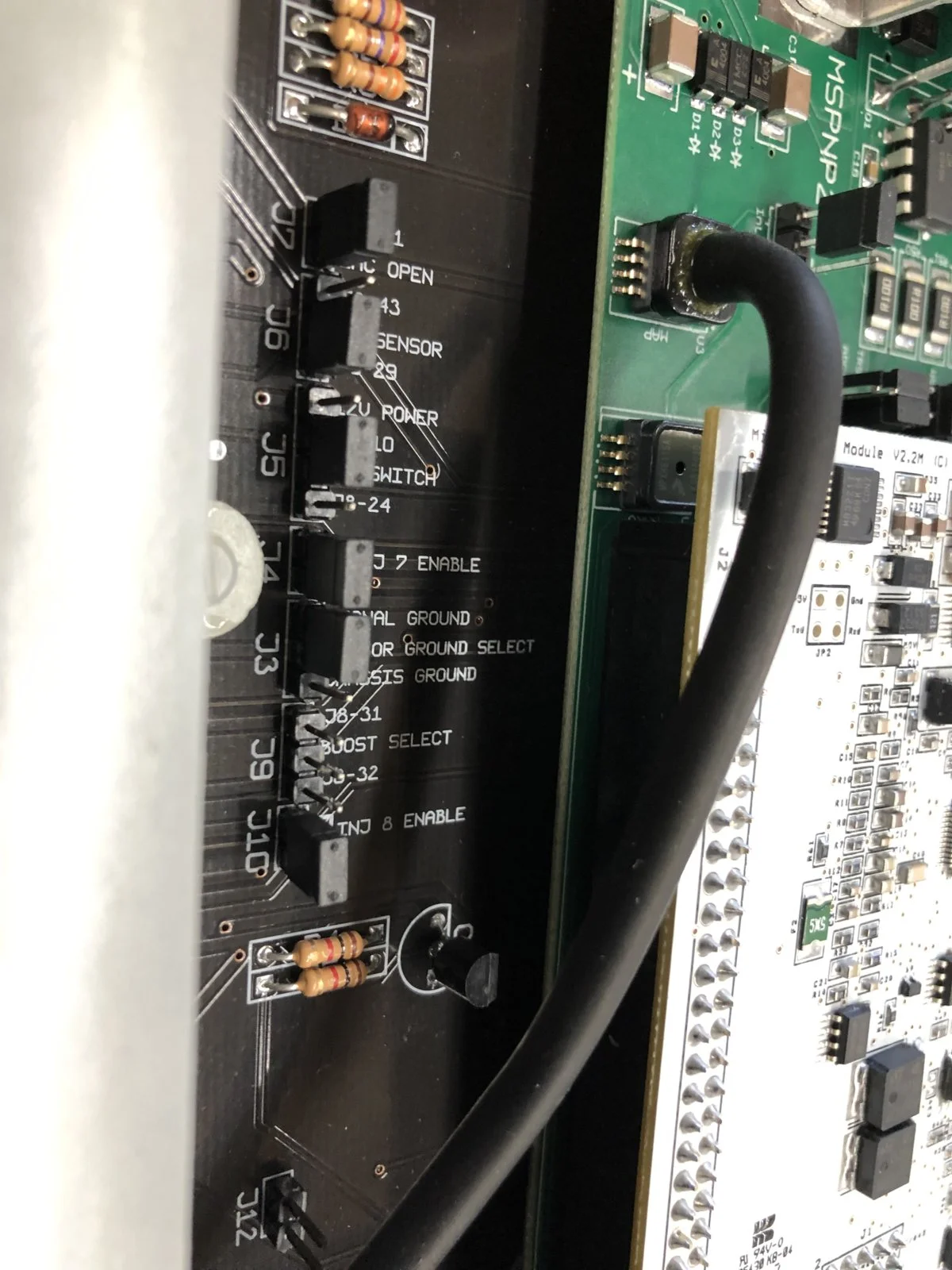

Previous owner was running a WB as well I took apart the plug to confirm 21 pin he also had a tach output on 7 (edit: not tach, boost controller.) Here’s a picture of the jumpers. I think it’s correct but can someone confirm?
Thanks!


Attachments

Last edited:

KZGUNS

Active Member
Jul 23, 2018
317
64
38
42
chardon, Ohio
#64

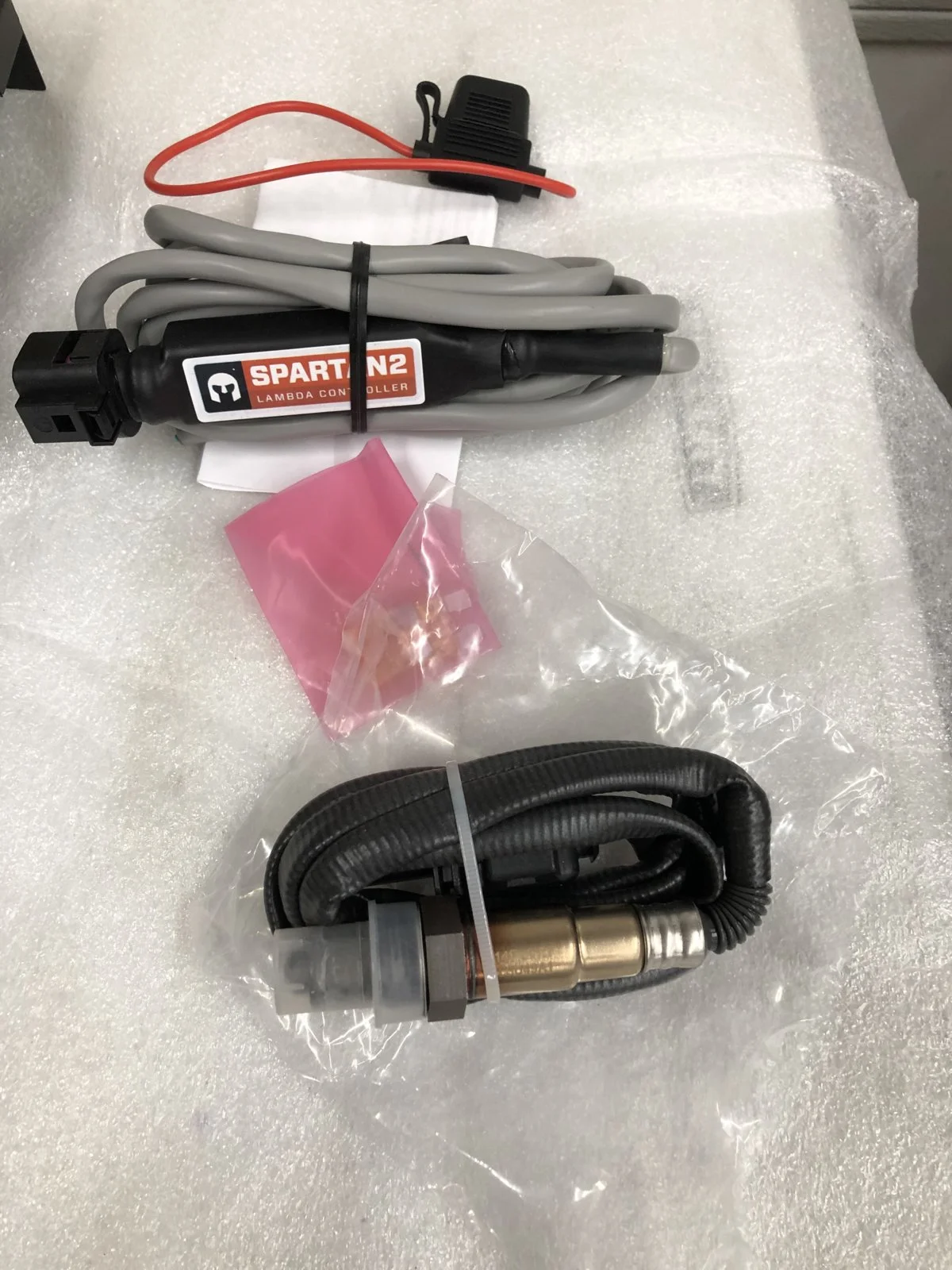

Got my spartan 2 today! Question.. are you guys wiring the power to a key on source? It says connect to a source that’s only on when engine is running. I assume I’m not going to be using the brown wire (simulated NB).
Thanks again!


Attachments

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
7,984
4,531
204
30
Hillsborough county
#65

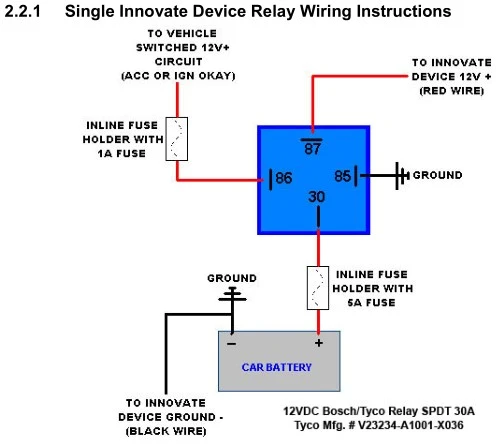

Correct on both counts... I like to use a relay to feed the WB, the key power source will turn the relay on and the relay feeds the wb with battery 12v, take the ground for the wb directly to the ECU ground or the battery. Use the WB signal wire


Blown88GT

Founding Member
Nov 13, 1999
1,282
168
104
Palm Beach Gardens, FL
#66
BTW, the white circuit board is the Microsquirt Module.
Firmware updates will identify it as such.
It is not the same as the Microsquirt or the other MS2's.

I recently put a switch between 85 & ground so can turn the controller off.
Ignition on for a long time heats the WB & a cold shot of exhaust gas on startup can damage it.


Last edited:

KZGUNS

Active Member
Jul 23, 2018
317
64
38
42
chardon, Ohio
#68

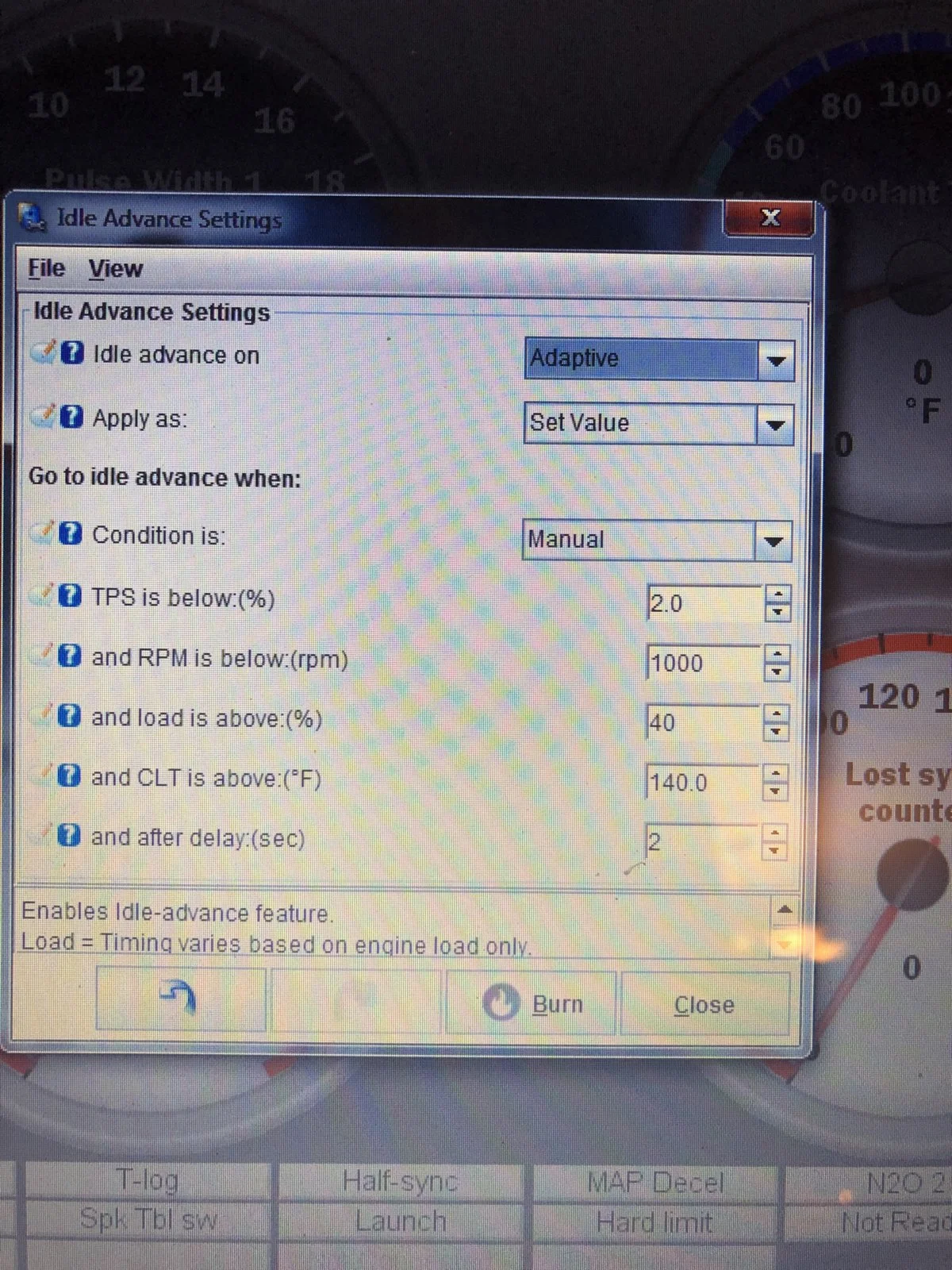

which idle advance setting should i use? Load/RPM/Adaptive

Thanks!


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
7,984
4,531
204
30
Hillsborough county
#69
Adaptive.
This has to be setup a certain way for it to work correctly.
The 5 blocks need to have numbers like I have below.
Rpm / *advance
200 / -5
50 / -1
0 / 0
-50 / 2
-200 / 5


KZGUNS

Active Member
Jul 23, 2018
317
64
38
42
chardon, Ohio
#70
Adaptive.
This has to be setup a certain way for it to work correctly.
The 5 blocks need to have numbers like I have below.
Rpm / *advance
200 / -5
50 / -1
0 / 0
-50 / 2
-200 / 5

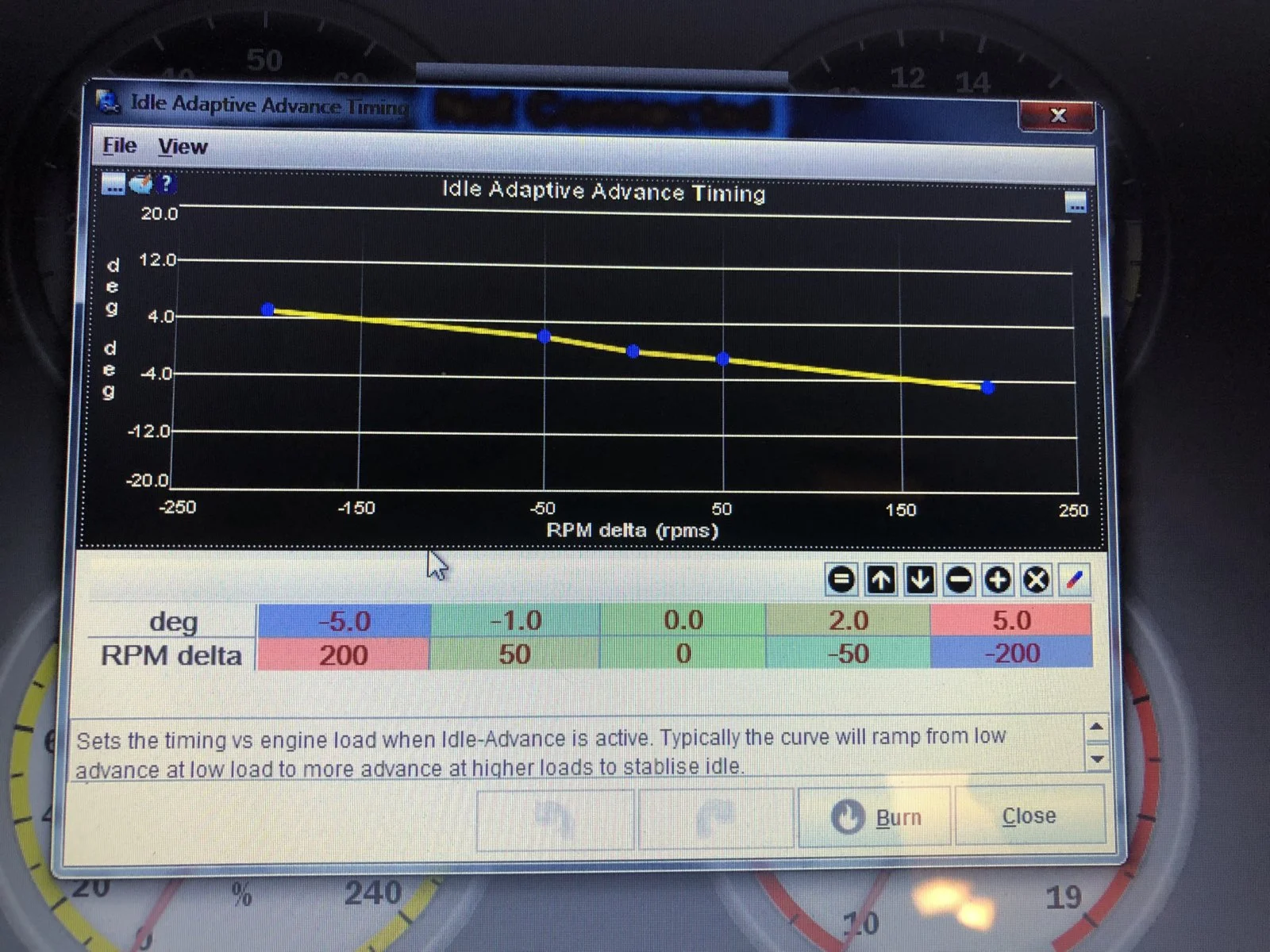

How’s this look.


Attachments

KZGUNS

Active Member
Jul 23, 2018
317
64
38
42
chardon, Ohio
#72
Got the O2 and controller with relay all wired up and installed. Is this tune ready for a first start?
Thanks
Ken


Blown88GT

Founding Member
Nov 13, 1999
1,282
168
104
Palm Beach Gardens, FL
#74
Adaptive.
This has to be setup a certain way for it to work correctly.
The 5 blocks need to have numbers like I have below.
Rpm / *advance
200 / -5
50 / -1
0 / 0
-50 / 2
-200 / 5
Shouldn't this be, 50 / -2 ??
Rpm / *advance
200 / -5
50 / -2
0 / 0
-50 / 2
-200 / 5

Last edited:

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
7,984
4,531
204
30
Hillsborough county
#79
What about the "Apply as Adder" you advised for me?
Both of you should have it set as Apply as 'adder' I what this does is takes the number from this table and adds it to the number in the base ign table. so at 200 / -5 its going to subtract 5* timing from the base table when the idle is 200 or more above target.
