Paint and Body Looking For Frame Rail Dimensions

  • Sponsors(?)


Stsfxn

New Member
Jul 8, 2019
5
0
1
29
Milwaukee, WI. For now
32.5" inner rail to inner rail just behind the radiator support, 30" for the same in front of the firewall, 37" from firewall to upper radiator support in the center of the bay, 34" inner shock tower to inner shock tower at the top, 31" at the bottom of the shock towers. If you have anything more specific I'll be happy to measure it for you.


BlakeusMaximus

Still got to try a little lube on my speedo head
Jul 12, 2017
1,963
1,105
153

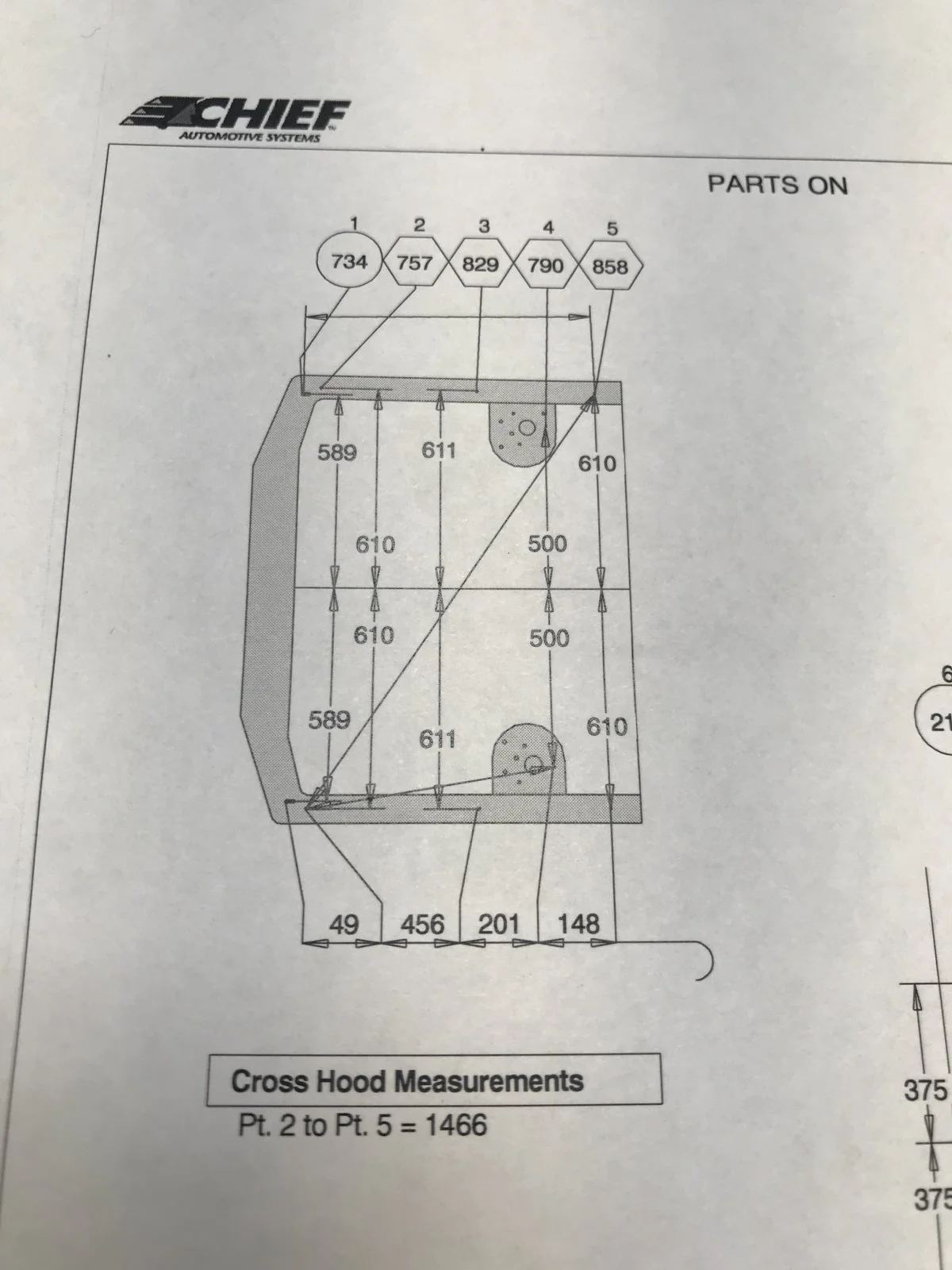

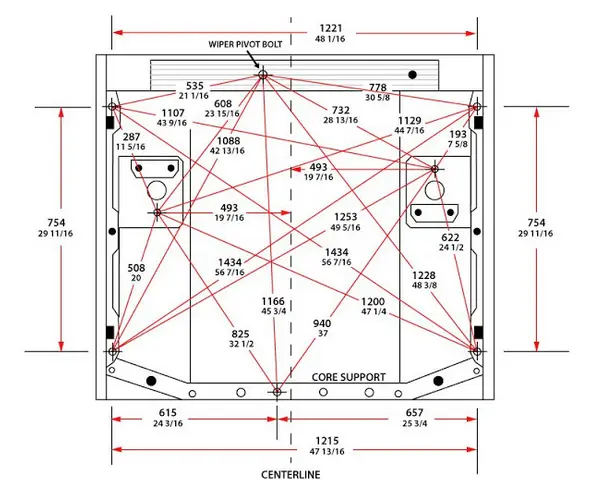

There’s all the dimensions on the car. To the left are the underhood dimensions.

  • Like
Reactions: jozsefsz

BlakeusMaximus

Still got to try a little lube on my speedo head
Jul 12, 2017
1,963
1,105
153
My system doesn’t have a diagram for foxbodys. I guess they are just too old. I think they would be the same as Sn95 cars though. Maybe.
