Paint and Body LX Trunk Hatch Alignment & Gap

Hatt67bbx

Member
Apr 13, 2021
4
1
13
37
Los Angeles

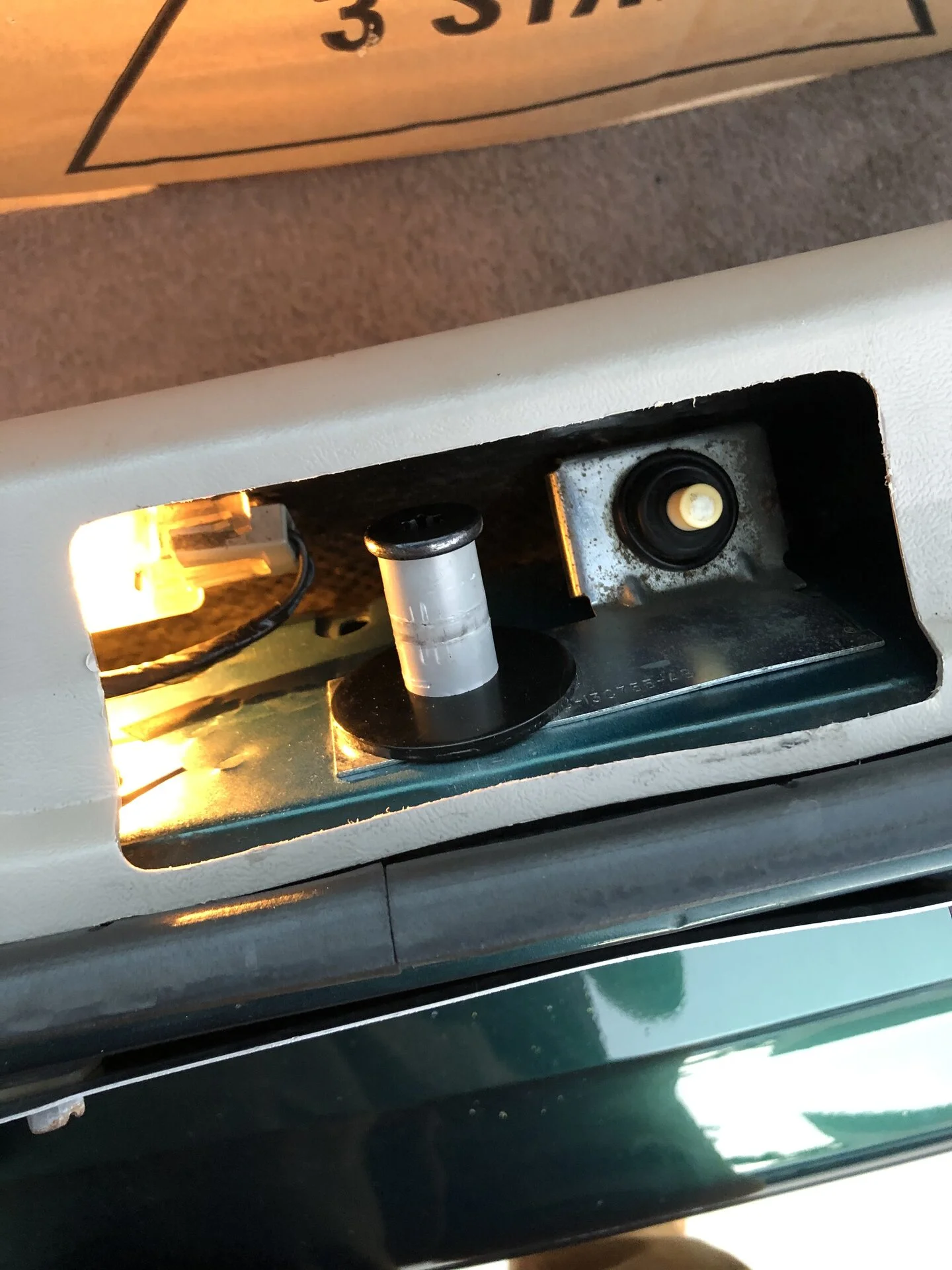

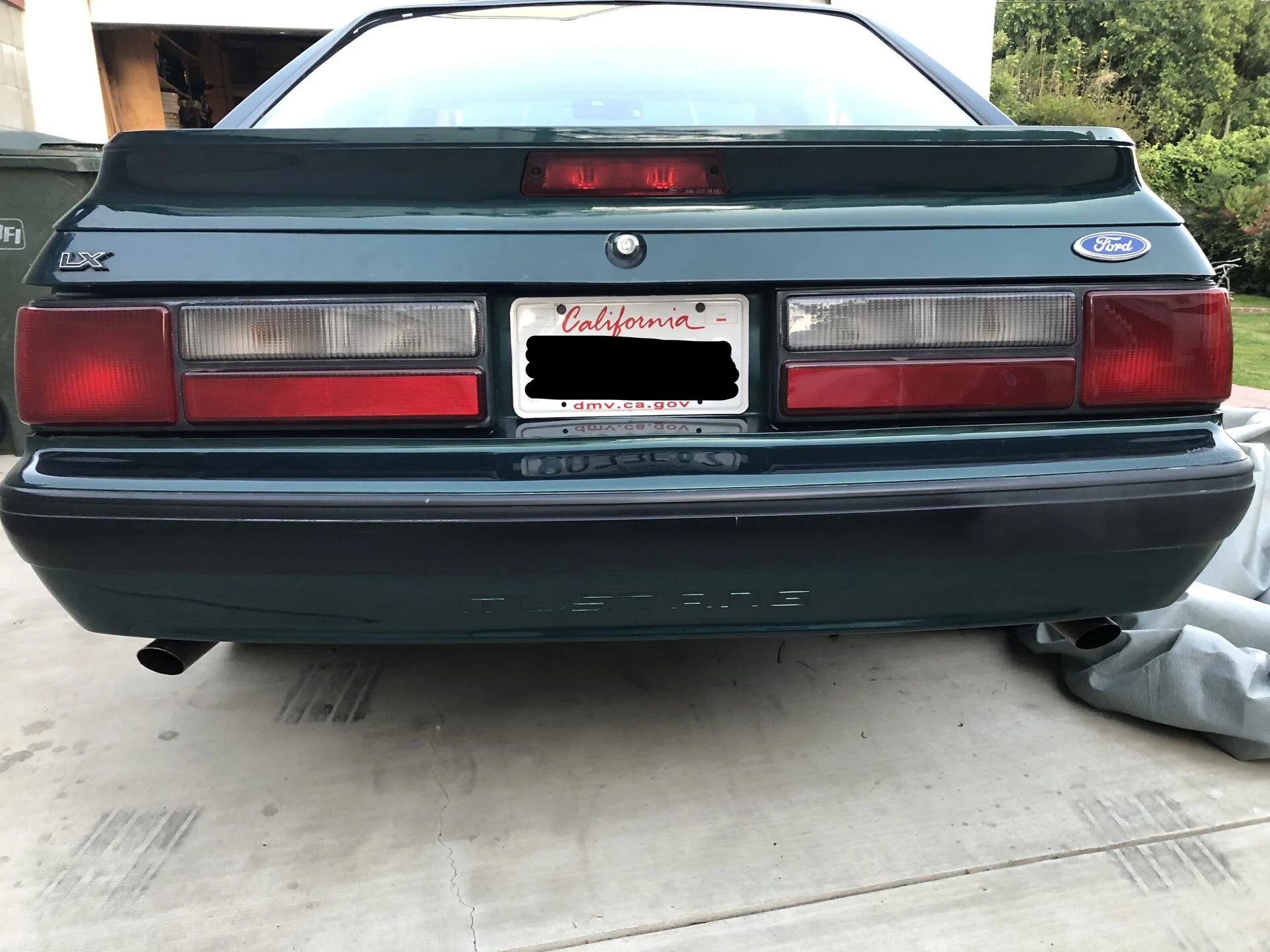

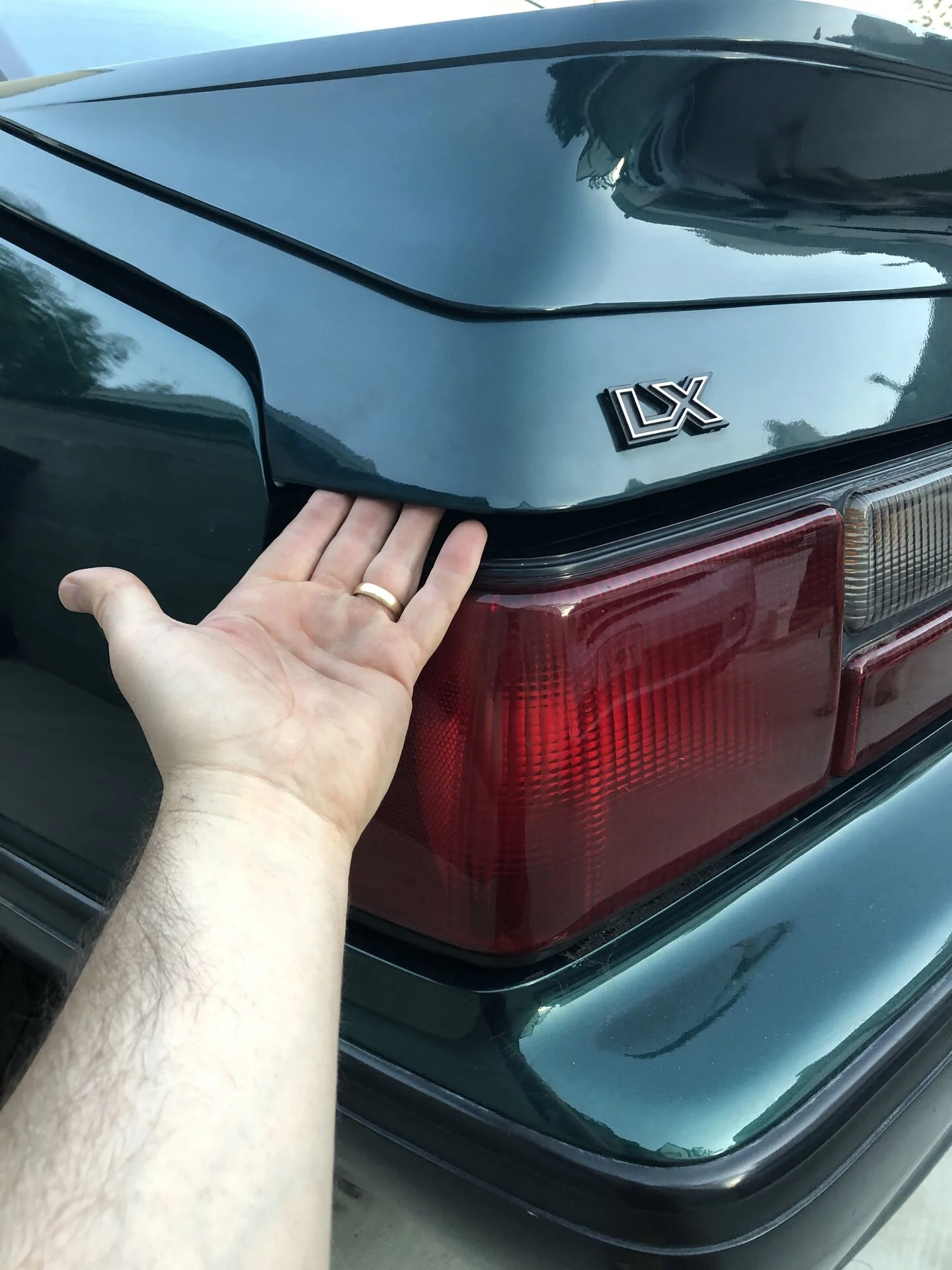

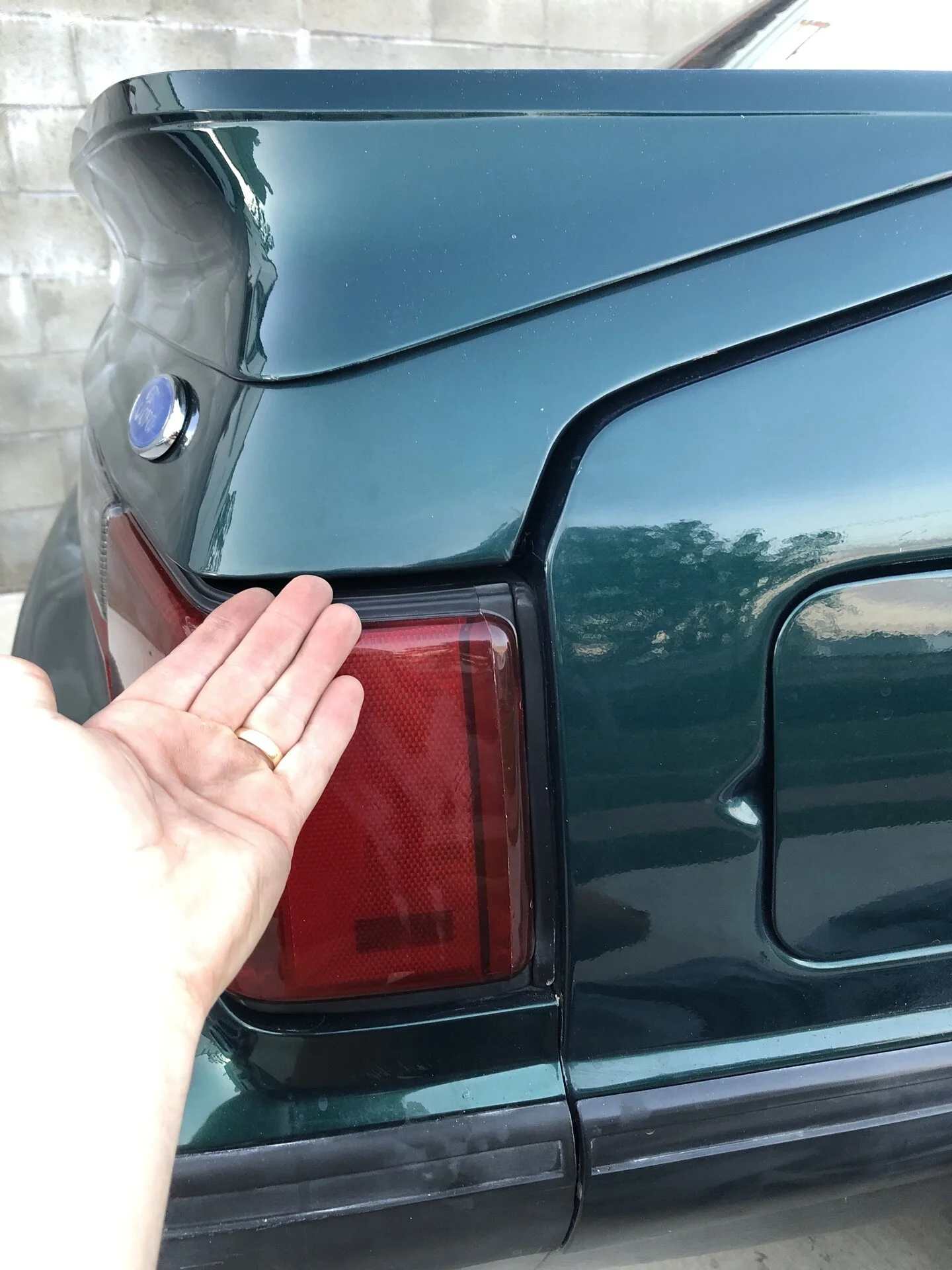

I know this is a common problem with these cars and I've done the standard troubleshooting (new striker and bushing - purchased from LMR) to try and fix the problem but I'm still left with a large gap on the drivers side rear. Originally the hatch did not close but after installing the new strike and bushing along with several adjustments (with & without hatch cylinders engaged) and trial fitments on the striker location I finally got the hatch to close and clasp, but it still feels like it has some "wiggle" play and the gap is more pronounced on one side. FYI, bumpers are not interfering and gapping around the rest of the hatch is consistent. Is there anything else I can do to tighten the gap on the drivers side?

  • Sponsors(?)


nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
1,160
563
143
59
nevada
For gits and siggles, take off both lift struts and check the fittment.

  • Agree
Reactions: 1 user

7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
5,817
2,083
194
Kearney, NE
Look at the front edge of the hatch
overhang to the body on both sides. Either the hinges need adjustment or something is very bent. Where the bottom has a gap on the drivers side, the hatch is also almost hitting the body. On the passenger side, that gap is much bigger.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
21,140
7,369
203
polk county florida
Look at the front edge of the hatch
overhang to the body on both sides. Either the hinges need adjustment or something is very bent. Where the bottom has a gap on the drivers side, the hatch is also almost hitting the body. On the passenger side, that gap is much bigger.
Kinda like the bottom of the hatch is cocked to the drivers side,
What does the gap look at the roof?


Hatt67bbx

Member
Apr 13, 2021
4
1
13
37
Los Angeles

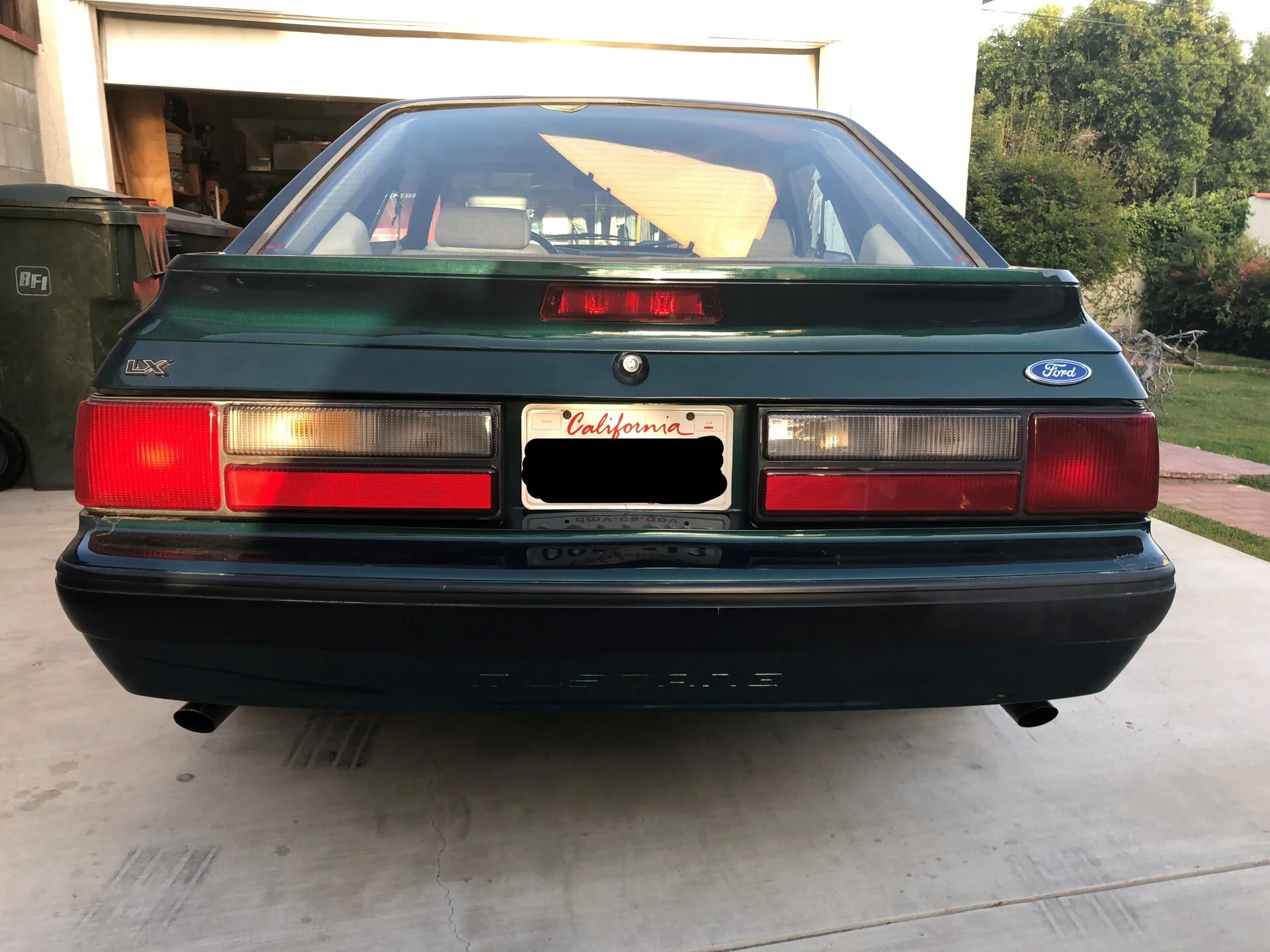

I removed the struts and played around with the location of the striker and it fixed the issue. Thanks for the suggestions.
InkedCar 2_LI.jpg

  • Like
Reactions: 1 user

nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
1,160
563
143
59
nevada
Well I hit the nail on the head this time without hammering my finger, first time for everything I guess. Glad your hatch is good , now go have some hatch chilli peppers. And I'll try any hatch some more ideas.

Sep 3, 2018
15
9
13
34
Colorado
Well I hit the nail on the head this time without hammering my finger, first time for everything I guess. Glad your hatch is good , now go have some hatch chilli peppers. And I'll try any hatch some more ideas.
So, I recently addressed the same issue on my vehicle and again it was the hatch struts. Does anyone know the reasoning or is there a way to correct this while still using the hatch struts?


nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
1,160
563
143
59
nevada
I went threw different struts, and now it's fine, can't remember brand it's been years.
