So question on this, how does the fuel, oil pressure, and volt gauge work on this? My ECU is the MS2PNP unit that was drop in on the mustang so I didn't do any of the soldering.


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,526
1,141
164
So question on this, how does the fuel, oil pressure, and volt gauge work on this? My ECU is the MS2PNP unit that was drop in on the mustang so I didn't do any of the soldering.

Voltage is already an option in MS to be added as a gauge

Fuel Level and Oil Pressure will need to be added to your MS2PNP. The MS2PNP has (2) open inputs still available, and would need to be wired to your options port on your MS.

Fuel Level you will need to wire in a 240ohm resistor to give enough resolution on the guage. I can provide a wiring diagram for this as well, since Steve (@a91what) helped with this as well.

Oil Pressure you will need to purchase a 100 psi transducer, which typically includes a 3-wire pigtail. On my car I wired it to the stock MAP/BAP sensor, and then took the signal wire to the MS2PNP.

If you need more help on this please let me know.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,461
6,593
214
32
Hillsborough county
Both inputs will be taken in through the options port, oil pressure to the knock input and fuel level to the external map pin. The fuel level requires a 5v pullup, this is supplied in the kit. The oil pressure can be achieved with a 3 wire transducer wired into the baro plug on the firewall with the wiring extended down to the sensor location. The baro wire will then need to be jumped over to the options port as it is not tied in to the ms2pnp. The case on the pnp will need to be opened and a few jumpers moved, the external map will also need a long jumper that we can provide in the kit.
These instructions will be provided as well. I can even try and get pictures.

  • Like
Reactions: 1 user

DemonGT

Founding Member
May 24, 2002
743
12
39
Sparta,WI
Visit site
Would a Pimpxs also need the same type of wiring for the fuel level to work?

Any chance someone could make a dash that looks similar to a stock dash set up?


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,526
1,141
164

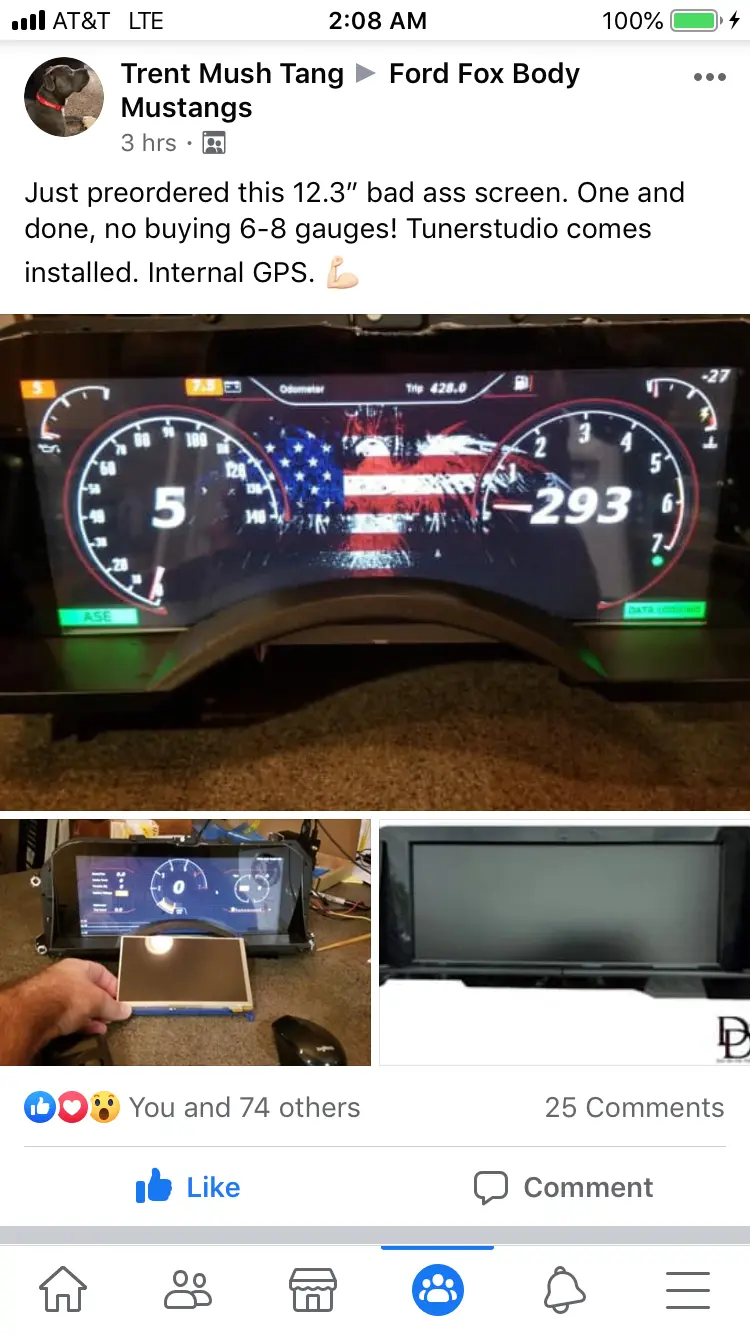

Fb famous- congratulations buddy, glad to see some orders rolling in and tons of interest in your product- 3CD514EB-E00C-42A6-B66B-355A33E89454.png

Thank you!

I am glad to see the interest in the product along with the evolution to where it has gotten.

  • Like
Reactions: 1 users

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,461
6,593
214
32
Hillsborough county
If TS comes with screen do I still need to pay for it when ordering my Pimpxs?
The free version is loaded onto the unit, you will need to put in your registration code to unlock the full version. So yes you will need to purchase the upgraded software. It can be loaded onto up to 3 pc at a time.


Mattpal

New Member
Oct 27, 2018
7
0
1
46
New York
The free version is loaded onto the unit, you will need to put in your registration code to unlock the full version. So yes you will need to purchase the upgraded software. It can be loaded onto up to 3 pc at a time.

so I just found out about this dash and I’m very interested in it. I a little confused, and can’t find any information stating but this dash will only work with aftermarket eco? Will not work as a stand-alone?


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,461
6,593
214
32
Hillsborough county
so I just found out about this dash and I’m very interested in it. I a little confused, and can’t find any information stating but this dash will only work with aftermarket eco? Will not work as a stand-alone?
We are working on that right now, however the release date is to be determined. It still has to go thru testing.


DemonGT

Founding Member
May 24, 2002
743
12
39
Sparta,WI
Visit site
Both inputs will be taken in through the options port, oil pressure to the knock input and fuel level to the external map pin. The fuel level requires a 5v pullup, this is supplied in the kit. The oil pressure can be achieved with a 3 wire transducer wired into the baro plug on the firewall with the wiring extended down to the sensor location. The baro wire will then need to be jumped over to the options port as it is not tied in to the ms2pnp. The case on the pnp will need to be opened and a few jumpers moved, the external map will also need a long jumper that we can provide in the kit.
These instructions will be provided as well. I can even try and get pictures.

Rereading some of this and was wondering when you mention stuff being "supplied in the kit" which kit are you referring
to?


lamrith

Founding Member
Jun 7, 2000
1,385
1
38
Tacoma, WA
www.mgbconversions.com
Very curious about this dash myself, they look really good! Is there a kit for the SN95+ cars? I think 94-2004 use same cluster size/design, just different wiring? Any option for the other "idiot lights" these cars have from the factory? ABS, Airbags, etc?

How is glare when sun is out etc?
