Anyone know where I have to run the wires for my DD dash for fuel level on a ms2pnp for a foxbody? Just acquired one and didn’t get the instructions for that part.

  • Sponsors(?)


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,540
1,153
164
Anyone know where I have to run the wires for my DD dash for fuel level on a ms2pnp for a foxbody? Just acquired one and didn’t get the instructions for that part.
Welcome to Stangnet!

MS2PNP Fuel Level Circuit.png

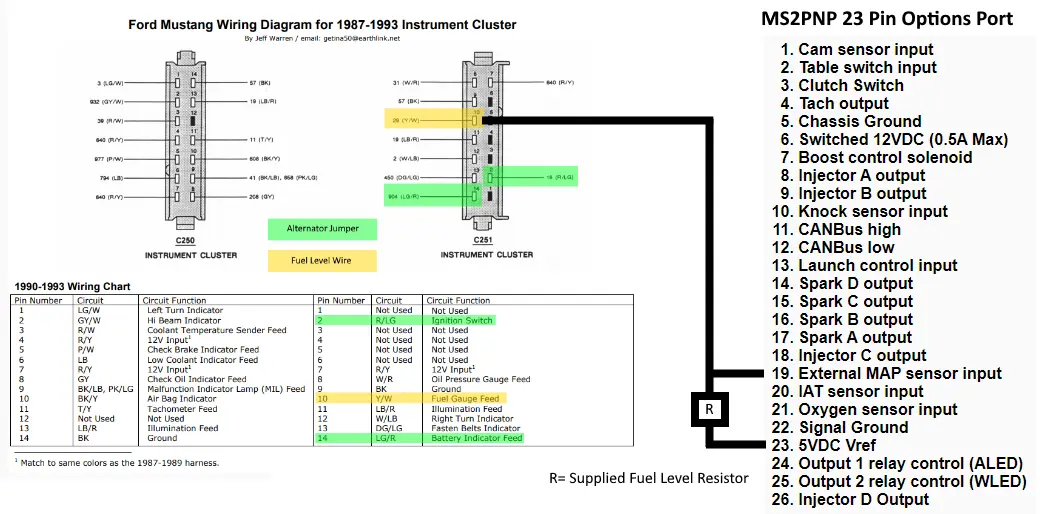

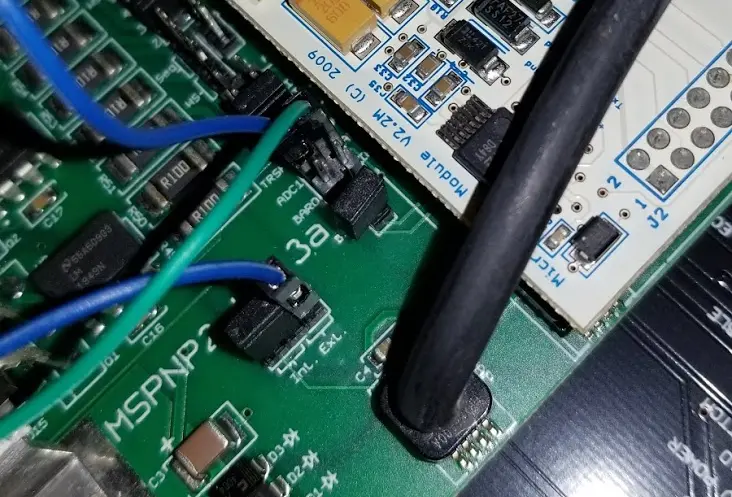

Above is the wiring diagram for the fuel level sending unit. There should be a 240ohm resistor supplied with the installation kit, which is the "R" value in the diagram. To use Pin 19 (External MAP Sensor Input) as an ADC Input, you will need to open the MS2PNP ECU case, and jumper External MAP Select to ADC1. Below is a picture of the Jumper (Blue Wire) that needs to be installed.


Once wired and jumper applied, you will then be able to setup your new channel in TunerStudio for reading the resistance from the factory sending unit.

TunerStudio MS2 Setup:
- Tools -> Custom Channel Wizard


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,540
1,153
164
Would these instructions apply to a Pimpxs?
The PIMPXS is an MS3 based platform, so the TunerStudio setup would be different. The wiring would be the same except you will be wiring to the open ADC inputs on the stock 60-pin connector.

PIMPXS Open ADC Inputs
- Pin 50/ADC11 = External MAF (Optional, Jumper Required) JP29 Jumper 2-1
- Pin 43/ADC12 = EGO2
- Pin 26 = 5V VRef

TunerStudio MS3 Setup:

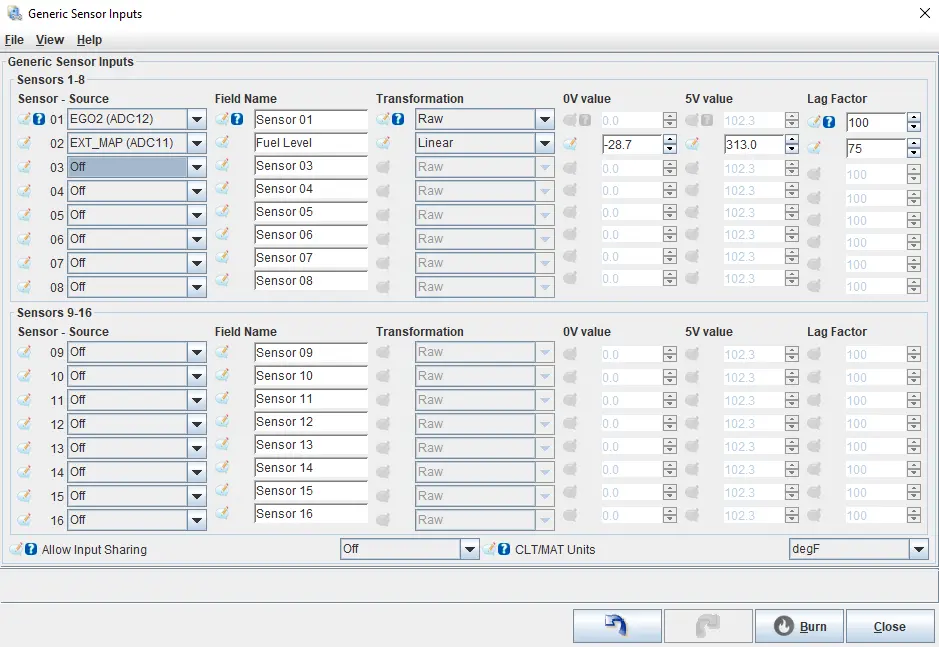

-Advanced Engine -> Generic Sensor Inputs

  • Like
Reactions: 1 users

stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,540
1,153
164
So for the Pimp i would jumper with the resistor like shown with the blue wire to pin 50 and 26 instead of 19/23, then set up in TS as shown?
Yes, you are correct for the PIMP system

  • Like
Reactions: 1 user

Wisstang

New Member
Sep 5, 2020
19
0
1
27
Wisconsin
What are you wanting to know specifically? technically we are on the V3 release now. If you are looking for an update on the Pro series line we are currently in the testing phase
Is the pro the series with the canbus option to leverage existing factory sensors? If so, that's the one I'm wondering about.


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,540
1,153
164
Is the pro the series with the canbus option to leverage existing factory sensors? If so, that's the one I'm wondering about.
The DD-EFI Pro Version is going to come with more than one option. The initial release will have an internal I/O for expanding the capabilities of the Megasquirt ECU.

We will be also releasing a standalone version that can leverage most of the factory existing sensors. In a factory setup you will need to upgrade the oil pressure to a digital version which will be offering.


DemonGT

Founding Member
May 24, 2002
753
13
39
Sparta,WI
Visit site
So with the V3 it would connect with canbus but how does the factory wiring for fuel level, high beam etc connect to the DD EFI? ..or is that not finalized yet?


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,540
1,153
164
So with the V3 it would connect with canbus but how does the factory wiring for fuel level, high beam etc connect to the DD EFI? ..or is that not finalized yet?
There will be an expansion connector that will be for wiring to the available 14 inputs digital/analog of which one is already dedicated to fuel level with the necessary resistor for a one wire setup to your factory wiring. The indicators (L/R turn signals, high beam, etc.) will be able to be wired as a digital inputs.

  • Like
Reactions: 1 user

Husky44

10 Year Member
Sep 27, 2006
855
100
74
Tacoma, WA
OK, tying this into my questions here, is this something that could be configured to run in my 67 (recognizing that the physical layout will need to be different). I was planning to do a Dakota Digital dash for my car, but if I can put something together that ties the MS to a digital dash, that seems like it would be the best of both worlds. I had planned to install a tablet in my console for media and GPS anyway, so that could be an alternate mounting location if it can't be made to fit the 67 dash location.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,552
6,694
214
32
Hillsborough county
OK, tying this into my questions here, is this something that could be configured to run in my 67 (recognizing that the physical layout will need to be different). I was planning to do a Dakota Digital dash for my car, but if I can put something together that ties the MS to a digital dash, that seems like it would be the best of both worlds. I had planned to install a tablet in my console for media and GPS anyway, so that could be an alternate mounting location if it can't be made to fit the 67 dash location.
We have many options, you will just need to supply us with some dimensions and photos of the location it needs to be installed.


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,540
1,153
164
OK, tying this into my questions here, is this something that could be configured to run in my 67 (recognizing that the physical layout will need to be different). I was planning to do a Dakota Digital dash for my car, but if I can put something together that ties the MS to a digital dash, that seems like it would be the best of both worlds. I had planned to install a tablet in my console for media and GPS anyway, so that could be an alternate mounting location if it can't be made to fit the 67 dash location.
You have all the options above mounting it as a factory dash replacement or in an alternative location. Using a Digital Dash will provide you access to all the readings the MS sees, while also being able to tune through it if desired as well. You have options of screen sizes and universal mounting or custom bezel, so it just depends on what you would like for your project.


96pushrod

I think they're a little easier to get off
May 15, 2018
993
600
103
29
Savannah
I got around to getting my dash in today, but it won’t let me open my project. It’s just stuck on the “opening project”


96pushrod

I think they're a little easier to get off
May 15, 2018
993
600
103
29
Savannah

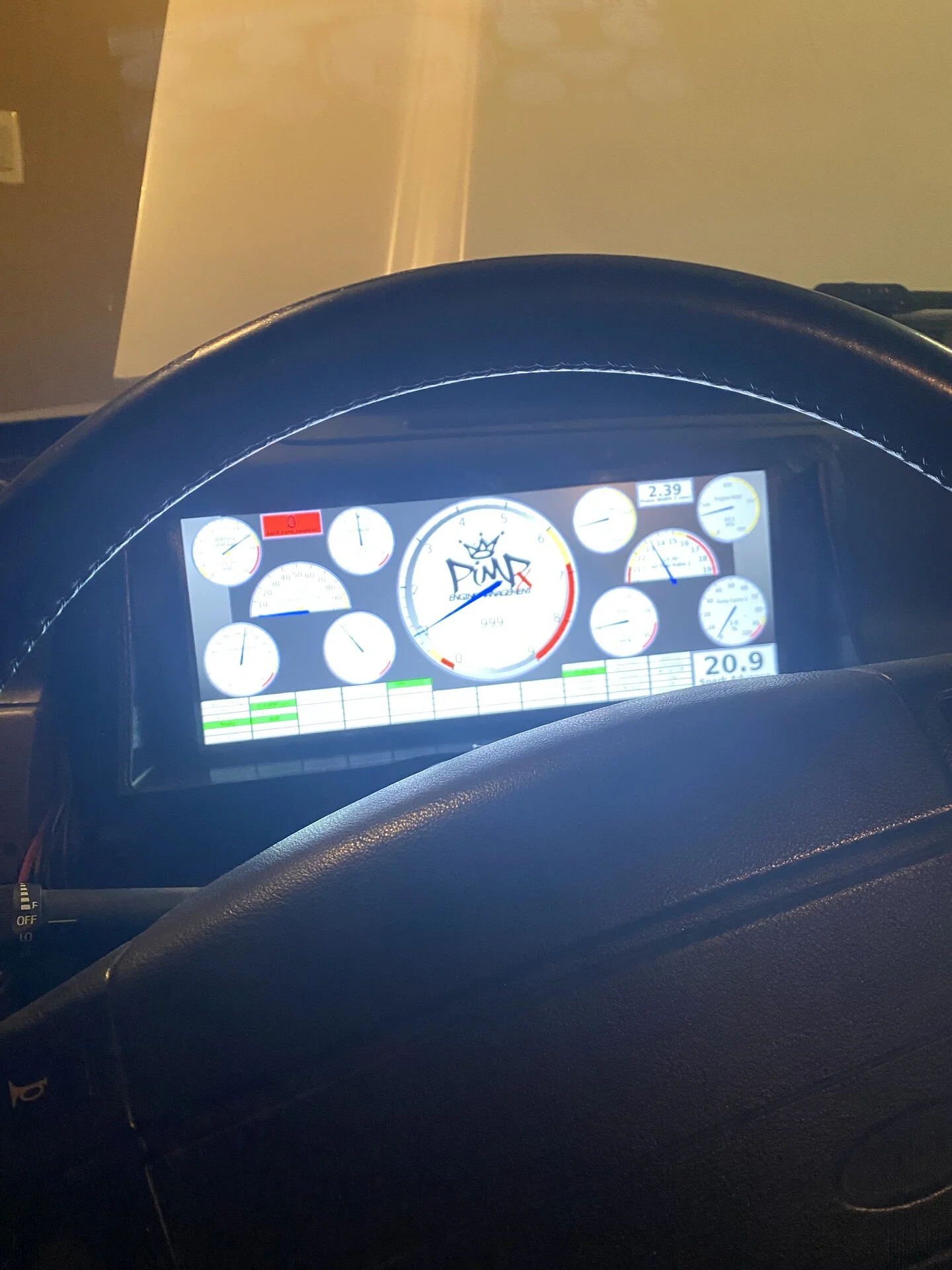

Scratch that, got it to connect 5AB8DE24-5AD3-4DBC-8B12-14C27B21014B.jpeg

Install was pretty easy. I had to trim the bezel a little to clear the column, but that’s no big deal.
