MS First start

DemonGT

Founding Member
May 24, 2002
745
12
39
Sparta,WI
Visit site
Finished up my Pimpxs install and got the car fired up for the first time tonight. Started right up no issues and seemed to idle ok but has a surge.

Was wondering if someone could glance at my data log. I let the car idle and come up to temp.

looking at the tables for fuel and timing im not sure what i should be looking for to make improvements?

Last edited:
  • Sponsors(?)


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,481
6,600
214
32
Hillsborough county
Some questions for you.

Are you running boost? how much?
COMP ratio? what heads?
What fuel?
Cam?
I see alot I would alter off the bat but each engine is a bit different.

  • Like
Reactions: 1 user

DemonGT

Founding Member
May 24, 2002
745
12
39
Sparta,WI
Visit site
No boost, staying N/A
about 10.5 to 1
Running Victor Jr heads
running 91 pump gas
Cam is a custom cam, i can get any specs you need just dont know them off the top of my head.
I gave the duration info to Stinger when i ordered the Pimp so not sure if that matters with the base
tune sent if its just a "generic" one for most applications to get you started or if its more personalized.

I watched your video for setting the timing off set and got it so my timing light shows 20 on the balancer
to match the black box in TS, but im concerned the timing is not right. I may have mentioned this in another thread
but years ago i removed my timing cover and when i did that i had to remove my adjustable pointer and i never marked its location before removing, so im not sure that matters in TS as long as the pointer is reading the same as what's in TS? Raising the timing when fixed did not see to raise up my idle, and it would only allow me to go down to 16?

I know i still need to do some work on the timing/fuel table. Do you recommends using the WUE auto function?

the AFR should be 14.7 but it was running around 13.3 or 13.5ish? So i need to take the numbers in the fuel VE down?


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,481
6,600
214
32
Hillsborough county
First thing I would do is rescale the VE table for an NA application.. the tune they sent is scaled for 30psi and is using up alot of the fuel table resolution

The timing map should be ok to get you going for now. The AFR table is set to be rich at idle... you may want to rescale and alter the AFR table as well.. I could do all of this for you. or let you do it and tell you what to change

if you cannot lower the timing below 16* then you need to take a look at the IGN offset, it should be 10*

  • Like
Reactions: 1 user

DemonGT

Founding Member
May 24, 2002
745
12
39
Sparta,WI
Visit site
If you could tell me so i could try on my own that would be great. I really wanna learn and i feel doing it myself will help.

Where do i find the IGN offset?

Cam duration @ .050 intake 240 exhaust 246

the VE tables should only go to 100 instead of 300?


DemonGT

Founding Member
May 24, 2002
745
12
39
Sparta,WI
Visit site
Another thing i noticed is i have a 180 thermostat and in TS it was reading 173 when up to temp? Does the sensor need to be
calibrated or is it normal for it to read a bit off?


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,481
6,600
214
32
Hillsborough county
You should have gone through and done a full sensor calibration before beginning any tuning. Its normal for a sensor to read slightly askew due to the nature of thermistors


DemonGT

Founding Member
May 24, 2002
745
12
39
Sparta,WI
Visit site
Went back and reread my instruction from Stinger and made some changes.

Did a little tuning tonight. Had a surging idle and was running rich. I adjusted the AFR table in the idle area leaner and turned the
fuel in the fuel VE down and it smoothed right out. The fuel cells in the idle area were in the 40's and i had to go down to 27
for the AFR to get to 14.5 and the idle to smooth out. I did a quick 5min log of the idle. 14.7 is normal for NA engine what is considered
to lean? Also, for close loop idle should i be using MAT or CLT?

Car still skinks like hell though lol


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,481
6,600
214
32
Hillsborough county
CL idle you can use either, I make the rpm columns all one number anyway so it wont matter. 14.7 is stoic and is considered a complete burn of fuel in the cylinder. you can safely lean the engine out to 15.3ish or as lean as it will allow before it begins to missfire and otherwise complain. I personally just target 14.7 because I run cats

  • Like
Reactions: 1 user

DemonGT

Founding Member
May 24, 2002
745
12
39
Sparta,WI
Visit site
If i set the AFR in the idle cells it does not seem to change the AFR unless i change the same cells in the fuel ve? Im not understanding what is being looked at to get to the target AFR? If i have to manually change the fuel to get to my desired AFR what is the AFR table doing?


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,481
6,600
214
32
Hillsborough county

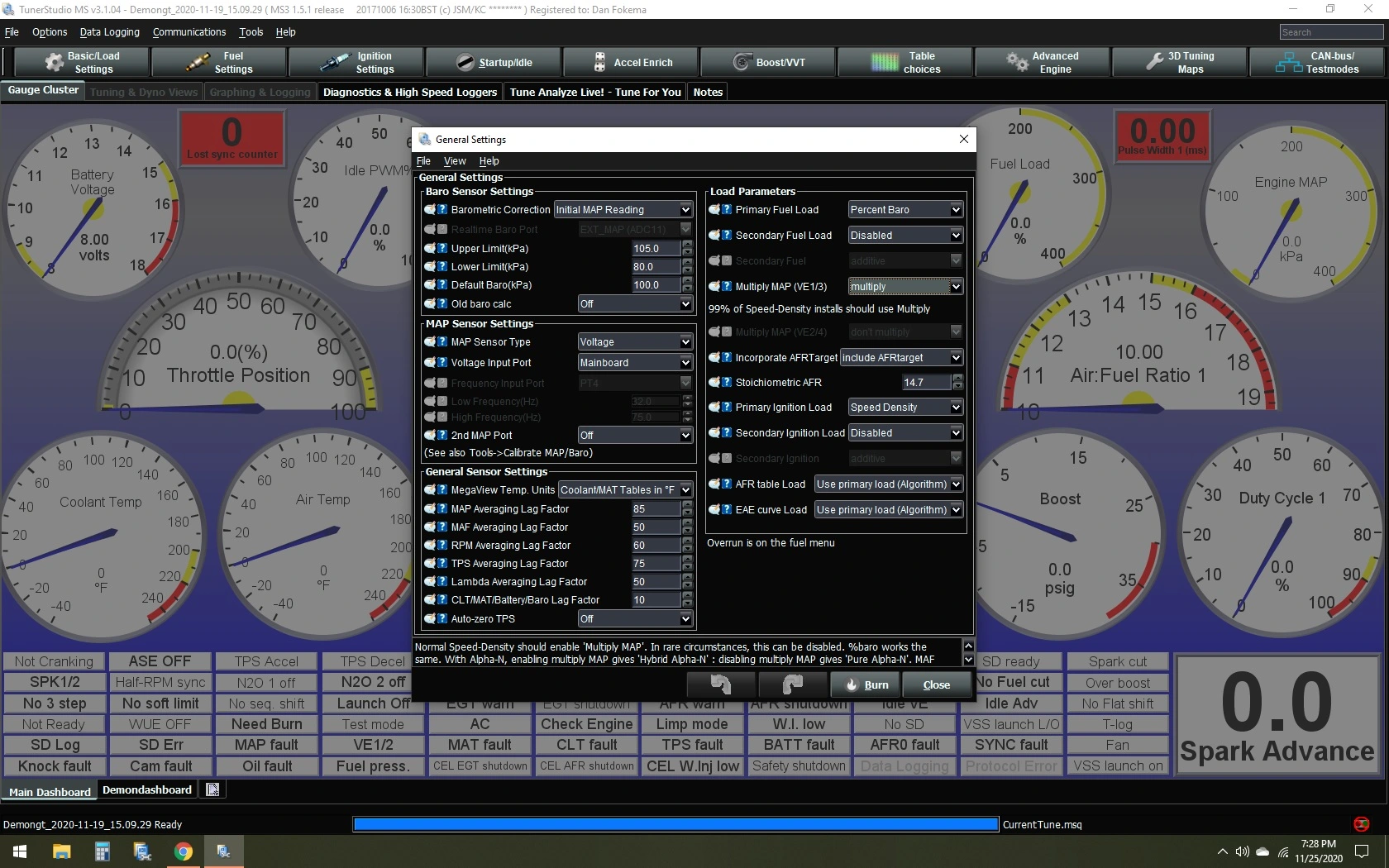

It depends on how you have the tune setup.. did you select "incorporate afr" under general settings? You should, it takes the afr table into account.
