Electrical Need help with alternator yellow wire

Busa1300

New Member
Jul 22, 2011
12
0
1
I just put the 130 amp SVE alternator on my car because I was told my factory one was bad. Well when I got it installed it still wasn't charging. After looking at wire diagrams I checked the yellow wire coming of the plug from the alternator. According to the diagram the yellow wire should be my hit wire. Well it has nothing to it. I also see the yellow wire has a fusible link on it. So starting at the alternator I am tracing the yellow wire back to towards the battery. And I am to the drivers side fender and I still haven't found a fusible link or seen where the wire goes too. Where is it getting the power from?

  • Sponsors(?)


mikestang63

SN Certified Technician
Aug 27, 2012
10,135
6,898
204
In the garage
Do NOT follow the wiring instructions from LMR.
Do NOT reattach the factory power wires. Tape them up and tuck them away
Only reattach the stator signal wire from that plug to the male stator connection on the 3G
Use the 4 gauge power wire with a 150-175 amp in line fuse and connect one end to the power terminal on the 3 G alternator and the other end to the hot side of the starter solenoid where the battery cable attaches. Route it around the front of the car in front/on top of the radiator
Connect the factory D shaped wiring to the 3 G alternator

Done

  • Like
Reactions: 1 user

evintho

5 Year Member
Nov 12, 2003
325
15
28
65
Santa Rosa, CA.
Visit site

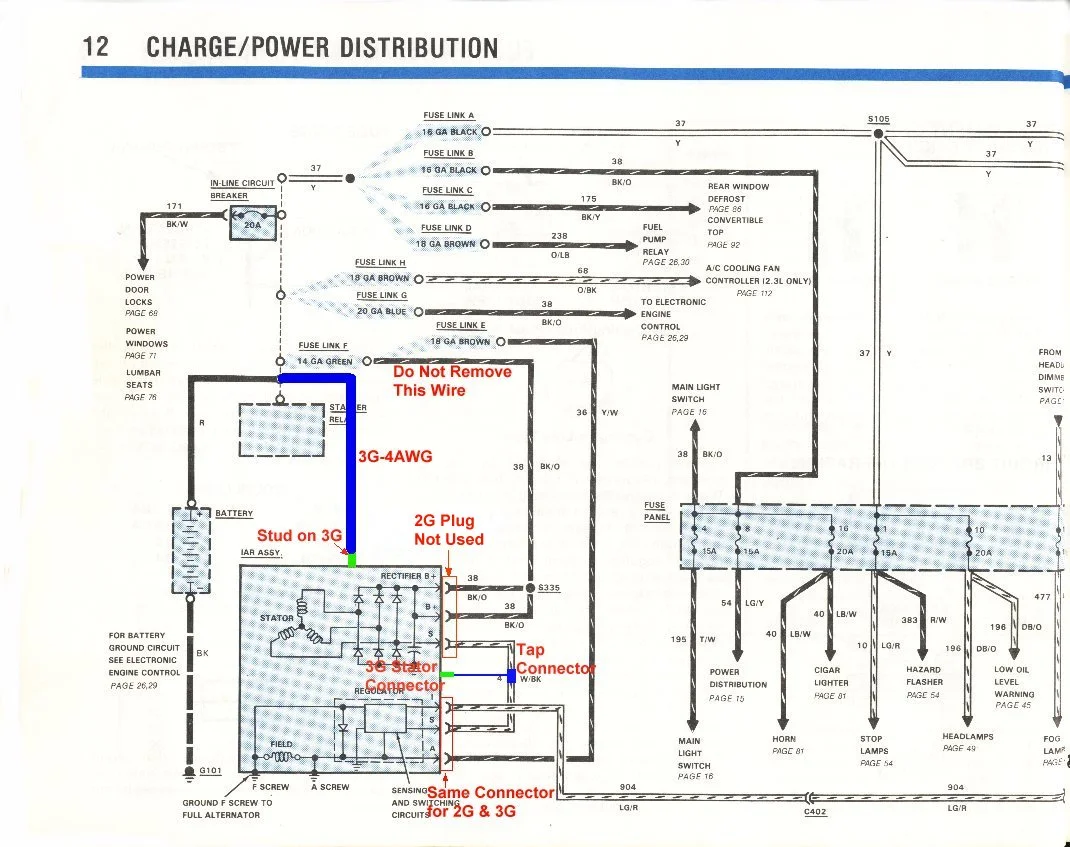

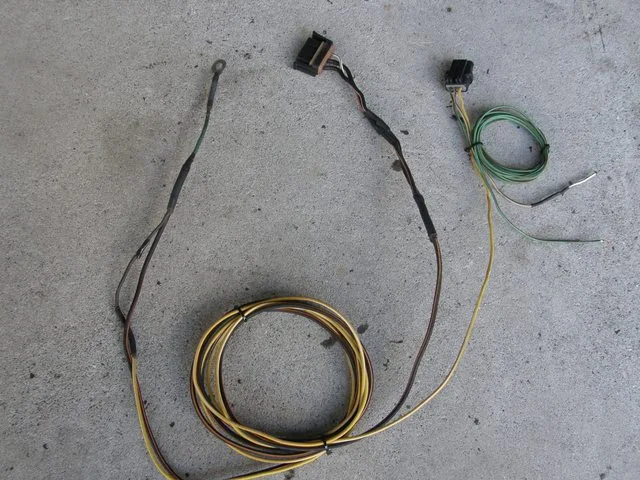

The other end of your YEL wire ties into the fusible link wire, which I believe is BRN then GRN which attaches to the POS side of your starter solenoid, on the inner fender panel. Here's a pic of alt wiring removed.....



And, mikestang63 is correct. Dump the 2 BLK/ORG wires and replace with a 4ga cable and 175a fuse. Both the 4ga and your YEL wire attach to the same + post on the solenoid.

  • Like
Reactions: 1 user

Busa1300

New Member
Jul 22, 2011
12
0
1
Ok I will take off the orange/black wires from the alternator. I already have the 4 gauge wire ran over to the solenoid. All that is good and hot. The yellow wire on the D shape plug is not hot. That is the wire I am tracing on the drivers side fender. I am hoping it is the fuseable link. Which I can't find either. When I get some better weather I am going to take off the inner fender well on the driver's side. And I am hoping then I can find the yellow wire and the fuse link. Thanks for the info on the orange/black wire
Do NOT follow the wiring instructions from LMR.
Do NOT reattach the factory power wires. Tape them up and tuck them away
Only reattach the stator signal wire from that plug to the male stator connection on the 3G
Use the 4 gauge power wire with a 150-175 amp in line fuse and connect one end to the power terminal on the 3 G alternator and the other end to the hot side of the starter solenoid where the battery cable attaches. Route it around the front of the car in front/on top of the radiator
Connect the factory D shaped wiring to the 3 G alternator

The other end of your YEL wire ties into the fusible link wire, which I believe is BRN then GRN which attaches to the POS side of your starter solenoid, on the inner fender panel. Here's a pic of alt wiring removed.....



And, mikestang63 is correct. Dump the 2 BLK/ORG wires and replace with a 4ga cable and 175a fuse. Both the 4ga and your YEL wire attach to the same + post on the solenoid.
Where does that brown wire go too? The D shape plug also? If I cut the fuse link off the yellow wire can I put an in line fuse on it and attach it to the solenoid?


evintho

5 Year Member
Nov 12, 2003
325
15
28
65
Santa Rosa, CA.
Visit site
The YEL wire connects to the BRN wire, which ties into the BLK/ORG wire, which connects to the GRN wire, which is the fusible link that connects to the POS side of the solenoid. Wow, that was confusing! Look closely at the photo and you'll see what I mean. Simply cut the YEL wire 1/4" before it connects to the BRN wire. Next, cut the GRN wire just after the splice. That will eliminate the BRN and BLK/ORG wires along with the plug completely. Finally, connect the YEL wire with a butt connector directly to the GRN wire (fusible link) and attach that to the POS side of the solenoid. You're done.


Busa1300

New Member
Jul 22, 2011
12
0
1

p.12a
So now we're I am confused is the instructions said to hook the old orange and black supply wires back up. Along with the new 4 gauge power wire. But I have seen people saying to not hook up the old org/blk power wires. Just the new wire. And these instructions say to NOT remove the org/blk wires


RekeHavoc

Member
Dec 5, 2019
37
10
18
TN
LMR should know better. Do not hook up the factory orange/black charge wires. Simply tape them up and stuff them back in your harness. You can't remove them completely. If you hook those up along with the new 4 gauge wire and your 4 gauge wire should happen to pop the fuse at some point, you are going to overload the factory charge wires in short order.


Busa1300

New Member
Jul 22, 2011
12
0
1

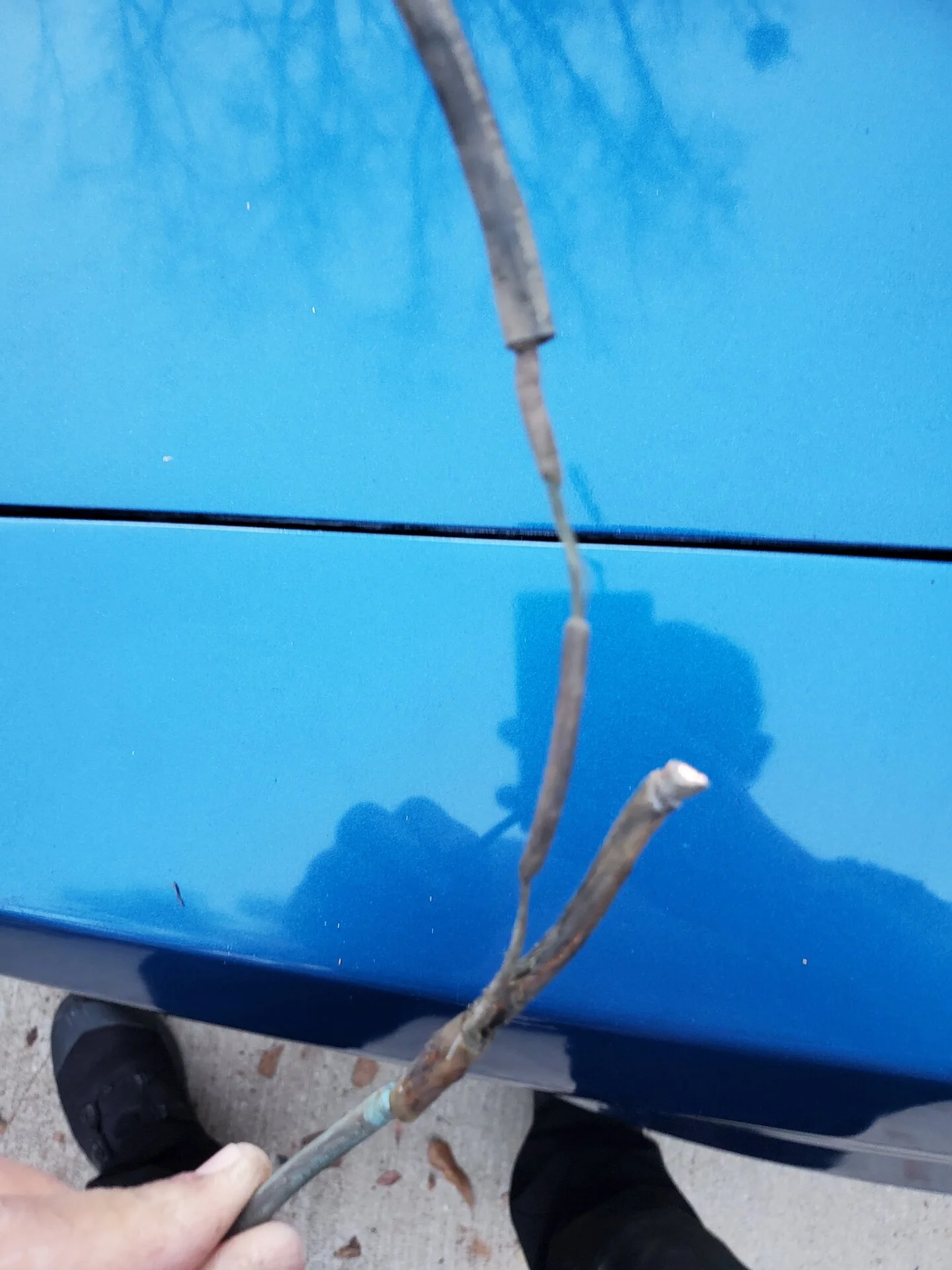

Thank you to everyone's help. I found the issue. And it was the yellow supply wire burnt up. I put a new fusable link in and it is working great. I attached a photo of the problem wire.


Attachments

  • 20210304_182905.jpg
    324.5 KB · Views: 36

jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,405
2,738
234
75
Dublin GA
lowendmac.com
LMR should know better. Do not hook up the factory orange/black charge wires. Simply tape them up and stuff them back in your harness. You can't remove them completely. If you hook those up along with the new 4 gauge wire and your 4 gauge wire should happen to pop the fuse at some point, you are going to overload the factory charge wires in short order.
I posted that complaint once before and never got a reply from them. It will take a lawsuit to make them change their documentation.

As to why you don't use the Factory orange/black charge wires in addition, here's the answer:

Here is the reasoning behind using only a single 4 gauge fused power feed to the alternator. If you use the two 10 gauge black/orange wires in addition to the 4 gauge wire, you have two fused power feed paths. The total current capacity of the wiring is the sum of the fused paths. The 4 gauge path is fused for 125 amps, and the two 10 gages wires are fused for 60 amps. That is a total of 185 amps, which exceeds the capacity of the alternator. Overload can occur without the fuses blowing, damaging the alternator.

The worst case scenario is that the alternator develops an internal short to ground resulting in a catastrophic failure. The initial short circuit surge current is limited by the resistance of the wiring. The current in a parallel circuit divides up according to the resistance of the branches. If the 4 gauge fuse opens up first, the two 10 gauge black/orange wires will be carrying the short circuit surge current. Depending on the time lag of the fuse links, they may open up before a fire starts or they may not.

  • Useful
Reactions: 1 user

Busa1300

New Member
Jul 22, 2011
12
0
1
I posted that complaint once before and never got a reply from them. It will take a lawsuit to make them change their documentation.

As to why you don't use the Factory orange/black charge wires in addition, here's the answer:

Here is the reasoning behind using only a single 4 gauge fused power feed to the alternator. If you use the two 10 gauge black/orange wires in addition to the 4 gauge wire, you have two fused power feed paths. The total current capacity of the wiring is the sum of the fused paths. The 4 gauge path is fused for 125 amps, and the two 10 gages wires are fused for 60 amps. That is a total of 185 amps, which exceeds the capacity of the alternator. Overload can occur without the fuses blowing, damaging the alternator.

The worst case scenario is that the alternator develops an internal short to ground resulting in a catastrophic failure. The initial short circuit surge current is limited by the resistance of the wiring. The current in a parallel circuit divides up according to the resistance of the branches. If the 4 gauge fuse opens up first, the two 10 gauge black/orange wires will be carrying the short circuit surge current. Depending on the time lag of the fuse links, they may open up before a fire starts or they may not.
Yea that makes sense. I went ahead and removed the org/blk wires and everything works great. Thank you for the explanation.
