WTB/Trade Need one quad socket bracket to frame rail bolt. Anyone have one.

MrBottleneck

Member
Sep 12, 2018
37
20
18
54
Ohio
Looking to reinstall my quad shock brackets to my car and somehow I misplaced a bolt. My cars a 1989 GT

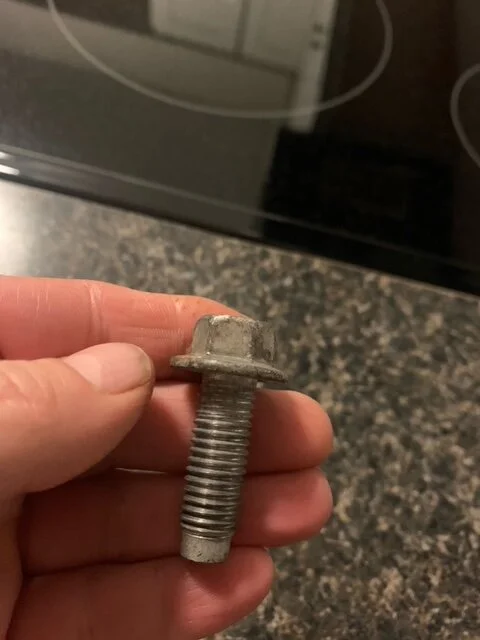

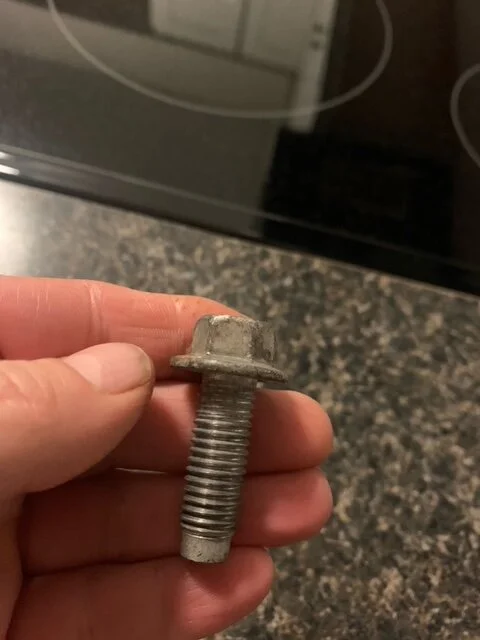

Anyhow here is a picture of the bolt I need (pic below).
If anyone could part with one nice OE bolt please hit me up. Willing to purchase it of course.
Thanks


Attachments

  • 39FD0866-B59C-4D22-A5C8-99E20E4B1B2B.jpeg
    29.9 KB · Views: 26
  • 9EB78074-1721-434C-A1BB-AB4A10055BE4.jpeg
    36.6 KB · Views: 11
  • Sponsors(?)


nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
1,160
563
143
59
nevada
Sorry I tossed mine when I tossed the quads. My new control arms are rock solid and got rid of wheel hop.


manicmechanic007

Active Member
Sep 26, 2017
766
200
53
62
I have your bolt I believe

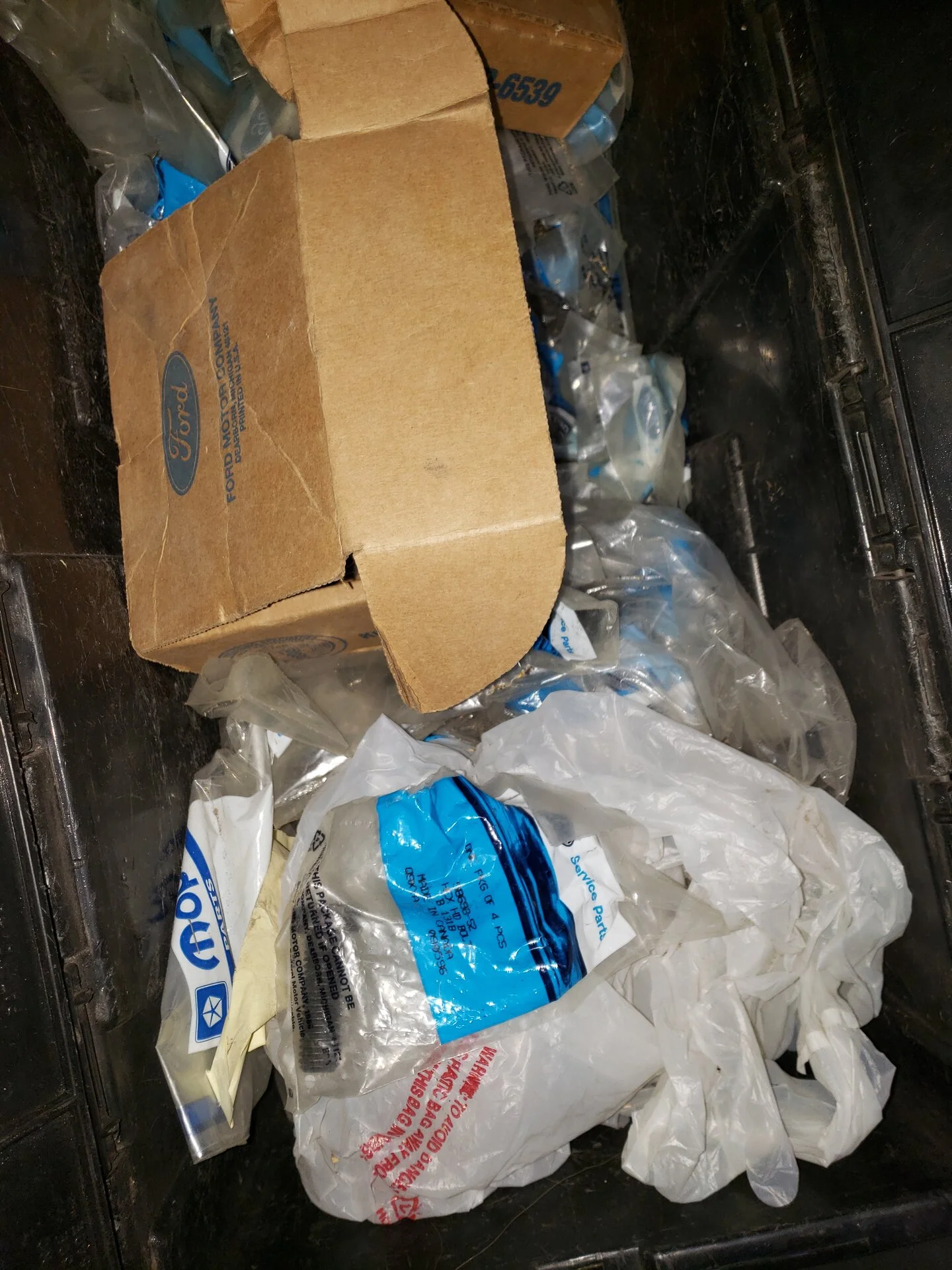

I was a Ford tech for 20+ years and Ford sent new bolts with just about every part
Looks like a 10mm flange bolt with a 13 head and a 1.0 threads?
Need to know the size to be sure but I would send you one free
Length about an inch and a quarter?

  • Hell Yeah!
Reactions: 1 user

MrBottleneck

Member
Sep 12, 2018
37
20
18
54
Ohio
No it’s of an 1989. It’s the bolt (two per bracket) that goes through the actual Quad Shock mounting stud bracket and attaches into the outside of frame rail towards rear of car.

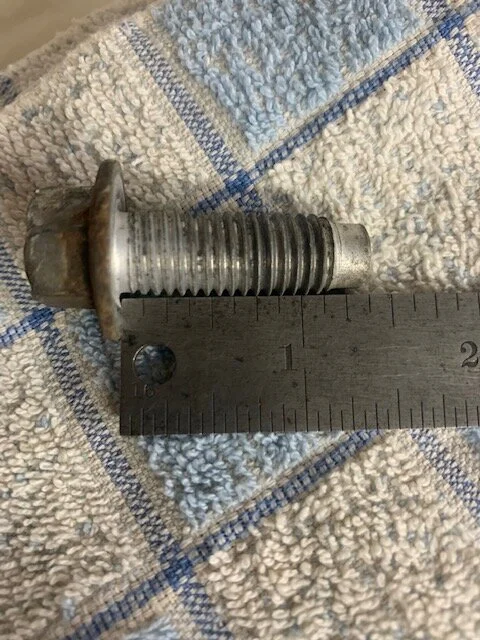

The head fits a 15mm and not sure exactly of thread pitch but, here is length etc. pictures.

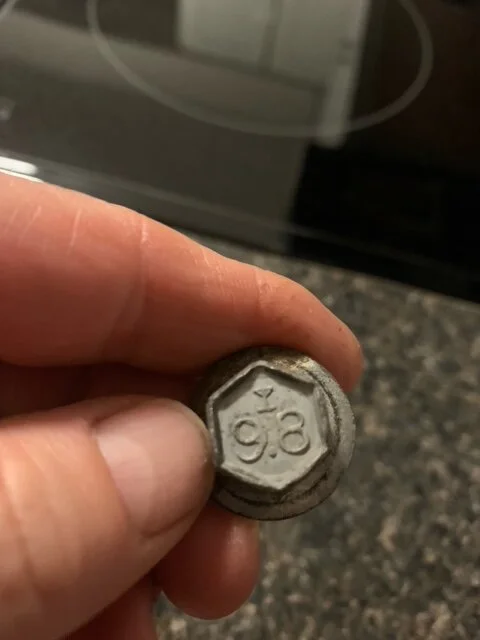

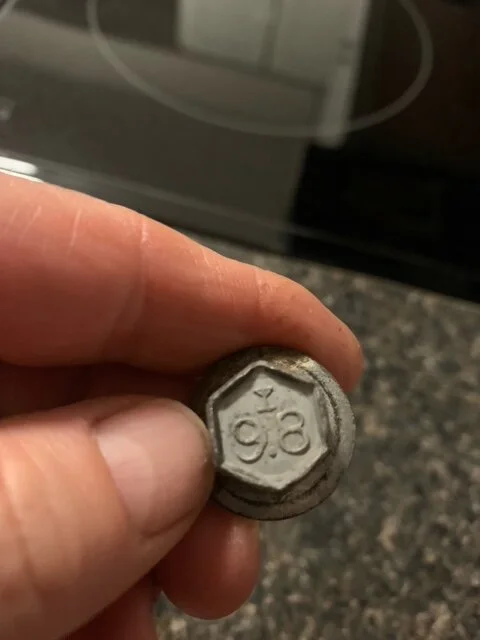

This is an exact picture of the bolt needed down to the head stamping etc.




manicmechanic007

Active Member
Sep 26, 2017
766
200
53
62

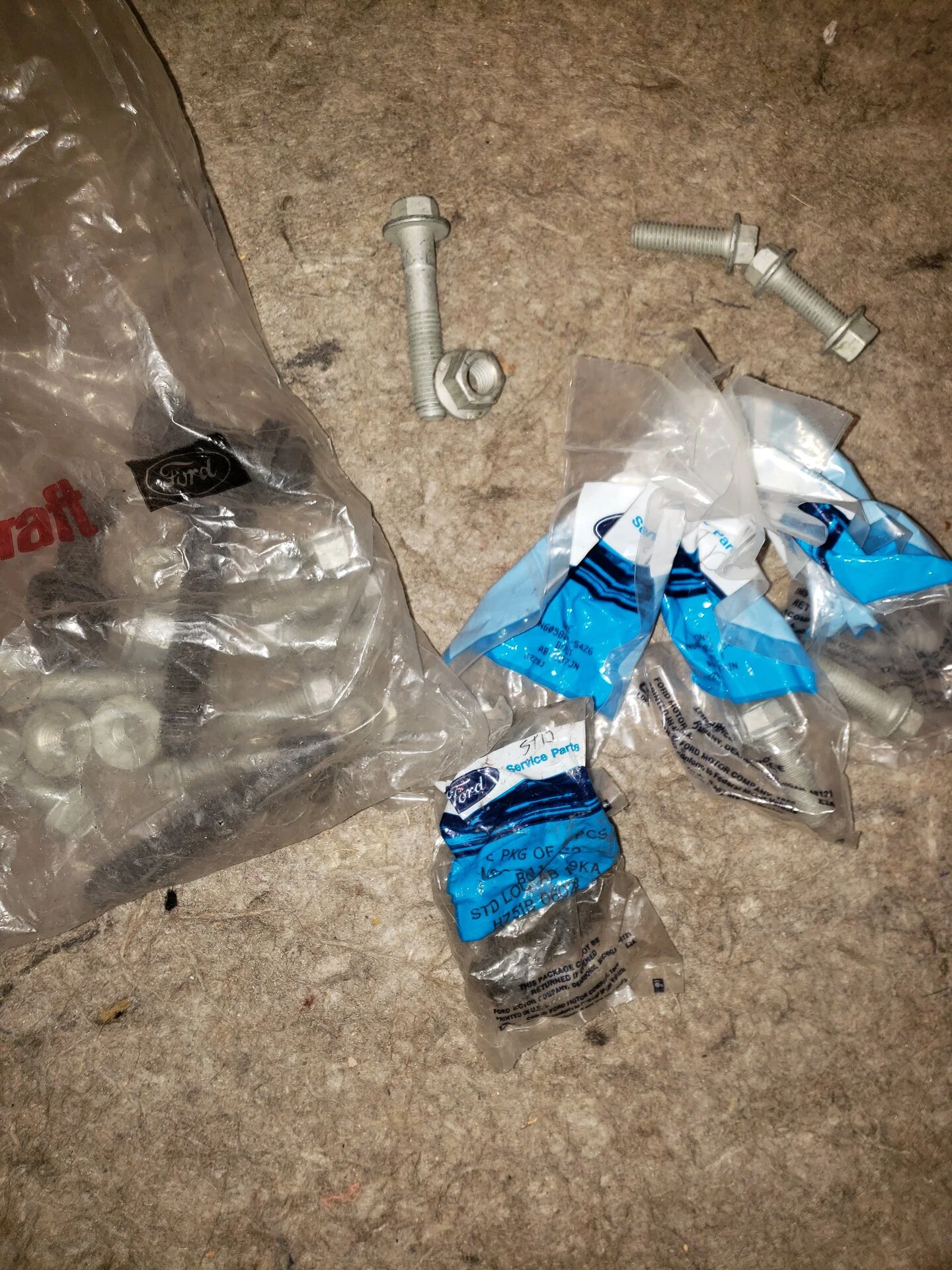

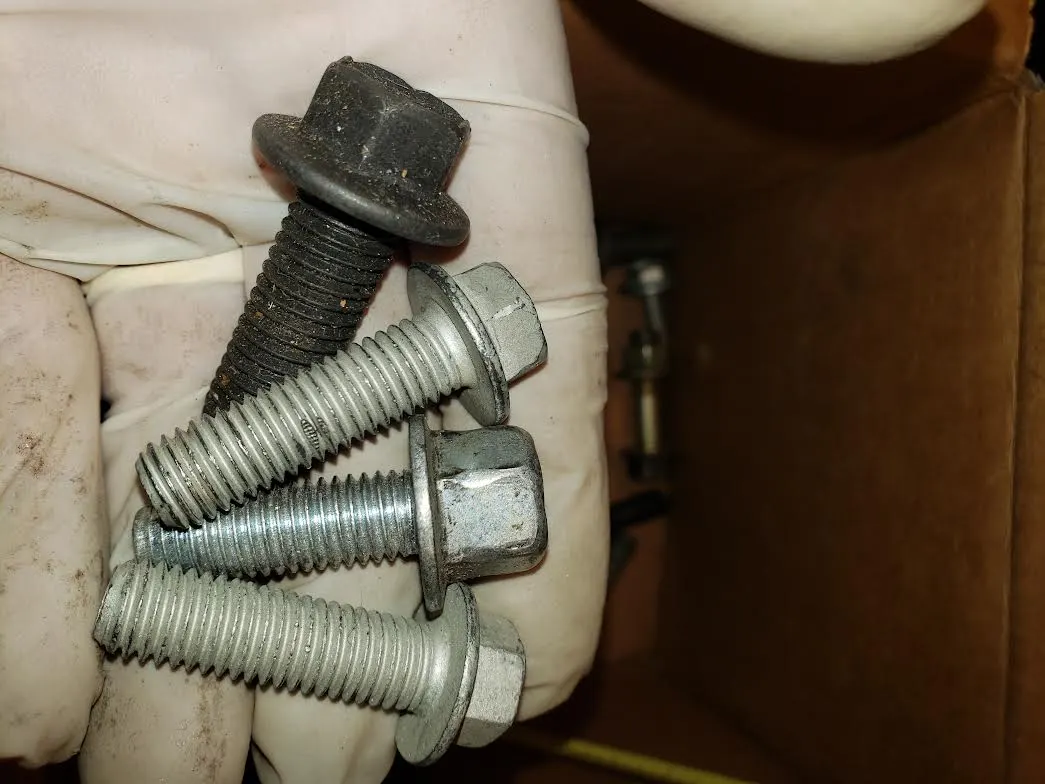

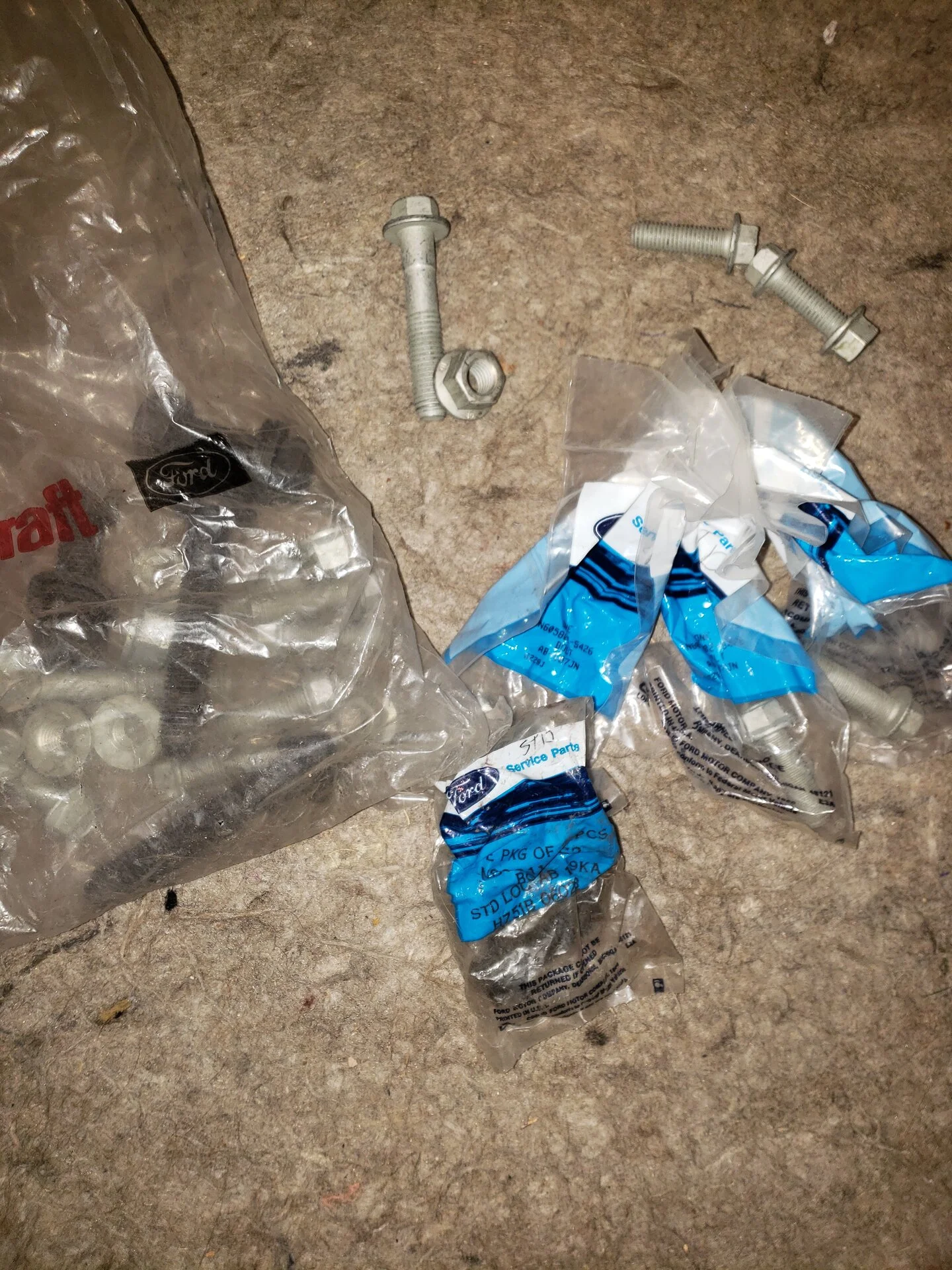

I have new bolts in black or one used silver one
I noticed the 15mm head ones also have 2 thread sizes 10 and 12mm

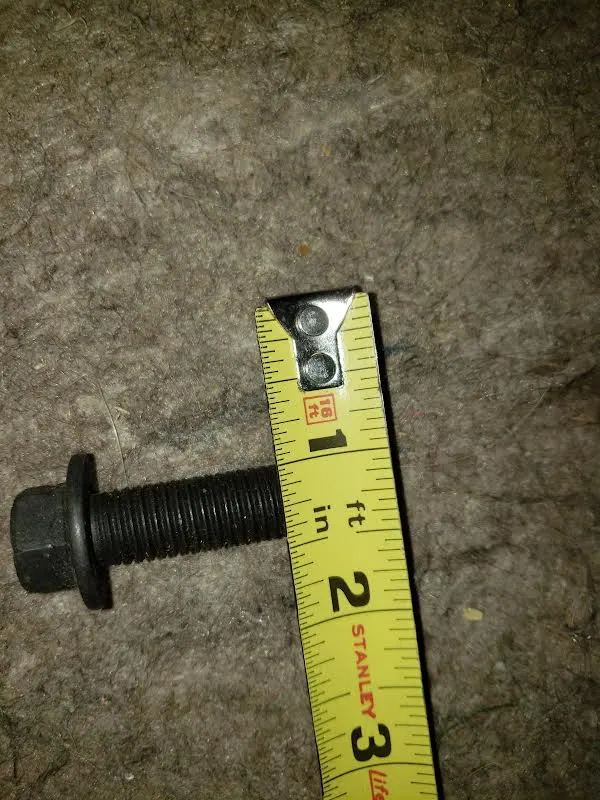

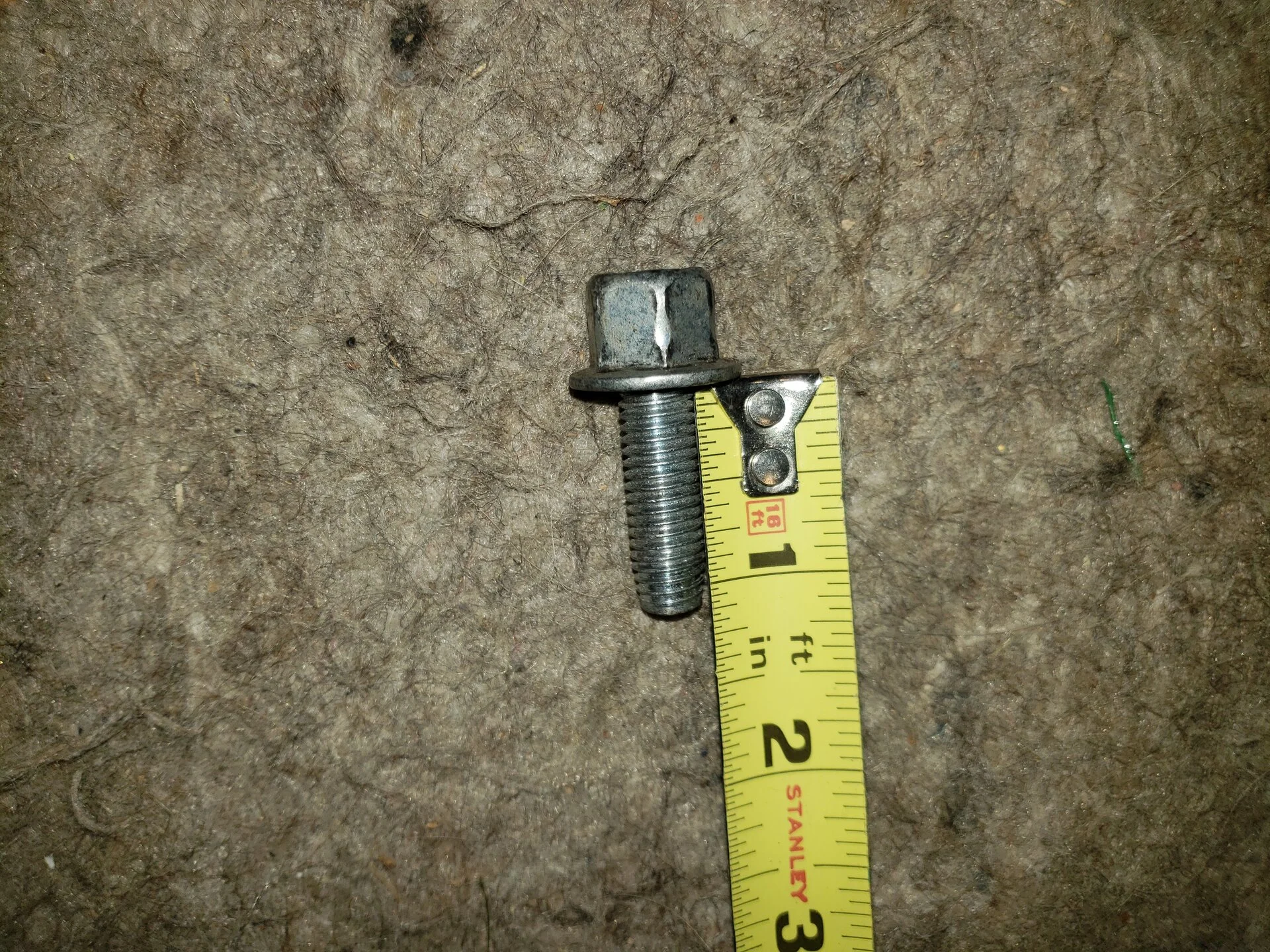

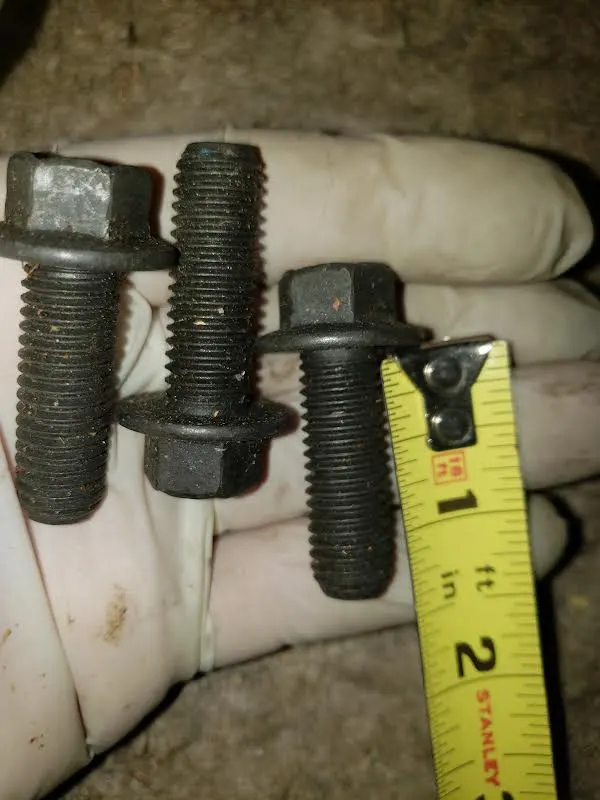

Some pics


MrBottleneck

Member
Sep 12, 2018
37
20
18
54
Ohio

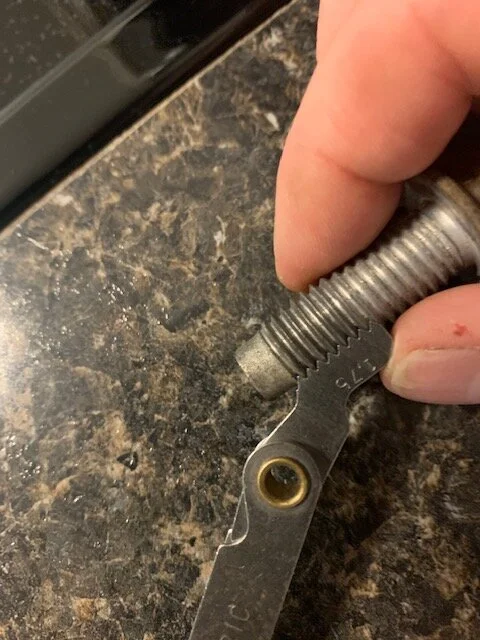

Yeah it appears to be a 12x1.75

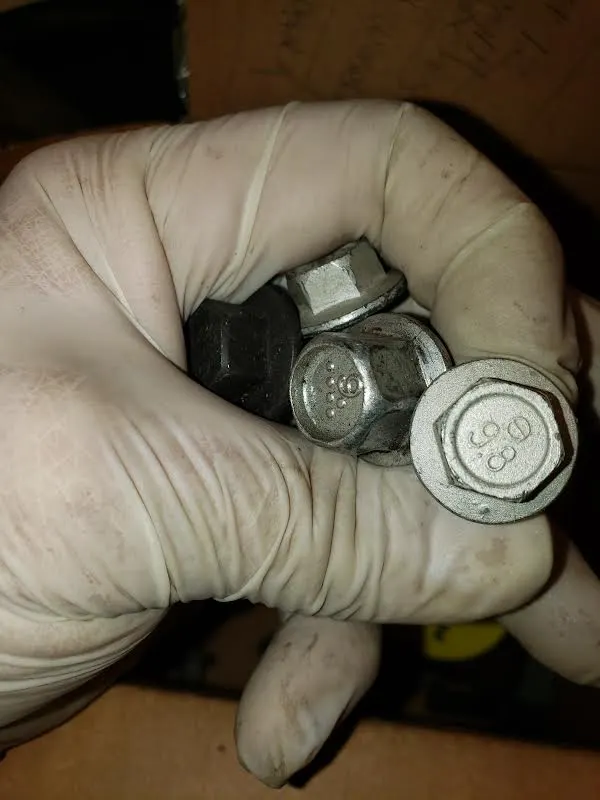

That one you have I can see 9.8 in lower photo should do the trick if its a 12X1.75 thread with 15mm head.

I send you my address if you would be so kind to send one. I will then send you money for mailing etc.


Attachments

  • 611630F1-94B1-4FEA-915E-EBE493394616.jpeg
    71.6 KB · Views: 10

manicmechanic007

Active Member
Sep 26, 2017
766
200
53
62
I got your letter last night MrBottleneck
Thank you
You did not have to send money but thanks again
I will stay in touch


MrBottleneck

Member
Sep 12, 2018
37
20
18
54
Ohio
Awesome glad it got there ok.
The world needs a little more generous people like you my friend.

Mike
