Need Wiring Diagram For Power Windows For A 1984 Mustang

ingodstime

New Member
Jul 11, 2016
2
0
1
58
Hi! Any help you could give me would be greatly appreciated. Had a guy trying to get my a/c going and now I'm left with no a/c and a big nightmare. He took wires out of the power window master switch and left them hanging.......grrr........still can't even believe it...........but anyway I need to know how the wires go back into the switch..................Thank you so much

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,318
2,650
234
74
Dublin GA
lowendmac.com

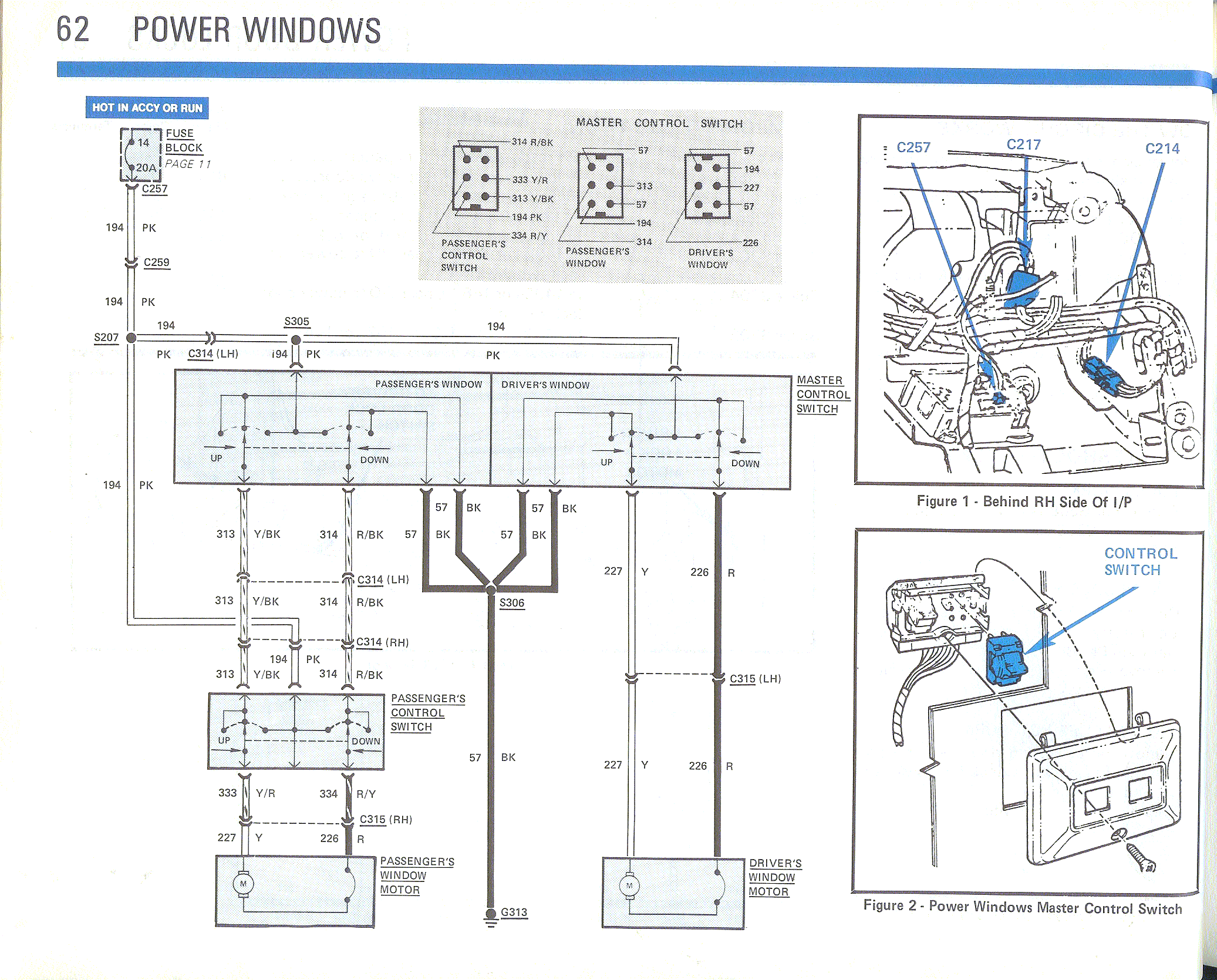

The following is for a 86, Mustang, but it should be similar. Check the wire & stripe colors and see if they match the diagram. If they do, you should be good to go.

At any rate, do as Mustang5L5 suggested and buy a manual. It will be worth whatever you have to pay for it.

Click on the diagram to enlarge it


Attachments

  • 62.gif
    416.2 KB · Views: 3,206
