Engine No crank

Magnet86

Member
Jul 21, 2018
62
7
18
Hello all:
Once again, the 86GT is giving me problems. Here goes:
While working on the ac not functioning, the car would not start or crank. Just the fuel pump hum and one click from under the hood. The battery has 12.8 volts, I replaced the starter relay with a Motorcraft one( lucky I had a spare), and nothing. Checked the shop manual and decided in accordance with the manual to replace the starter. Had it rebuilt locally and reinstalled it on the car (what fun). And the same result. I know check for fuel and spark. I'd say fuel is likely good as I replaced the pump this past Spring. That's fuel pump number 8 in 24 years of ownership. I just wanted cold ac for the summer and now nothing. So I need some ideas because I am out of patience with this car. Something breaks EVERY year in the driveway and I'm out money and time. Funny how this began when I moved to this awful state. I recall a post with a complete diagnostic routine but can't seem to find it. All ideas most welcome. Cheers.

  • Like
Reactions: 1 user

Potomus Pete

I'm still waiting for the fully nude shots
Mar 7, 2019
2,927
1,133
133
86 GT with no rust might get you some money as a roller. Consider going thru the No Start Checklist. If you go step by step it works. I would go back to everything you touched doing the AC


Mcmahst

Member
Jan 19, 2021
55
10
18
If it won’t crank, it’s likely just not up to snuff battery connections. I would Uber clean both of them (and check the ground wire to make sure it’s where it’s suppose to be) and see if that does it.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
23,672
8,754
203
If it will not crank, the engine does not turn, that is a electrical power problem, start with the battery, the checklist shows what to do.


Magnet86

Member
Jul 21, 2018
62
7
18

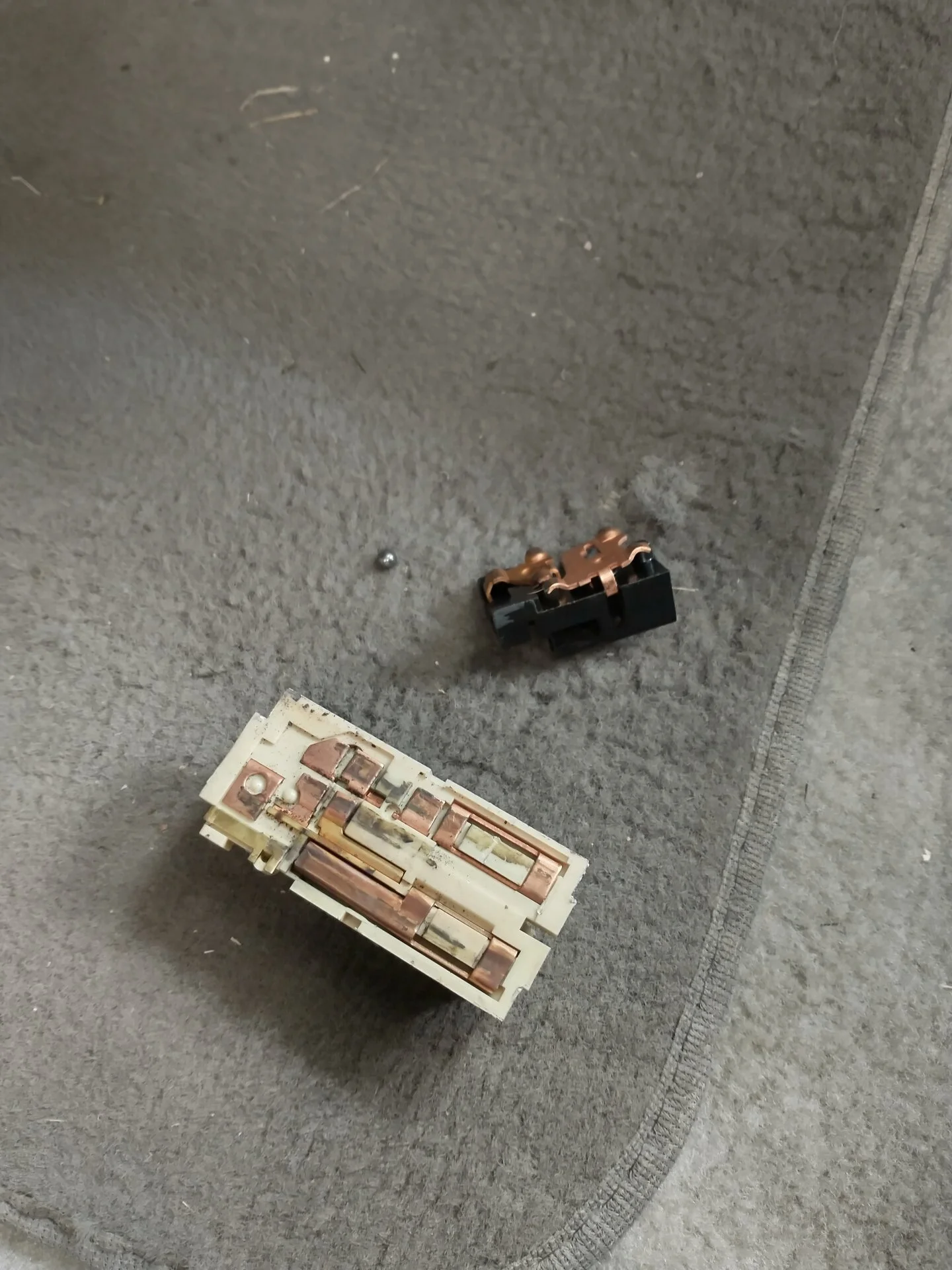

Sept2022 004.jpg

So when I checked the ignition switch it seemed a little loose. I wanted to check continuity as per the shop manual and when I disconnected the harness the entire thing came out, then fell apart. The contacts need cleaned and maybe it will go back together, not sure. I'd say this is the culprit. I have a replacement switch en route but this appears to be the mystery. Not sure why the body of the switch was loose; it didn't appear to be broken but I do recall replacing it maybe two years ago for the same problem. That one was corroded. So in a few days I might be back in business. I'll use the checklist as well- I'm sure I'll have problems in the future. Thanks all.


Magnet86

Member
Jul 21, 2018
62
7
18
The new switch arrived this morning so it was replaced. ANd same result. No start and no crank. The relay clicks once and that's all. I swapped out to the old relay just to check but no change. Cleaned battery posts and cable ends. Checked ground of the relay to the fender wall, checked wiring at the relay. Nothing. Maybe a clutch switch or the ignition wiring went bad? Could the ignition module (TFI) be bad? I moved it to the right side inner fender to deal with overheating issues and haven't had trouble since. Confused and losing interest fast.


Magnet86

Member
Jul 21, 2018
62
7
18
Tried to jump the battery but same result. Even checked the battery ground where it connects to the block. It was good. Both starter relays are good, good grounds, and good connections. I tried to check the wiring specifically the red with blue stripe wire at the relay but could not get any continuity anywhere under the hood. Checked between the relay connector and the TFI module as well as the one connector in the line. Nothing. Don't understand that. My guess at this point is the clutch switch. The new one arrives maybe Wednesday. Might take the old one off and check it. Its original. Or maybe its just a special model Ford made called a POS.
Oh well.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
23,672
8,754
203
A voltage drop test will tell you where your problem is.
Start at the battery.
have you tried to start it with a screw driver at the solenoid?
A TFI cannot cause a 'no crank' situation and the clutch switch either works or nothing, no click.
This is just my experience.

  • Like
Reactions: 1 user

Magnet86

Member
Jul 21, 2018
62
7
18
I've tried to jump the relay and nothing. Both the new and old relays. The new one is on there now. I decided to trace some wires at the clutch switch. The EVTM shows one connector but there are two. The white connector has a gray with yellow stripe wire and a black with white stripe wire. The black connector has two red with blue stripe wires. Wiring diagrams are a little confusing at this point. I have continuity between the ignition switch terminal pin 33 and the white connector. Not sure why there are two red with blue wires. Anyone have a better diagram? Also, if the relay thumps or clicks, isn't that a good sign? They both make noise but no start. I'll keep at it but not sure where to go now.


mustystang

Claiming to be an Alpha Chassis
Aug 20, 2022
112
9
18
Did you try Rednotch's advice? Maybe I'm confused but if you jumped the relay wouldn't you be bypassing the relay/switch and jumping the connection without the relay? So why would it matter if you "tried to jump both the new and old relays"?

You can't rely on clicking. The internal resistors of the relay can degrade in various ways. Corrosion on metals can increase the current traveling through which can also increase the heat. This can cause high temperature oxidation which can increase the corrosion more. Check out some carquest relays and maybe replace more than just one, another relay could have also taken damage. No need to buy name brand relays when they probably are just refaced cheaper brands anyways. I tried finding cheaper relays with the same specs but every website said that it would not fit my Ford. Ford's are more higher revving so I just paid the few bucks more for a relay that was guaranteed to fit my vehicle. I'm hoping it has better internals for the higher rpms. Who knows it may all be bogus though. For a difference in a few bucks per relay it was a no brainer. The switch mechanism can also be intermittent, so even though you hear it click it may not have sufficient contact points, or it could fail to disengage properly or entirely. You may need to check the bottom of your fuse box to see if there is severe corrosion or wires that aren't connected. Always disconnect the negative terminal of your battery before playing around with electronics. and remember to be careful.

Sorry I couldn't be of more help.


jrichker

StangNet's favorite TOOL
In Remembrance. Thank you for your contributions
Mar 10, 2000
27,513
2,853
234
Did you try Rednotch's advice? Maybe I'm confused but if you jumped the relay wouldn't you be bypassing the relay/switch and jumping the connection without the relay? So why would it matter if you "tried to jump both the new and old relays"?

You can't rely on clicking. The internal resistors of the relay can degrade in various ways. Corrosion on metals can increase the current traveling through which can also increase the heat. This can cause high temperature oxidation which can increase the corrosion more. Check out some carquest relays and maybe replace more than just one, another relay could have also taken damage. No need to buy name brand relays when they probably are just refaced cheaper brands anyways. I tried finding cheaper relays with the same specs but every website said that it would not fit my Ford. Ford's are more higher revving so I just paid the few bucks more for a relay that was guaranteed to fit my vehicle. I'm hoping it has better internals for the higher rpms. Who knows it may all be bogus though. For a difference in a few bucks per relay it was a no brainer. The switch mechanism can also be intermittent, so even though you hear it click it may not have sufficient contact points, or it could fail to disengage properly or entirely. You may need to check the bottom of your fuse box to see if there is severe corrosion or wires that aren't connected. Always disconnect the negative terminal of your battery before playing around with electronics. and remember to be careful.

Sorry I couldn't be of more help.

Do the checklist, it works and if you use it correctly, you will find the problem. I have been driving and fixing these cars since 1992, and that experience is reflected in the checklist.

No Crank checklist for 5.0 Mustangs

Revised 24-Oct-2013 to update voltage drop figures.

No crank, slow crank and stuck starter solenoid problems have the same root causes – low battery voltage and poor connections. For that reason, they are grouped together.
Use the same initial group of tests to find the root cause of slow crank, no crank and stuck solenoid problems.

Since some of the tests will bypass the safety interlocks, make sure that the car is in neutral and the parking brake is set. Becoming a pancake isn’t part of the repair process…


1.) Will the car start if it is jumped? Then clean battery terminals and check battery for low charge and dead cells. A good battery will measure 12-13 volts at full charge with the ignition switch in the Run position but without the engine running.
A voltmeter placed across the battery terminals should show a minimum of 9.5-10 volts when the ignition switch is turned to the Start position and the starter engages or tries to engage. Less than this will result in a clicking solenoid, or slow cranking (if it cranks at all) or a starter solenoid that sticks and welds the contacts together.

Most auto parts stores will check your battery for free. It does not have to be installed in the car to have it checked; you can carry it with you to the auto parts store.

The battery posts and inside of the battery post terminals should be scraped clean with a knife or battery post cleaner tool. This little trick will fix a surprising number of no start problems.

The clamp on with 2 bolts battery terminal ends are a known problem causer. Any place you see green on a copper wire is corrosion. Corrosion gets in the clamped joint and works its way up the wire under the insulation. Corroded connections do not conduct electricity well. Avoid them like the plague...

If the starter solenoid welds the contacts, then the starter will attempt to run anytime there is power in the battery. The cables and solenoid will get very hot, and may even start smoking. The temporary fix for a welded starter solenoid is to disconnect the battery and smack the back of the solenoid housing a sharp blow with a hammer. This may cause the contacts to unstick and work normally for a while.

A voltmeter is handy if you are familiar with how to use it to find bad connections. Measure the voltage drop across a connection while trying to start the car: more than .25 volts across a connection indicates a problem. The voltage drop tests need to be done while cranking the engine. It's the current flowing through a connection or wire that causes the voltage drop.

See http://assets.fluke.com/appnotes/automotive/beatbook.pdf for help for help troubleshooting voltage drops across connections and components. .

attachments\64167


Voltage drops should not exceed the following:
200 mV Wire or cable
300 mV Switch or solenoid
100 mV Ground
0.0V Connections
A voltage drop lower that spec is always acceptable.

2.) Check the battery to engine block ground down near the oil filter, and the ground behind the engine to the firewall. All grounds should be clean and shiny. Use some sandpaper to clean them up.

3.) Jump the big terminals on the starter solenoid next to the battery with a screwdriver - watch out for the sparks! If the engine cranks, the starter and power wiring is good. The starter relay is also known as a starter solenoid.

The rest of the tech note only concerns no crank problems. If your problem was a stuck solenoid, go back to step 1.

4.) Then pull the small push on connector (small red/blue wire) off the starter solenoid (Looks like it is stuck on a screw). Then jump between the screw and the terminal that is connected to the battery. If it cranks, the relay is good and your problem is in the rest of the circuit.

5.) Remember to check the ignition switch, neutral safety switch on auto trans and the clutch safety switch on manual trans cars. If they are good, then you have wiring problems.

Typical start circuit...
Diagram courtesy of Tmoss & Stang&2birds
attachments\21328


6.) Pull the starter and take it to AutoZone or Pep Boys and have them test it. Starter fails test, then replace it. If you got this far, the starter is probably bad.


Starter solenoid wiring for 86-91 Mustang
attachments\52294



Starter solenoid wiring 92-93 Mustang or earlier Mustang with upgraded high torque mini starter.
[
attachments\53216


Electrical checks for the switches and starter solenoid

Remove the small red/blue wire from the starter solenoid. Use a screwdriver to bridge the connection from the battery positive connection on the starter solenoid to the small screw where the red/blue wire was connected. The starter should crank the engine. If it does not, the starter solenoid is defective or the battery lacks sufficient charge to crank the engine.

If the starter does crank the engine, the problem is in the clutch safety circuit (5 speed) or Neutral Sense Switch (auto trans) or ignition switch.


See the Typical start circuit diagram above for wiring information for troubleshooting.

You will need a voltmeter or test lamp for the rest of the checks. Connect one lead of the voltmeter or test lamp to ground. The other lead will connect to the item under test.
Look for 12 volts on the white/pink wire when the ignition switch is turned to the Start position. Check the ignition switch first.
No 12 volts, replace the ignition switch.

The next step will require you to push the clutch pedal to the floor (5 speed) or put the transmission in neutral (auto trans) while the ignition switch is turned to the Start position.
Good 12 volts, check the clutch safety switch (5 speed) or Neutral Sense Switch (auto trans) for good 12 volts on both sides of the switches. No 12 volts on both sides of the switch and the switches are defective or out of adjustment. Check the wiring for bad connections while you are at it.

  • Useful
  • Like
Reactions: 1 users

Magnet86

Member
Jul 21, 2018
62
7
18
I used the checklist but as the ignition switch was bad and I had the starter rebuilt, and still a no crank, plus a no crank when attempting to jump the battery as well as use a battery booster/ jump pack, I went back to the connections and checked the cables. And surprise, that was the problem. Battery positive and negative were not flowing any juice at all. The starter cable was fine. I ordered replacements for all three and installed them and the thing fired right up. I really didn't expect cables to go bad. So now the entire start system is new or updated and it probably needed it. The starter was 24 years old and the cables were original. I'm also glad I replaced the ignition switch. I have a new Ford clutch safety switch but will wait on that one. Might be a chore to replace. So, after at least three weeks, plus a cold and some other weird items, I'm mobile again. And still no AC. But as it is finally cooling down, well at least I get to drive it a few more miles before Winter.
Cheers.

  • Like
Reactions: 1 users

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,455
15,302
224
Cables and terminals frequently go bad. They corrode internally where you can't see it.

9 times out of 10, when you get that single click and nothing, or the car doesn't have any power to turn on a single light, it's a battery terminal/cable issue.

  • Agree
Reactions: 1 user

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,464
5,539
203
Glad you got it sorted out. Maryland does suck. I left there and moved to Fredericksburg VA and love every bit of it.

We have a '86 too. Seems like a bunch of them have been popping up lately. No one wanted them back in the day. People were afraid to put cams and stuff on them because they weren't MAF.

If you ever want to leave that God forsaken state I have a great real estate agent.
