Electrical "No start (spark) checklist" clarification question

Ozz

I think I have a problem here.
Founding Member
Jul 27, 2001
3,514
67
109
39
Canton, MI
www.soniccherry.com
Troubleshooting a no spark issue, and going through the checklist I found a point of confusion.

Jrichker's no-start checklist has this about the ignition switch:

G.) Ignition switch - look for 12 volts at the ignition coil red/lt green wire. No 12 volts, blown fuse link or faulty ignition switch. Remove the plastic from around the ignition switch and look for 12 volts on the red/green wire on the ignition switch with it in the Run position. No 12 volts and the ignition switch is faulty. If 12 volts is present in the Run position, then the fuse or fuse link is blown.


If I'm reading this right, it says that with the key in the RUN position, it suggests 2 outcomes:

1) 12V not present = faulty ignition switch
2) 12V is present = fuse link blown

I could be missing something, but it seems to make no sense. Is there a typo/missing information in those statements? That red/green wire goes to the coil plug on the coil, and I have 12V there, so it seems to me that the circuit is complete and the fuse link therein is not blown (e.g., typo in the checklist)

  • Sponsors(?)


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,951
12,816
224
Massachusetts

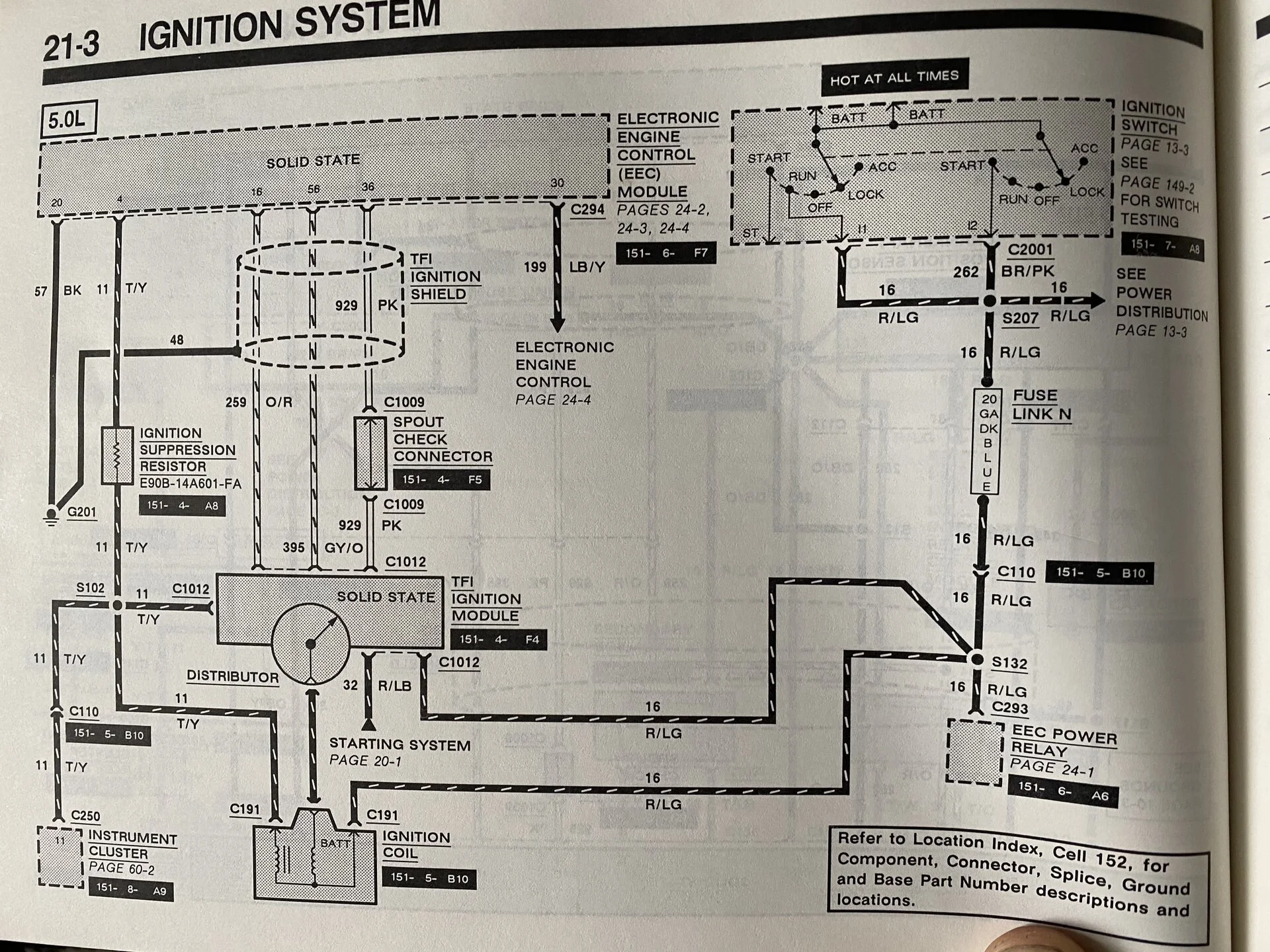

Fuse link comes after the ignition switch. If you have powet at the coil then the fuse link is good



Ozz

I think I have a problem here.
Founding Member
Jul 27, 2001
3,514
67
109
39
Canton, MI
www.soniccherry.com
Thanks, that's what I thought. I was stuck on the troubleshooting checklist writeup, apparently there are some old posts that still exist which omit half a statement. It figures that the version I was following contained that error, which stated "If 12 volts is present in the Run position, then the fuse or fuse link is blown" instead of "If 12 volts is present in the Run position, but NOT at the ignition coil plug, then the fuse or fuse link is blown."
