Oil Spraying Around Cyl 7 On Fresh Rebuilt 302.

Madlash93

Member
Nov 19, 2016
9
3
13
28
Racine Wisconsin
Hello, i'm new to these forums. Tried searching around and can't find my specific problem so I figured i'd make an account and ask away.

(Bit of back story, not exactly required to know the problem.)
I got this 86 mustang GT on trade for my YZF R1 a while back (the mustang didn't run when I traded due to them having a plate covering the MAF sensor, removed the plate and it fired right up and ran great..... it has stock injectors, i'd assume that plate was tricking the ECU into thinking it had different sized injectors). it also had a really bad vibration over 3Krpms, eventually the rear main seal went out so I replaced it, then it went out again a few weeks later, so I figured it was probably being caused by whatever is causing the vibration.
I then decided i'll just buy another 302 roller bottom end for $100 and slap everything from my current 302 onto it and that's what I did with a 1987 lincoln town car roller 302 flat top cast pistons and all (yes I checked the PTV clearance with a solid lifter, play dough, and old head gasket in place. not exactly sure how but the valves were fairly far away form the pistons after about 4 full rotations of the engine ((flat top 87 town car cast pistons, e303 cam, E7TE heads, Compcams magnum push rods can't remember the number listed on them)))

(problem)
Now to get to the problem at hand, I have all new bearings, all bolts threadlocked, all new quality gaskets, all bolts tightened to torque spec with the correct sequence put 500 miles of low load low rpm driving (about 3500rpm, 50% throttle at most) changed the break in dino oil out, put in mobile 1 full synthetic 5w30 with a new filter, drove another 20 miles to make sure everything was still ok as up to this point nothing was leaking at all... then i got on it a bit, pulls amazing, runs great.
So I decide to do a good run through a few gears, hard pull from second to 3rd, all is good, then at the top of 3rd I started seeing what looked like steam spraying up near the dip stick and it very lightly misted my window. ((I was driving with no hood when doing the pulls as I was to lazy to mess with the stupid screws that hold it on... it's not a hinged hood.))
I got back to the garage and looked, it dripped a small amount of oil under the car, but I couldn't see anywhere oil could have possibly been coming from, the dipstick was fully seated and oil free, the bottom of the dipstick where it goes into the block was also dry, but my spark plug heat shield was soaked in engine oil and it just ran down the side of the block... I can't see anywhere it could possibly be leaking but it certainly is spraying when under continuous heavy load.

(What I already tried)
I have tried a few things like cleaning the oil off the block, lying under it while a friend holds the rpms up around 4K to try to spot the leak, but it doesn't show up unless the engine is under heavy load for a bit of time.

I have since driven it a few times to see if I can recreate the leak, it does this every time. I can really get it to spray good while doing a burnout even when I drop the RPMs to 2K while doing a fully stopped burnout (oil pressure is pretty good, right in the middle during warm idle, probably about 3/4 with higher rpms.)

(Sorry... I just noticed how much I typed.)
Any ideas?

((yes the new bottom fixed the vibration issue I was having, the old bottom end has aftermarket parts that aren't balanced, or aren't balanced for a 50oz imbalance, the rear main bearing was oddly broken as well, not spun or cut up looking, but a chunk of it was missing, i'll have to take a picture of it eventually as i have never seen anything like it.))

  • Sponsors(?)


Davedacarpainter

I think I've messed my pants
SN Certified Technician
Nov 28, 2015
11,700
11,607
203
59
Discordia
First off, welcome to stangnet.

Secondly, I'll move your thread to the tech subforum. The mechanics hang out there.

What head gaskets did you use when you rebuilt it and did you have the block and heads surfaces checked to be sure they're still flat?

A chunk of the rear main bearing was missing?! Yeah, that could cause a slight wobble.

Anyhow, post a couple pictures of where the leak is as well for us.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
20,716
7,127
203
polk county florida
Your oil pressure sending unit is on the drivers side, check it to see if it is loose or has a leak, stock or aftermarket oil gauge?
Dip stick tube goes into block just above the oil pan rail on newer blocks, not sure what year the change was, , older sbf had a dipstick in the oil pan, where is yours?


Madlash93

Member
Nov 19, 2016
9
3
13
28
Racine Wisconsin
[/QUOTE]]
First off, welcome to stangnet.

Secondly, I'll move your thread to the tech subforum. The mechanics hang out there.

What head gaskets did you use when you rebuilt it and did you have the block and heads surfaces checked to be sure they're still flat?

A chunk of the rear main bearing was missing?! Yeah, that could cause a slight wobble.

Anyhow, post a couple pictures of where the leak is as well for us.

Thanks, I was a little confused about where to initially post.
The chunk of rear main bearing was missing from the original bottom end, I planned on getting the rotating assembly balanced and rebuilding it as well. I'm running a different bottom end from an 87 lincoln town car for now.
I used a ford performance HGs part M-6051-A302 (https://www.summitracing.com/parts/fms-m-6051-a302/overview/make/ford) and it these heads didn't leak while on the original block so i figured all was fine.
I'll post a few pictured and possibly a video in a few hours, im headed over to my step brothers (where we work on our vehicles) in a few minutes.

Your oil pressure sending unit is on the drivers side, check it to see if it is loose or has a leak, stock or aftermarket oil gauge?
Dip stick tube goes into block just above the oil pan rail on newer blocks, not sure what year the change was, , older sbf had a dipstick in the oil pan, where is yours?

The dipstick tube does go into the block on both of the blocks, I used "copper" RTV when I initially put the tube in.
I used thread locker when I put the sending unit in, checked it as well for any sign of leaking and it's not wet anywhere near the sending unit.

Last edited:

Madlash93

Member
Nov 19, 2016
9
3
13
28
Racine Wisconsin

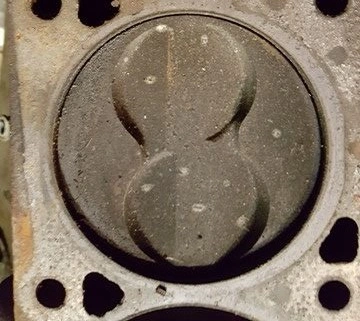

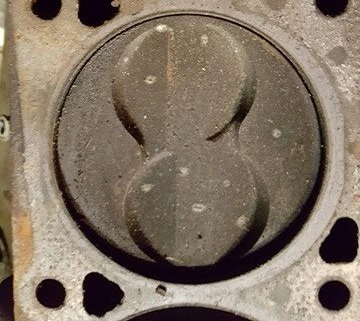

(checked the dipstick tube bottom and top, top is completely dry, bottom i'm not 100% sure since oil is all over the back left side of the block.) I also had the PCV valve in the black of the intake manifold (pretty sure that's what it is) blow off today so i'm lead to believe I have high crank case pressure and the oil is blowing out from the bottom of the dipstick.... though I have it sealed with RTV so wouldn't it blow out the top of the dipstick tube? ((freshly reamed and honed cylinders with new piston rings installed and clocked 180 degrees... so is high crank case pressure even possible unless I did something wrong?))
