Hey gang. I 've been having troubles with my cooling system. No leaks, but water temp rises fast when on hwy. Never gets to overheating point but comes very close to it. Especially when I run my ac. New thermostat(autozone) fresh complete engine rebuild around 5k on engine. Seems like there is a lot of pressure on upper radiator hose... any ideas where to start? I was thinking maybe I need to relocate overflow and put twin fans on.... heads cam intake have been upgraded, if that means anything. Oh and it's a 94 gt
Overheating at hwy speeds
- Thread starter Ashmann70
- Start date
-
Sponsors (?)
On my 96 (has a 5.0) my engine used to run a little warmer than I liked at hwy speeds, good ole Georgia heat, with 4.10 gears. I put in a aluminum 3 core, new 180 degrees tstat and got all the air out and it runs nice and cool now.
Did you install the thermostat backwards? I’ve also had them stick shut and run hot. You should feel coolant moving through the upper hose. Does your radiator feel hot? If not you’re not getting any coolant flow.
Did you install the thermostat backwards? I’ve also had them stick shut and run hot. You should feel coolant moving through the upper hose. Does your radiator feel hot? If not you’re not getting any coolant flow.
Yes it is in correct. I see movement in radiator when cap is off. If it sits at idle with cap off it circulates as should. But when thermostat closes it will spill over radiator.
What are your actual temp readings? If you are watching the stock gauge then you need to put a manual gauge in it, even mounting it temporarily where you can watch the temp reading while driving, the stock gauges can be suspect. Also try jacking up the front of the car as far as you can to get all the air out, squeeze the bottom hose several times to pump trapped air out. The engine temp will rise a little when traveling at 60 and 70 mph anyway and also when using the ac, 210-215° would not be unusual, what temperature thermostat did you put in?
I was thinking about that. I'm sure they are. As I recall there is a port without a opening on the gasket. Went to the back side of the head. 190°the tune is set for the fans to come on earlier the factory setting..
The gasket is supposed to block off the front holes so it forces coolant to the back of the block for cooling.
Well... I remember seeing the difference on the gaskets. I think they also had the word FRONT on one side... that would suck if i got that wrong! And it would affect the temp wouldn't it
Yeah they say “front” but they’re been messed up before lol. One of the gaskets almost looks upside down but that’s how it is. The coolant goes in and right out the block without cooling the rear cylinder banks. Even if you have one side wrong it would run hot.
Run it and see if you notice a temp difference in the back.
Run it and see if you notice a temp difference in the back.
If it sits there and idles for extended periods without overheating, but only overheats with constant load, such as highway driving, my guess would be the radiator is plugged up with gunk inside.
91TwighlightGT
Dirt-Old 20+Year Member

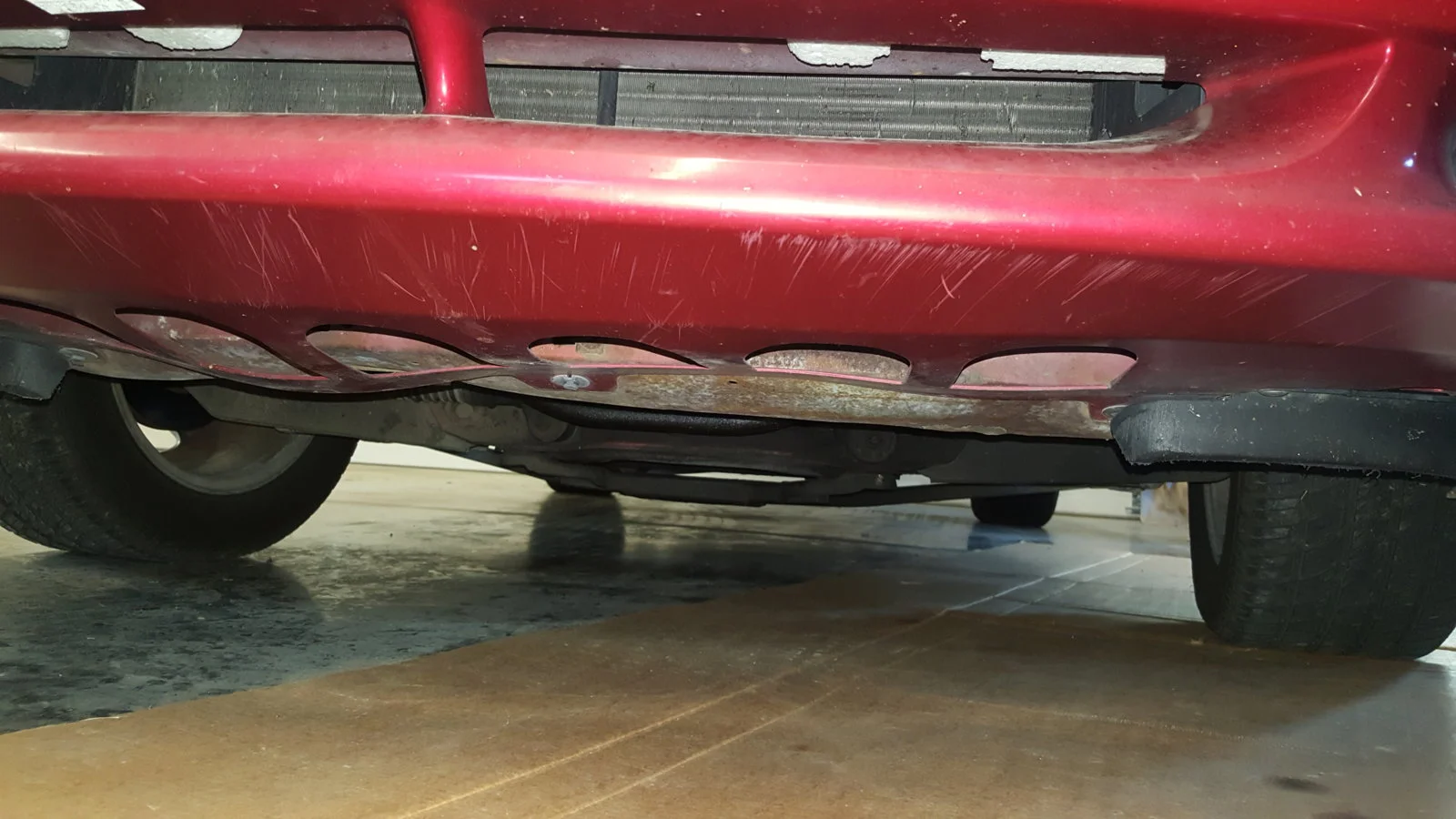

Yes. That is supposed to create a low pressure behind the radiator to help force air through it. It also explains why you are overheating at speed.
mikestang63
SN Certified Technician
get an aluminum air deflector. the stock plastic ones over time tend to get weak and not as rigid. Overheating at highway speed is an airflow problem or a clogged radiator or collapsed hose.
Right, I jack mine up as high as I can when I refill the radiator, I squeeze the lower hose several times to help pump out the air, start it up (still jacked up) and as it warms up keep pumping the lower hose a few more times.
Yes, at speed it creates a low pressure area much like a rear spoiler on a nascar, this low pressure area allows the air flowing into the engine compartment through the radiator to escape under the car, with out it pressure builds in the engine compartment and you will have reduced or no flow through the radiator.
Here's the stock style one.
https://www.americanmuscle.com/radiator-air-deflector-8793.html
Unsure who sells the aluminum one
https://www.americanmuscle.com/radiator-air-deflector-8793.html
Unsure who sells the aluminum one
