passenger door window

Marks89GT

Member
May 8, 2011
128
2
19
Dudley MA
so i guess my entire electrical system is losing it. sometimes my blinkers work sometimes they dont one will stay solid and the other will flash and vice versa but now i have a more serious problem. my passenger window is stuck open my drivers side opens and closes like new. is there something i can do to close it for the time being. and can anyone help with what the long term problem may be.

  • Sponsors (?)


Sounds like your window motor froze. Mine does the same thing every once in a while. You can do two things. Give the area where the window motor is a couple hard whacks (works for me most of the time) or take the door panel off and whack the motor itself. If neither method works just replace the motor.

i have this problem where my switch only works one way sometimes. so i switch the switch wires around(little to wire connector behind the passinger side speaker.) so now my switch works backwards. so i can always roll up just some times it willnot roll down now. hope this helps

Remove the switches and clean them with non-flammable brake parts cleaner or electrical contact cleaner. The lubricant will sometimes gum up the swithes so that they are intermittent or don't work.

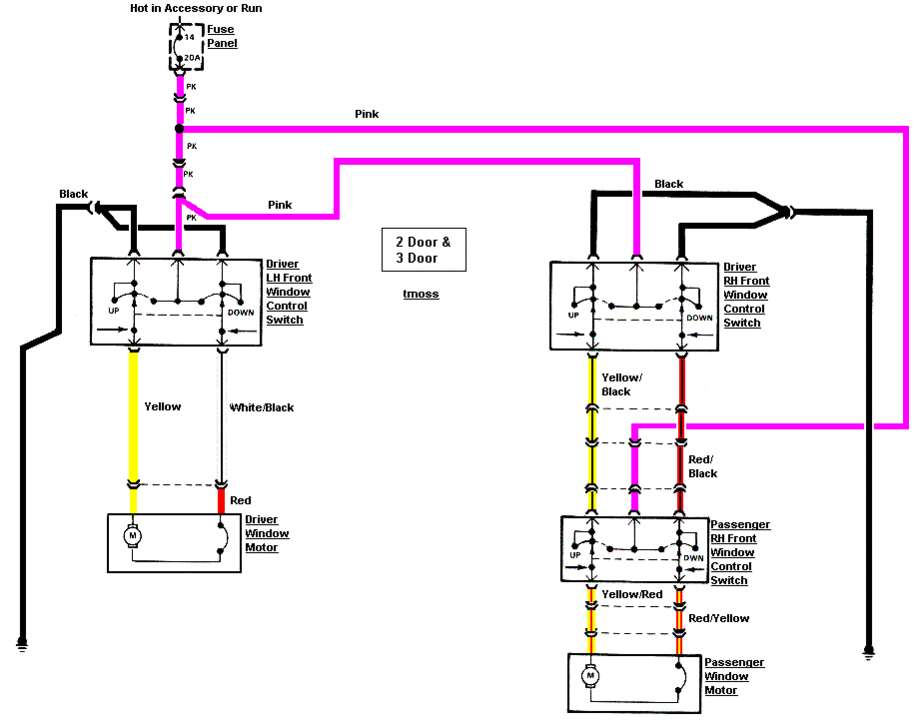

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif


Attachments

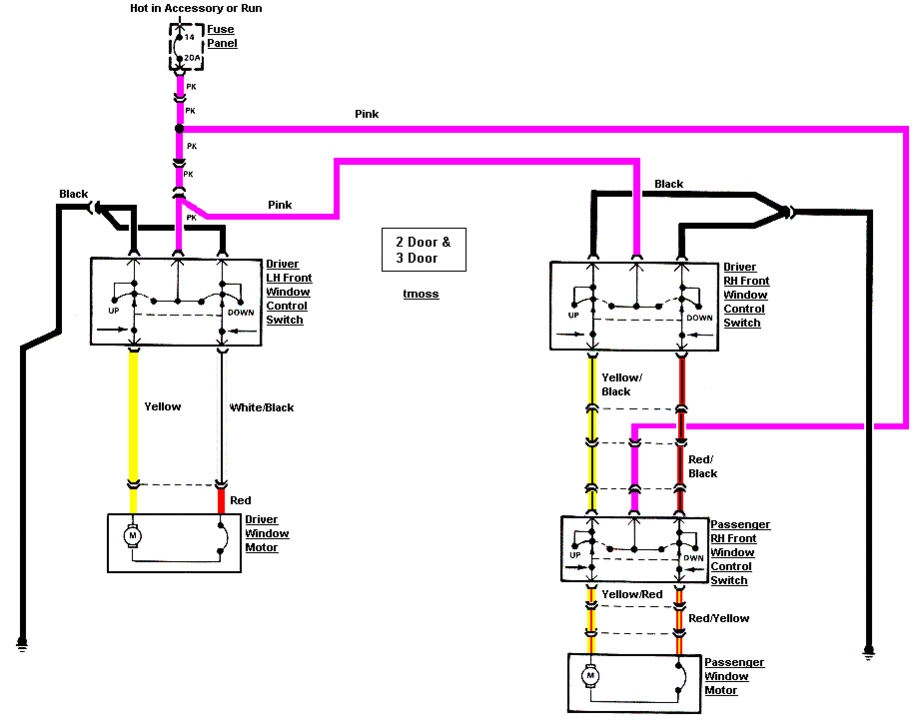

  • mustang87-92%20PowerWindowWiring.gif
    52.2 KB · Views: 62
You can remove the motor and put the window where you want it and then reinstall the motor. Be careful - the glass is heavy.
