Pic of rear shackles needed...

Mystang66

Member
Jul 23, 2011
44
5
19
Minneapolis, MN
I’m reassembling the rear suspension on my 1977 Ghia and need a pic of the underside of the bumper bracket/rear shackle. Specifically I need to see the orientation of the bracket that attaches to the underside of the bumper bracket assembly and the upper shackle.

If someone can take a quick pic, it would be greatly appreciated.

  • Sponsors(?)


LILCBRA

I wish I didn't have all of these balls in the air
10 Year Member
Dec 6, 2005
2,094
1,135
164
48
Marietta, Ga
You need a pic of the original style bracket? Mine are self made.....


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,187
1,293
133
53
Oahu

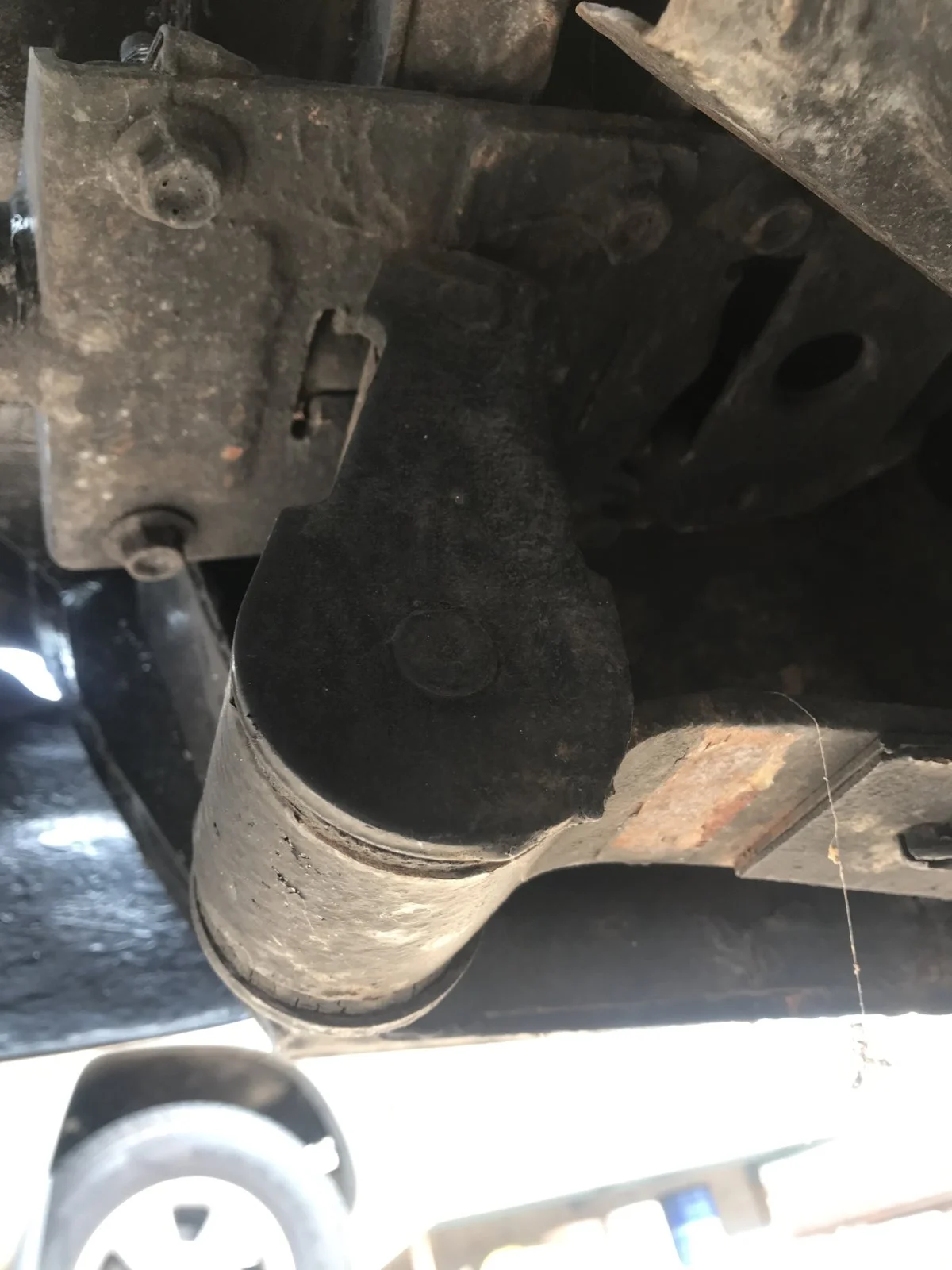

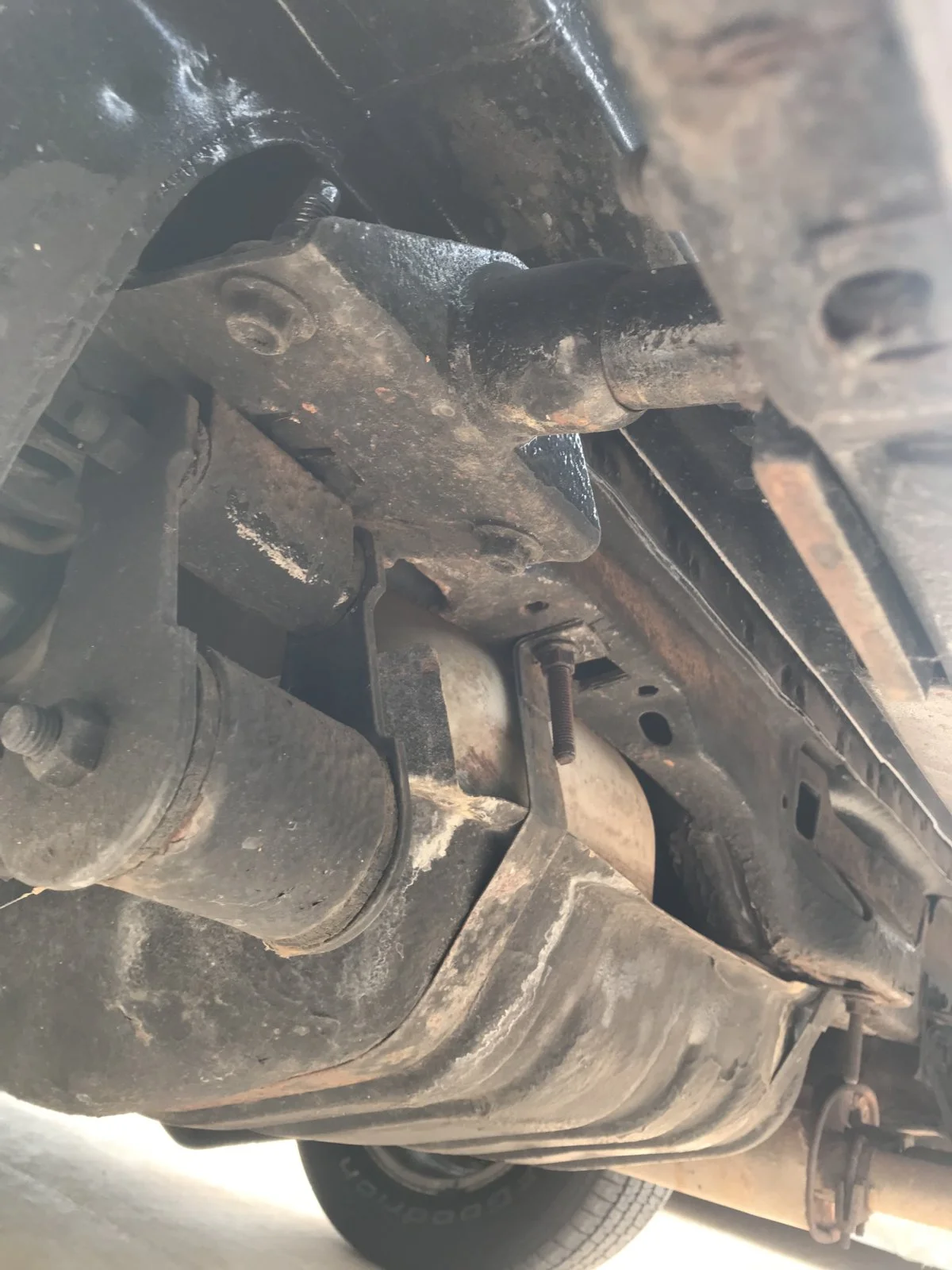

Heres a couple fresh shots of my drivers side.
Looking like factory unbroken bolt heads.



  • Like
Reactions: 429MII

extra_stout

Advanced Member
Aug 27, 2018
276
267
73
Germany
Funny, my bracket has the same diameter as the leaf spring. perhaps this is something which is related to the 74 model…?!
With the newer bracket I could lower my car a few inches.

  • Informative
Reactions: 2Blue2
