Electrical Power door locks

Brutus413

New Member
Sep 3, 2021
1
0
1
36
CO
There exists more than a few threads on this but very few actually have confirmed resolutions. Earlier i checked this in depth thread. this thread was particularly helpful and kudos to the individual that took the time https://www.stangnet.com/mustang-forums/threads/power-door-lock-troubleshooting-foxbody.909241/

However im at the part in the troubleshooting where I just do not know where to go next. https://www.stangnet.com/mustang-fo...k-troubleshooting-foxbody.909241/post-9164212

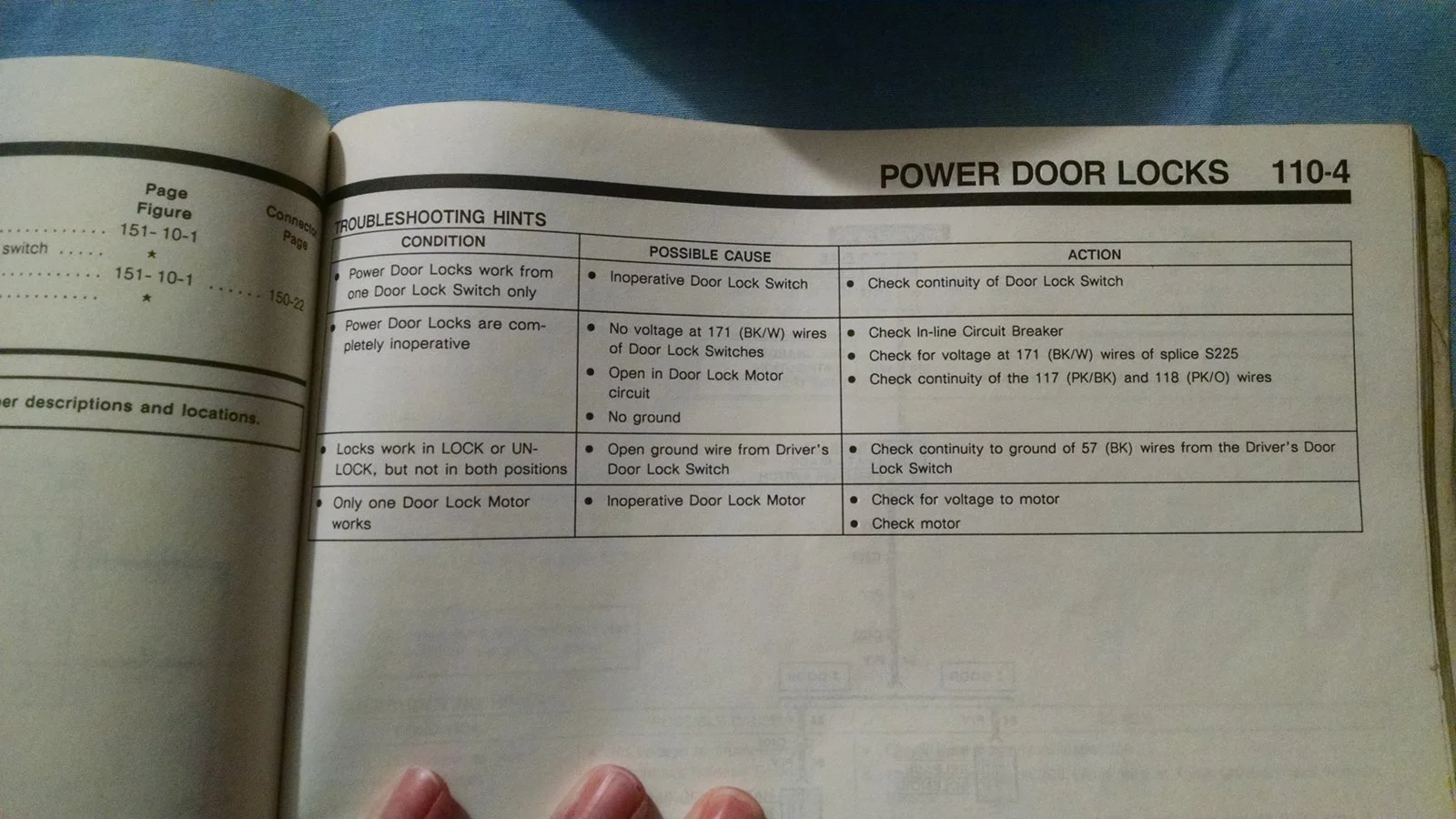

this image here, Power door locks are completely inoperable. I did each of those steps and confirmed voltages and continuity both in power and actuator circuit. Both actuators are brand new because i figured that was my problem and both switches are new as well.

Banging my head against the wall here, i have spent more time on this than id like to admit


Attachments

  • locks.jpeg
    244.9 KB · Views: 12
  • Sponsors(?)


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
5,860
4,950
203
43
When you hold the lock button down do you have 12v on both sides of the actuator ?

If you do there is a problem on the ground side. Grounds are hard to diagnose because they can show continuity when checked but break contact when loaded.
