Engine Pulling heads please help!

Diesel1277

New Member
Sep 26, 2019
13
0
1
22
Tolland ct
Hey everyone, I’m going to be pulling my heads due to a incorrect head gasket the previous owner had put in while building the engine. He had used a fel-pro head gasket for the trickflow twisted wedge heads. I ordered a set of Ford performance head gaskets and a set of valve cover gaskets. I am asking if I can remove the head without making any adjustments to the timing or the valve train? I know the pushrods will most likely fall out but can I put them back in place as I put the head on and just bolt it back in or is it more in depth than that? Below is a list of aftermarket parts I have in the engine if they will make a difference

Trickflow wedge heads freshly resurfaced and gone through
Trickflow cam .490 lift
Trickflow roller rockers
Dual timing chain/sprockets
Chromoly pushrods
Ford racing lifters
Arp headbolts
Gt40 lower intake ported by Tmoss
Bbk shorty headers

  • Sponsors(?)


Potomus Pete

Active Member
Mar 7, 2019
255
85
38
55
Sarasota Florida
There is alot you need to know. Watch lots of videos . Read up on Stagnet . I think the part that is the trickiest is the torquing of the rockers . As far as I know the distributor has to come out. Its fairly easy but you have to be super organized . The pushrods should be put to the side in order ..... I dont no if it should be timed after . I didnt .


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,119
2,647
224
73
Dublin GA
Hey everyone, I’m going to be pulling my heads due to a incorrect head gasket the previous owner had put in while building the engine. He had used a fel-pro head gasket for the trickflow twisted wedge heads. I ordered a set of Ford performance head gaskets and a set of valve cover gaskets. I am asking if I can remove the head without making any adjustments to the timing or the valve train? I know the pushrods will most likely fall out but can I put them back in place as I put the head on and just bolt it back in or is it more in depth than that? Below is a list of aftermarket parts I have in the engine if they will make a difference

Trickflow wedge heads freshly resurfaced and gone through
Trickflow cam .490 lift
Trickflow roller rockers
Dual timing chain/sprockets
Chromoly pushrods
Ford racing lifters
Arp headbolts
Gt40 lower intake ported by Tmoss
Bbk shorty headers
Cylinder head removal & replacement

Revised 25-Aug-2014 to update parts list

Plan on 3 days to do the job if you haven't done it before.

Day one gets the heads off in 4-6 hours. Remove the A/C compressor mount bolts and move the compressor out of the way. The A/C compressor swings out of the way without disconnecting any of the lines or losing any refrigerant. Mark all the electrical, smog and vacuum lines with tags to help you remember where to re-connect them. If you have a digital camera, take several pictures.

Day two gets all the gasket surfaces scraped off extra clean and the heads dropped off at the machine shop if you are going to have them reconditioned. Time here is another 4-6 hours. Whatever you do, don't skimp on cleaning the gasket surfaces. New gaskets need to seat against bare metal and not the residue left from the old gaskets in order to seal leak free. This is the most time consuming and tiresome part of the job. Look for little things that need to be replaced like the short hose from the thermostat hosing to the water pump, damaged vacuum lines and hose clamps that are rusted or broken.

Day three starts when you get the heads back from the machine shop. This is the time to pick up all the little odd pieces you found needing replacement on your day two inspection/cleanup. Plan on 6-8 hours to reinstall the heads and reconnect everything. Plan on an additional 2 hours to troubleshoot/adjust everything.

Now for some practical tips:

Tools: a good torque wrench is a must have item. A razor blade scraper that holds a single edge razor blade from Home Depot or Ace hardware is another handy thing. Get a Chilton or Haynes shop manual - you'll need it for the bolt torques and patterns. The intake manifold has an especially odd pattern.

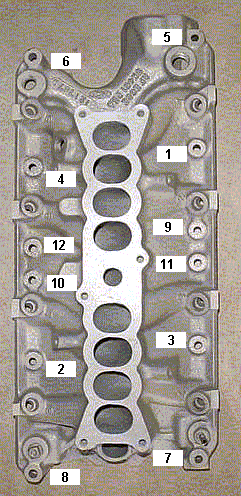

Diagram courtesy of Tmoss & Stang&2birds


The bolts are torqued down in a 3 step process.
Step 1 8 ft/lbs
Step 2 16 ft/lbs
Step 3 23-25 ft/lbs

You'll need access to a timing light to set the timing after you re-stab the distributor. Look in the A/C repair section for the fuel line tools. They look like little plastic top hats. You will need the 1/2" & 5/8" ones. The hat shaped section goes on facing the large part of the coupling. Then you press hard on the brim until it forces the sleeve into the coupling and releases the spring. You may need someone to pull on the line while you press on the coupling. Put some motor oil on them when you put the line back together.

Whatever you do, don't skimp on cleaning the gasket surfaces. New gaskets need to seat against bare metal and not the residue left from the old gaskets in order to seal leak free. This is the most time consuming and tiresome part of the job. Look for little things that need to be replaced like the short hose from the thermostat hosing to the water pump, damaged vacuum lines and hose clamps that are rusted or broken.
Put some cardboard in the lifter valley to help catch the gasket scrapings. Have a shop vacuum handy to suck up the scrapings and any coolant that leaked into the lifter valley.

Plan on cutting the thermostat to water pump hose, or removing the thermostat housing. Also plan on removing the distributor to get clearance to remove the intake manifold. Remove #1 spark plug, stick your finger in the spark plug hole and crank. When your finger gets air moving past it, stop cranking. Turn the engine until the timing marks line up with the pointer. Now you can pull the distributor out. Be sure to put a rag or cap in the block where you removed the distributor. It will save you trouble if something falls into the empty distributor hole.

My favorite trick that saves time and effort is the stay in place gasket. Be sure that you scrape (don't use a wire brush) all the old gasket material off, then clean all the surfaces with acetone or MEK.

When the surfaces are clean, use weather strip adhesive on the head to manifold surface, and on the side of the gasket that mates to the head. Follow the instructions on the tube or can and when it gets tacky, press the gasket down on the head.

Clean the area where the rubber rails mount to the block in front and in the rear with more acetone or MEK and do the same trick with the weather strip adhesive that you did to the heads.

Coat the rubber seals and the gasket area around the water passages with Blue Silicone gasket sealer and put it together. Whoopee! no leaks, and no gaskets that shifted out of place.

Get a tube of anti-seize and coat all the bolt threads and under the bolt heads. That will help insure even torque when you tighten the manifold bolts. Plan on re-torqueing them after a week’s worth of driving

The cylinder head bolts are reusable, but some new ARP bolts are a better plan.
Caution!!! Be aware that the ARP bolts have a radiused shank under the bolt head. The ARP washers have a matching radius machined into them. Be sure that the machined radius of the washer is fitted next to the machined radius on the ARP bolt heads. Forget this little fact and you will never get the head bolts to torque down properly.

Coat the underside of all bolt heads with anti seize and the threads of the long bolts. The short bolts thread directly into the water jacket and need a different treatment. Use Teflon Pipe dope on the threads of the short head bolts. It will prevent any coolant seepage from around the threads. You can get the Teflon pipe dope from the hardware stores, Home Depot or Lowes.

Fuel injector seal kits with 2 O rings and a pintle cap (Borg-Warner P/N 274081) are available at Pep Boys auto parts. Cost is about $3-$4 per kit. The pintle caps fit either injectors with a pin sticking out the injector end or 4 with more tiny holes in the injector end. The following are listed at the Borg-Warner site ( BWD - Home ) as being resellers of Borg-Warner parts:

Parts Plus - Premium Auto Parts & Accessories or Auto Value / Bumper to Bumper Quality Parts & Service - Home of the Aftermarket Auto Parts Alliance Group or Tires, Auto Parts Stores, Brakes & Automotive Parts | Pep Boys or Federated Auto Parts - Automotive Aftermarket

Most of the links above have store locators for find a store in your area.

Use motor oil on the O rings when you re-assemble them & everything will slide into place. The gasoline will wash away any excess oil that gets in the wrong places and it will burn up in the combustion chamber.

Putting the distributor back in is fairly simple. Pull #1 sparkplug, put your finger in the sparkplug hole,
crank the engine until you feel compression. Then line up the TDC mark on the balancer with the pointer
on the engine block.

The distributor starts out with the #1 plug wire lined up at about 12:00 with you facing it. Align the rotor
to about 11:00, since it will turn clockwise as it slides into place.

Align the distributor rotor up with the #1 position marked on the cap, slide the distributor down into the block, (you may have to wiggle the rotor slightly to get the gear to engage) and then note where the rotor is pointing. If it still lines up with #1 position on the cap, install the clamp and bolt. If not, pull it out and turn 1 tooth forwards or backwards and try again. Put the #1 spark plug back in and tighten it down, put the clamp on the distributor, but don't tighten it too much, as you will have to move the distributor to set the timing. Note that if it doesn't align perfectly with #1 position, you can turn the distributor until it does. The only problem is that if you are too far one way or the other, you can't turn the distributor enough to get the 10-14 degree optimum timing range.

At this point hook up all the wires, get out the timing light and start the engine. Set the timing where your car
runs best. Don't forget to disconnect the SPOUT jumper connector when you set the timing, and plug it back
in when you finish.

The HO firing order is 1-3-7-2-6-5-4-8.
Non HO firing order is 1-5-4-2-6-3-7-8



Consumable items:
head gaskets or head gasket kit
Rocker cover gaskets
Upper manifold gasket
Fel Pro 1250 or equal lower manifold gasket set.
Exhaust manifold gaskets.
Short formed hose between thermostat hosing and intake manifold
6 ft 7/64" or 1/8" vacuum hose
2 ft 1/2" heater hose
1 1/2 ft 5/8" heater hose
Blue Silicone sealer
Spray can weather strip adhesive to hold manifold gaskets in place
Acetone or MEK to clean gasket surfaces
1 gallon straight antifreeze (same price as 50/50 mix, but a 90 cent gallon of distilled water makes it 2 gallons at a cheaper price)
1 gallon distilled water
ARP antiseize or equal for the bolts
Teflon Pipe dope
4 each 3/4" hose clamps (spare item in case the old ones are bad)
4 each 1/2" hose clamps (spare item)

Machine shop charges will vary - figure $275-$350 to have heads checked for cracks, cleaned, surfaced, valves ground, valve guides reconditioned, valve springs checked and bad springs replaced.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
13,820
4,346
193
polk county florida
The internet has sure changed things, I still depend on my assembly manual, I can depend on the pages never changing, well 'cept for the greasy finger prints, it gives me the same info every time, with the internet you can google something and get an array of ways to do things or how something works you just have to decide what is and is not bs.
luckily you are on stangnet.
you still have to get past the bs but it's a lot more fun!


Mustang5L5

This is a big reason why I pulled it out
Mod Dude
Feb 18, 2001
31,503
7,766
224
Massachusetts
Only issue is the compressed height of the new gaskets vs the old affecting pushrod lenght?

But WHY are you changing the head gaskets again? What’s on there now vs what part number are you installing? I'm running Fel Pro 9333PT1's with my TFS170's and those came heavily recommended.

Last edited:

Diesel1277

New Member
Sep 26, 2019
13
0
1
22
Tolland ct
To be 100% honest I don’t know what exact gasket is in there I was just told felpro. The only reason I’m replacing it is due to coolant leaking into the cylinders (sweet white smoke from exhaust) and externally leaking down the back of the block on the drivers side. The person who had done the engine work was not very bright to say the least when it comes to sealing things up. For example he did not realize the internal and external waterpump gaskets are different so I have reason to believe it may have been user error. My engine is out of a 91 fox body and I finished the swap into a 95 bmw e36, I do not run a/c, power steering, or a smog pump at the moment so getting to the heads should be quite simple the only worry is my master cylinder on the driver side. Thank you to everyone for the support I will be getting in there this weekend after some more studying lol
