Putting The Engine Harness Back Together

[billison]

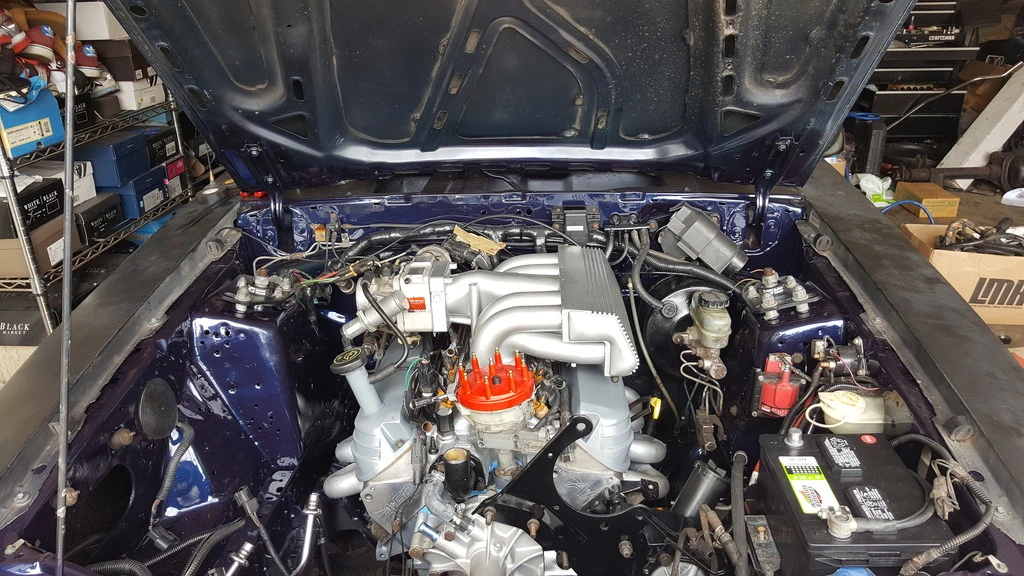

ok, started putting the engine harness back as well as doing a half wire tuck. Most everything is obvious where it goes. My only worry are the wires that go on the solenoid, I don't wanna ground a hot wire or visa Versa. I took some pictures and I'm looking at the diagrams , but I figured I'd post here in case anyone have a real obvious diagram or guide to look at.


Also, post of your wire tucks for inspiration.



[mikestang63]

Paul- Almost Stock and Dave- Sonic Cherry have good information on their sites



[Mstng93SSP]

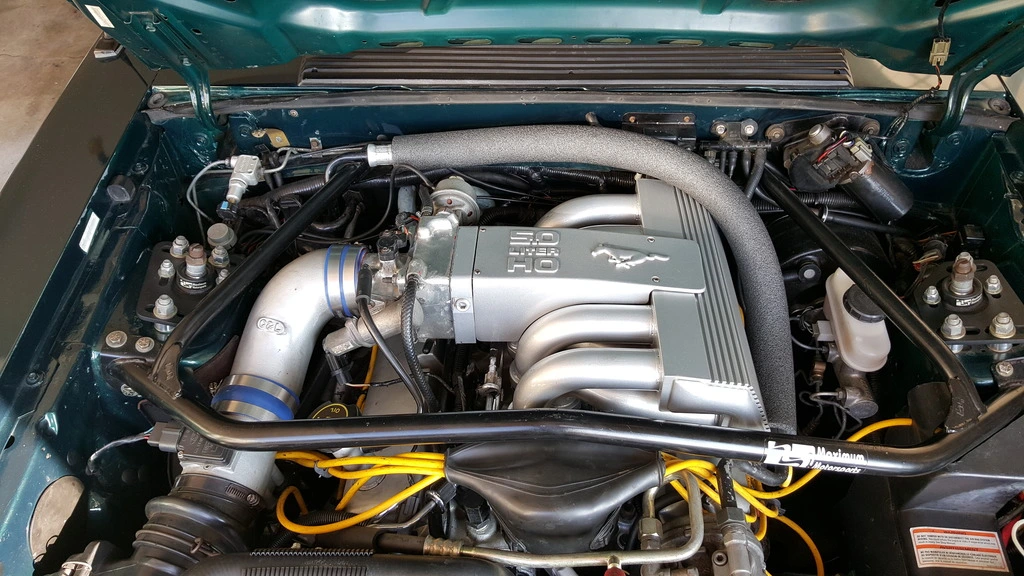

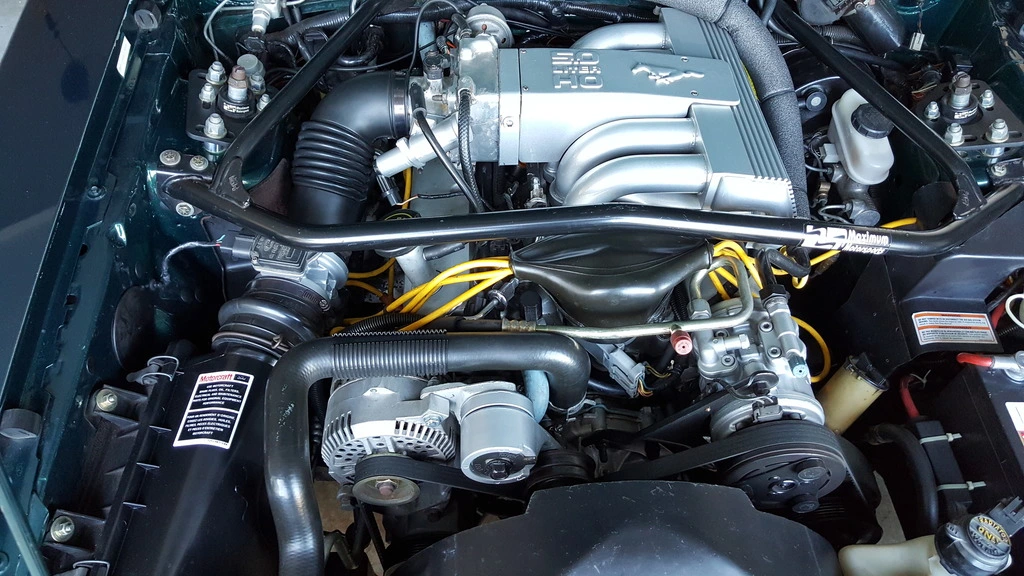

My in progress tuck on my coupe

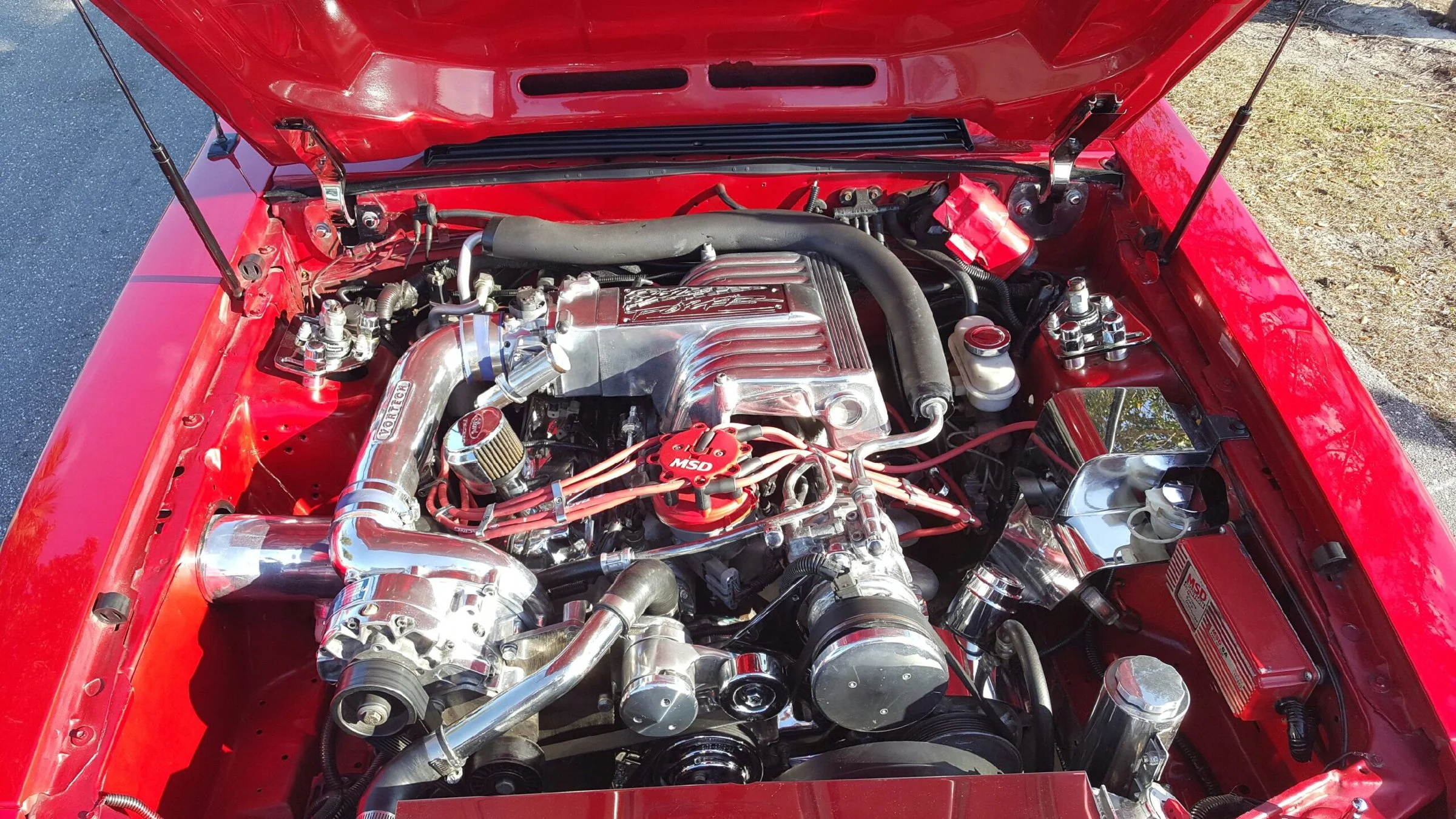

And my convertible



[jrichker]

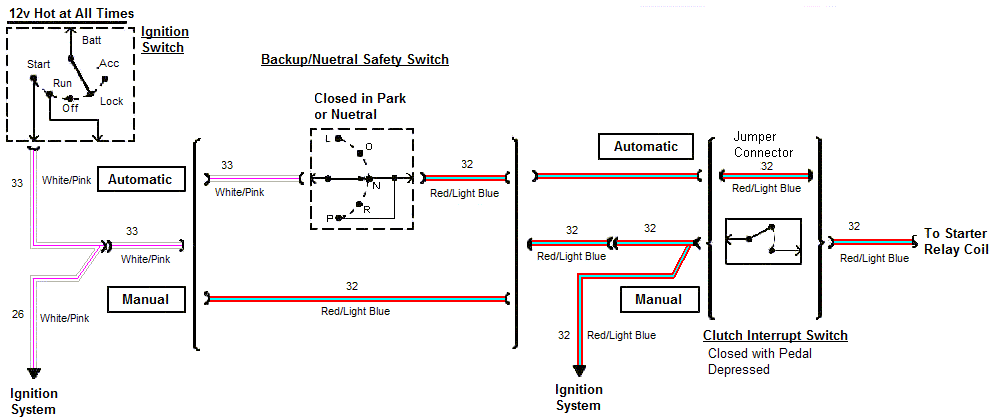

Typical start circuit...
Diagram courtesy of Tmoss & Stang&2birds

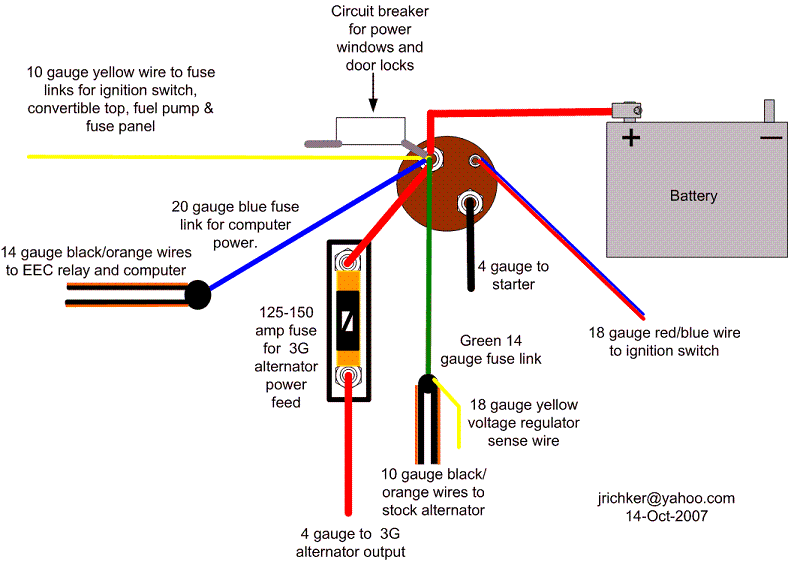

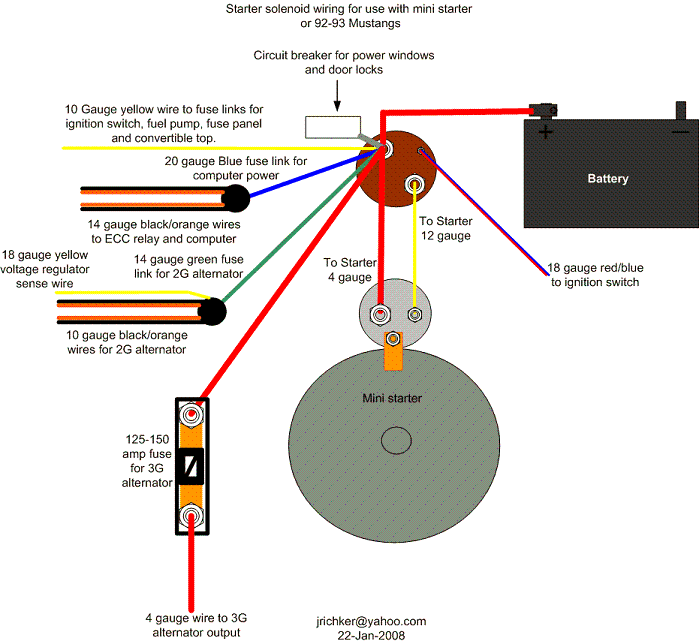

Starter solenoid wiring 92-93 Mustang or earlier Mustang with upgraded high torque mini starter.



[billison]

Typical start circuit...
Diagram courtesy of Tmoss & Stang&2birds

Starter solenoid wiring 92-93 Mustang or earlier Mustang with upgraded high torque mini starter.

Perfect! Thanks



[89gtsleeper]

To make things easier, think about it this way. The side your positive battery cable connects to (closer to rear of car) has all of the wires hooked to it except the thick cable going to the starter. It goes on the side closest to the front.



[billison]

Yeah, I get that. For the most part it all makes sense . It looks like most of it is all together. There is maybe one plug that I don't know where it goes. I'm gonna try to finish it this weekend.

Honesly, using the chart above with the color codes helps a bunch.



[billison]

My in progress tuck on my coupe

And my convertible

You are the reason I'm gonna save for a gt40 tubular intake ..
