Rear Cobra Caliper Brake Cable install (5 LUG UPGRADE)

Blueinfan

Active Member
Mar 18, 2021
205
46
38
Hi there,

First, want to thank you all for your help on my 5 lug upgrade.

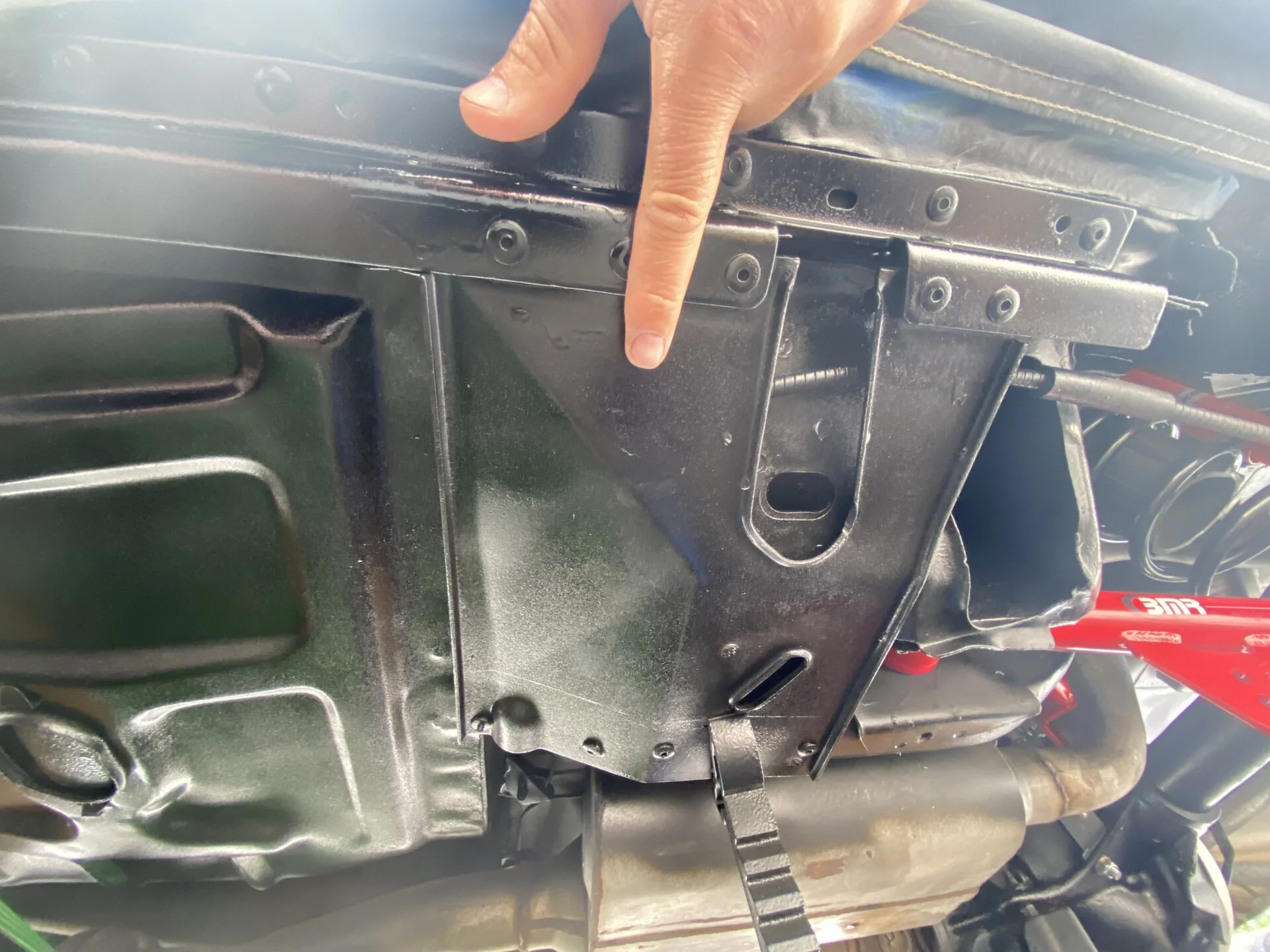

Have another question for you All. I ditched the SN95 calipers and just got the Cobra Calipers for the front and back. So now my only problem is running the rear caliper cable. There is a bottom plate that blocks my view to where the cable properly is secured there. Who do you run it through without cutting out the rivets that are there? Is there an easier way without cutting it?

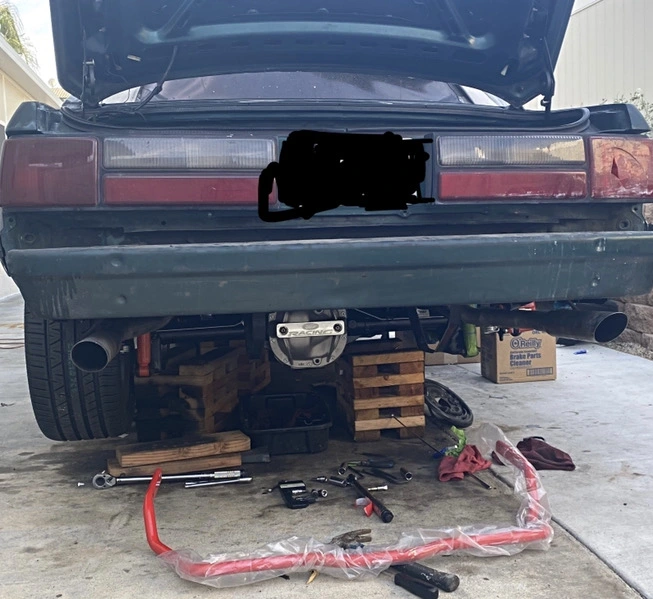

In addition, the bolts that go from the rear sway bar through the BMR rear control arms, what size are they and can I use any bolt, or get them from Oreallys?

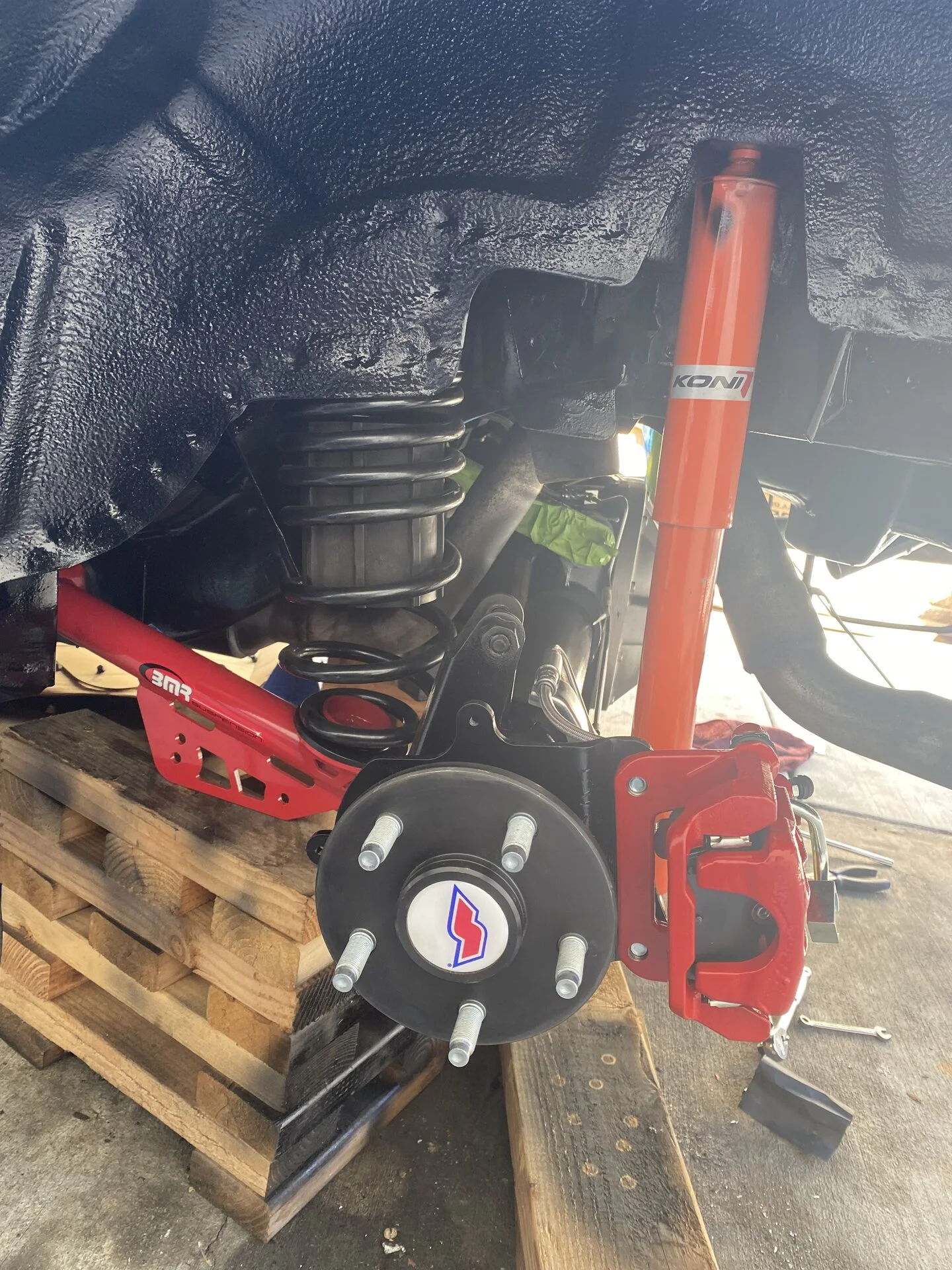

As you can see she's coming together, and THANK YOU ALL FOR YOUR HELP!


Attachments

  • IMG_9316[1].JPG
    368 KB · Views: 79
  • IMG_9317[1].JPG
    368 KB · Views: 76
  • IMG_9257[1].JPG
    572.2 KB · Views: 59
  • IMG_E9268[1].JPG
    382.5 KB · Views: 66
  • Sponsors (?)


ChaseRoads

do I need to lube this area?
Oct 29, 2020
188
60
38
It's been awhile, so this may be wrong, but the cable just passes through the holes and has a clip that holds the outter sleeve still. one for front, one for the rear of each cable.

unrelated, what under coating is that? it looks awesome.

  • Like
Reactions: 1 user

ThinBlue502

Advanced Member
May 7, 2019
300
486
73
It's been awhile, so this may be wrong, but the cable just passes through the holes and has a clip that holds the outter sleeve still. one for front, one for the rear of each cable.

unrelated, what under coating is that? it looks awesome.

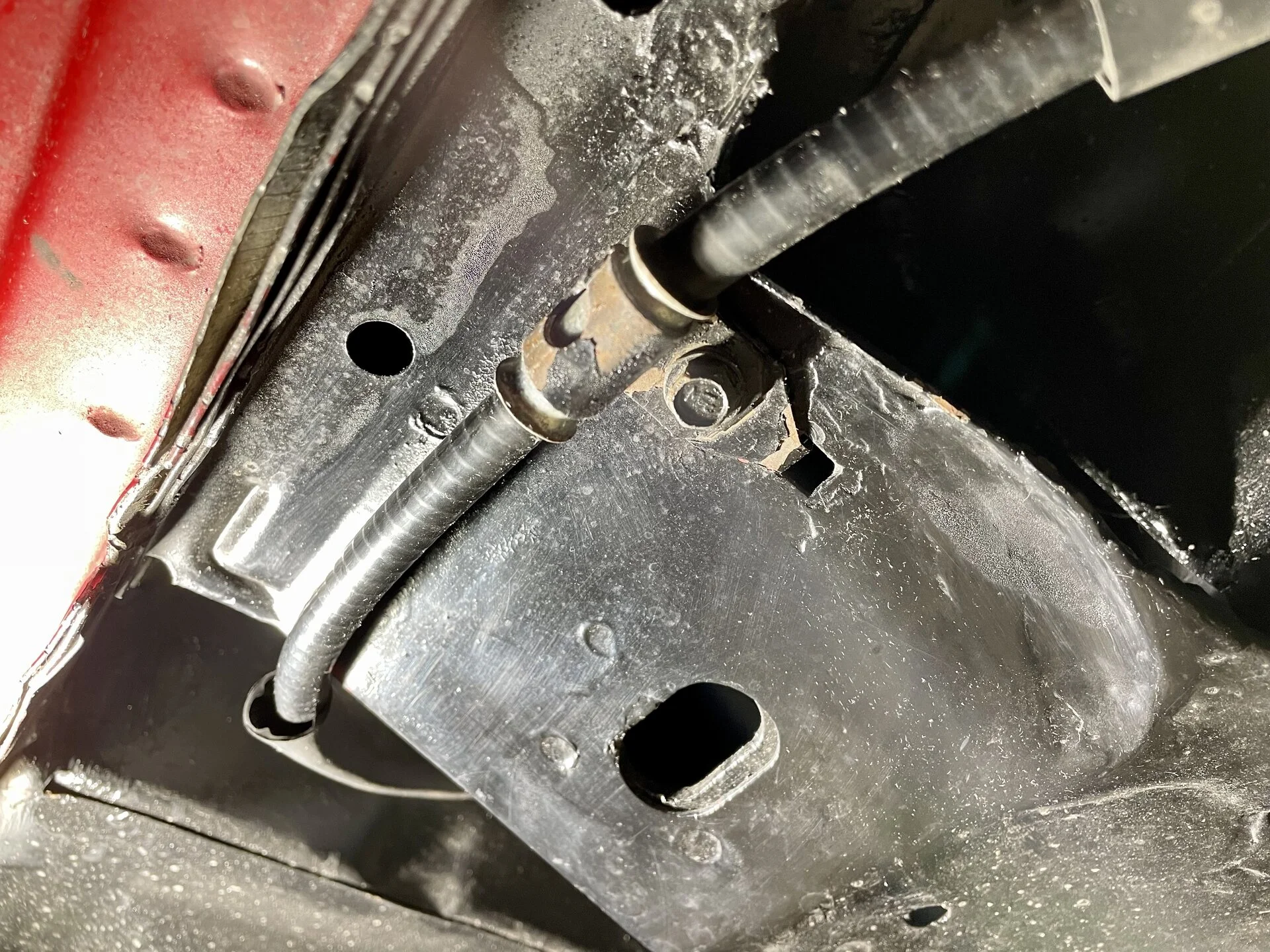

Yeah I just did this recently. There is a bracket that mounts to the underbody. Standby for picture


Blueinfan

Active Member
Mar 18, 2021
205
46
38
It's been awhile, so this may be wrong, but the cable just passes through the holes and has a clip that holds the outter sleeve still. one for front, one for the rear of each cable.

unrelated, what under coating is that? it looks awesome.
okay, I will try it this weekend and I will let you know...thx

I just painted the underside of the car with Engine Enamel 500 degrees. It's gas and oil-resistant. I tried the other stuff it either melts, wrinkles up, or falls off with a power washer. I have used this spray for a while and holds up to everything. I grandfather used to use it too when rebuilding cars. I


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,685
6,882
214

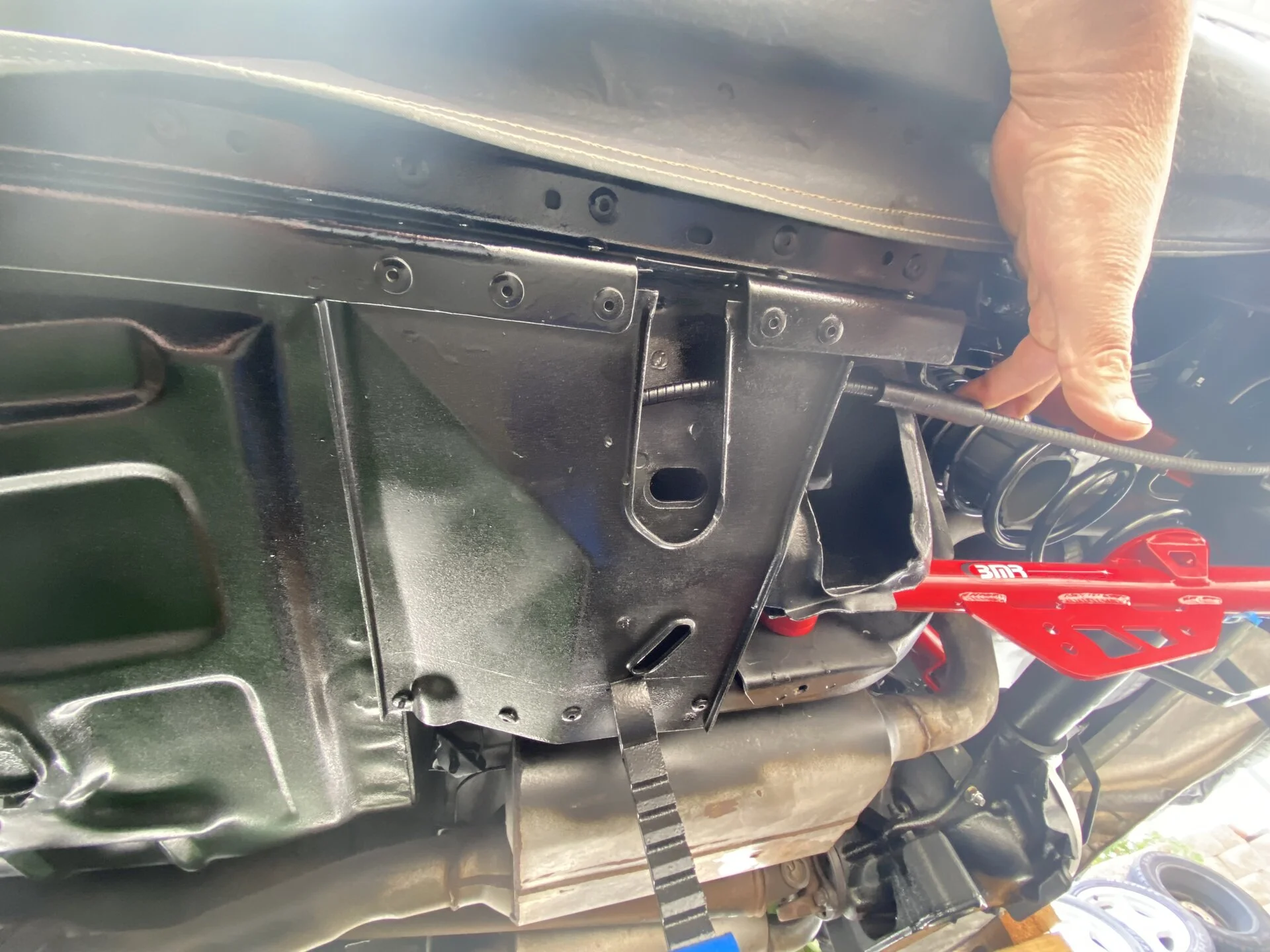

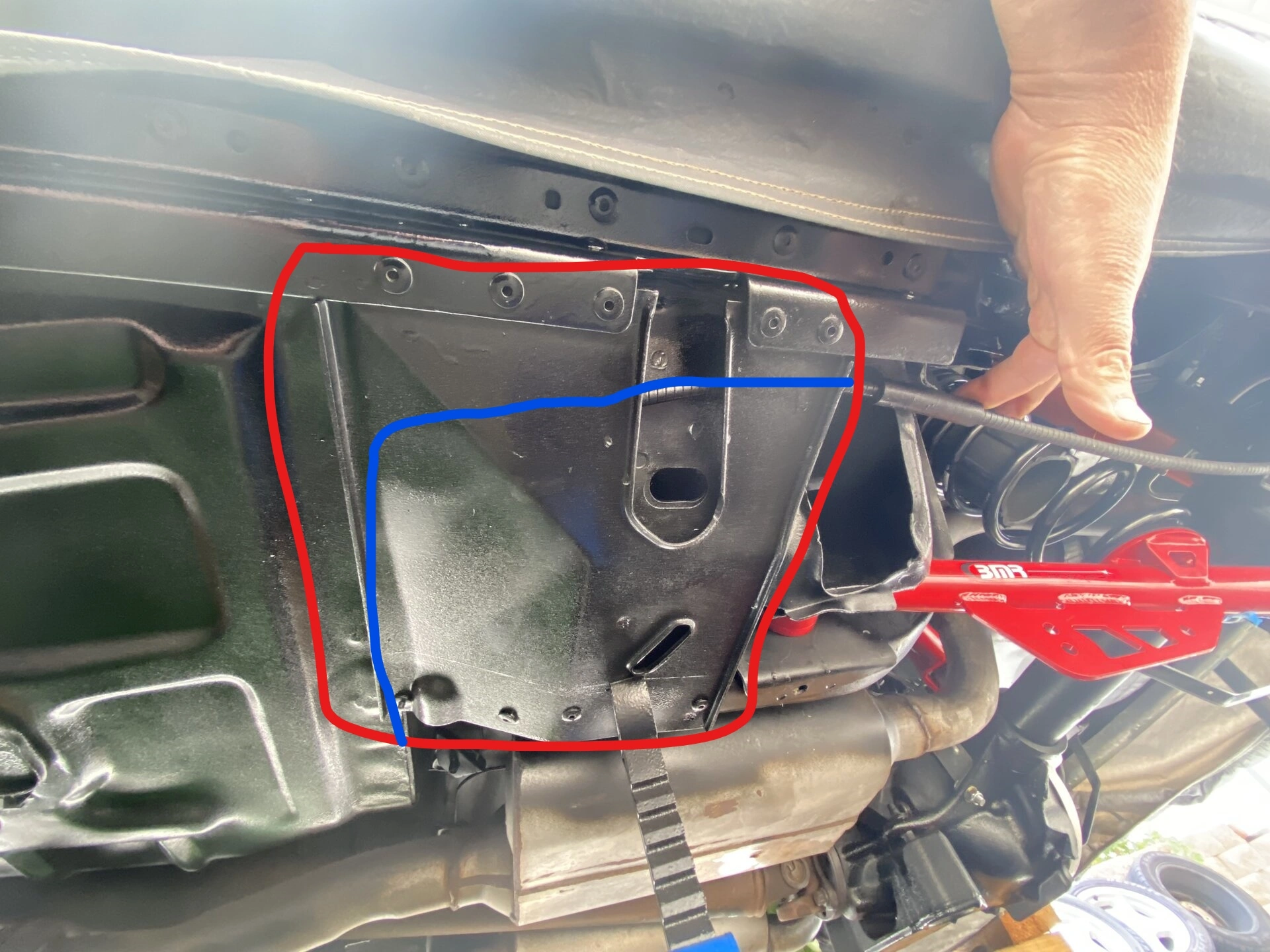

On the convertibles they installed 3 extra pieces under the car per side, a rail [often called a Z rail] and a front and rear plate. The Z-rail is riveted along the pinch weld and the plates run from the rail to the subframe front and rear. They are effectively factory subframes that don't work as well as intended but did help with convertible "sag" that the early fox had.
In fact when you install most subframes the instructions have you trim the plate and weld the edge of the plate to the subframe connector.

  • Like
Reactions: 1 user

Blueinfan

Active Member
Mar 18, 2021
205
46
38
On the convertibles they installed 3 extra pieces under the car per side, a rail [often called a Z rail] and a front and rear plate. The Z-rail is riveted along the pinch weld and the plates run from the rail to the subframe front and rear. They are effectively factory subframes that don't work as well as intended but did help with convertible "sag" that the early fox had.
In fact when you install most subframes the instructions have you trim the plate and weld the edge of the plate to the subframe connector.
So if i was going to install subframe connectors I would have to trim that plate?

Also, how would I run the rear caliper cable through it?


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,472
5,552
203
You can run the cable just like you have it. If you are worried about rubbing just split a 3/8 rubber hose down the middle and put it on the cable. On my previous convertible I used a hose bracket and ran it bow that brace but I also had subframe connectors. I had to zip tie it the the lower control arm to get it away from the tire. I've found that different manufacturers can be slightly different lengths. What works for some may not work for others.

  • Like
Reactions: 1 user

Blueinfan

Active Member
Mar 18, 2021
205
46
38
You can run the cable just like you have it. If you are worried about rubbing just split a 3/8 rubber hose down the middle and put it on the cable. On my previous convertible I used a hose bracket and ran it bow that brace but I also had subframe connectors. I had to zip tie it the the lower control arm to get it away from the tire. I've found that different manufacturers can be slightly different lengths. What works for some may not work for others.
Ok, I will go to O’reilly’s n buy the hose. I was thinking of tie in a string at the tip of the cable n pulling it out. Then securing it to the new one n feeding it through. I hope that works.

  • Like
Reactions: 1 user

chrlsful

Active Member
Mar 6, 2021
259
37
38
job requited an 8 or 8.8 inch full axel, end to end, install?. I just want the ends & keep the 7 inch.
??Possible (re-spline 5 lug axel, machine lip for "C" clip, really just the 5 lug axel flange, may B its rotor/caliper)??
