I am putting together a Mach 1 clone out of a v6 with a Aviator motor. I have all the Mach 1 parts for the engine, but I am lost at the vacuum lines. I have the DPFE, EGR with pipe and two little hoses, heated pcv, ect.
Does anyone have a good pic of Mach engine without the scoop on? or a vacuum diagram?
Thanks


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
32,205
13,509
234
Box behind Walmart
www.stangnet.com

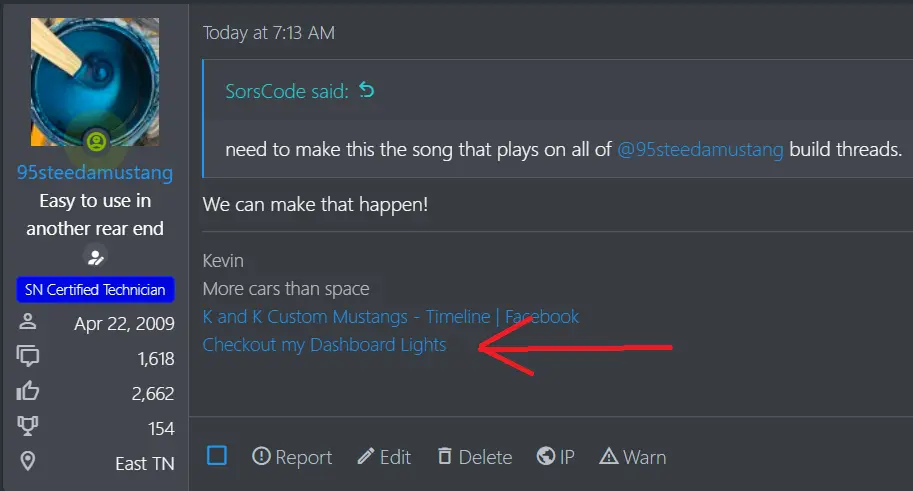

need to make this the song that plays on all of @95steedamustang build threads.
We can make that happen!


:spot:

  • Like
  • Haha
Reactions: 2 users

95steedamustang

Easy to use in another rear end
SN Certified Technician
Apr 22, 2009
1,850
3,114
154
East TN

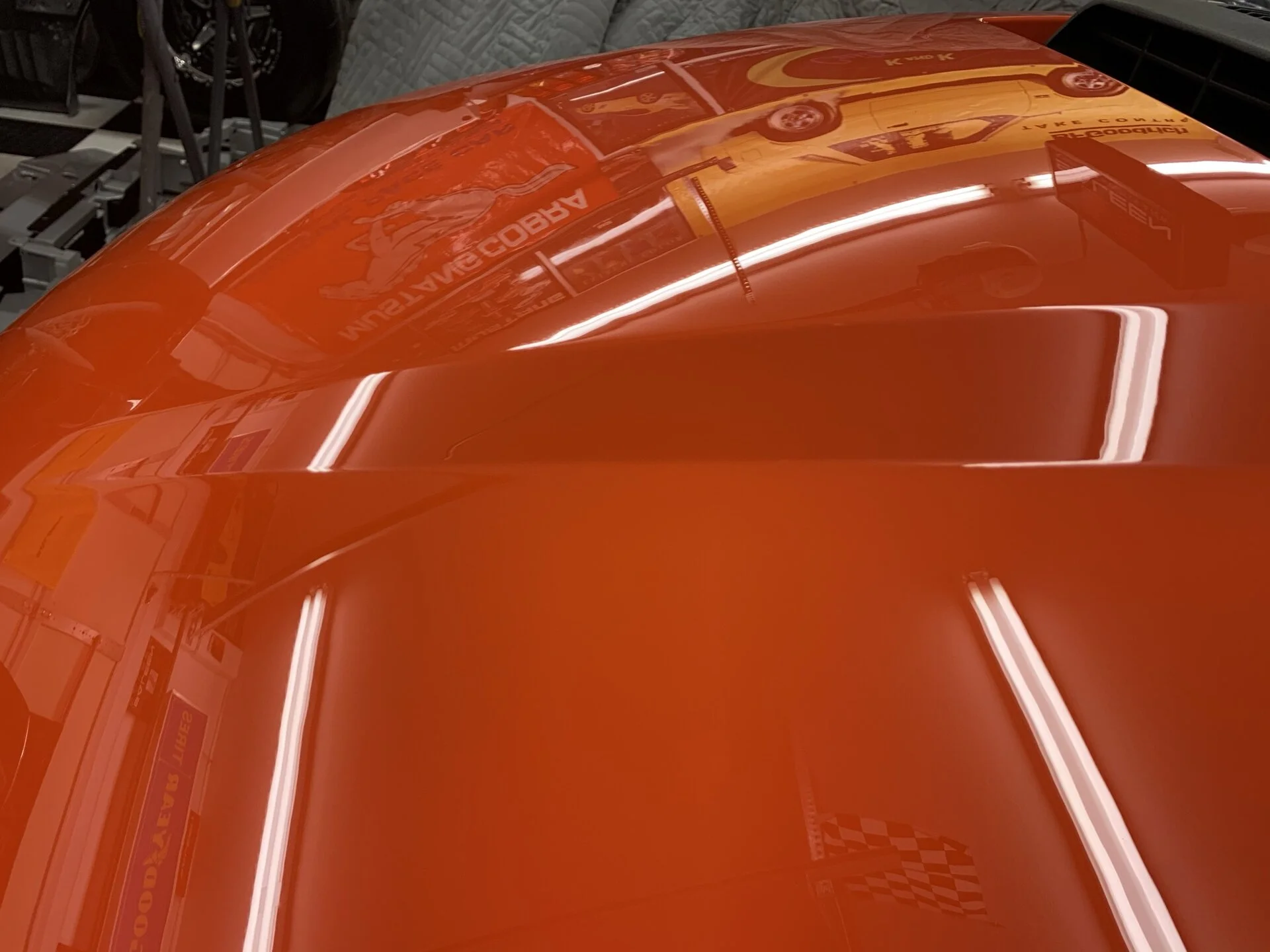

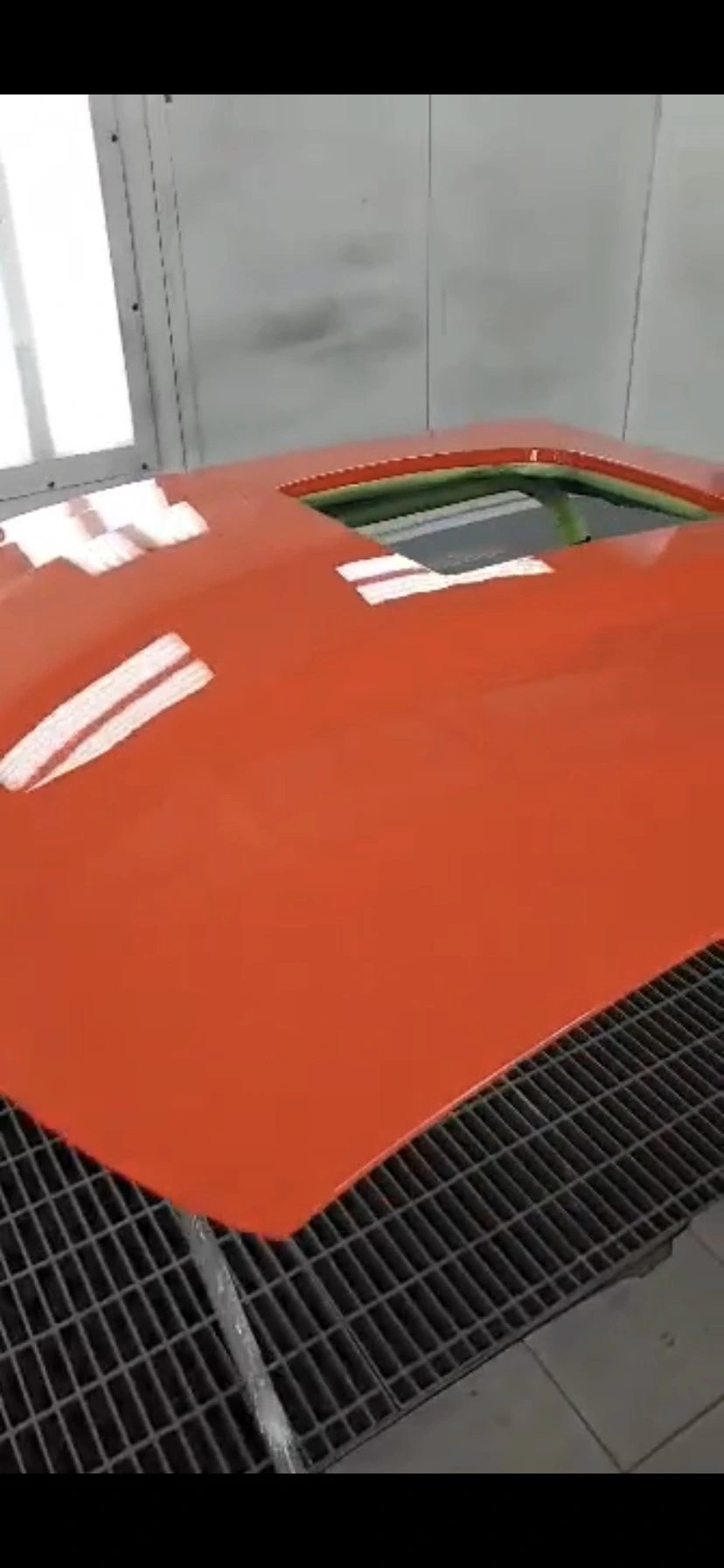

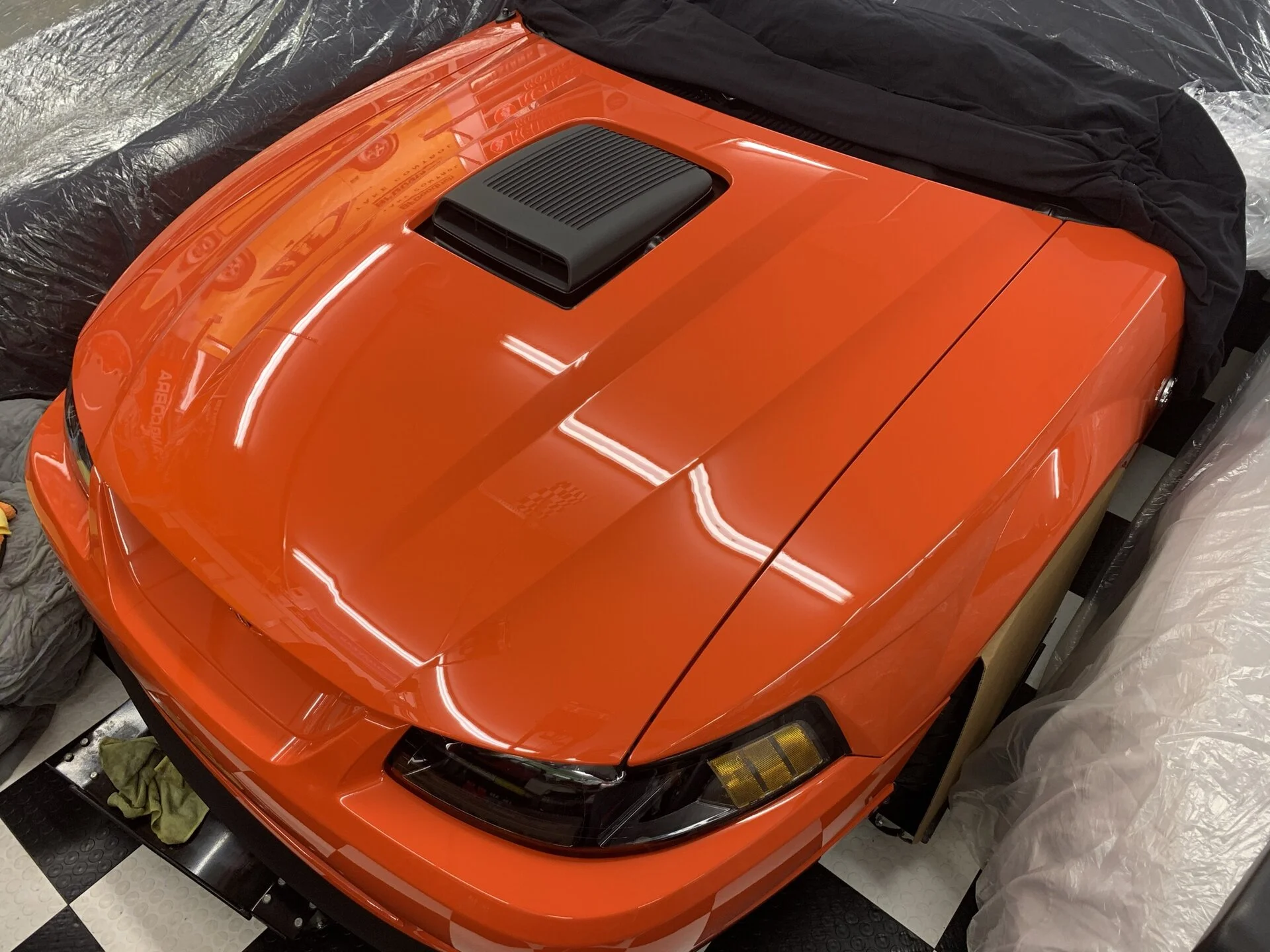

Had a couple small stone chips that needed to be taken care of so why not glass out this mach hood. Got to let the paint cure out then the stripe goes back on.

  • Winner
Reactions: 1 user

hotpony

Founding Member
Feb 26, 1999
913
10
38
42
Lee County, KY
www.bchavezmedia.com
Simply amazing body work, and when you show it, people cannot comprehend the amount of work gone into paint/body when it looks so stock, you're making Ford look good man! Very inspiring.
