Shelby Badged Aluminum Intake... No Part Number..what Is It Off Of??

mchristoules1

New Member
Aug 1, 2016
6
0
1
73
Greetings... I'm new to this site, but have searched many times. I could use some help identifying an Aluminum intake for a 289.

It is "badged" SHELBY on one of the front runners, has no part number of firing order shown, and has a stamped sheetmetal heat shield on the bottom side.

I'm led to believe that it's and original early SHELBY intake, but can't seem to get solid confirmation.

Does anyone know?

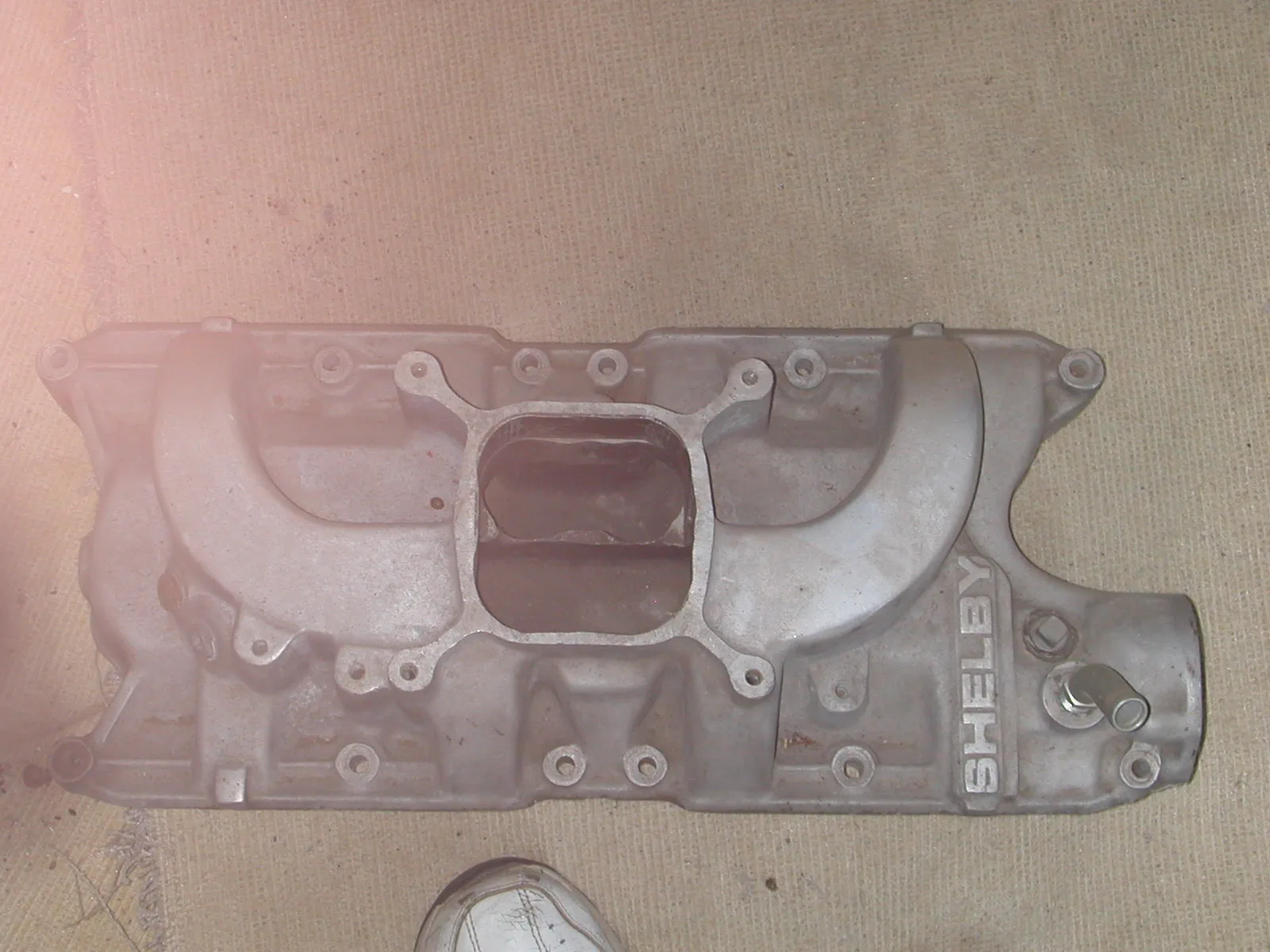

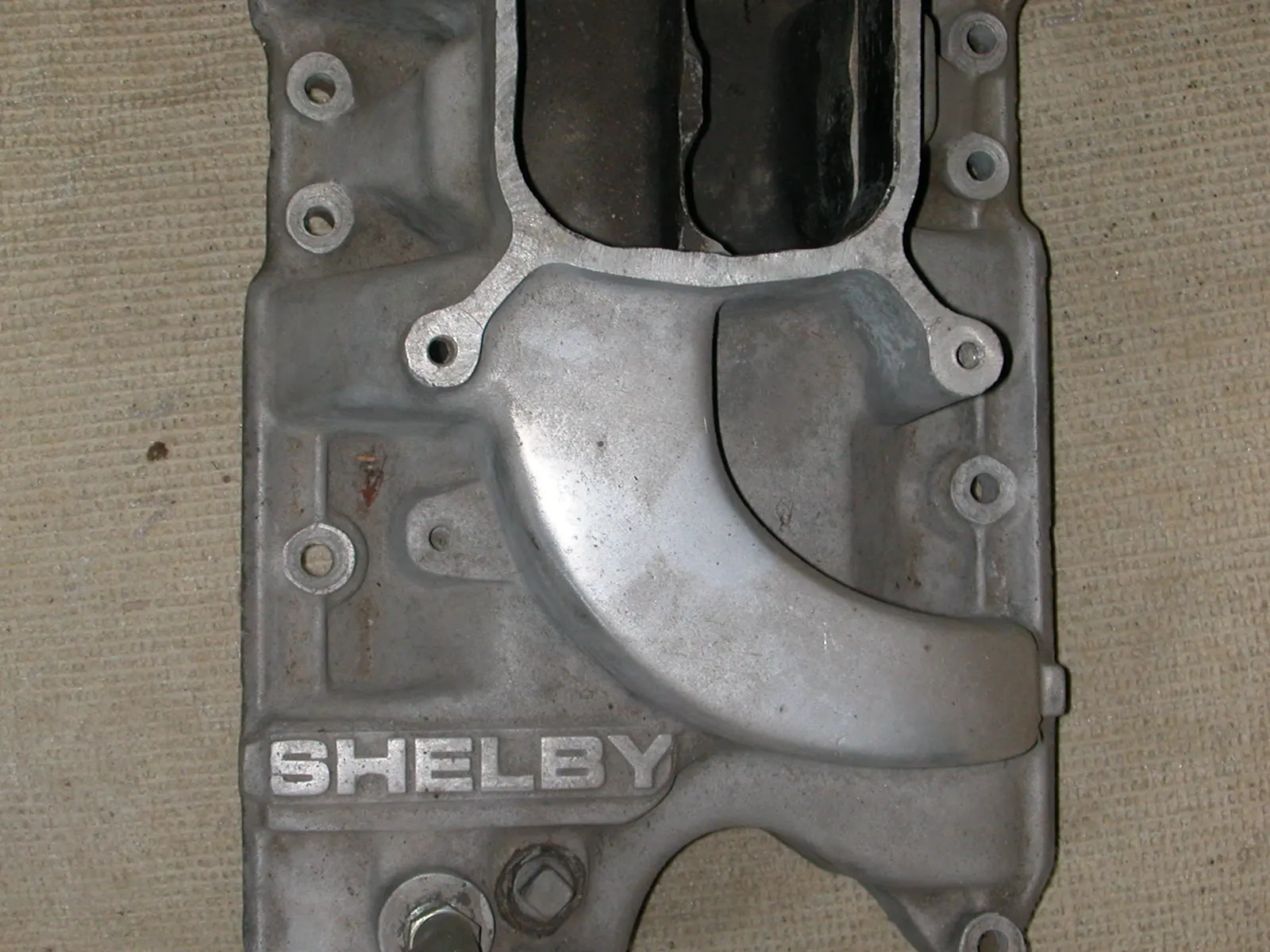

I've uploaded a couple of pics.

Mitch


Attachments

  • Sponsors(?)


74stang2togo

Oooh! CT!!!
Mod Dude
Mar 7, 2002
7,455
3,321
224
That intake looks like the aftermarket intake from Shelby. They did parts as well as whole cars (still do, to an extent), and that looks like the performance intake they sold for the 289/302.


tos

SN Certified Technician
Apr 27, 2001
892
68
59
Cincinnati Ohio
From those pics it looks like there has been some machining done to turn it into a single plane type intake? That's kinda thin gasket surface. It does look original to me though but I am definitely not an expert on Shelbys.


zookeeper

Founding Member
Aug 25, 2001
3,338
48
109
58
Rogue River, Oregon
I had an over-the-counter Shelby dual quad intake that was about the same vintage. That's exactly how the edges looked and I can tell you now they don't work well. Turn a modern Holley 4 barrel carb over and you'll notice lots of vacuum passages that are cast into the baseplate that would be closed off with a modern, thicker-walled intake. Those passages ( PCV for one) are exposed with the thinner-walled intakes and create a huge vacuum leak. Neat intake, but if I wouldn't run one.


horse sence

That $5 hooker turn out to be a guy
Mod Dude
Nov 29, 1999
9,219
3,667
233
Wile Coyote's stunt double
Flip it over and look at the bottom ,it should have buddy bar cast into it, if it is an original . someone has milled out the top ..ruined a good intake .


zookeeper

Founding Member
Aug 25, 2001
3,338
48
109
58
Rogue River, Oregon
How is it ruined? I think anything in Edelbrock's catalog will out-perform it before or after the machining was done. If you wanted it just because it's a Shelby manifold, please see my previous statements about how modern carbs can't be used due to the thin sealing lip, as opposed to modern intakes which have a large, flat sealing surface. Reproductions would give you the same look without the headache. Been there, done that.


horse sence

That $5 hooker turn out to be a guy
Mod Dude
Nov 29, 1999
9,219
3,667
233
Wile Coyote's stunt double
Ran one on my 65 Shelby replica for years and loved it .If the throat hadn't been opened up a Ford spacer plate works perfect with any Holley .I used a 429 spacer plate ,it is only a bout 1/2 inch thick and a solid block so it doesn't hit the hood or create a vacuum leak .


zookeeper

Founding Member
Aug 25, 2001
3,338
48
109
58
Rogue River, Oregon
It's an over-the-counter intake made and marketed by Shelby back in the day. The ultra-thin webbing between the bolts and the body is the dead giveaway.
