Hey there, as you can tell I'm new to here. I wont bother you with telling you about me, lets get down to the nitty gritty.


i have a 1992 BMW 325I sedan, i also have a 1995 SN95.0, with 32k original :)

e36 chassis + sn95 5.0

you see where im getting with this? good.

Engine is installed
Transmission installed
Drive shaft chopped
now hydraulic slave

what im stuck on is simple, yet terrible.


i need the harness obviously, just how much can i thin out?? id rather not run all 40lbs of harness, i was curious if these were anything like the nissans, where you hack everything out and just run the MAF directly to the ecu??

delete the EEC and such, basically just ecu and necessary wiring, my issue is i dont know what these 5.0s find necessary!!!

any advice help or diagrams would be greatly helpful!!!!

Last edited:
  • Sponsors(?)


E36x302

Active User
Dec 16, 2016
20
4
13
31
Thats the swaps new home. i figured it would be a question as to what im dumping the engine trans combo into


E36x302

Active User
Dec 16, 2016
20
4
13
31
thats the swaps new home. i figured it would be a question as to what im dumping the engine trans combo into


RaggedGT

check back later..
Mod Dude
Jul 20, 2014
4,339
2,910
193
37
Taylorsville ky
www.stangnet.com
Sounds like an interesting swap. I think if I where doing this drastic a project-I'd go full stand alone ecu, like a megasquirt etc.. and then just run the necessary ignition/sensor wires etc for the megasquirt and engine,and just retain the wiring and modules in the Beamer for lights and stuff ...

Where's @90sickfox , he likes crazy and different lol :)


E36x302

Active User
Dec 16, 2016
20
4
13
31
Sounds like an interesting swap. I think if I where doing this drastic a project-I'd go full stand alone ecu, like a megasquirt etc.. and then just run the necessary ignition/sensor wires etc for the megasquirt and engine,and just retain the wiring and modules in the Beamer for lights and stuff ...

Where's @90sickfox , he likes crazy and different lol :)
i was completely thinking of doing that! the problem is, id rather not allocate that kinda of funding to this. in the entire swap car, donor parts, rebuild and suspension, 3000, and the woman is already displeased ahaha


RaggedGT

check back later..
Mod Dude
Jul 20, 2014
4,339
2,910
193
37
Taylorsville ky
www.stangnet.com
i was completely thinking of doing that! the problem is, id rather not allocate that kinda of funding to this. in the entire swap car, donor parts, rebuild and suspension, 3000, and the woman is already displeased ahaha
I can understand that, but I'm thinking you will have a bigger investment in trying to make a mustang ecu play nice with a Beamer ,and let's not get on the subject of tuning costs lol
Anyhow ,this thread needs pics-post up some swap pics


E36x302

Active User
Dec 16, 2016
20
4
13
31
Pictures i can do!!! imm more looking to make the ecu self contained if that makes sense. so theyre two different entities that share fuel and 12v with eachother ahha

  • Like
Reactions: 1 user

E36x302

Active User
Dec 16, 2016
20
4
13
31




Attachments

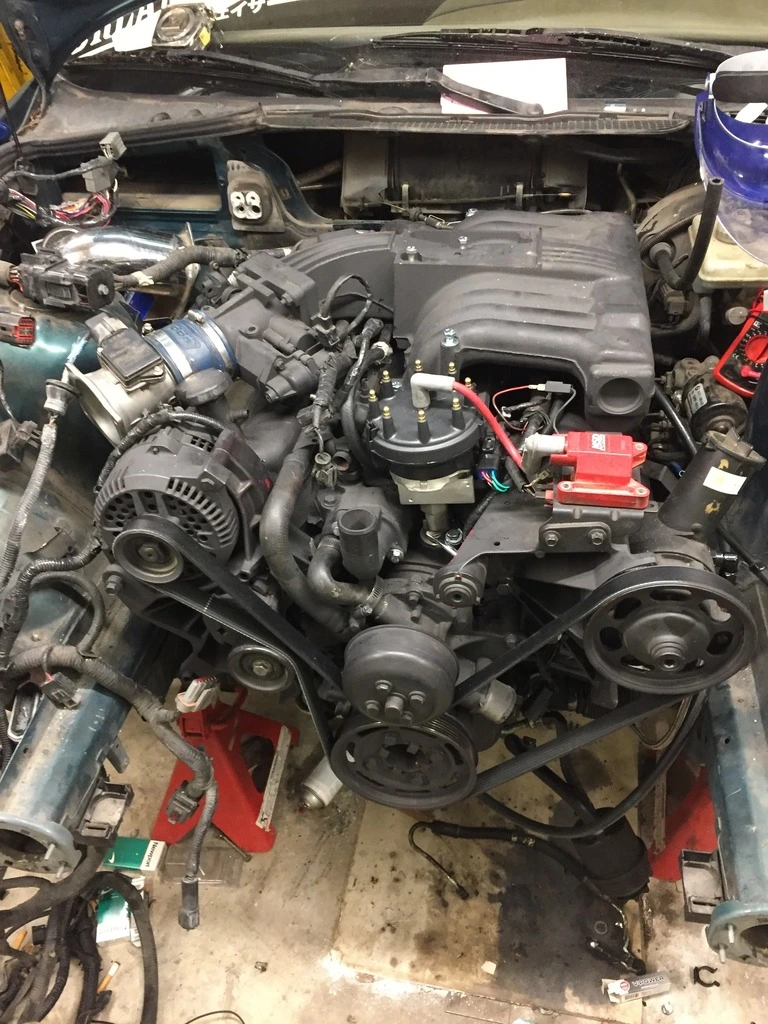

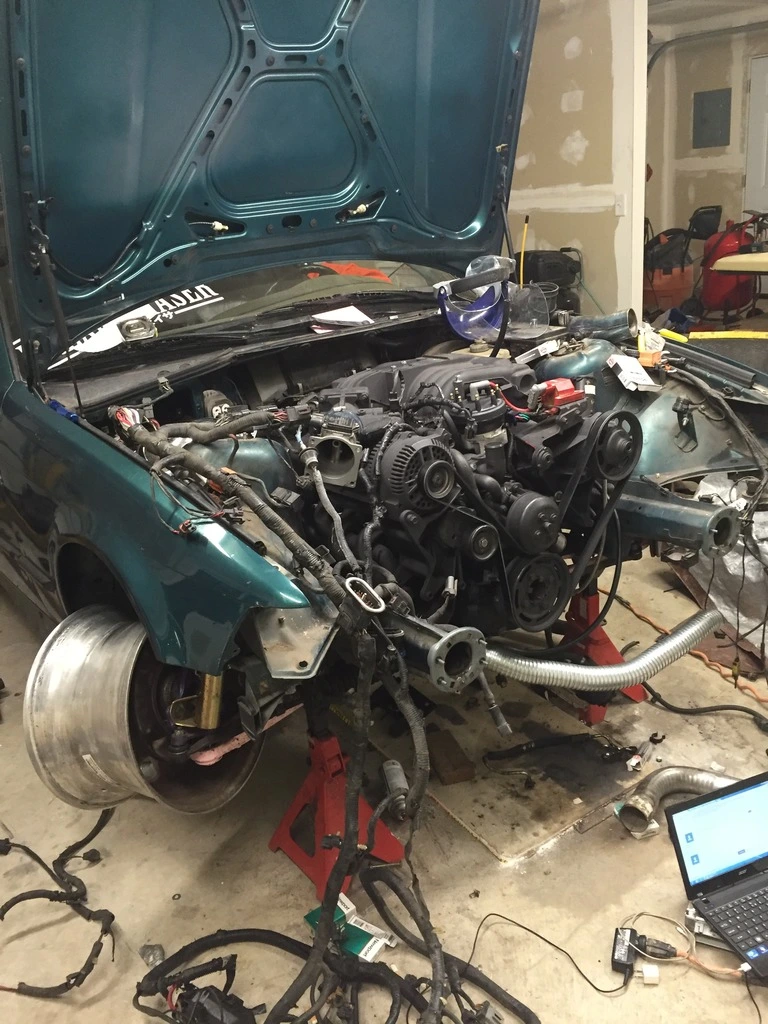

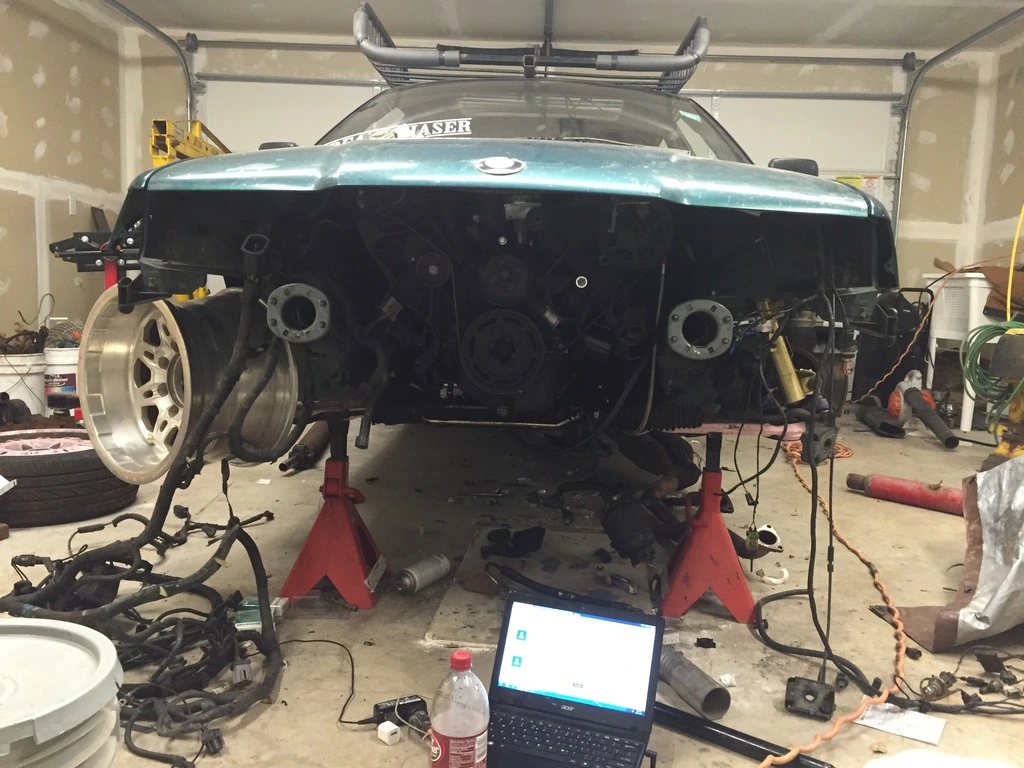

  • 08AC403C-2DBE-47D1-845B-FBFEF45C2250_zpssb69inur.jpg
    224.4 KB · Views: 272
  • 6971760D-71E7-45C4-ACD8-451EA3A9BB4A_zpsjvkbcw5r.jpg
    269.3 KB · Views: 577
  • 43A47013-6209-460F-97B2-8C6D3CBEDFCC_zpseu3xqgej.jpg
    209 KB · Views: 188

E36x302

Active User
Dec 16, 2016
20
4
13
31
[/URL]


Attachments

  • 43B1B610-7968-4965-B8D9-B9C5DB38F5AD_zpspxtkmhpn.jpg
    252.2 KB · Views: 189

E36x302

Active User
Dec 16, 2016
20
4
13
31
i planned on it! ive lurked here for partnumbers and such, figured id make an account and share my frankencar. it just seems so impossible with the shear amount of wires ahahah

  • Like
Reactions: 1 user

E36x302

Active User
Dec 16, 2016
20
4
13
31


EVERYTHING BMW is on a switch panel...

IF i wired the 5.0 like this, would it function? or am i missing something?


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
5,953
5,033
203
43
Sounds like an interesting swap. I think if I where doing this drastic a project-I'd go full stand alone ecu, like a megasquirt etc.. and then just run the necessary ignition/sensor wires etc for the megasquirt and engine,and just retain the wiring and modules in the Beamer for lights and stuff ...

Where's @90sickfox , he likes crazy and different lol :)

Hey man ! Nice crazy build you've got there.

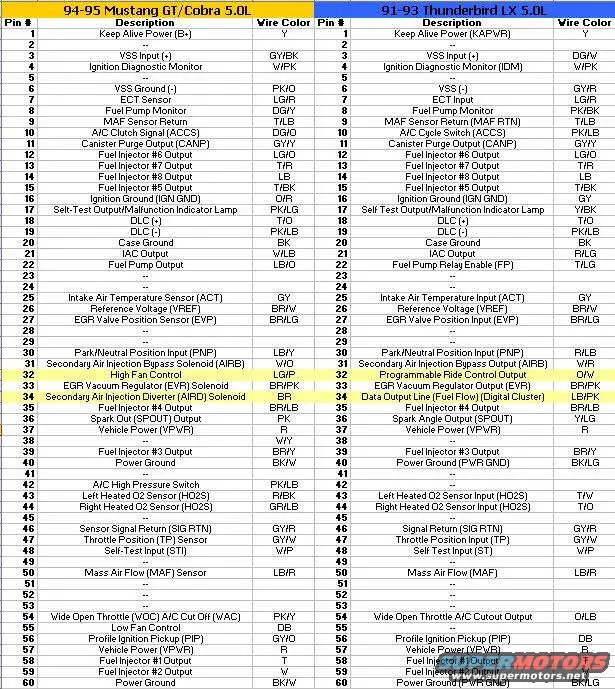

First, ditch the 95 computer....its the most temperamental one to choose from they don't like modifications. The easiest computers are from 89- 93. The emissions stuff can all go. The 94-95 actually do some funky stuff with the Ignition module on the distributor, that tfi module isn't compatible with earlier computers. Pins 11, 27, 31, 32, 33, 34, 42, 48, 54, 55 and related wiring could all be deleted and the car would run decent. 27 and 33 are for EGR and I see no real reason to delete them. Without being there its hard to tell what you can delete entirely. The wires running to and from the components listed can be deleted. Pins 8 and 22 are where my knowledge stops. 8 checks for a signal from the fuel pump relay and 22 is the ground for the FP relay. I don't know if the computer needs that signal to fire the injectors in a 95.

A stand alone would be a lot easier for what you're doing....but looking at your build it doesn't seem like you're the type to take the easy way out. I use mspnp2 for my car. I have some more detailed info...I'll try and post it tomorrow.
