1992 mustang Gt:

looking for the wiring diagram for the temperature sensor that goes from the dash all the way to the sensor. Previous owner did some electrical changes, and I am trying to fix what was done.

Thank you!

  • Sponsors(?)


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,934
12,800
224
Massachusetts
I can get it for you, but not until later tonight. Respond to the thread as a reminded (i'll see the alert) after 5pm and i'll go dig out my EVTM


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,934
12,800
224
Massachusetts
D


Swhitney

Active Member
Feb 11, 2019
116
6
28
Oregon City
So it looks like there should be a red/white wire going from the sensor to the dash, is this correct?
BTW, you’ve been a huge help.


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,934
12,800
224
Massachusetts

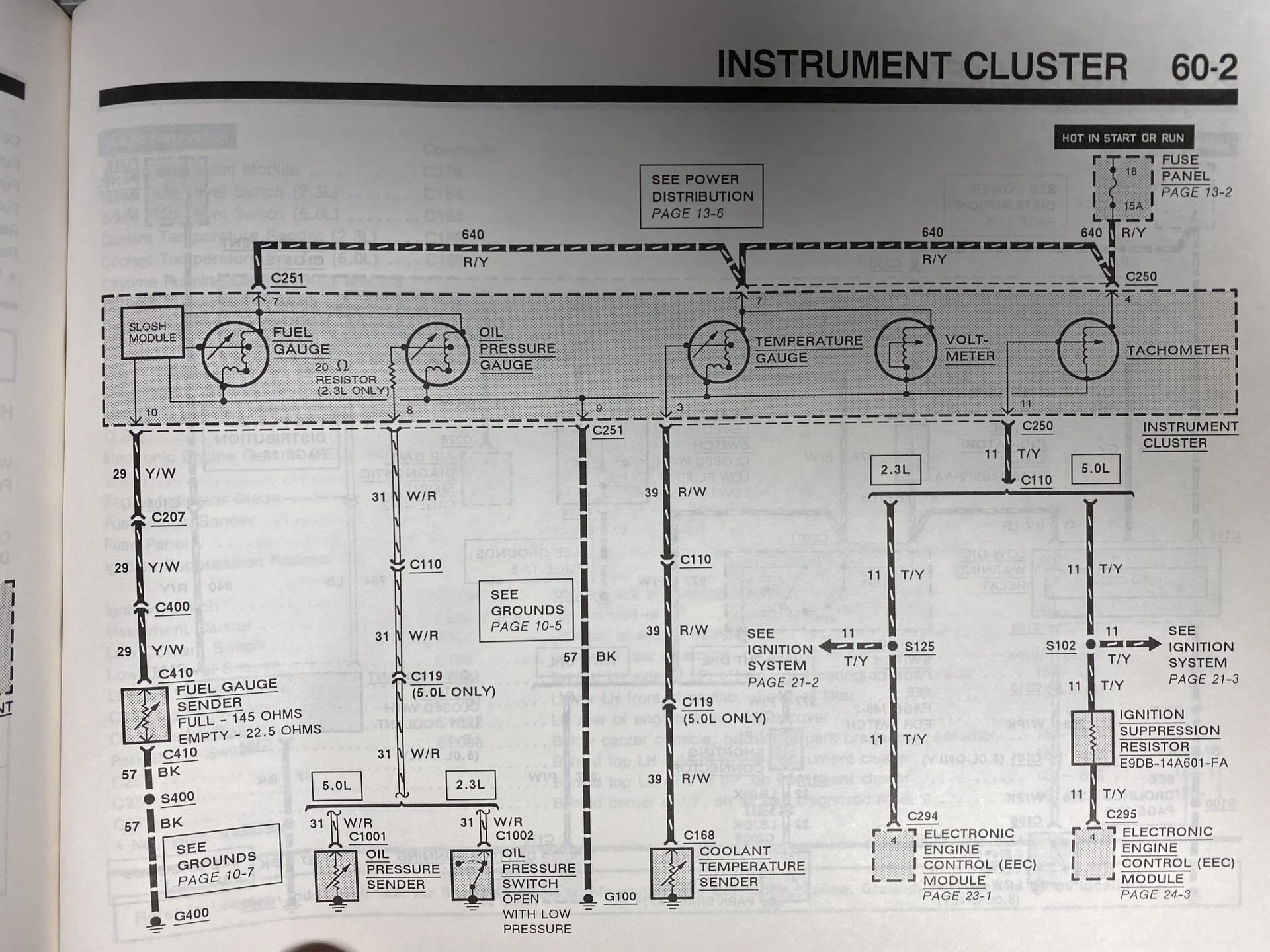

Correct. The temp sender on the front drivers side of lower intake manifold has a single wire that runs all the way back to connector C250 on the gauge cluster.

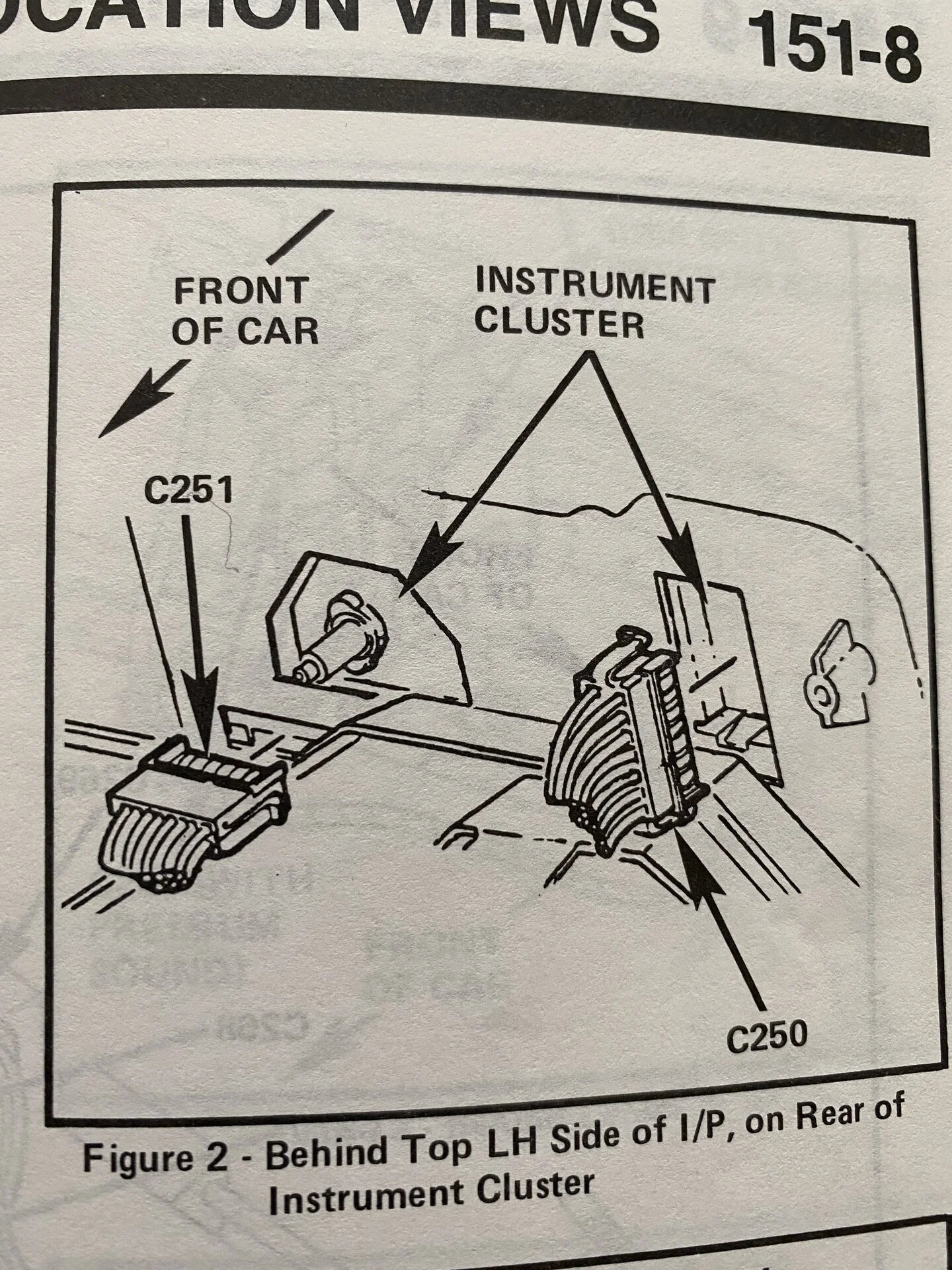

C250 is the outside plug on the cluster

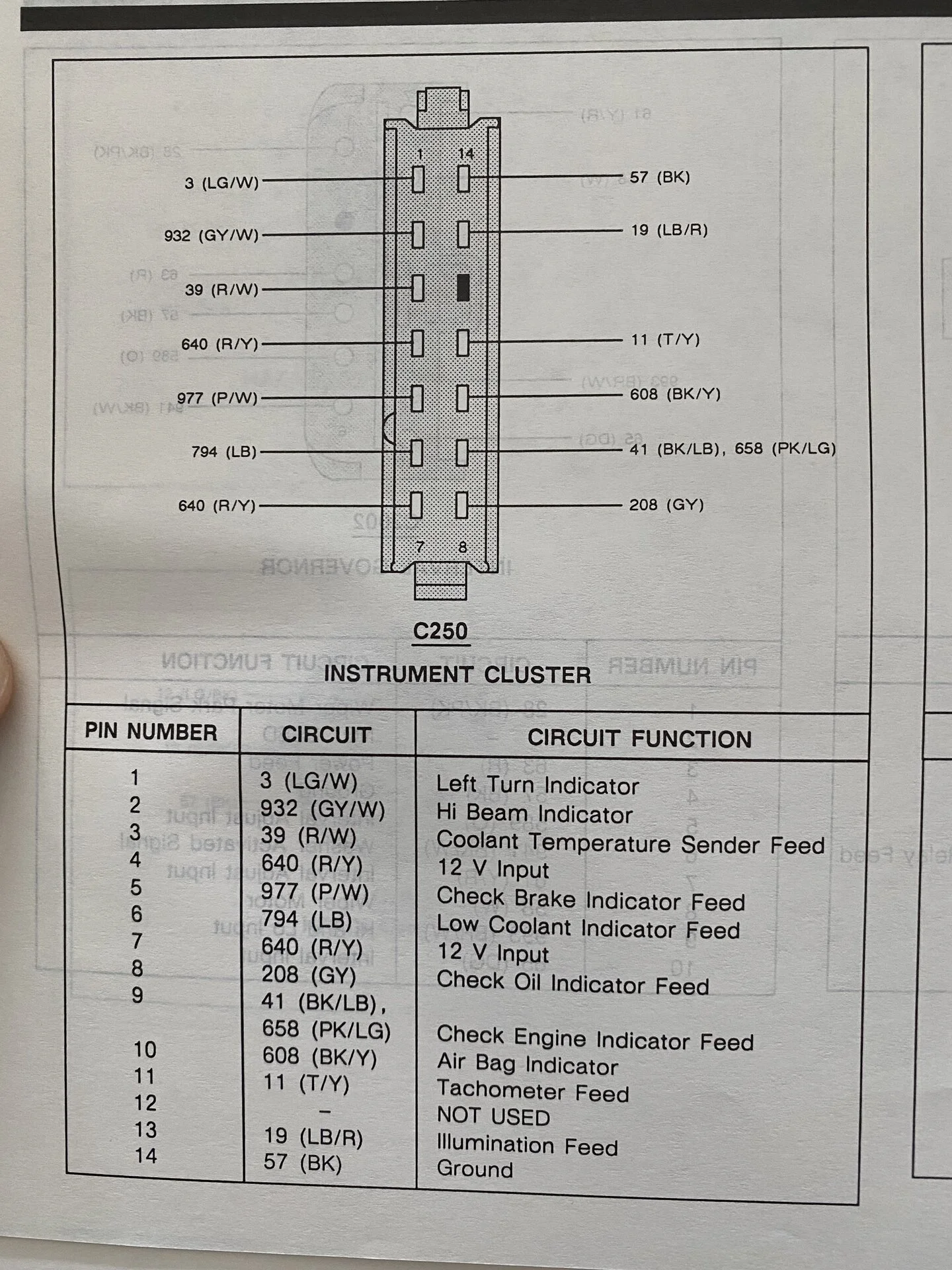

wire 39 is the one you want
