Hi,

Stil to get my car registered but that is another story.

I have a couple other questions:

1. When I hook the EGR vacuum up it wants to stall the engine at idle. It didn't do this before but when I was working on something else I noticed the vacuum line to egr was broken so I fixed it..and now it wants to stall out.

2. Why is the timing different with spout in and spout out. I checked it with spout in and it was off the charts but was 12degree with spout in which is where I wanted it. ?

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,395
2,845
234
74
Dublin GA
lowendmac.com
The SPOUT enables the computer to control the ignition timing.
With the SPOUT in, the computer advances the timing. With the SPOUT out, the timing is locked at whatever base timing was set at with the timing light.

The EGR is probably misconnected directly to engine vacuum. That will cause stalling.

Some basic theory to clarify how things work is in order…

EGR System theory and testing

Revised 29-Sep-2013 to add code definitions for EGR sensor and EVR regulator.

The EGR shuts off at Wide Open Throttle (WOT), so it has minimal effect on performance. The addition of exhaust gas drops combustion temperature, increases gas mileage and reduces the tendency of the engine to ping. It can also reduce HC emissions by reducing fuel consumption. The primary result of EGR usage is a reduction in NOx emissions. It does this by reducing the amount of air/fuel mixture that gets burned in the combustion process. Less air from the intake system means less air to mx with the fuel, so the computer leans out the fuel delivery calculations to balance things out. This reduces combustion temperature, and the creation of NOx gases. The reduced combustion temp reduces the tendency to ping.

The computer shuts down the EGR system when it detects WOT (Wide Open Throttle), so the effect on full throttle performance is too small to have any measurable negative effects.

The EGR system has a vacuum source (line from the intake manifold) that goes to the EVR, computer operated electronic vacuum regulator. The EVR is located on the back of the passenger side shock strut tower. The computer uses RPM, Load. and some other factors to tell the EVR to pass vacuum to open the EGR valve. The EGR valve and the passages in the heads and intake manifold route exhaust gas to the EGR spacer (throttle body spacer). The EGR sensor tells the computer how far the EGR valve is open. Then computer adjusts the signal sent to the EVR to hold, increase or decrease the vacuum. The computer adds spark advance to compensate for the recirculated gases and the slower rate they burn at.

The resistor packs used to fool the computer into turning off the CEL (Check Engine Light) off are a bad idea. All they really do is mess up the data the computer uses to calculate the correct air/fuel mixture. You can easily create problems that are difficult to pin down and fix.



Troubleshooting:
There should be no vacuum at the EGR valve when at idle. If there is, the EVR (electronic vacuum regulator) mounted on the backside of the passenger side wheelwell is suspect. Check the vacuum line plumbing to make sure the previous owner didn’t cross the vacuum lines.

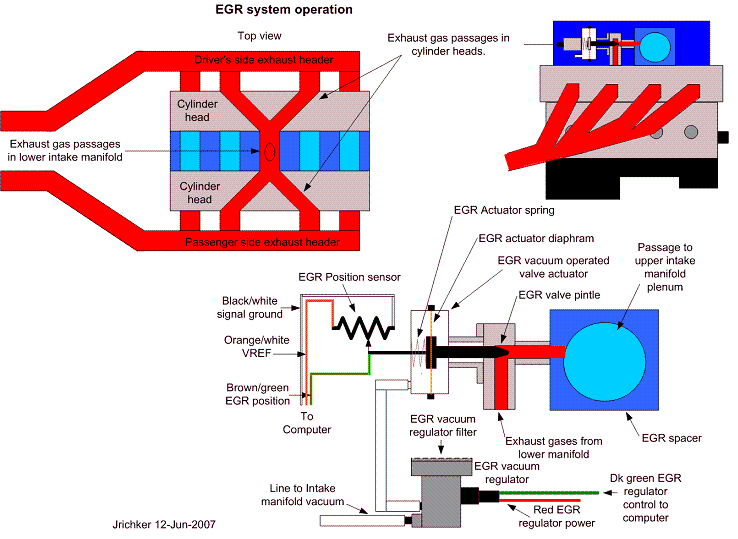

Diagram courtesy of Tmoss & Stang&2birds. (the diagram says 88 GT, but the EGR part is the same for 86-93 Mustangs)


The EGR sensor is basically a variable resistor, like the volume control on a radio. One end is 5 volt VREF power from the computer (red/orange wire). One end is computer signal ground (black/white), and the middle wire (brown/lt green) is the signal output from the EGR sensor. It is designed to always have some small voltage output from it anytime the ignition switch is the Run position. That way the computer knows the sensor & the wiring is OK. No voltage on computer pin 27 (brown/lt green wire) and the computer thinks the sensor is bad or the wire is broken and sets code 31. The voltage output can range from approximately .6-.85 volt. A defective or missing sensor will set codes 31 (EVP circuit below minimum voltage) or 32 ( EGR voltage below closed limit).

The EVR regulates vacuum to the EGR valve to maintain the correct amount of vacuum. The solenoid coil should measure 20-70 Ohms resistance. The regulator has a vacuum feed on the bottom which draws from the intake manifold. The other vacuum line is regulated vacuum going to the EGR valve. One side of the EVR electrical circuit is +12 volts anytime the ignition switch is in the run position. The other side of the electrical circuit is the ground path and is controlled by the computer. The computer switches the ground on and off to control the regulator solenoid. A defective EVR will set codes 33 (insufficient flow detected), 84 (EGR Vacuum Regulator failure – Broken vacuum lines, no +12 volts, regulator coil open circuit, missing EGR vacuum regulator.)


EGR test procedure courtesy of cjones

To check the EGR valve:
Bring the engine to normal temp.

Connect a vacuum pump to the EGR Valve or see the EGR test jig drawing below. Connnect the test jig or to directly to manifold vacuum.

Do not connect the EGR test jig to the EVR (Electronic Vacuum Regulator).


Apply 5in vacuum to the valve. Using the test jig, use your finger to vary the vacuum

If the engine stumbled or died then EGR Valve and passage(there is a passageway through the heads and intake) are good.

If the engine did NOT stumble or die then either the EGR Valve is bad and/or the passage is blocked.

If the engine stumbled, connect EGR test jig to the hose coming off of the EGR Valve.
Use your finger to cap the open port on the vacuum tee.
Snap throttle to 2500 RPM (remember snap the throttle don't hold it there).
Did the vacuum gauge show about 2-5 in vacuum?
If not the EVR has failed

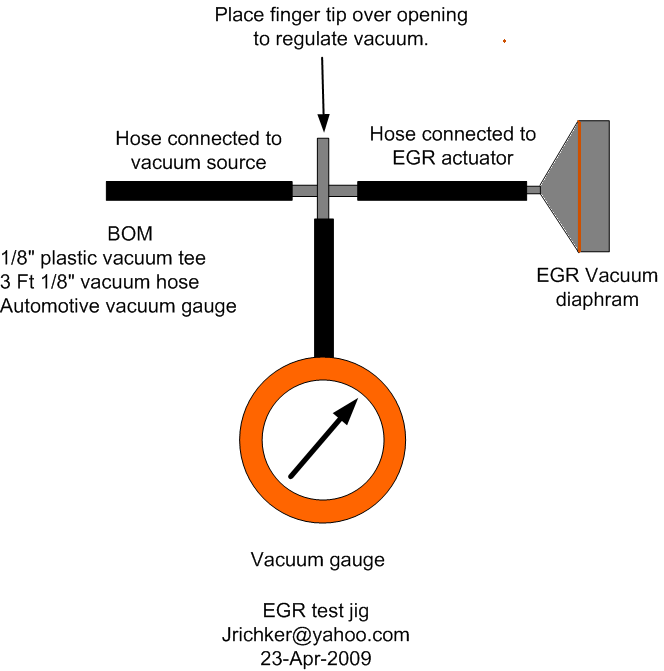

EGR test jig


To test the computer and wiring to the computer, you can use a test light across the EVR wiring connectors and dump the codes. When you dump the codes, the computer does a self test that toggles every relay/actuator/solenoid on and off. When this happens, the test light will flicker. If the test light remains on the computer or the wiring is suspect.

To check the EVR to computer wiring, disconnect the EVR connector and connect one end of the Ohmmeter to the dark green wire EVR wiring. Remove the passenger side kick panel and use a 10 MM socket to remove the computer connector from the computer. Set the Ohmmeter to high range and connect the other ohmmeter lead to ground. You should see an infinite open circuit indication or a reading greater than 1 Meg Ohm. If you see less than 200 Ohms, the dark green wire has shorted to ground somewhere.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,060
9,205
224
Massachusetts
Like said, you are probably hooking egr up to straight vacuum. It needs to be regulated vacuum that only opens at cruise


gstsaver

Member
May 6, 2018
75
6
18
49
Australia
Sounds like it will be my evr - will check it out. It definitely is the right line so the evr must be stick on vacuum. However I guess the vacuum pressure is low as I can't feel it with my finger on the line
Thanks!


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,060
9,205
224
Massachusetts
Egr physically stuck open could be a culprit as well. Pull it off and clean the plunger up well so it seats cleanly


gstsaver

Member
May 6, 2018
75
6
18
49
Australia
If the EGR was stuck open wouldn't it wan't to stall out all the time ? When I remove the vacuum line the issue goes away on idle.


gstsaver

Member
May 6, 2018
75
6
18
49
Australia
Now that I did the codes and found a code 34, could it be the EGR sensor (EVP) ? Does the EVP decide whether the solenoid should send vacuum ? There is definitely vacuum even at idle ..even cold idle on the EVR. ?


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,395
2,845
234
74
Dublin GA
lowendmac.com
Now that I did the codes and found a code 34, could it be the EGR sensor (EVP) ? Does the EVP decide whether the solenoid should send vacuum ? There is definitely vacuum even at idle ..even cold idle on the EVR. ?
Disconnect the EGR sensor and check for the presence of vacuum at the EGR valve.. If you still have vacuum there are 3 possibilities
1.) The EVR vacuum regulator is physically stuck open.
2.) The vacuum lines are not correctly connected.
3.) The dark green wire that goes to the computer has grounded out or the computer has an internal problem that causes it to constantly supply a ground to the EVR vacuum regulator.

Last edited:

gstsaver

Member
May 6, 2018
75
6
18
49
Australia
I removed the line from the EVR Regulator and it has vacuum all the time. The vacuum lines are properly installed.

How do I know if it is a faulty EVR Regulator or a bad wire/computer problem ?
I checked and there is voltage going to the Regulator but not sure what else to do ?


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,395
2,845
234
74
Dublin GA
lowendmac.com
I removed the line from the EVR Regulator and it has vacuum all the time. The vacuum lines are properly installed.
How do I know if it is a faulty EVR Regulator or a bad wire/computer problem ?
I checked and there is voltage going to the Regulator but not sure what else to do ?
One side will always have vacuum; its the one that is connected to the intake manifold.
If you have vacuum on both sides of the regulator, disconnect the electrical connector from it. If you still have vacuum on both sides, the regulator has failed, replace it.
If you have vacuum on one side of the regulator, then the signal ground going to the computer is shorted to ground or the computer is defective.

Some basics about the computer:

Remember that the computer does not supply power for any actuator or relay. It provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.

If this is the case, remove the passenger side lick panel and disconnect the computer connector.

There is one 10 MM bolt holding it in place. Pull the connector all the way out of the computer so that you can see the computer side pins.

Use the list from the graphic below to find the EVR pin
The following diagram is courtesy of Tmoss & Stang&2birds

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs





Computer wiring harness connector, wire side





Computer wiring harness connector, computer side







4.) Set the multimeter to low scale Ohms and measure between the computer ground located below the computer and the EVR pin on the computer wiring harness.. You should see greater than 100 K Ohms resistance. If you see less than 100K Ohms, the wiring between the EVR and the computer has an internal short to ground and needs service.[/B]

Check the harness and look for damage, kinks or frayed spots. A short to ground would result in the EVR that never turned off.

Last edited:
  • Like
Reactions: gstsaver

gstsaver

Member
May 6, 2018
75
6
18
49
Australia
One side will always have vacuum; its the one that is connected to the intake manifold.
If you have vacuum on both sides of the regulator, disconnect the electrical connector from it. If you still have vacuum on both sides, the regulator has failed, replace it.
If you have vacuum on one side of the regulator, then the signal ground going to the computer is shorted to ground o the computer is defective.
The side going to the EGR still has vacuum with the connection off. My question is: are we sure that the default is so vacuum? It would seem without power the vacuum would just be on wouldn't it ?


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,395
2,845
234
74
Dublin GA
lowendmac.com
The side going to the EGR still has vacuum with the connection off. My question is: are we sure that the default is so vacuum? It would seem without power the vacuum would just be on wouldn't it ?
I have already answered your question. Re-read the first paragraph of my last post. and think about what it says.
