Hey everyone,

So the '90 LX 5.0 that I recently picked up had a whole hose of transmission issues with the T5 so I took it apart and have a few new questions. The symptoms were grinding going into every gear, with 1-2 being the worst and had to be perfectly rev-matched to let it into the gear and 5th gear being non-existent. Also, the speedometer did not work at the dash.

Last night I got the transmission out of the car and popped off the top cover and tail assembly to get a better look at the gear train. With the tail off, the two smaller ring halves in the picture on the table fell out. Pulling off the bearing retainer, I found that it's 4 screws were barely installed, and one of them was entirely stripped out of the casing. Certainly not helping the issue!

The 5th gear looks to have taken a few hits as well as the teeth are pretty marred on the outer surface.

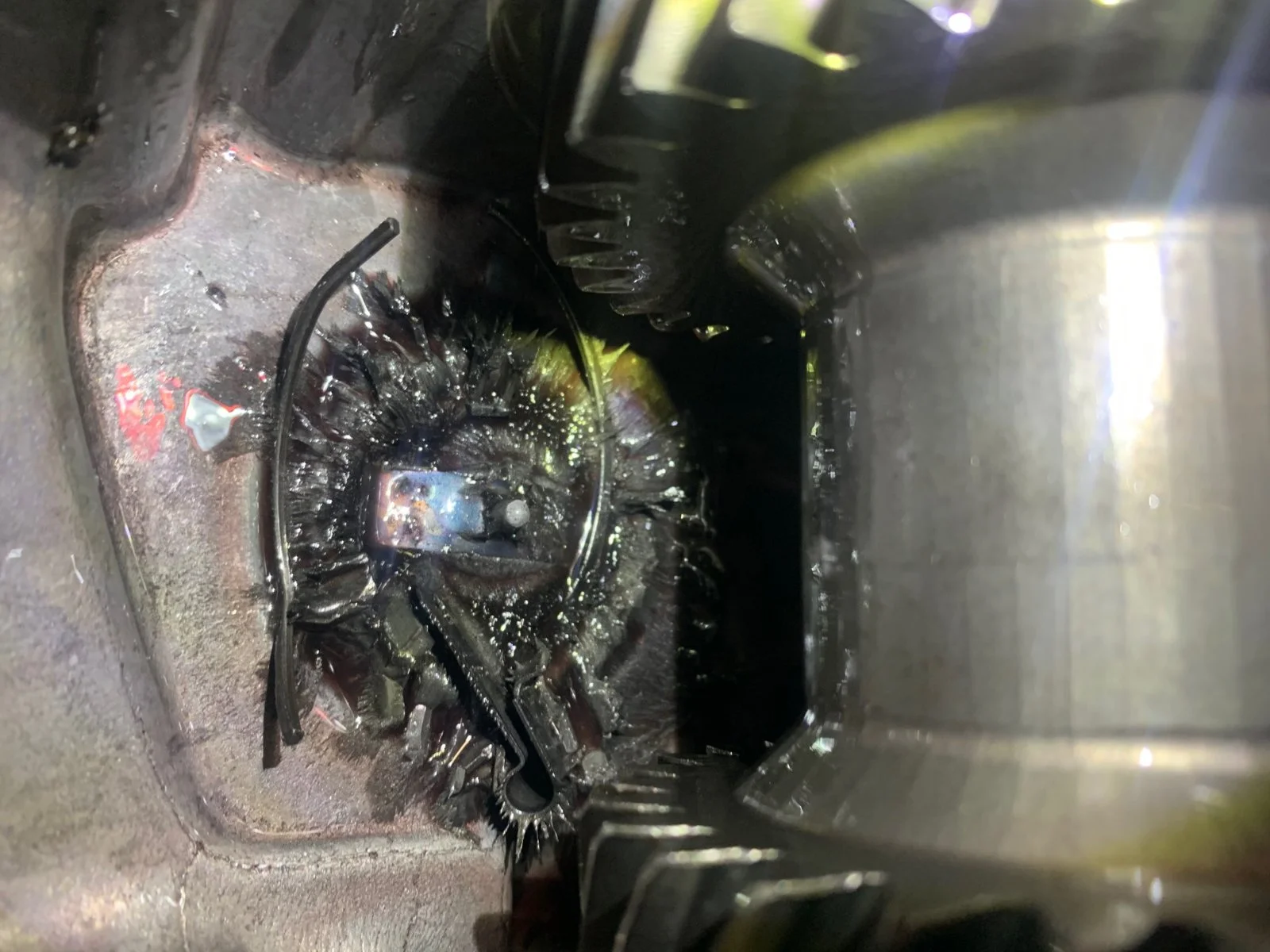

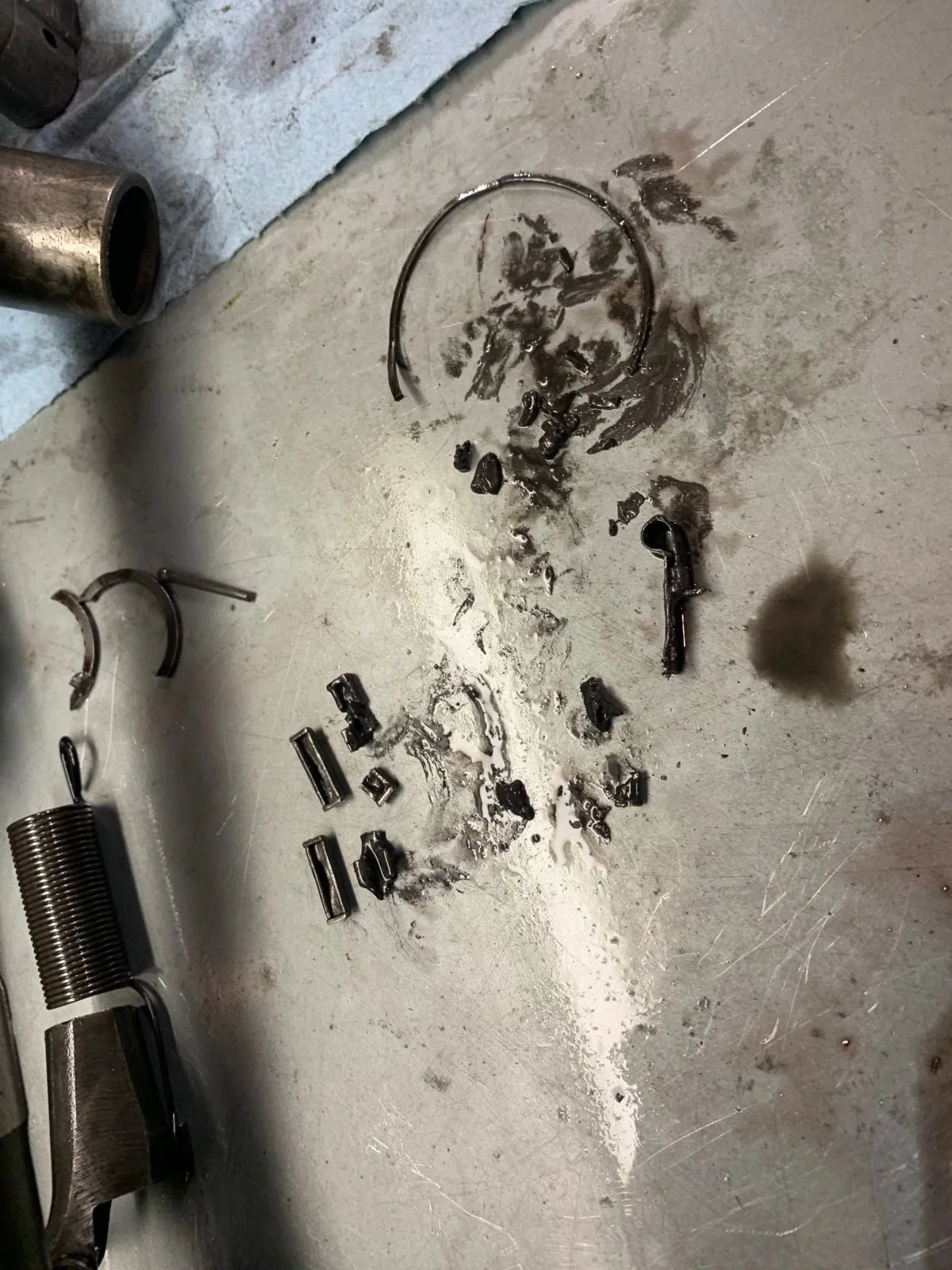

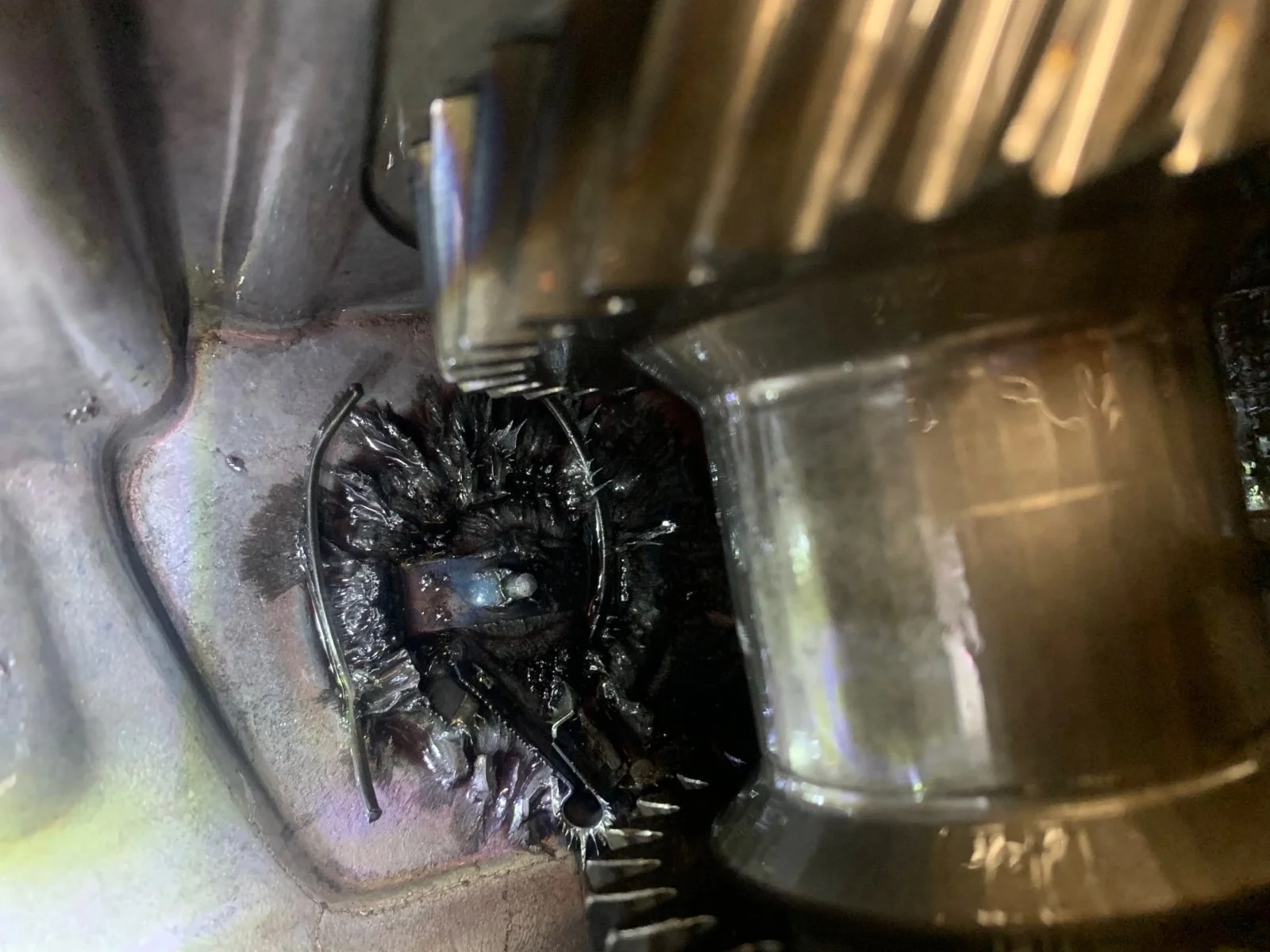

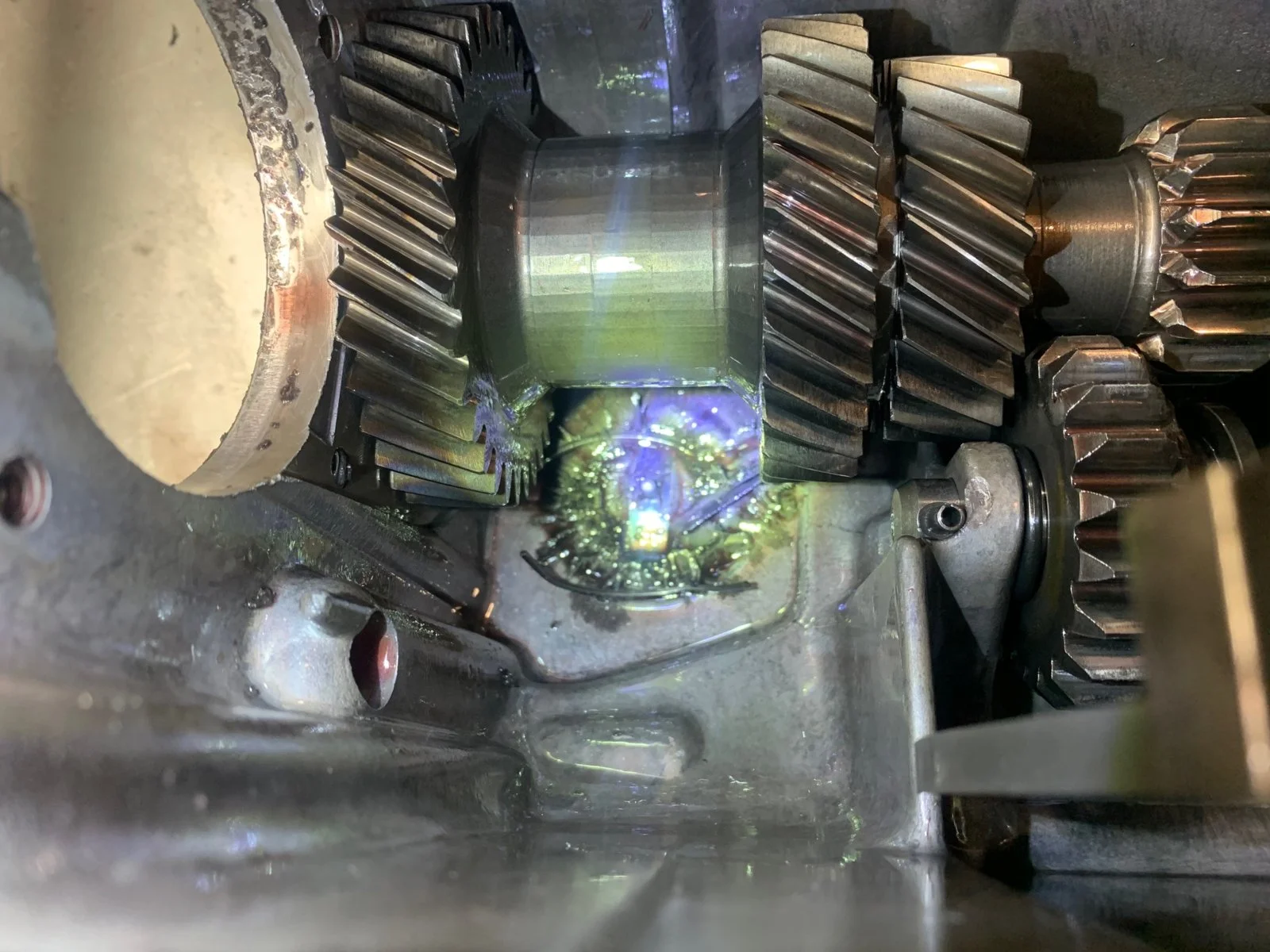

When I pulled the gear-train that is not pressed in, I could see a bunch of junk in the bottom of the case. The following was down there:

  • 2 spring clip halves
  • what looks to be a couple of grenaded synchronizer keys
  • the speedometer gear retaining clip
  • a LOT of metal shavings

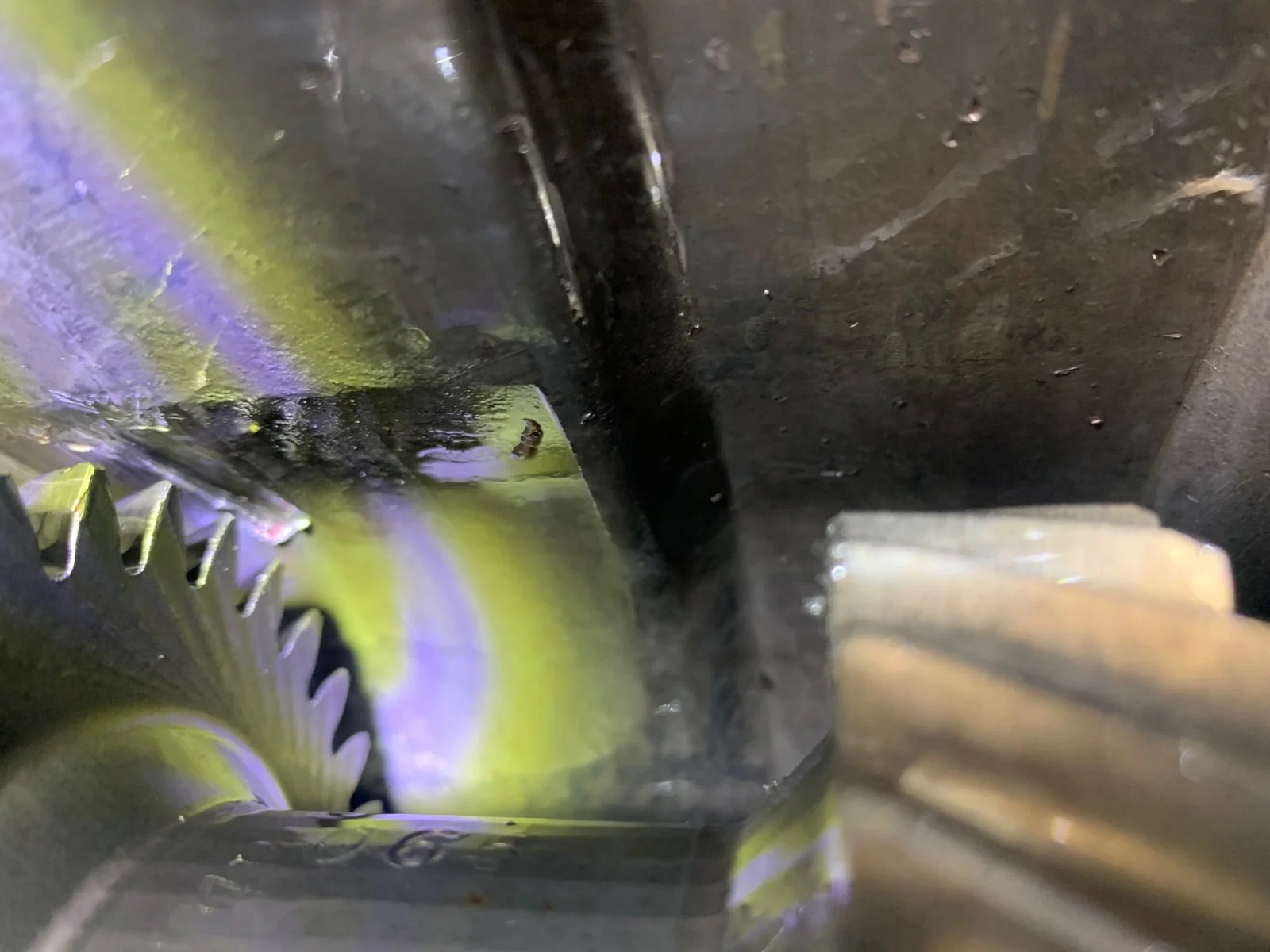

There was also some damage to the sidewall of the case, though superficial in nature.

There's a few pictures attached.

I believe the larger ring is the 1-2 or 3-4 syncro spring but haven't dug in deep enough to confirm. This is my first transmission teardown, so learning as I go here.

Can anyone confirm which parts are the actual failed parts or what else I should be looking at due to those failed parts? Would you consider this still a good candidate for a rebuild?


Thanks,
Will


Attachments

  • Sponsors(?)


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,100
9,234
224
Massachusetts
Synchronizer clips and keys. Your synchro won’t work without that. Inspect the synchro hard parts for damage and replace if showing wear from grinding.

Still a rebuildabke trans. Just might need some hard parts.

I also spy the clip for the speedo gear on the mainshaft


Glliw

Member
Oct 21, 2019
17
1
13
30
Sheboygan, WI
Thanks man. I'll take a closer look at the hard parts later this week. From looking around, clips and keys are pretty darn cheap, at least from what I see at allstategear.com. This is going to be one of those projects where I spend more on tools than I do on parts, lol.

Yeah, somehow that speedo gear clip got into the main case which was a little surprising to me as that little yellow plastic gear rides along out at the output shaft.


Glliw

Member
Oct 21, 2019
17
1
13
30
Sheboygan, WI
I got a few minutes this evening to take a closer look at the referenced video above (actually is a different one by the same guy than what I had previously watched) and spent some time staring at my assembly. Definitely learning a lot here as I've never had to dig this deep into a transmission before.

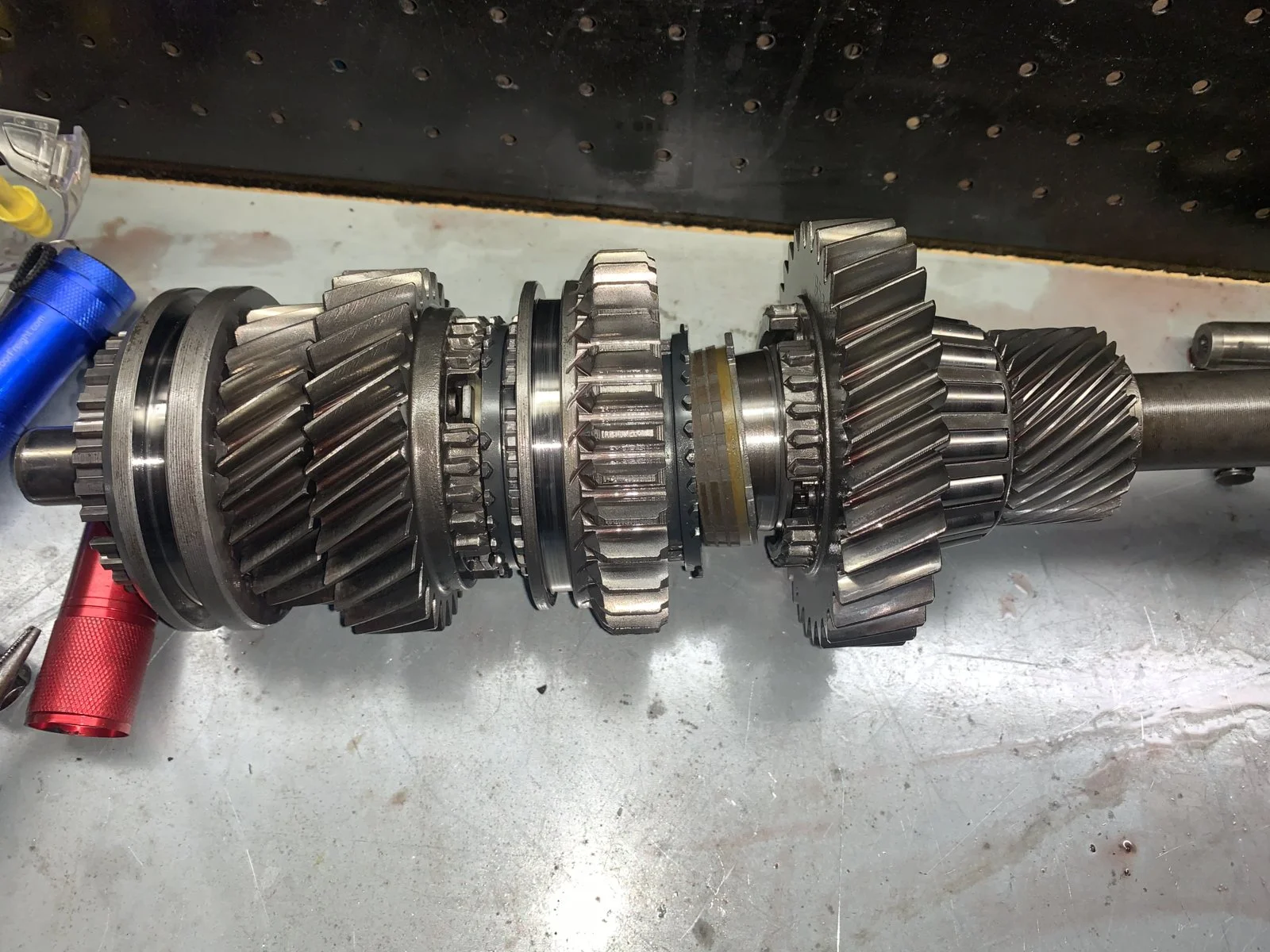

From what I can tell, the synchro rings look to be in good shape though the synchro ring between what I think is 1st and reverse is entirely loose on the shaft. That's probably where the broken big ring came from.

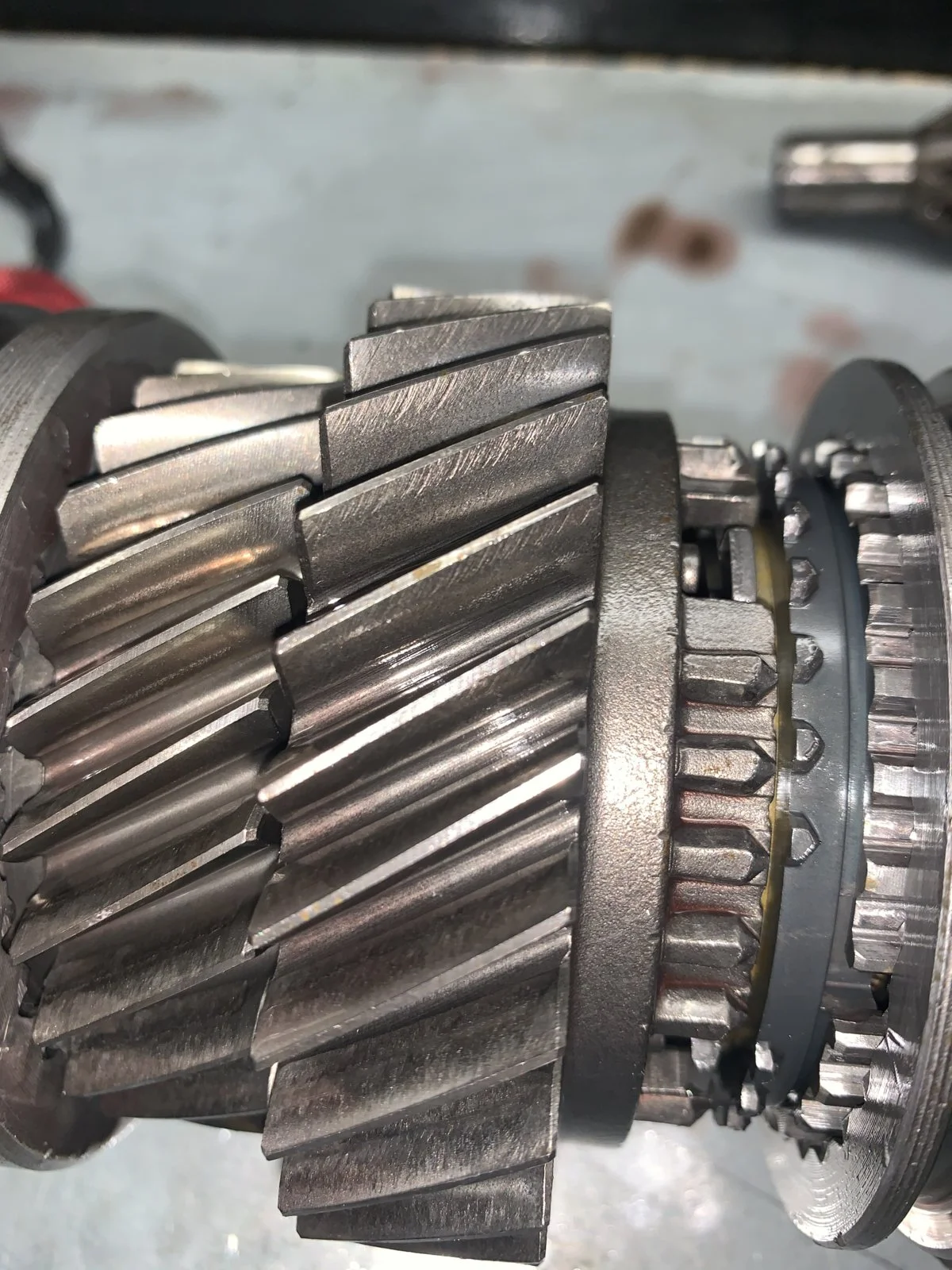

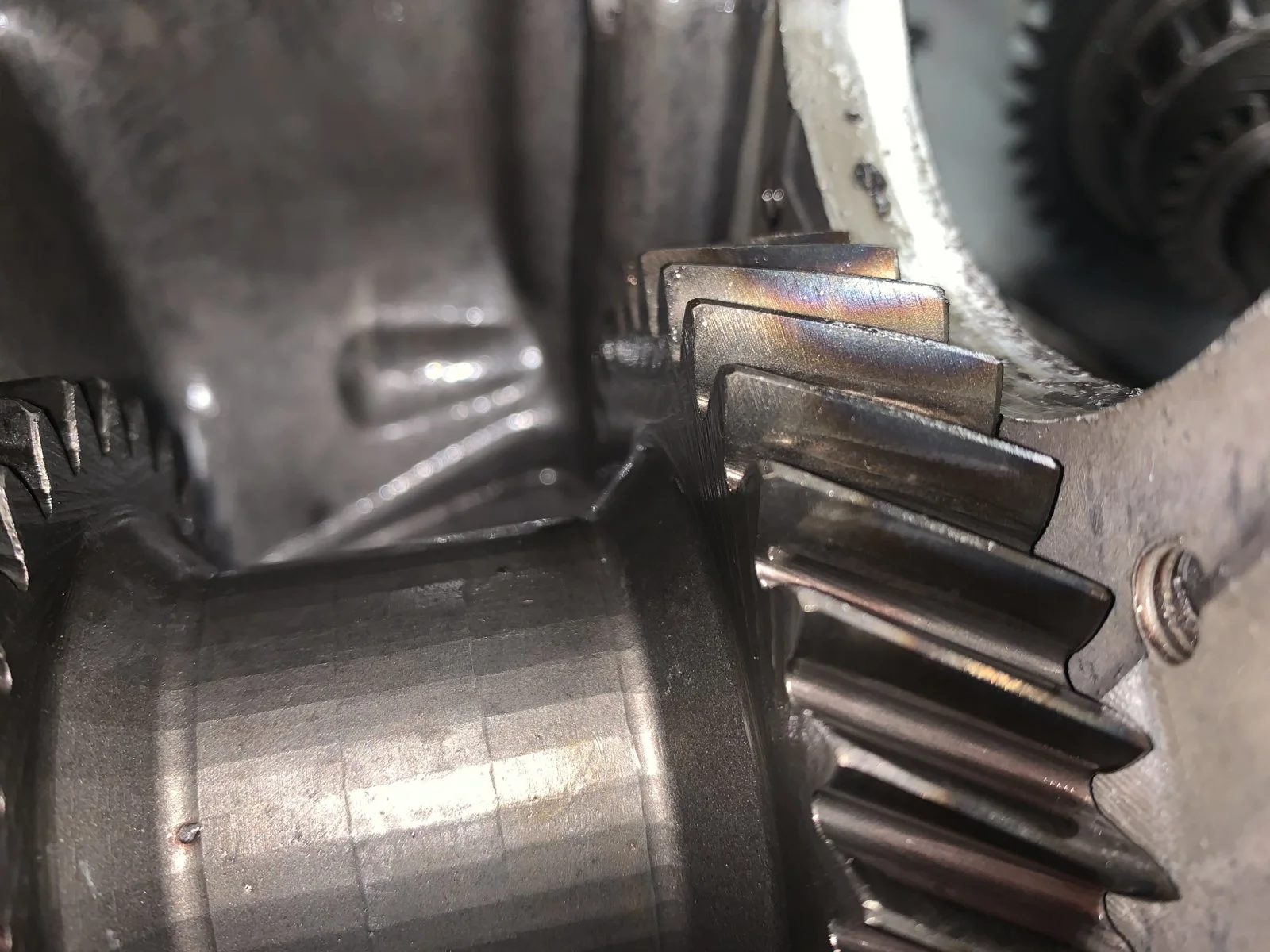

First gear on the main shaft looks to be a bit higher than desired on the contact patch area.


Attachments

JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
While you're in there you should upgrade the front bearing retainer and rear cluster support plate.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,100
9,234
224
Massachusetts

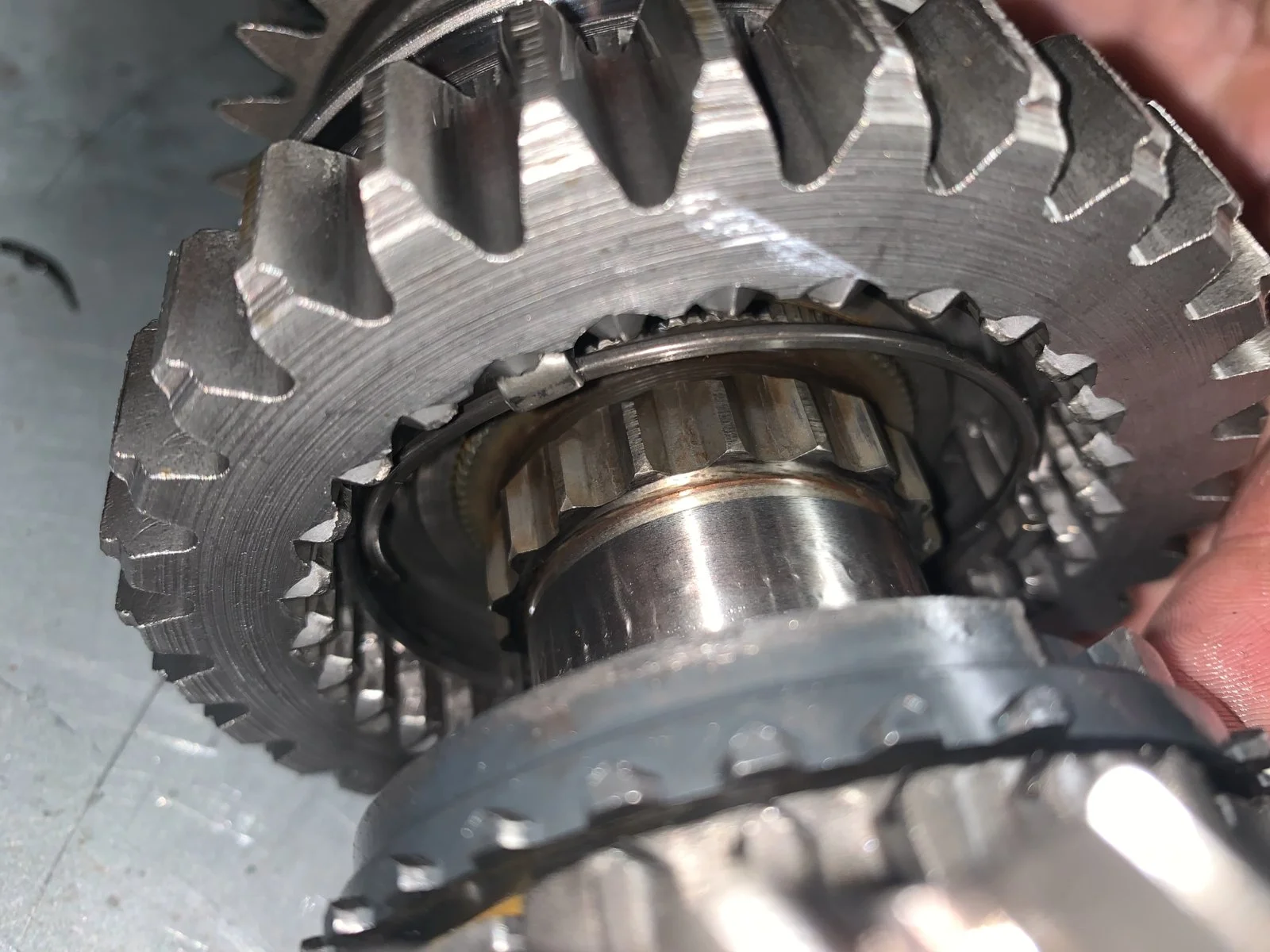

The inside dog teeth on the 1-2 synchro slider (3rd pic) are bashed up. That part needs to be replaced.


Cant get a good view of the other gears to comment

  • Agree
Reactions: Wayne Waldrep

nickyb

Active Member
Apr 3, 2009
284
95
38
nevada
I've just rebuilt a spare t5 I had.got a lot from Paul c. At fivespeeds.com,same guy Eric is in video with. I would get the complete kit with bearing retainer.


Glliw

Member
Oct 21, 2019
17
1
13
30
Sheboygan, WI
Thanks everyone. I just ordered the complete kit from LMR as well as the front bearing retainer. Harbor Freight's running a deal for Thanksgiving on their 20 ton press, so I'll pick that up Friday AM and hopefully get the rebuild done over the weekend.


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
Make sure you shim the front bearing. The 5speeds.com peel shim kit is really nice.


Glliw

Member
Oct 21, 2019
17
1
13
30
Sheboygan, WI
Make sure you shim the front bearing. The 5speeds.com peel shim kit is really nice.

Yep, I will be, and am following along with all of his videos. I won't be using his peel shim though. The LMR kit comes with a handful of different input shims it looks like anyways.


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
Hopefully you find a combo that works. Did you get the billet main cluster support plate to replace the stamped steel junk one?


Glliw

Member
Oct 21, 2019
17
1
13
30
Sheboygan, WI
Fingers crossed. If not, I'll just wait for the $16 peel one from 5speeds.com since I'm in no particular rush. The car will be sitting until the snow melts anyways.

Yeah, I got the upgraded piece through LMR for the bearing retainer.



JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
While you're in there you really should. They stretch and cause all kinds of problems.
