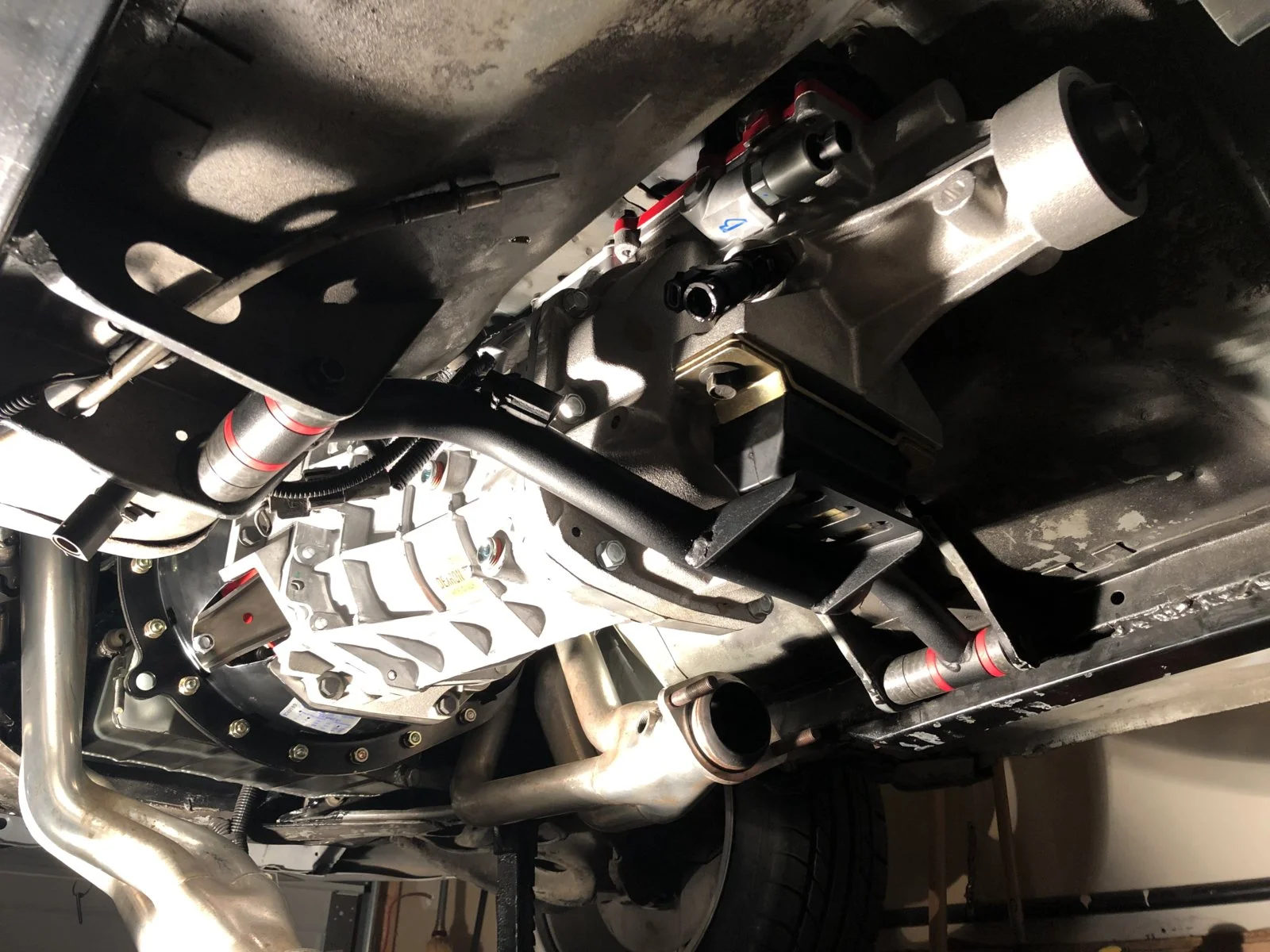

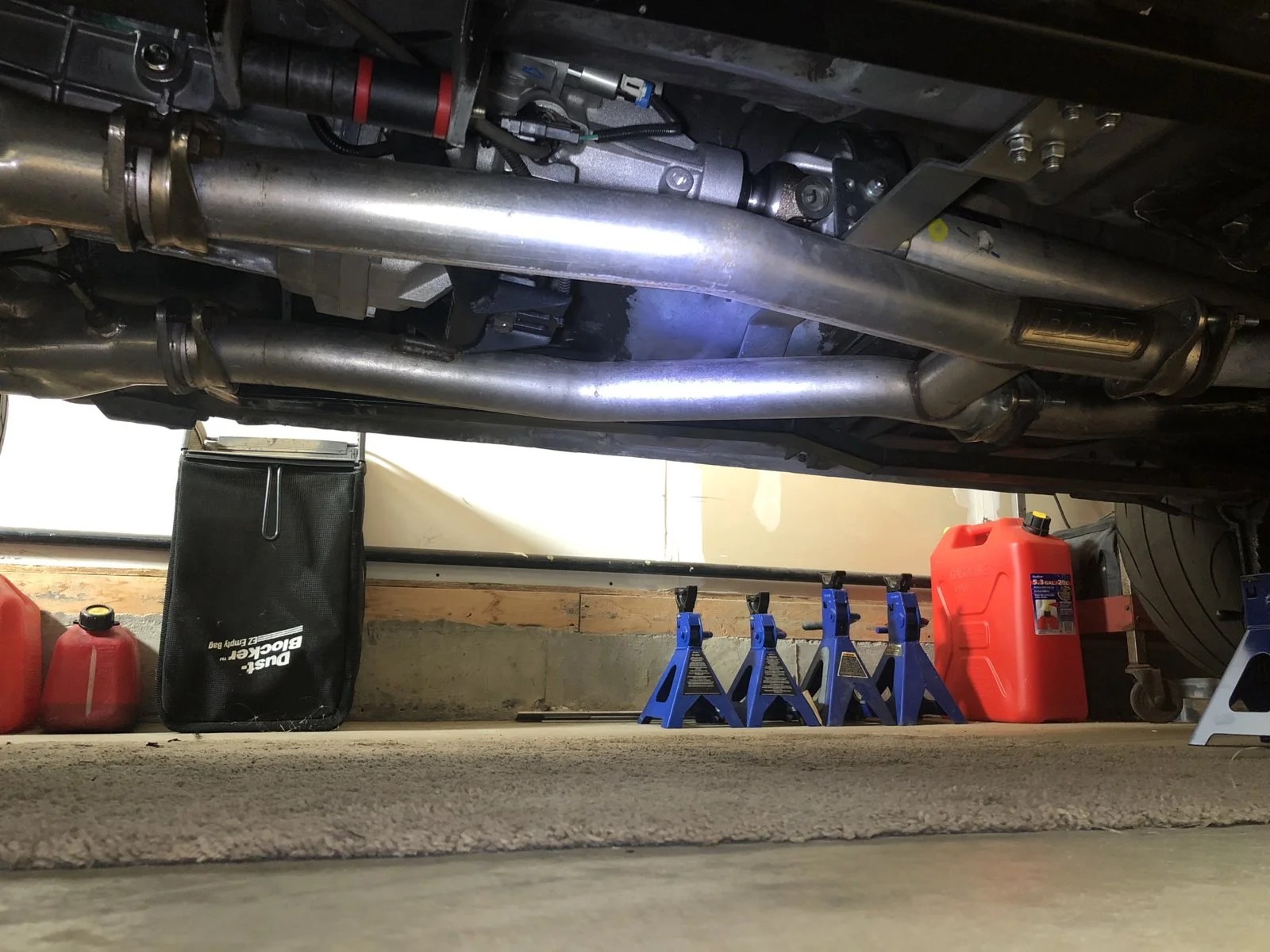

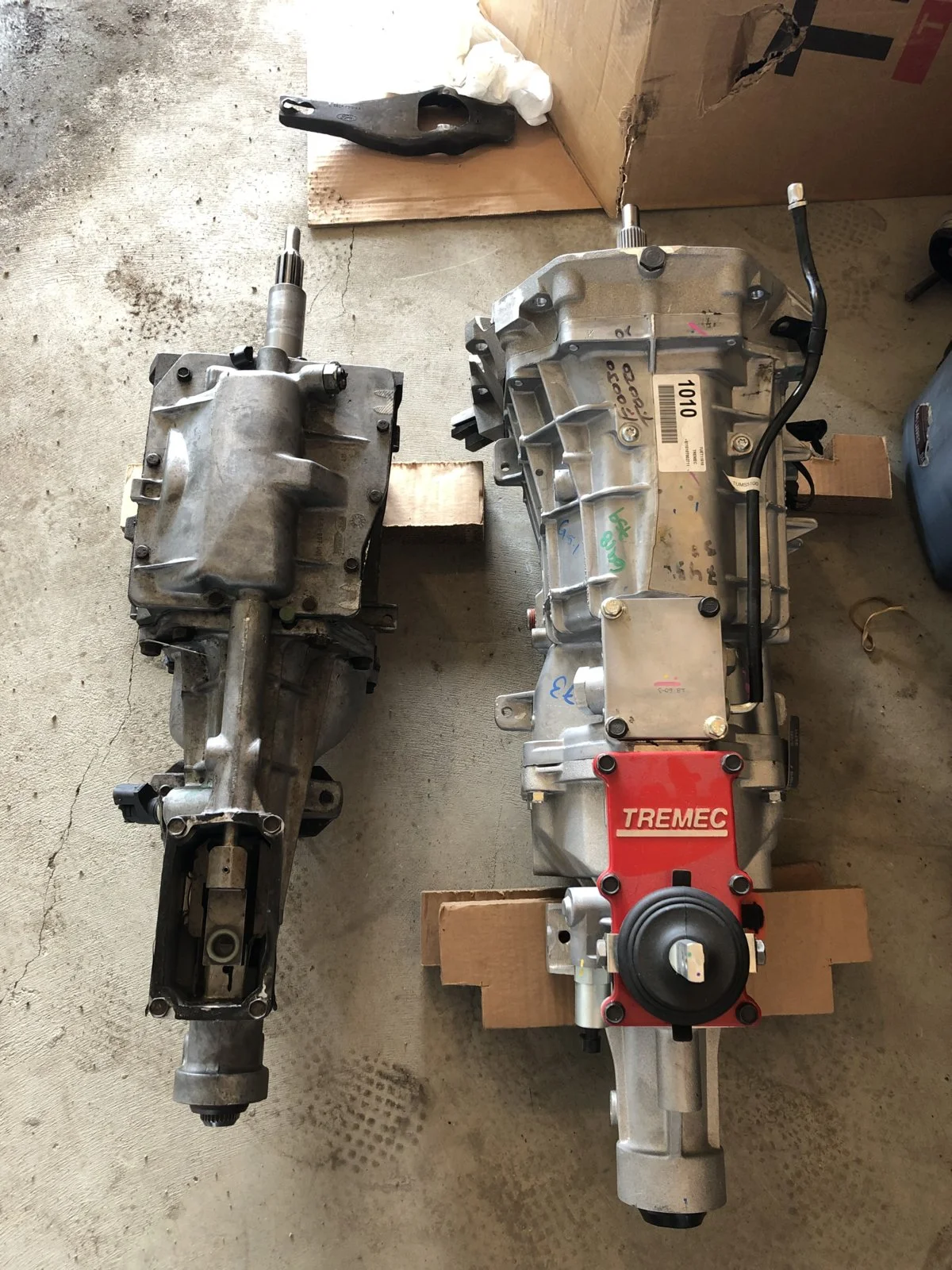

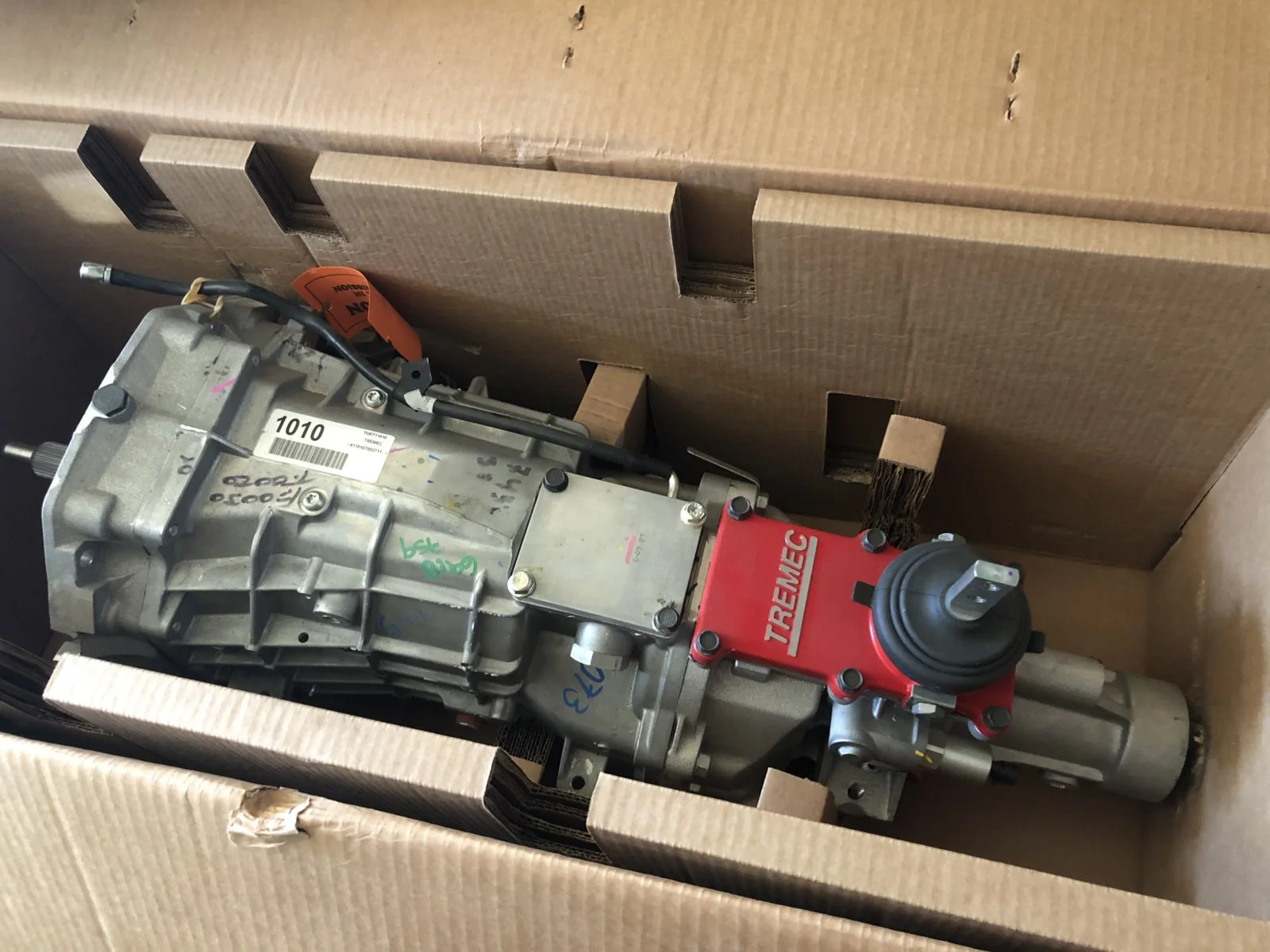

Hey everyone. New to the forum but not new to the Fox Body world. Not an expert either by any means. I've had my '89 notch since 2005. I figured I'd share my experience with my recent T56 Magnum install. Bought the close ratio version as a kit in the spring that came with everything I needed except for a driveshaft. My engine is an R block 347 with AFR 185 heads NA. Dyno'd @370/362whp/tq. So nothing crazy but definitely too much for the infamous T5 the way I like to shift. (That's what it made with the stock A9L computer and SCT chip. I now have a MSPNP2 and am still currently tuning it)

Parts:
-Tremec T56 Magnum Close Ratio

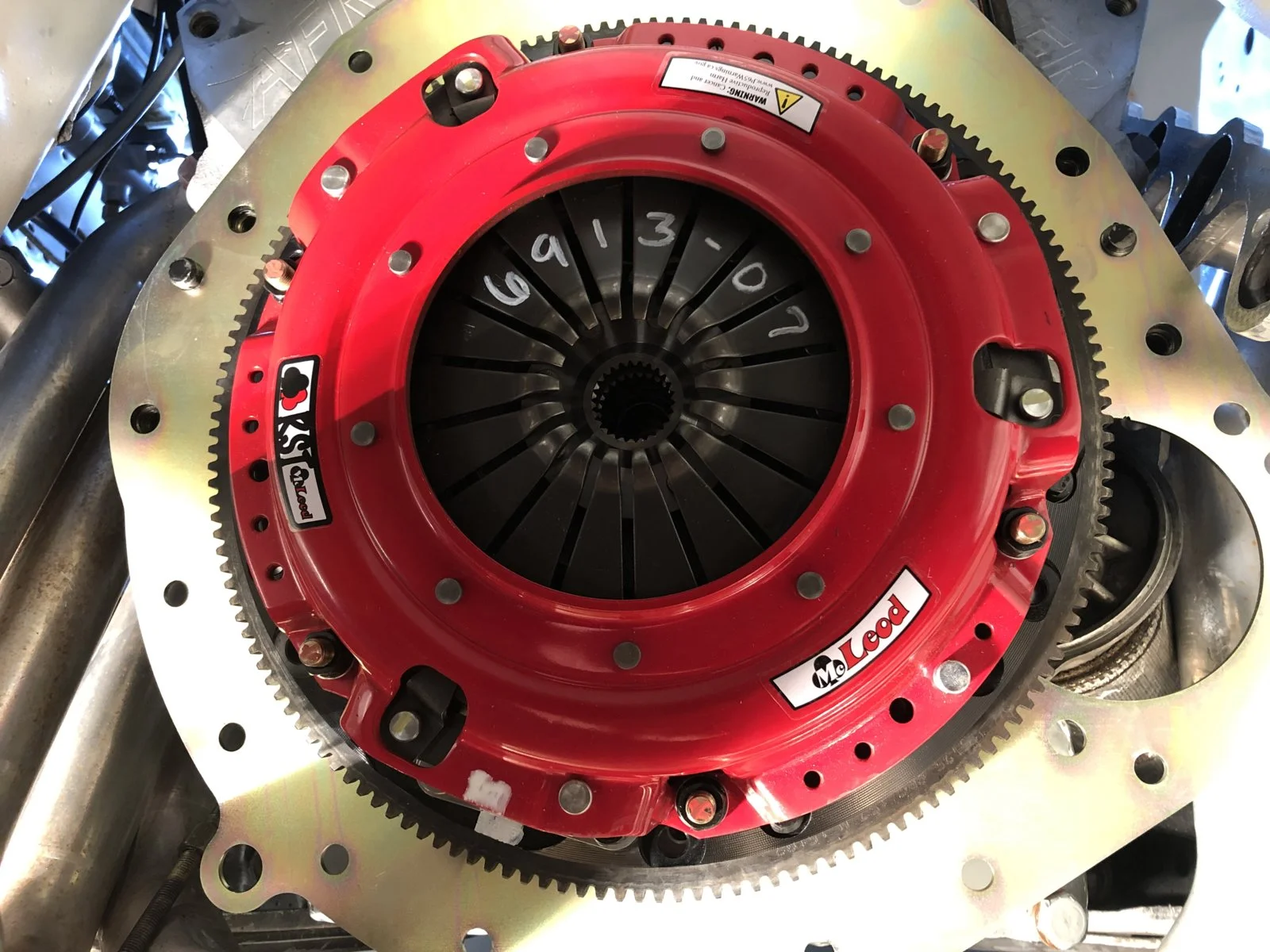

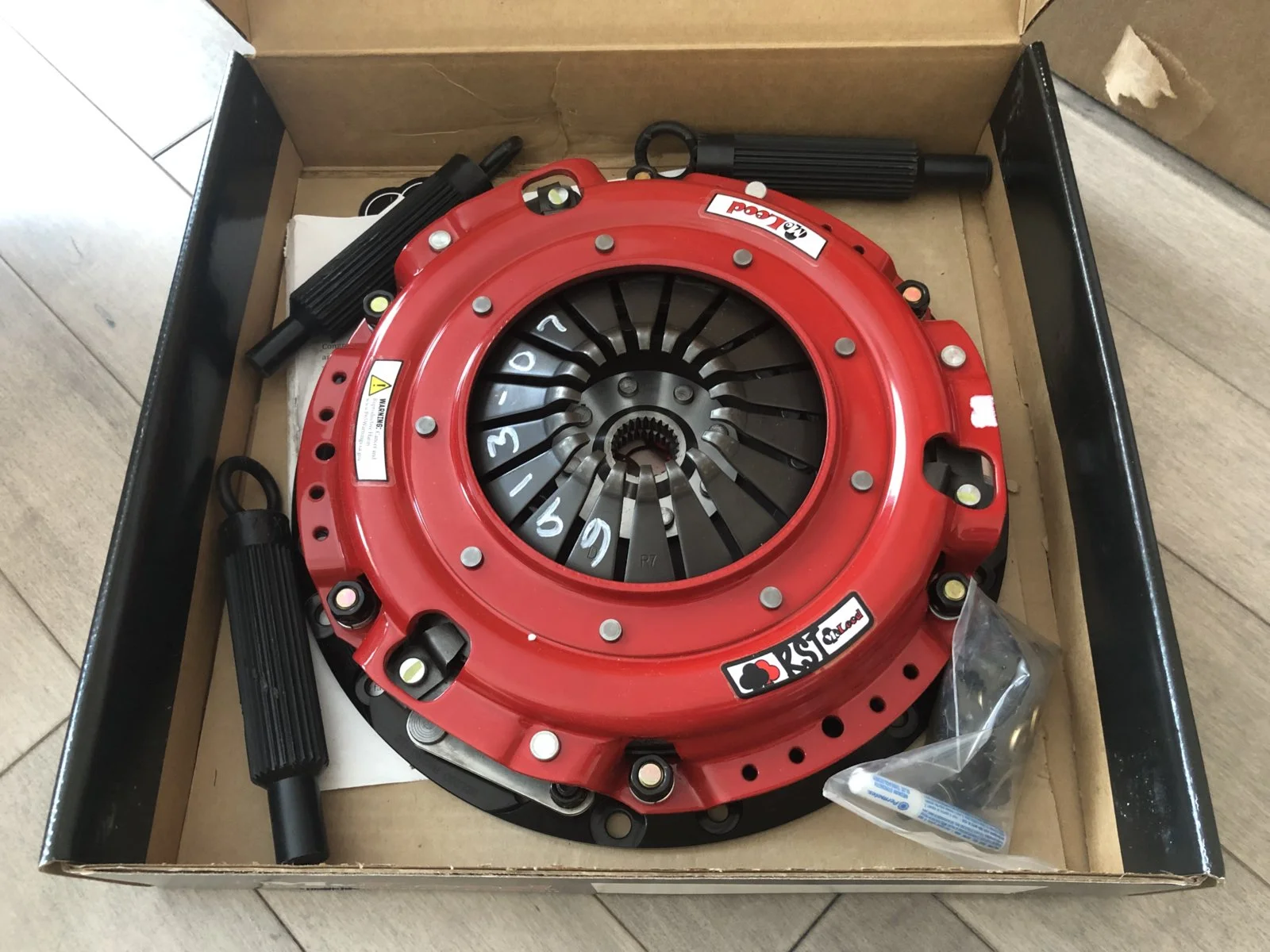

-McLeod RST Dual Disc Clutch

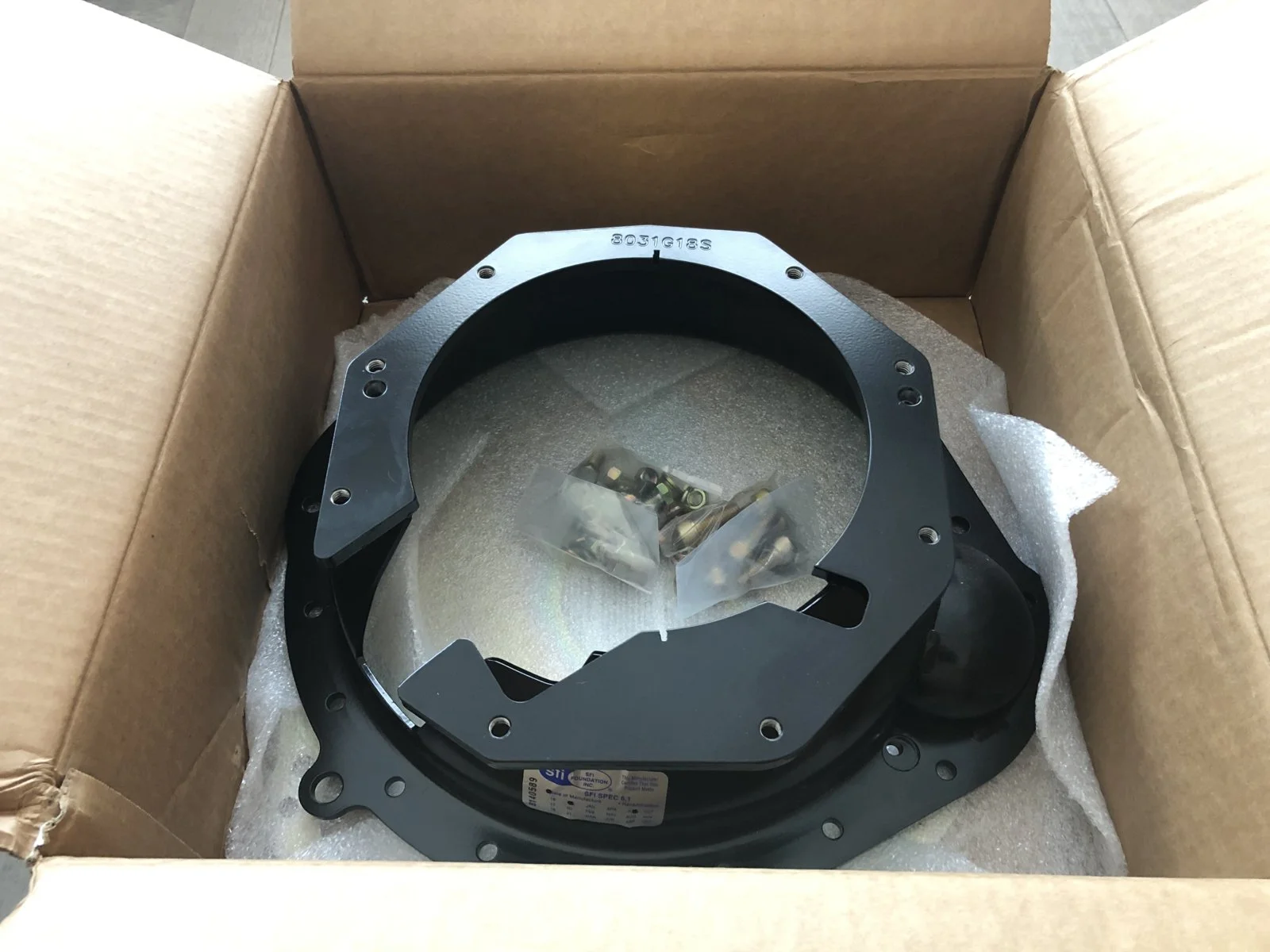

-QuickTime SFI Bell Housing
-Ford Racing 31 Spline Driveshaft Yoke
-SN95 Clutch Fork (had to modify for my application)
-Couple of pigtails for the reverse light switch and reverse lockout solenoid
-Stifflers Transmission Crossmember

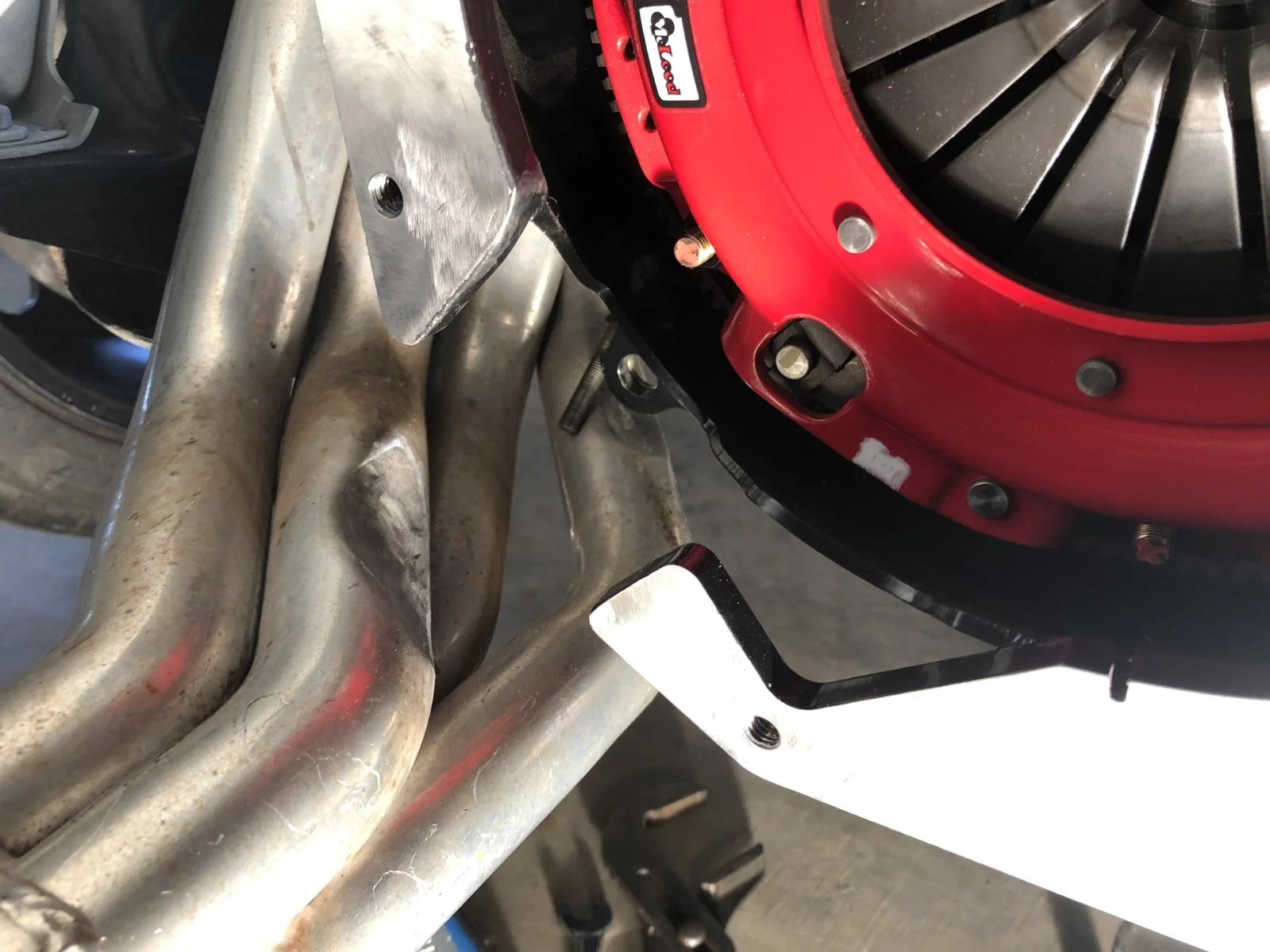

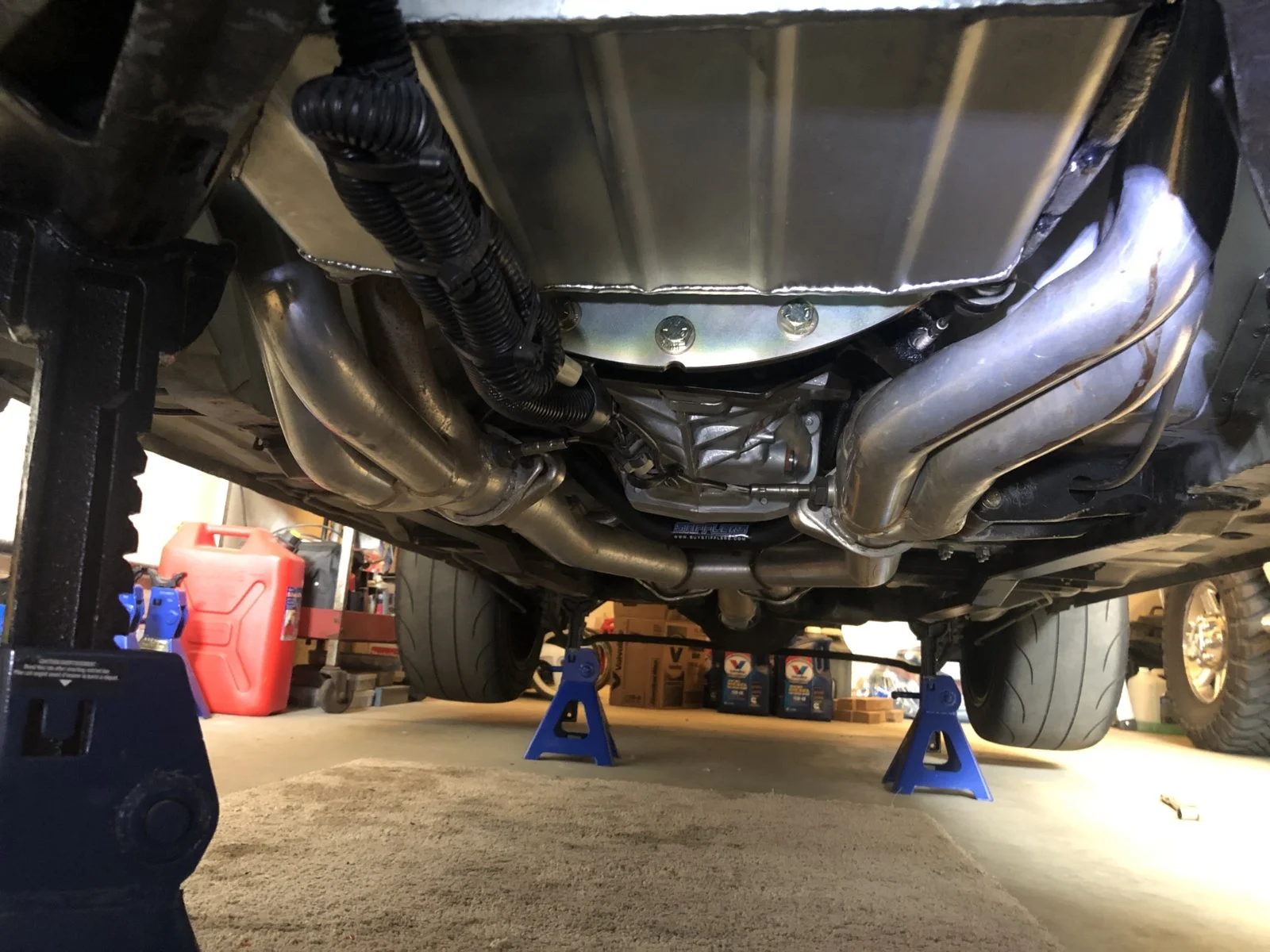

I run BBK long tube headers which made the install a bit of a pain in butt. In order to even get the Bell Housing installed I had to unbolt both headers. Then came the test fitting. This involved bolting the transmission in a few times to see what needed to be modified. I had to trim one of the tabs on the passenger side of the trans housing. I had to massage the trans tunnel where the shifter base sits. I had to trim about an inch off the clutch fork and modify the hole for the cable. I had to massage the driver side header for clutch fork and cable clearance. I had to adjust my adjustable clutch fork pivot ball which is recommended to use with dual disc clutches as they are thicker. Then I had to measure my driveshaft and see how much needed to come off. I took it to a driveline shop where I had them shorten my driveshaft by exactly 3 inches and install the 31 spline yoke. Once it was finally all installed I had to do a small amount of wiring. I had to wire in the reverse light switch as well as the reverse lockout solenoid. The reverse lockout solenoid I wired into my LineLock/2 step button on my shifter. Some wire it into the brake pedal switch but to me I already had a switch readily available and easy to tie into close by.

It was a successful summer with the new transmission and clutch. Clutch feels great, light and very smooth. The transmission feels great too and it feels cool driving a 6 speed Fox. I ran Redline synthetic ATF at first and then I ordered Tremec Transmission oil right from Tremec to replace the Redline after breaking it in.

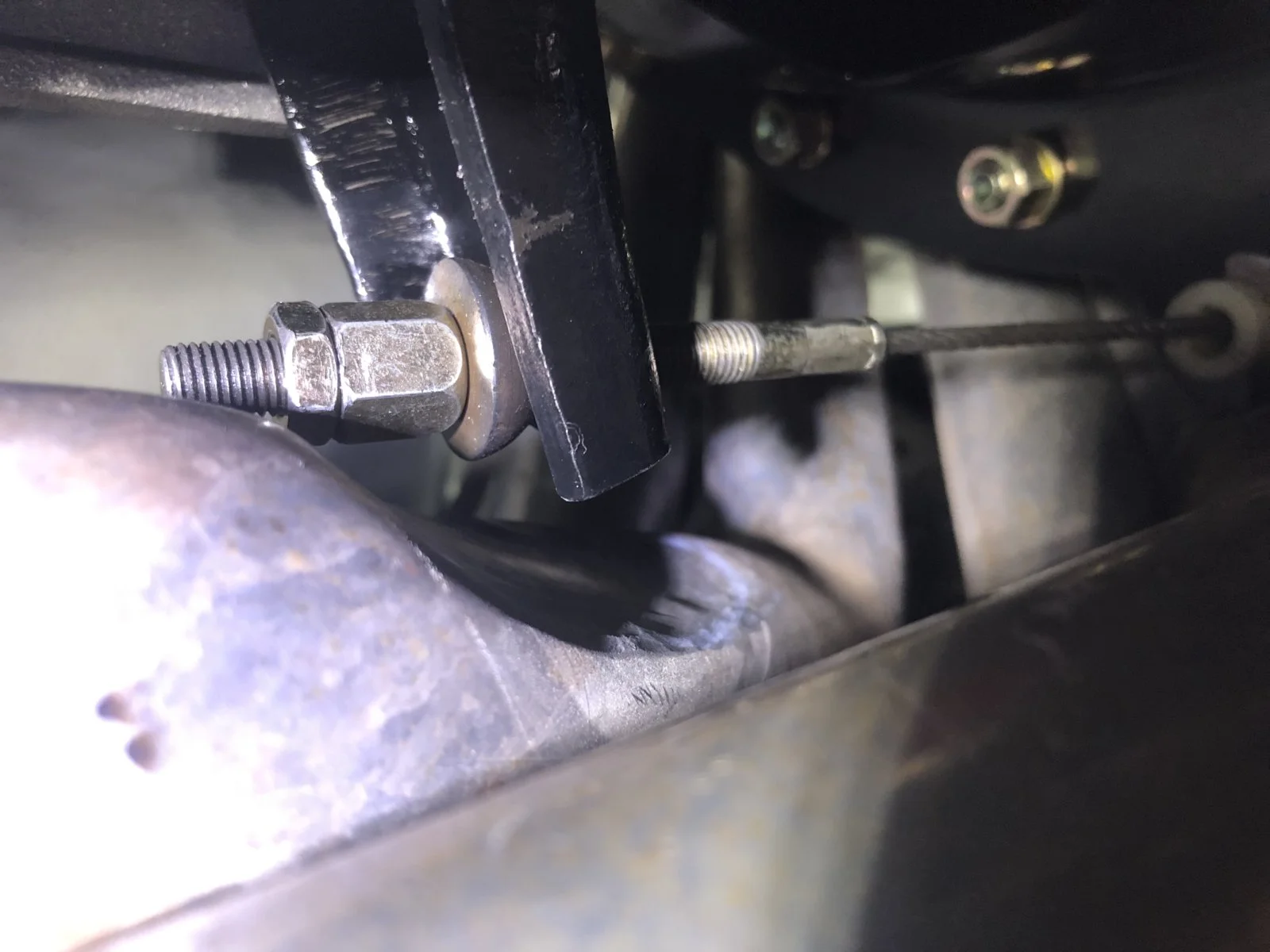

The factory speedo cable also reaches and works for the T56 Magnum install. All I had to do was adjust where it was clamped on the firewall to get extra length.


Last edited:
  • Sponsors(?)


Gs87GT

Active Member
Sep 25, 2019
231
74
38
Penn's Woods
Nice work man! Looks great! Those long tubes sure make things tight under there, that's for sure. Glad it's working good for you. High quality stuff no questio

Welcome to stangnet! This is the best forum I've found for fox body stangs for sure. Lots of knowledgable and good folks here.

  • Like
Reactions: CHILL347

Rt jam

Member
Oct 17, 2015
64
12
18
52
Excellent write up Chill347.

I also just did the T5 to T56 Magnum swap. My kit was from D and D Performance. Came with Quicktime Bellhousing, driveshaft, crossmember, speedometer cable, shifter and the close ratio like yours.

I had the same problem with long tube headers trying to be in the same space as the release fork. I used a McLeod hydraulic release to resolve.

No floor or shifter hole clearance required but I had to cut off the same ear off the passenger side. When the cut piece fell to the floor and I saw a green paint line right where I cut and an X on the offending piece. I figured it was marked to cut but nobody cut it.


FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,543
1,248
214
Fort Knox, KY
Did you dyno with the T5 with an otherwise as is combo? I would really love to see the impact the trans swap had on rwhp.


FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,543
1,248
214
Fort Knox, KY
There are heavier & more moving parts in a T56. Some people say it makes a BIG difference, but I don't believe that either. Any chance you'll get it re-dyno'd with no other changes?


CHILL347

I could barely beat on it while driving.
Oct 27, 2019
24
20
13
33
Beaumont, Ab
There are heavier & more moving parts in a T56. Some people say it makes a BIG difference, but I don't believe that either. Any chance you'll get it re-dyno'd with no other changes?
Not sure yet. Now that I am running a MegaSquirt I kinda want to have it dyno'd again once I get the tune all dialled in. But that is going to have to wait till next year some time or even the year after.


Rt jam

Member
Oct 17, 2015
64
12
18
52
Did you dyno with the T5 with an otherwise as is combo? I would really love to see the impact the trans swap had on rwhp.
Did not dyno with either but what difference would it make. The T5 is too small for a powerful engine. So even if there is a slight advantage in efficiency, it equals nothing of value when it's broken.

The ONLY time I would tempt with a fragile T5 over a T56 is for maybe a class race where a say 5% loss in efficiency will cost you a race.


FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,543
1,248
214
Fort Knox, KY
@CHILL347
Well, that implies a change to the tune which may throw off the results. I'm just curious, because I've got to T56 in both of my cars, and I've seen posts that give, in my opinion, outrageous differences in dyno output that I do not beleive (30+ rwhp in an N/A car if memory serves). It's in that other mustang website's fox forum.


FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,543
1,248
214
Fort Knox, KY
Did not dyno with either but what difference would it make. The T5 is too small for a powerful engine. So even if there is a slight advantage in efficiency, it equals nothing of value when it's broken.

The ONLY time I would tempt with a fragile T5 over a T56 is for maybe a class race where a say 5% loss in efficiency will cost you a race.
Astro or G-force T5 = more torque capacity but less power consumption. A certain regular on this site is considering the options. I would personally go T56, as I have in both of my cars with a spare on my garage floor. However, the power difference is certainly good reason to avoid a T5 if the only evidence I can find is to be taken seriously. I don't believe it but have yet to see direct power measurements disproving it.


CHILL347

I could barely beat on it while driving.
Oct 27, 2019
24
20
13
33
Beaumont, Ab
@CHILL347
Well, that implies a change to the tune which may throw off the results. I'm just curious, because I've got to T56 in both of my cars, and I've seen posts that give, in my opinion, outrageous differences in dyno output that I do not beleive (30+ rwhp in an N/A car if memory serves). It's in that other mustang website's fox forum.
Of course it implies a change to the tune hopefully for the better. I certainly wouldn't waste my money throwing it on a dyno just because I swapped transmissions but also the tune on the stock computer was so bad that I wouldn't want to have it run up on a dyno. 30 whp seems outrageous. I could see a few but I doubt 30.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,196
6,105
204
31
Hillsborough county
Of course it implies a change to the tune hopefully for the better. I certainly wouldn't waste my money throwing it on a dyno just because I swapped transmissions but also the tune on the stock computer was so bad that I wouldn't want to have it run up on a dyno. 30 whp seems outrageous. I could see a few but I doubt 30.
If you need tips on that tune let me know, if nothing else I can sanity check for you.

  • Like
Reactions: CHILL347

FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,543
1,248
214
Fort Knox, KY
Of course it implies a change to the tune hopefully for the better. I certainly wouldn't waste my money throwing it on a dyno just because I swapped transmissions but also the tune on the stock computer was so bad that I wouldn't want to have it run up on a dyno. 30 whp seems outrageous. I could see a few but I doubt 30.
That's exactly why I'm so interested in seeing direct results without any changes. Here's from that other forum:

Hey,

Some of you know that I split my 347 last year, shortly after that I ordered a 363 DART from FORD STROKERS to replace it... WELL WORTH THE WAIT!!

Some history... 347 dynoed (to the wheels) 426'ish HP and 416 foot pounds... great motor and put out more power than most people believed... car is about 3500 lbs with me and trapped just under 123mph. Anyway 347 combo as below.

FORD STORKERS 347
58 cc Twisted wedge 190cc heads... pocket ported by Jim
compression 10.58'ish
Comp 274 HR with 1.72 comp gold rockers
BBK 15/8 long tubes
2.5 xpipe with converters
2.5 magnaflow exhaust
mezeire water pump
electric fan
underdrive pulleys
RPM air gap, mild clean up
650 speed demon
1 inch spacer
T5 transmission

I couldn't of been happier with that motor... until I split it down the center... it now serves as an excellent anchor for my boat!

Anyway, on to the 363...

FORD STROKERS DART 363
COMP 282 with 1.72 comp gold rockers
Same heads
Same headers
Same exhaust
Same manifold
Same Carb
Same Spacer
NEW TRANSMISSION T56 magnum.. data logs showed that this tranny ate up 32 more HP than the T5!!

Just got back from DYNO about 1 hr ago... 458.52 HP and 434.63(to the wheels). In places it picked up more than 38HP over the 347. In short this motor is putting out 60-70HP more than the 347!

Total timing about 30 degrees, air fuel started at 12.4 rising to about 13... could of picked up a few more going a litte leaner, but I had passed my 450 goal.

I could not be happier with this motor, exceeded my expectations and as you all know CUSTOMER SERVICE is beyond amazing! So, thanks very much to Jim and Nicole for answering all my calls etc.

Jim flat out builds strong motors, and even though the wait is long, it will be well worth it!

Thought I'd share as there isn't a lot of streetable 363 dynos that I have seen!


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
17,287
5,586
193
polk county florida
I don't see where he compared the t5 to the t56 on the same engine. Where did he find the 32 hp loss? How did the data log show it? I'm not an expert but I ain't buy'n it.


CHILL347

I could barely beat on it while driving.
Oct 27, 2019
24
20
13
33
Beaumont, Ab
And that's how I feel, but I have yet to ever see an apples to apples comparison. People rarely just do a T56 swap and call it a day.
Well I sorta did, that was my big modification for this last season. But like I said, the tune wasn't trust worthy enough that I'd stick it on a dyno and risk hurting it. I could barely beat on it while driving.


CHILL347

I could barely beat on it while driving.
Oct 27, 2019
24
20
13
33
Beaumont, Ab
If you need tips on that tune let me know, if nothing else I can sanity check for you.
Thanks, I appreciate that. I want to learn as much as I can on my own and I have watched your videos. Next year I'd like to play with closed loop idle. I may get you to check it out at some point tho.


Rt jam

Member
Oct 17, 2015
64
12
18
52
Who cares about a dyno number. We only use it to tune. Say the T5 is more efficient but it's slower at the track due to wide gear. What good is this information?

We all modify for different reasons. T56 shifts better, T5 is cheaper, T5 is great for wide power bands, T56 will handle way more power, T5 is unreliable etc.

So even if there was, and probably is a slight loss. The T5 and T56 Magnum close ratio have very different gear ratios. So a back to back comparison is not realistic. Some engines hate the big rpm drop between gears, some don't care.
