Electrical TPS voltage

I believe he responded to that suggestion (removing the tps to check for change), no change.
At that point he should have checked resistance like jrichker posted in his test procedure. I guess he was focused on the tps sensor

Last edited:
  • Sponsors (?)


4.92


Attachments

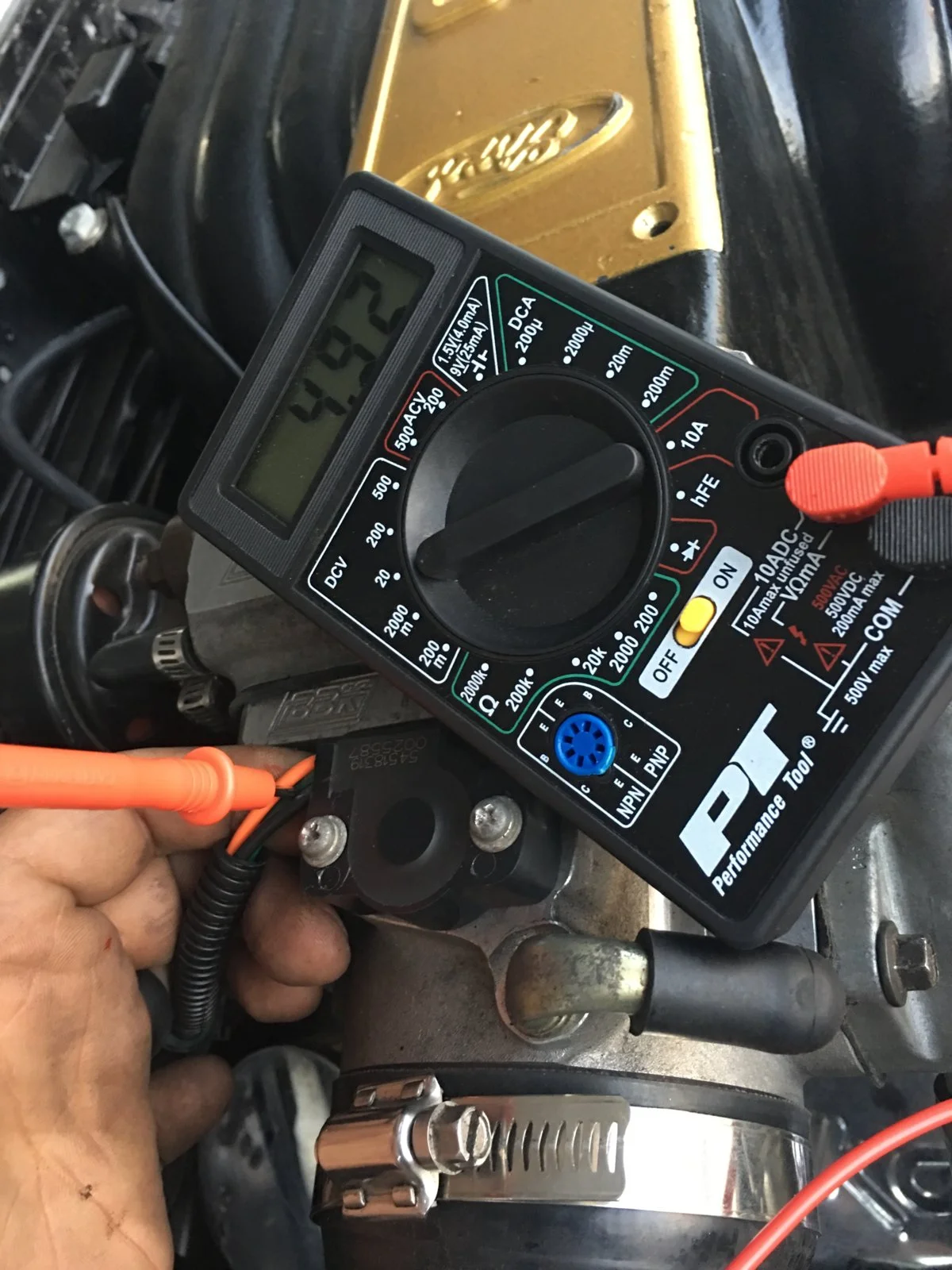

  • 21DAD115-82CD-4E53-9611-6170F8EE2DF6.jpeg
    270.1 KB · Views: 81
Does the fact that pin 46 in Burnt affect this at all ?
And why would it burn up ?
For some reason my computer is for an automatic but I have at 351w Manuel transmission


Attachments

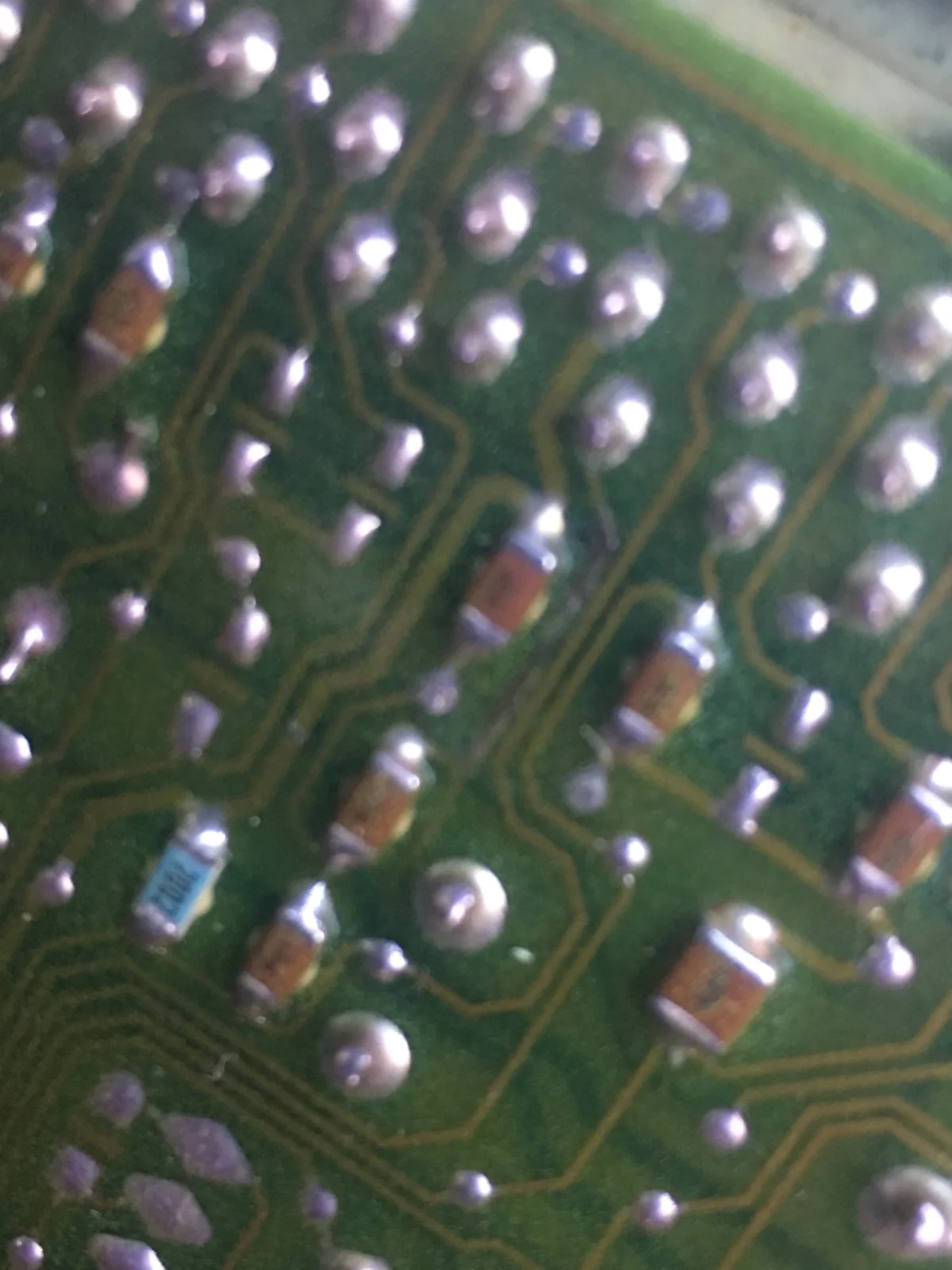

  • EF704836-A468-4BD9-9612-3E0F019F0EAD.jpeg
    194.3 KB · Views: 82
1986 harness won't have the jumper to repin. The 1986 and 1987 cars are wired differently.

However, if the car's history is unknown, it's possible the wiring harnesses were changed.

Step #1. Look for the o2 harness plug near where the MAF would normally sit on a mass air car. Is it a 5-wire plug or a 7 wire plug with a jumper.


And yes, burning up trace 46 can cause some of the issues you are seeing. They can be repaired by soldering a jumper. Best way to check is to unplug the ECU, put a probe to pin 46 and check for voltage while cranking and on key on. Should be none
