Trick Flow Fuel Rail Installation

melzerkymsu

New Member
Jun 24, 2013
13
1
3
31
I recently decided to upgrade my fuel system on my 1991 LX 5.0L. I purchased the trick flow fuel TFX fuel rail kit, 30lb injectors, and a 255 lph fuel pump. I'm currently trying to install the fuel rails and fuel lines but I'm having some issues. I'm running a Edelbrock performer upper and lower intake manifold. When I mock up the system I do not see how it is possibile to make the connections back to the stock fuel lines. When you put the fittings on supply and return lines it points the fittings directly at the intake manifold. In general the AN fittings and fuel lines in the kit are fairly large and bulky which make routing the lines challenging. Finally I'm not sure where would be a good place to mount the fuel pressure regulator.

Does anyone have any experience with this kit or a similar one line the aeromotive kit. Any examples of how you plumbed / routed your system to the stock return and supply would be great.

Another option would be to get rid of the stock hard lines for the return and supply lines but that would not be my first option at this point. I'm open to all suggestions. Thanks guys.

  • Sponsors(?)


Willybill32

But at least it's tight!
Jul 16, 2019
279
109
53
Lexington, KY

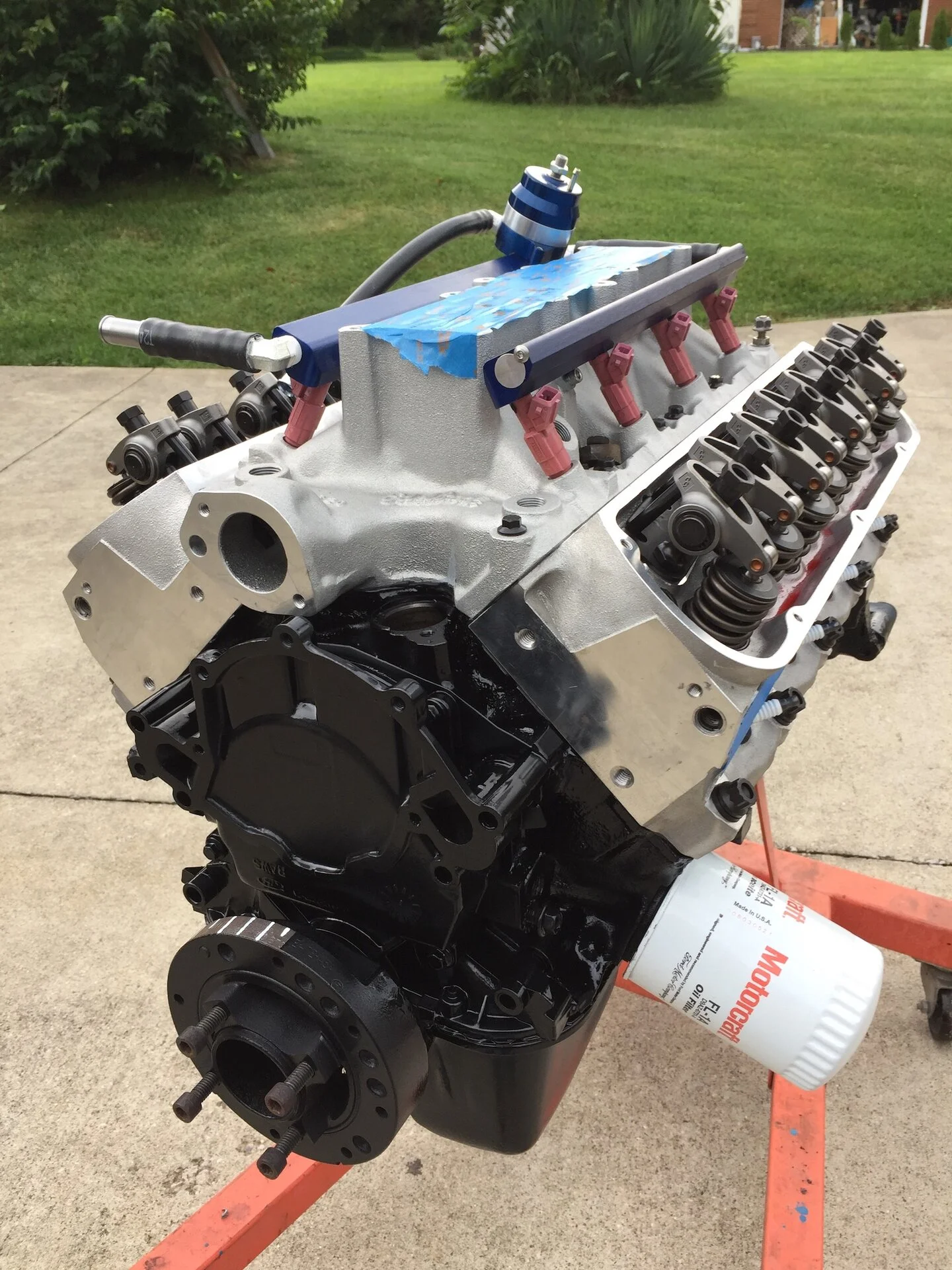

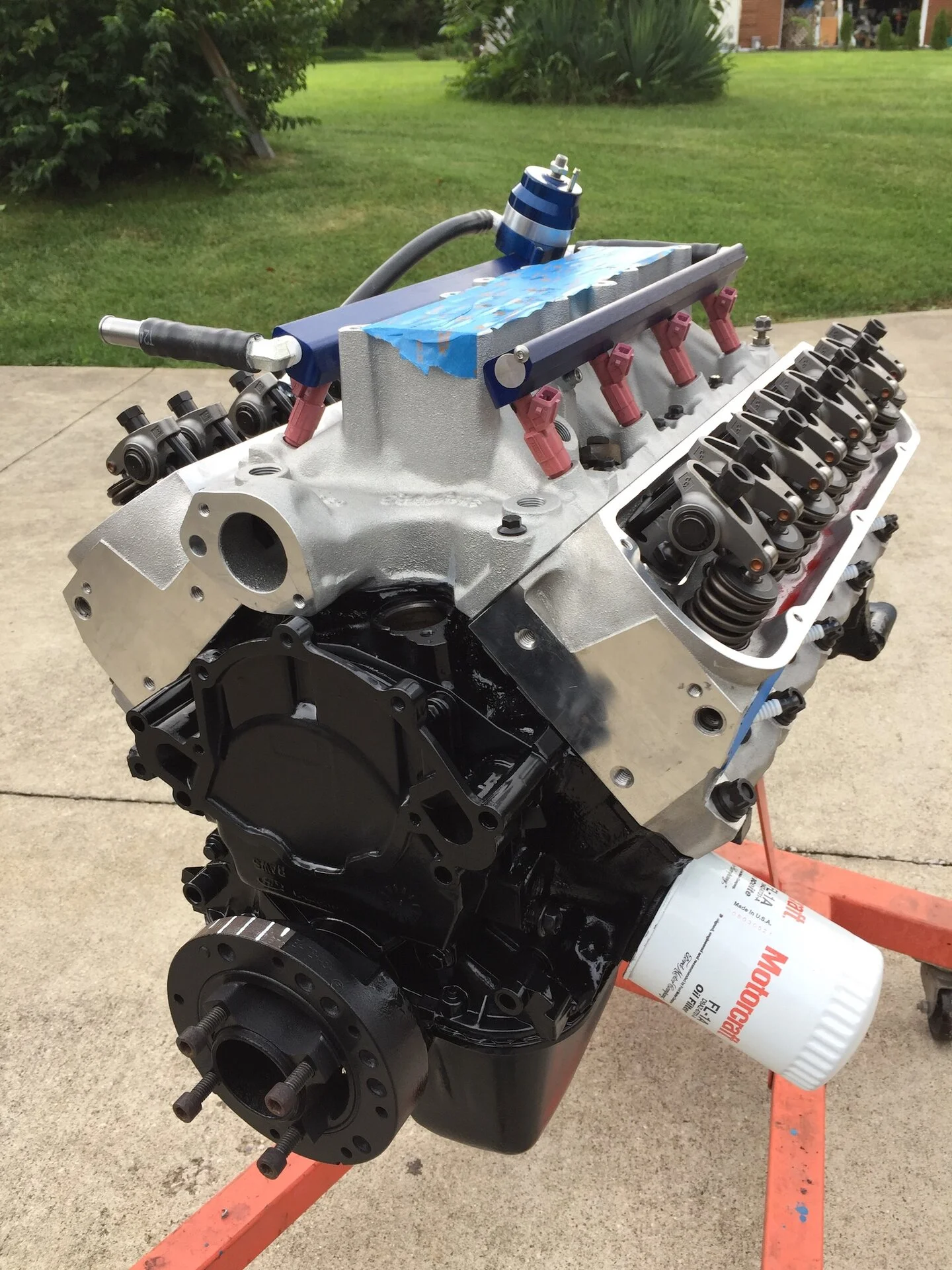

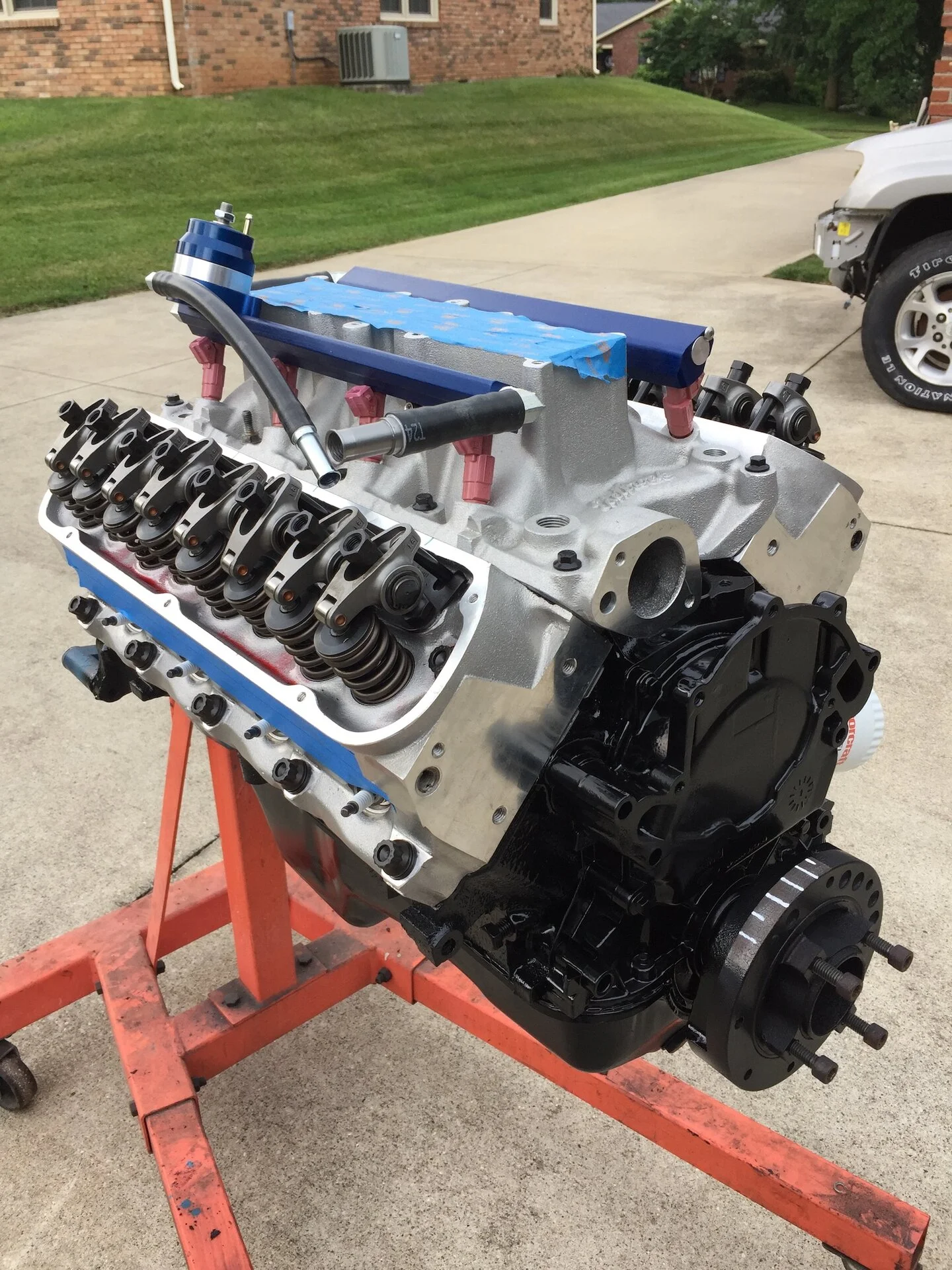

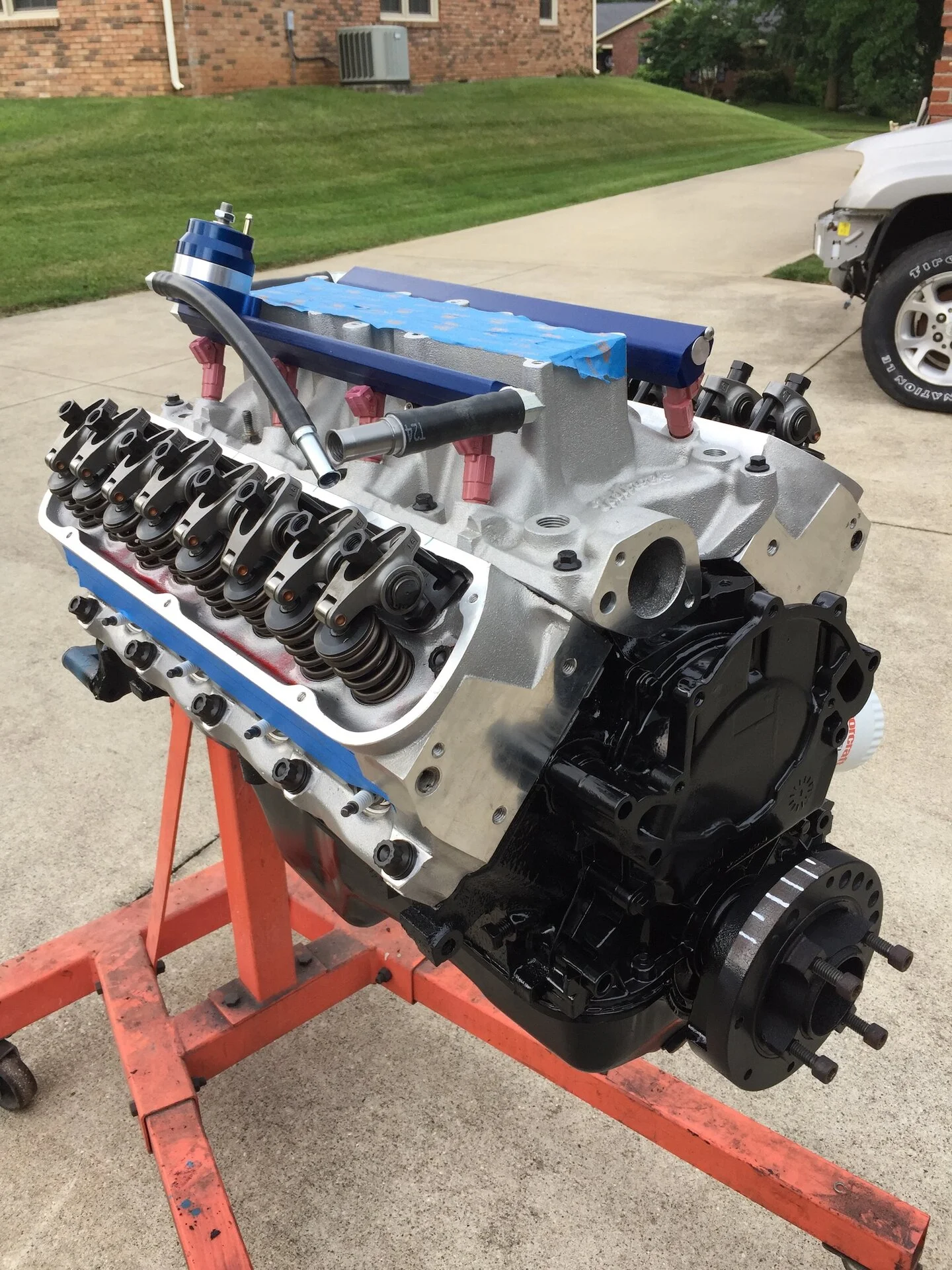

I have BBK fuel rails and pressure regulator as well as the Edelbrock Performer intake. I bought new flex fuel lines with AN fittings to connect to the fuel rail.


Attachments

  • A68F8740-2779-4ABD-B402-FA7A67FCABEA.jpeg
    581.4 KB · Views: 133
  • BE1A83DC-7625-4635-9A00-5D2EC6611539.jpeg
    514.6 KB · Views: 104
  • 51B8C243-BC9F-4769-9B33-0A17737D2539.jpeg
    581.4 KB · Views: 87
  • DFDDD8E2-6B46-4A5D-A502-12F00A00A004.jpeg
    514.6 KB · Views: 134

melzerkymsu

New Member
Jun 24, 2013
13
1
3
31

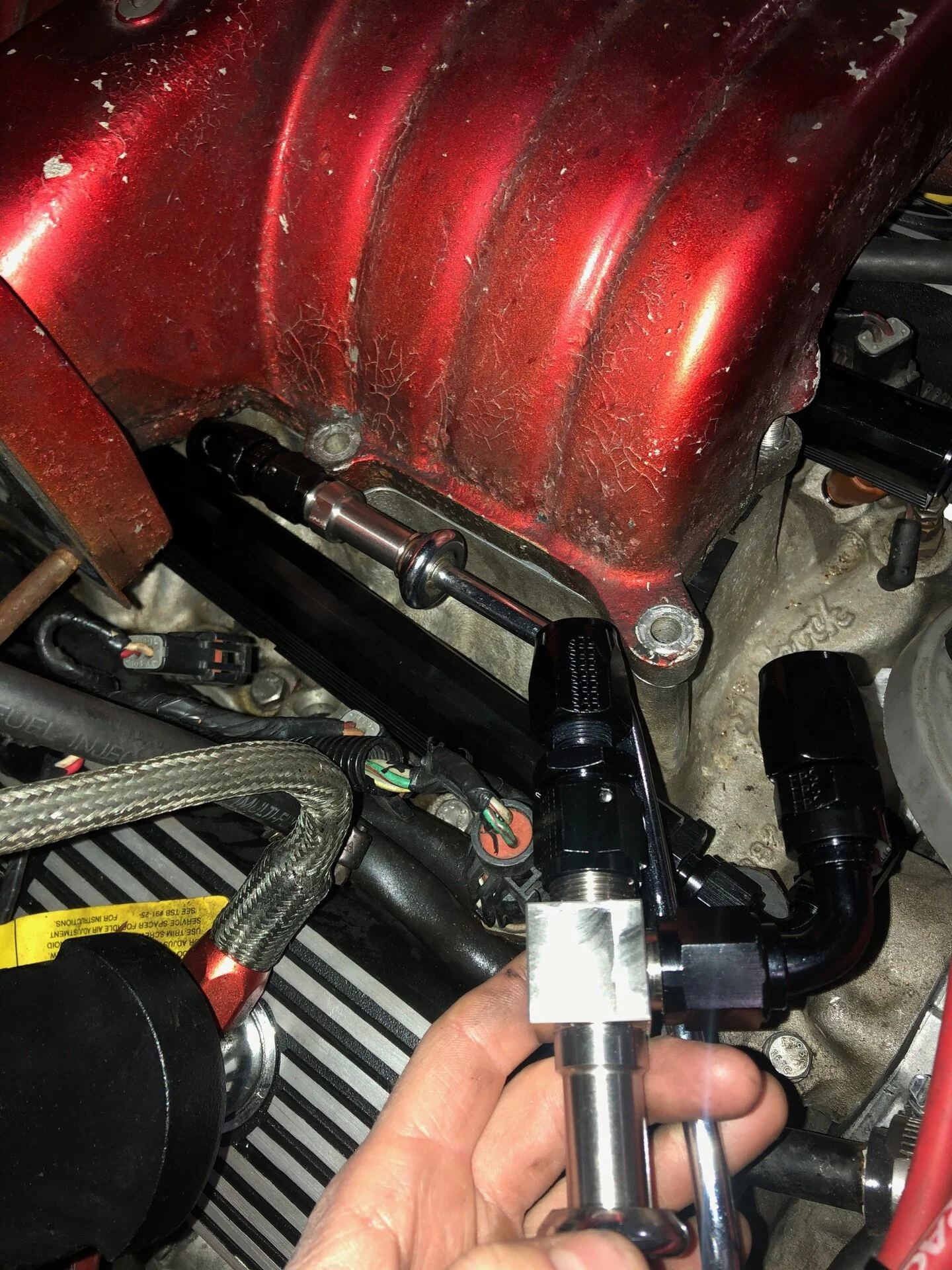

Here is a picture of what I'm dealing with. The supply line is supposed to T out after it connects to the stock lines but it points them directly into the intake. The return line is basically pointed directly into the intakes neck where the throttle body attaches. I could probably get the lines to route but it seem like it would be a bit ugly. Below is the link to the fuel lines / rails I purchased and there installation instructions.




Attachments

  • Fuel vs Intake.jpg
    Fuel vs Intake.jpg
    629.3 KB · Views: 146

Willybill32

But at least it's tight!
Jul 16, 2019
279
109
53
Lexington, KY
Here is a picture of what I'm dealing with. The supply line is supposed to T out after it connects to the stock lines but it points them directly into the intake. The return line is basically pointed directly into the intakes neck where the throttle body attaches. I could probably get the lines to route but it seem like it would be a bit ugly. Below is the link to the fuel lines / rails I purchased and there installation instructions.


Why not contact Trick Flow for their assistance? They've got to have had this issue before.


revhead347

Apparently my ex-husband made that mistake.
15 Year Member
Jun 14, 2004
8,900
1,520
214
41
Acworth, GA
Stock fuel rails will outflow 30lb injectors on 255lph pump. Just saying, in case you give up.

Kurt


melzerkymsu

New Member
Jun 24, 2013
13
1
3
31
Why not contact Trick Flow for their assistance? They've got to have had this issue before.
I've sent them an email and have not heard back yet. I will post the solution if they get back with me. Figured I would search here as well.


melzerkymsu

New Member
Jun 24, 2013
13
1
3
31
Stock fuel rails will outflow 30lb injectors on 255lph pump. Just saying, in case you give up.

Kurt
I've considered this but have some plans for the spring that would probably outflow the stock rails so I'd like to at the very least know how to get this solved for when the time comes. Plus maybe someone else will have the issue and stumble across the thread and find it helpful.

But you do have a good point in the short term.

  • Like
Reactions: 1 user

Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,148
621
143
55
Cuba, AL
Trick Flow normally has a real live person answer the phone when I've called. They've been pretty friendly as well.

  • Like
Reactions: 1 users

2000xp8

SN Certified Technician
Aug 8, 2003
7,203
1,233
194
NJ
I've considered this but have some plans for the spring that would probably outflow the stock rails so I'd like to at the very least know how to get this solved for when the time comes. Plus maybe someone else will have the issue and stumble across the thread and find it helpful.

But you do have a good point in the short term.

I think revhead should have also added that stock rails will outflow a stock block.


melzerkymsu

New Member
Jun 24, 2013
13
1
3
31
Called trick flow and they couldnt give a good answer. I ended up just sending them back for now and will revisit the issue in the spring.


Cyajojo

Member
May 2, 2020
38
8
18
55
Foristell, MO
Called trick flow and they couldnt give a good answer. I ended up just sending them back for now and will revisit the issue in the spring.
Hi, can I ask what reason they gave, if anything? I am shopping rails ATM.... Took me one day to get a reply over a grommet for the oil fill recently.


melzerkymsu

New Member
Jun 24, 2013
13
1
3
31
Hi, can I ask what reason they gave, if anything? I am shopping rails ATM.... Took me one day to get a reply over a grommet for the oil fill recently.
They couldn't give me an answer and told me they would look into it an call me back. I never got a call back. Sorry I can't be any help.
