Using maf with megasquirt pnp

  • Sponsors(?)


Slow89wpb

New Member
Mar 26, 2020
6
0
1
38
West palm beach Florida
Hi a91what I have to thank you for responding I have read and watched your videos, right now my car is tuned sd runs great but wanted to see about running it with my mass air that is still in place .
Does it run better with mass air ? My maf is a pro m 80mm


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
9,579
5,760
204
31
Hillsborough county
Did you build the pnp? If so then it's simple to open the case and wire it in.
If you have an ms2pnp from diy then you will need to wire it into the options port.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
9,579
5,760
204
31
Hillsborough county
options port pin #19 or pin #10 both can be used.

knock input is ADC2 - AD7
Baro is ADC1- AD6

either will work but if you are using the external map pin be aware you will have to jumper it over inside the case.

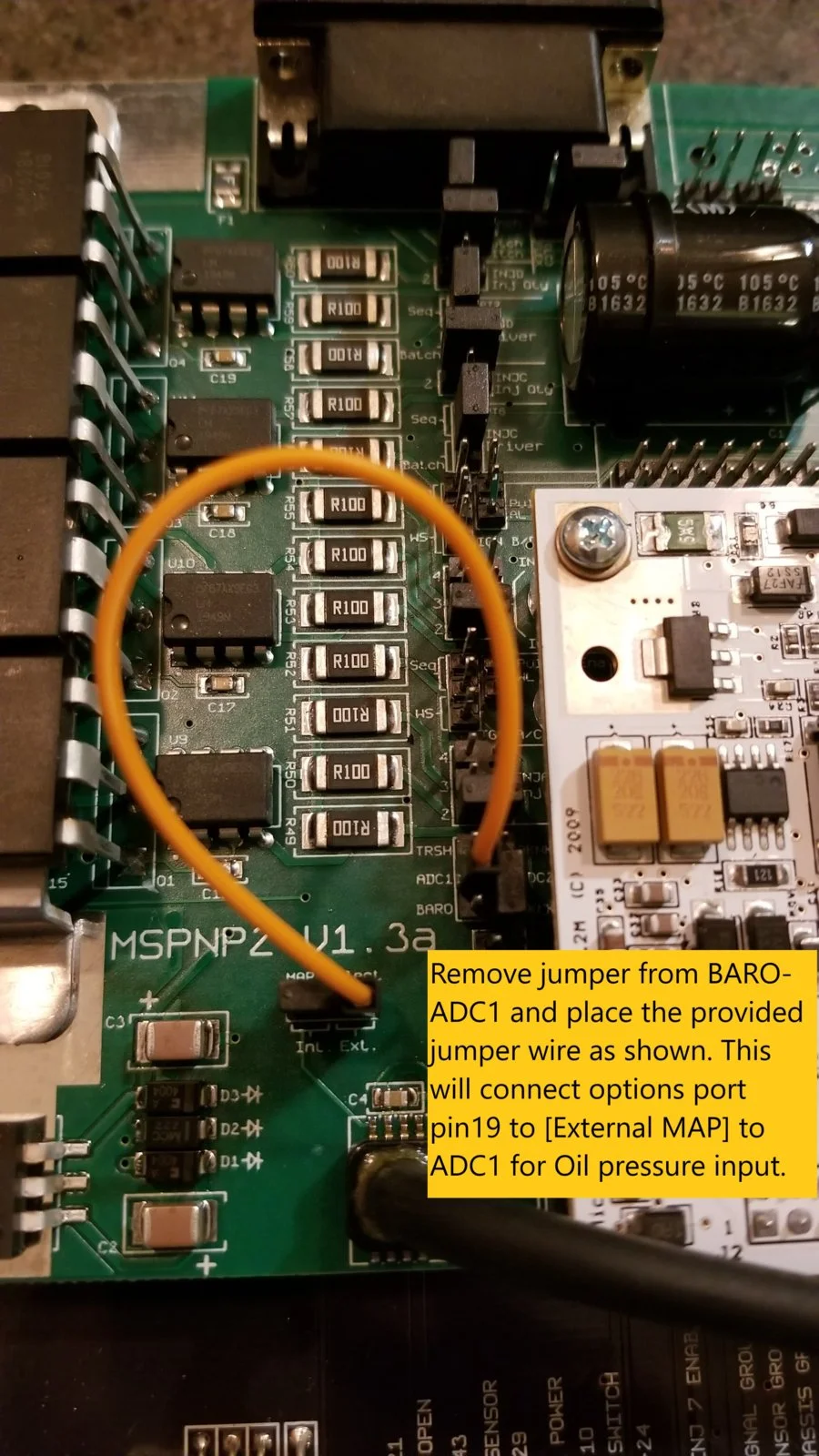

The bolow picture below is from a how to I helped with for one of the digital dashes offered by dd-efi but instead of oil pressure you can use it to bring the MAF in. the jumper used is a common pin jumper used in arduino projects
MS2pnp DD-efi sensor connections image#2.jpg

  • Like
Reactions: 90sickfox
