  3. Guess what I got done this weekend. Yup, more wiring.

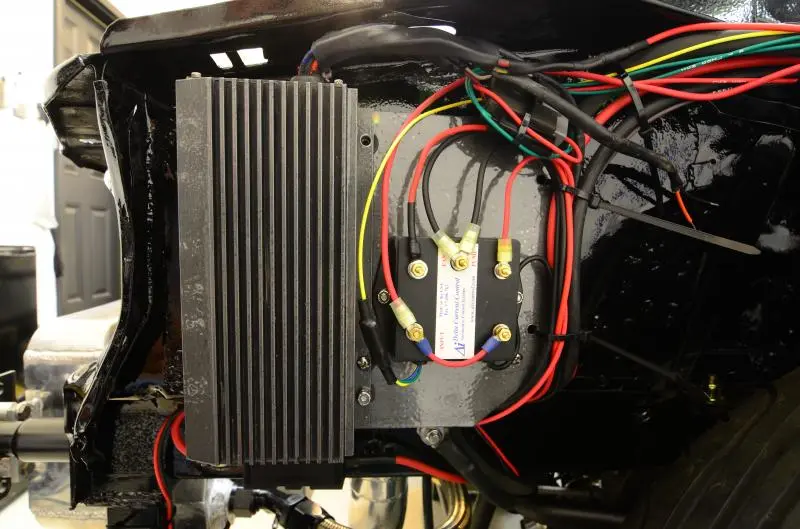

    Mounted the ignition box, DCControl module.

    The mess of wires outside the car will be all nice and loomed once I'm done running all the wires.

    The DCControl doesn't require any relays. Just 12V and ignition. It will automatically control the speed of the water pump and the fan based on the coolant temp. Hopefully it works well.

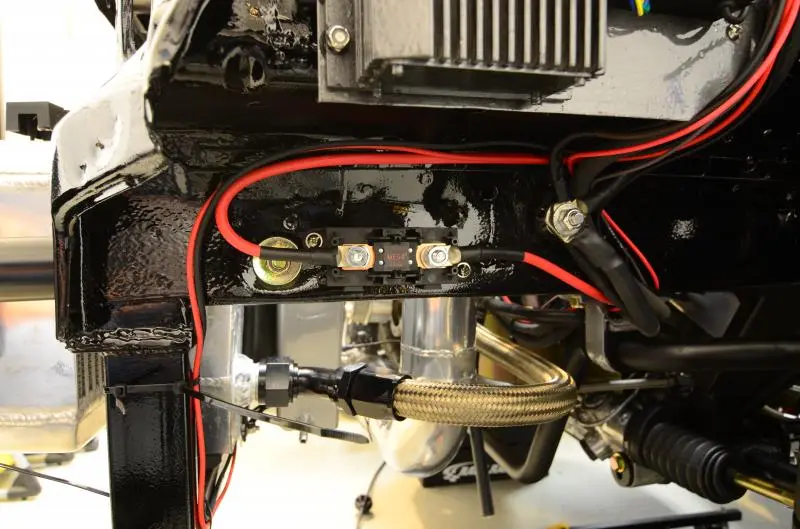

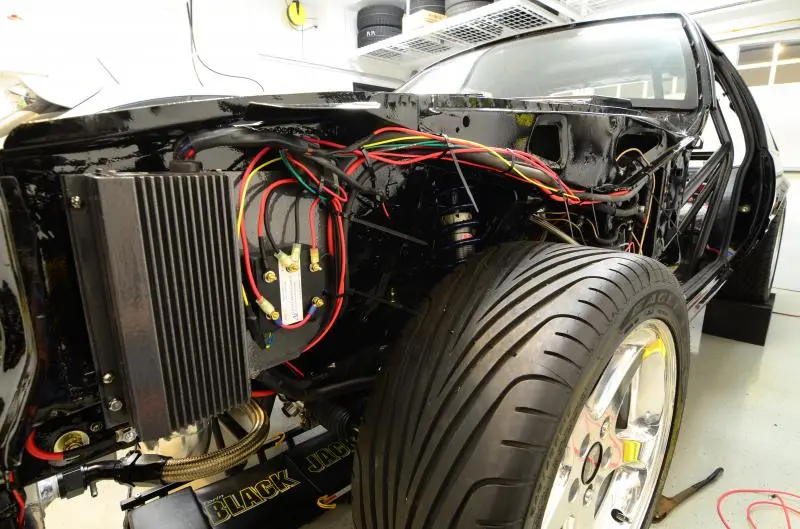

    Also wired the alternator. Figured this was a pretty good spot for the fuse. To the right of that is the ground stud that I welded to the frame rail. The negative battery cable runs straight from the battery to the block, and then back to this stud. I also installed a 6ga ground to one of the starter mounting bolts due to the fact that the bellhousing is powdercoated, and I was concerned that there wouldn't be a good ground path for the starter.

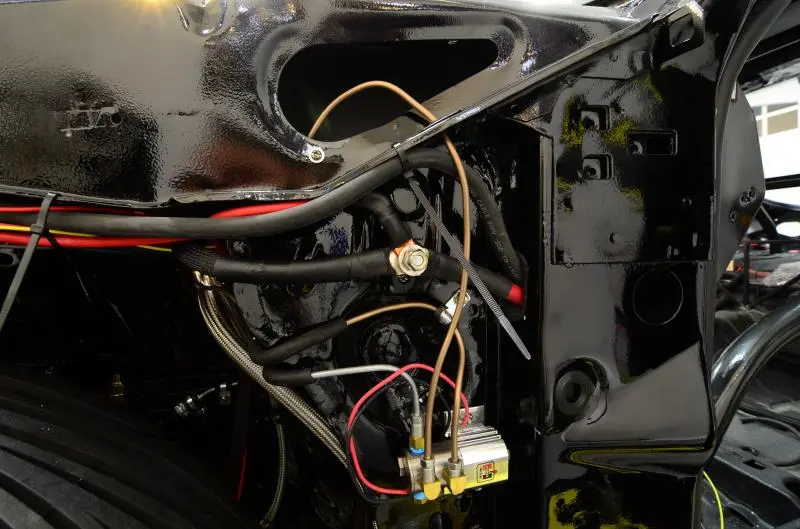

    Here's the 1/0 12V battery feed mounted to an insulated stud. Off of that is the starter feed as well as the alternator wire. There is another 6ga wire that goes into the passenger compartment that will be used for all the 12V feeds inside the car.

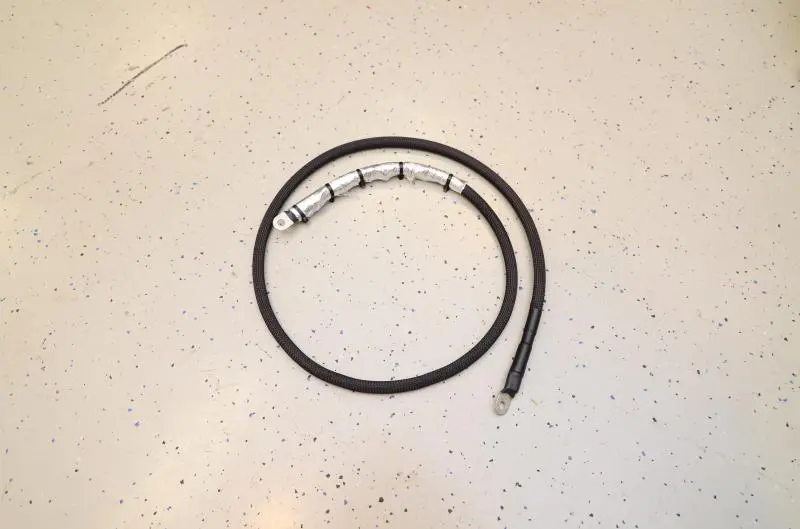

    The starter cable I made with some heat protection on the starter side.

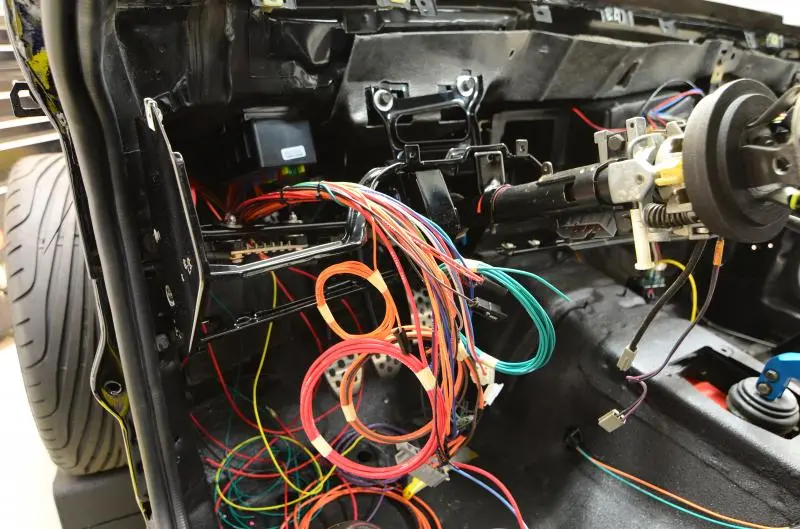

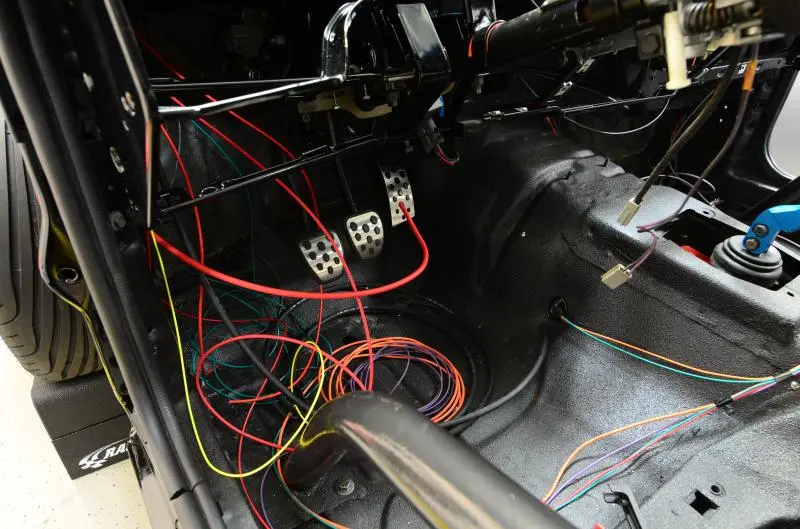

    And the interior of the car with the mess of wires coming through the firewall. I need to find a good spot to mount the fuse box.

    I'm probably not going to loom any wires until I know everything works. No point in tearing everything apart if I have an issue. Next up will probably be the boost controller and vacuum lines.
    #1143 RacEoHolic330, Nov 17, 2013
    Last edited: Nov 17, 2013
    91chp notch and A5literMan like this.
  4. If I may speak from experience, the wiring is never "done" I thought I had everything wired working and finished on mine. Boy was I wrong. I loomed it all really nice and everything. Once on the dyno there were more features of the fast that needed enabling plus changes that my buddy/tuner wanted me to make in regards to circuit isolation, grounding, etc. My car has a complete floating ground setup and nothing is grounded to the chassis now. Data logger functions that needed different wiring, triggers for the data logger, fan and fuel pump controls, triggers for the launch retard and this is the abridged version of changes. It's not the first car I've ever wired and surely won't be the last but my Ttop car had a learning curve with all of the electronics. I don't me to deter you in anyway but do expect to make at the least a few changes once it's all said and done. Looks great so far!
  5. I hear ya 84. I definitely expect there to be some changes down the road. I'm trying to account for the possibility of added circuits and devices in the future by placing an accessible hot and ground bus under the dash. Changes happen, all part of 'hot rodding' if you ask me!

    I'm actually doing somewhat of a hybrid floating ground system for the car. I did ground to the chassis, but every ground on the car will have a path via copper wire back to the battery. I'm not relying on 25 year old steel to provide me a adequate ground path. Grounds are usually ignored and taken for granted. I think the source of most people's EFI problems simply comes from bad grounds.

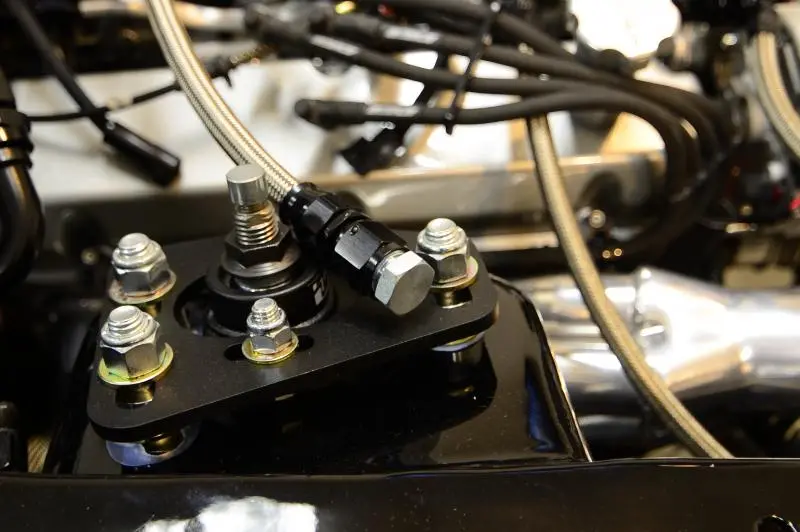

  6. I decided to go ahead and do a leak down test on the fuel system. I installed a cap right before the regulator and a special Schrader valve fitting at the fuel pump. I pressurized the system to about 60psi and watched the tire gauge on the valve. Noticed the needle moving very slowly. I went into the engine bay and could hear a faint hissing. I found one fitting at the feed y-block that was a tad too loose. Tightened it up, and the pressure holds great.

    When I'm ready to get fuel in the lines, I'll probably attach some push lock fittings on the feed lines before the rails with hoses attached to the ends. I'd like to purge the system to get any crap out of the lines. I sprayed the lines with brake cleaner after every cut, but I'm sure there is still some debris left in them. I don't want to chance clogging up the injectors.

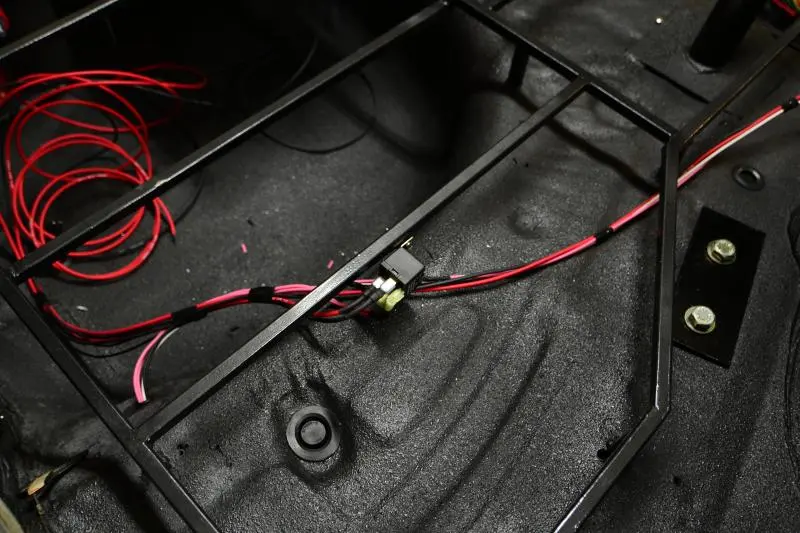

    I mounted an additional fuel pump relay at the back of the car. This is in addition to the stock relay powered from the ECU. This additional relay will get me the 25A rating I need for the monster Fuelab pump.

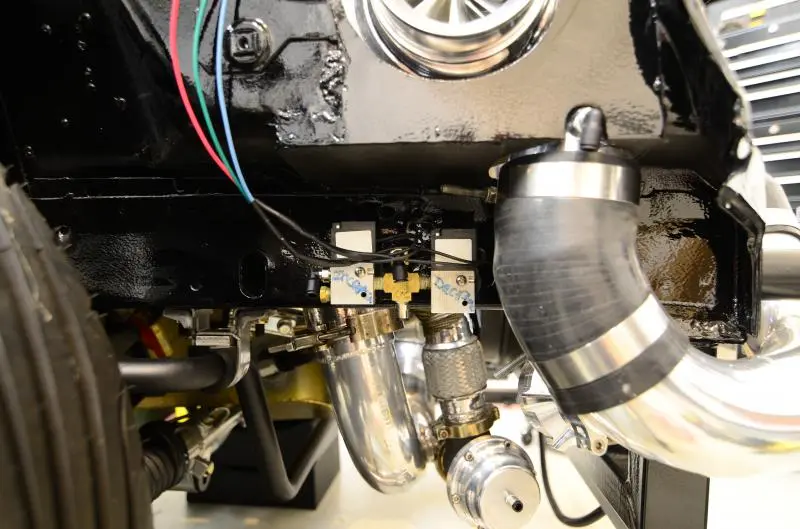

    Also mounted up the wastegate solenoids for the boost controller. I've decided to put the AMS-500 controller in the glove box. It' isn't something I'll need to access all the time, but the glove box is a good spot for when I need to get to it to make any changes. External switches will be mounted somewhere for the two stages of the controller.

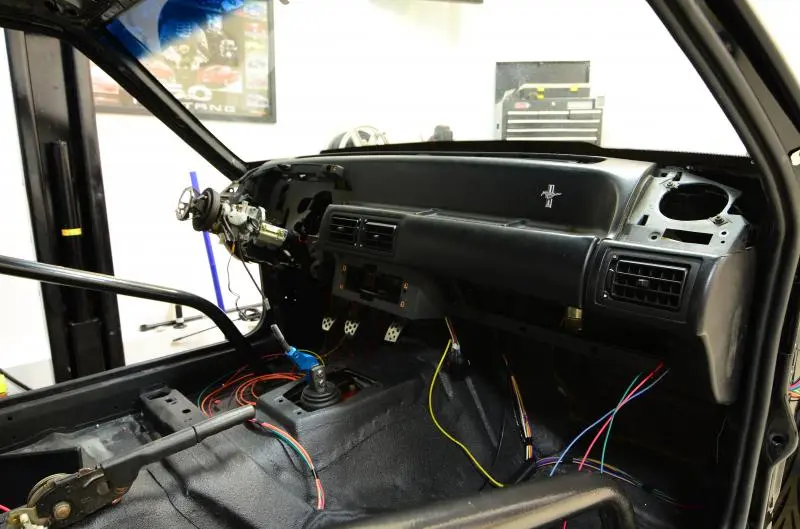

    I mocked up the dash to double check how long the wiring will need to be for the boost controller. I also wanted to get an idea of how much space I have to work with to fit the fuse box under there somewhere.

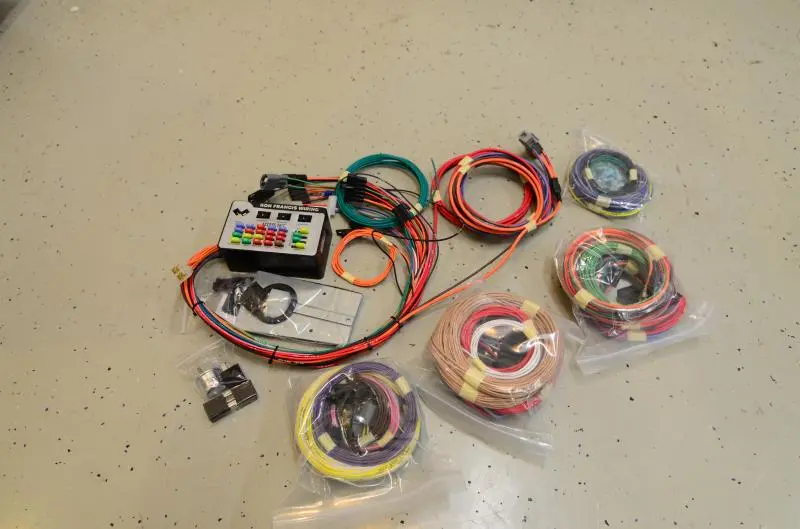

    Speaking of fuse box. Here it is. The Ron Francis kit. This model has the option to use two 60# magnets to hold the fuse box to the chassis. This allows it to be 'mounted' up high in the dash. A firm tug on the box will release the magnets and it can be pulled down to the floor for easy access to fuses.

    I decided to stick the box on the underside of the wiper cowl area. The magnets hold very well and I'll be able to leave enough slack in the wiring to drop it down to the floor as needed.


    You can also see the hot and ground bus bars I have mounted under the fuse box. These will let me run taps out to any accessories inside the car without having to go into the fender to get to the 12V post. Makes life a little easier.

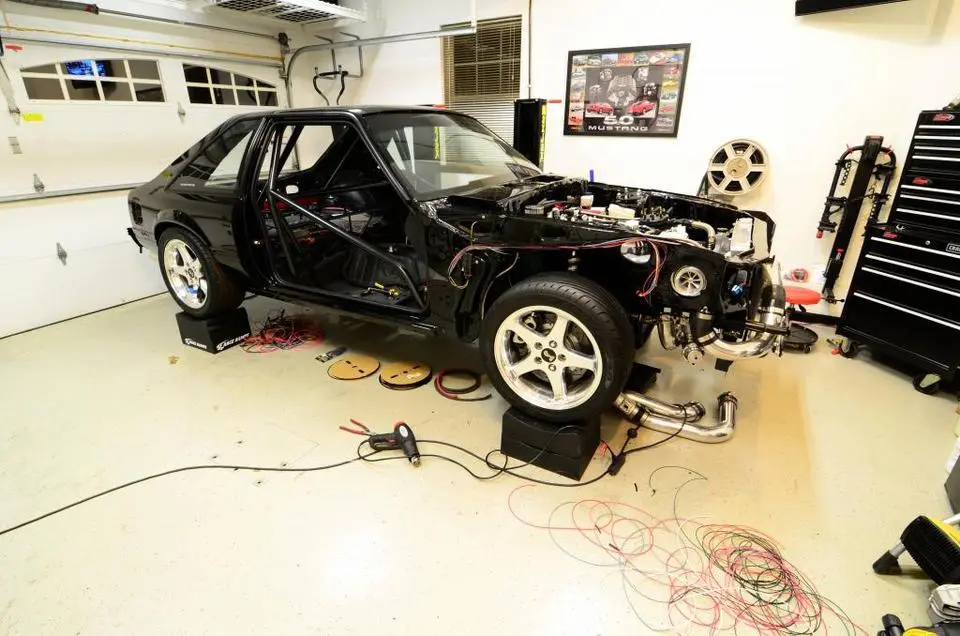

    Here's a shot of car as she sits now during this whole wiring operation.

    Time to start connecting all these wires, one wire at a time.
    #1146 RacEoHolic330, Nov 27, 2013
    Last edited: Nov 27, 2013
  7. cool man looks great let me know when you want my address for transport.
    RacEoHolic330 and stangboy like this.
  8. I've been following this build since the beginning of the thread and all I can say is WOW! This build brings "TOP NOTCH" to a whole new level. I can only dream of building a car of this caliber. I don't think you can even pay a shop to do work this good. I'm not a fan of hatchbacks anymore but this car is my new "Dream Mustang". The attention to detail is mind-blowing. Maybe I've been sheltered all my life but I have NEVER seen a car built to this level of quality and detail. You need to win some kind of award for this car when you're finished @RacEoHolic330 . :hail2:
  9. Wait... where is your lift?
  10. Thanks a lot @stangboy. The kind words of encouragement make it all worth it and definitely help to keep me motivated. Just doing my darndest to build a car to the best of my ability.

    @bird_dog0347, you can see the lift posts tucked behind the car in the last picture. I unbolted one of them and rolled it out of the way. I don't need the lift right now, and I wanted to be able to get my daily driver in the garage over the winter. Not really much of a need to get under the car for any of the wiring. It sits up high enough right now to get under it with my creeper and have plenty of room to work.
    #1150 RacEoHolic330, Nov 28, 2013
    Last edited: Nov 28, 2013
    stangboy likes this.
  11. So then,... what is the box that you have mounted in the rear seat area if that wasn't the fuse box?

    #1.Pressurized fuel system check.
    #2. Magnets to hold fuse panel.

    Two more ideas I steal from you.

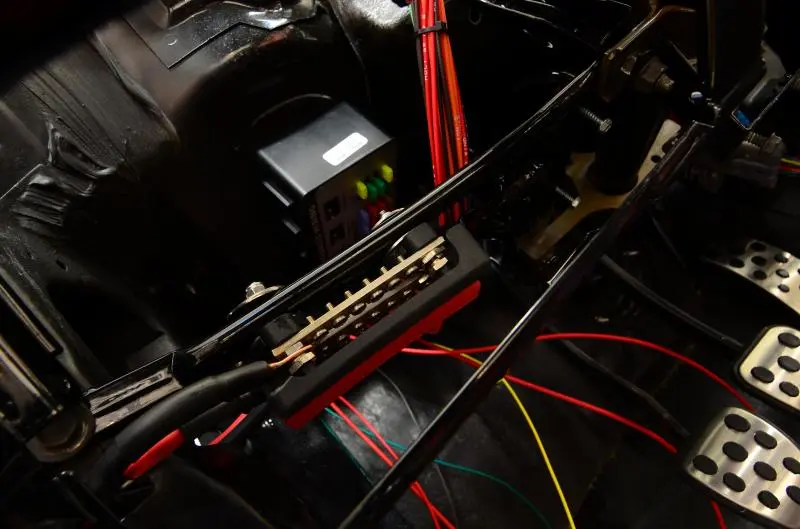

  12. That is a landing panel for the ECU wiring. It also houses the fuses for the computer, as opposed to using fuseable links like Ford originally used. Has nothing to do with the chassis wiring though. It's somewhat of an isolated system. It just needs battery power, ignition power, and ground. The landing panel makes troubleshooting any ECU problems very easy.
