Where does this short (5-6 inch) wire go?

032vstang

New Member
Jun 1, 2020
6
0
1
22
US

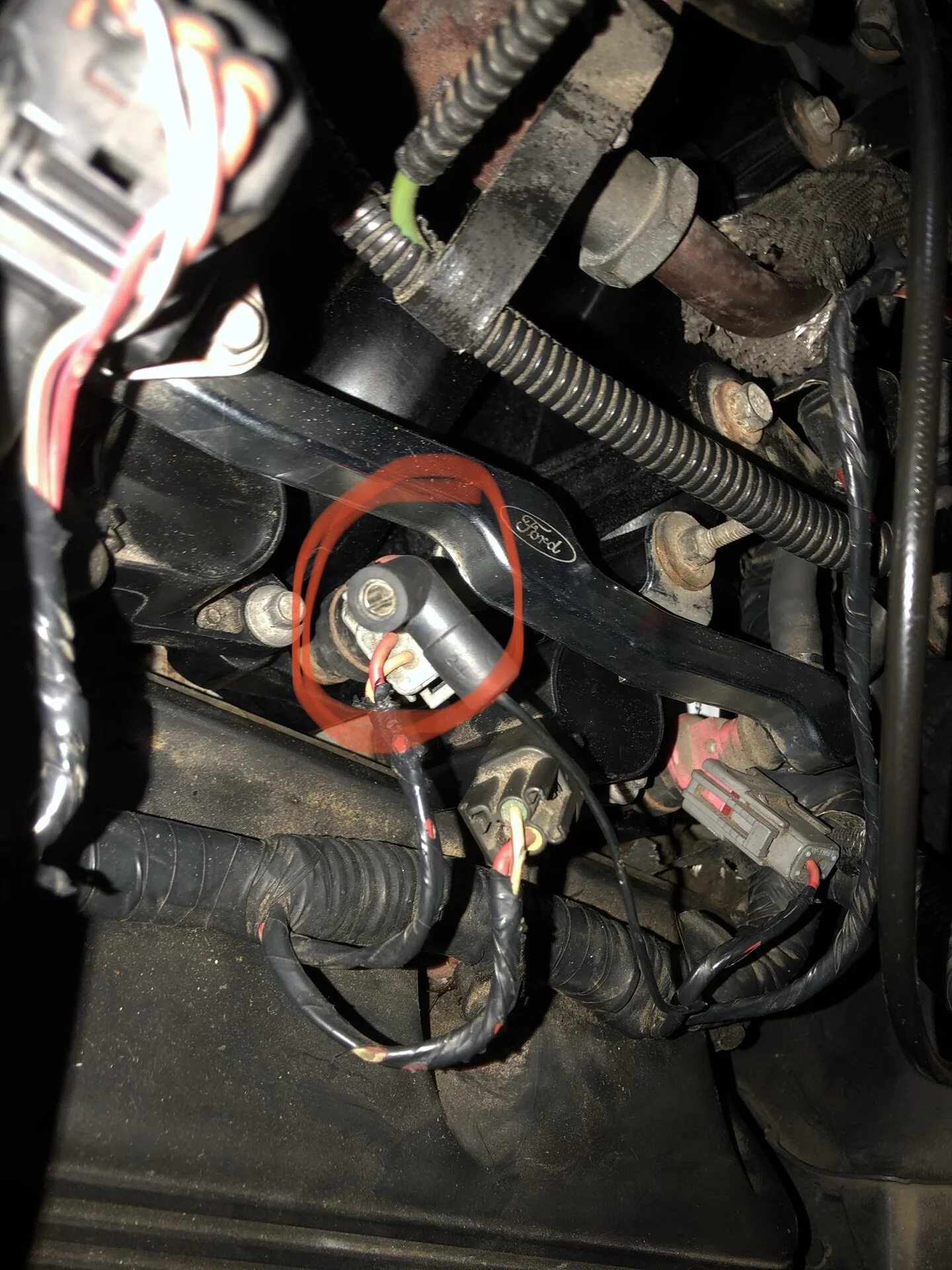

Does this look like a ground? 2003 mustang GT. Replaced intake and now reverse lights,speedo, and blower motor is out. Could this have something to do with it? The wire is only about 5-6 inches long and literally nowhere to plug up. Any ideas?

  • Sponsors(?)


StangNet created a new car social app called knowmoto! Add your Mustang or post a photo in the knowmoto app and enter for a chance at a $100 gift card from LMR. Click the LMR Logo for more about the knowmoto Mega Thread!

mostsmooth

Active Member
Nov 12, 2002
264
25
29
Visit site
Does this look like a ground? 2003 mustang GT. Replaced intake and now reverse lights,speedo, and blower motor is out. Could this have something to do with it? The wire is only about 5-6 inches long and literally nowhere to plug up. Any ideas?
I'm no expert, but it doesn't seem like they would design a ground wire like that.
If you want a random guess,it reminds me of the oil pressure sensor wire on my 95gt


n0v8or

10 Year Member
Aug 23, 2003
597
6
39
Rhode Island
Visit site

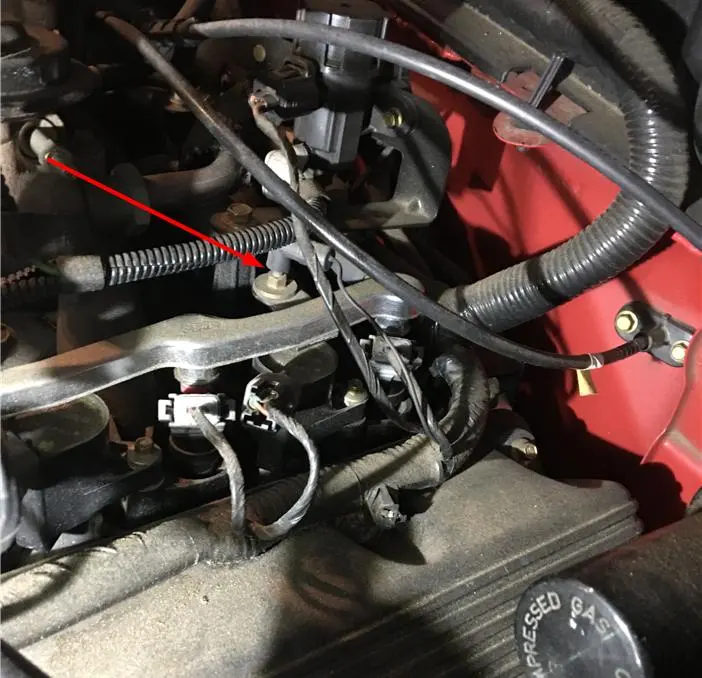

Clips to a threaded stud located near the fuel rail (red arrow in attached photo). I doubt if this is the cause of your electrical issues. If the manifold was replaced without disconnecting the battery, one or more blown fuses are a more likely cause.


Attachments

  • stud ground.jpg
    stud ground.jpg
    77.1 KB · Views: 22

n0v8or

10 Year Member
Aug 23, 2003
597
6
39
Rhode Island
Visit site
After further thought, I withdraw my blown fuse theory :). I was searching for a single cause of all your malfunctions, but now I think there are 2 separate causes.

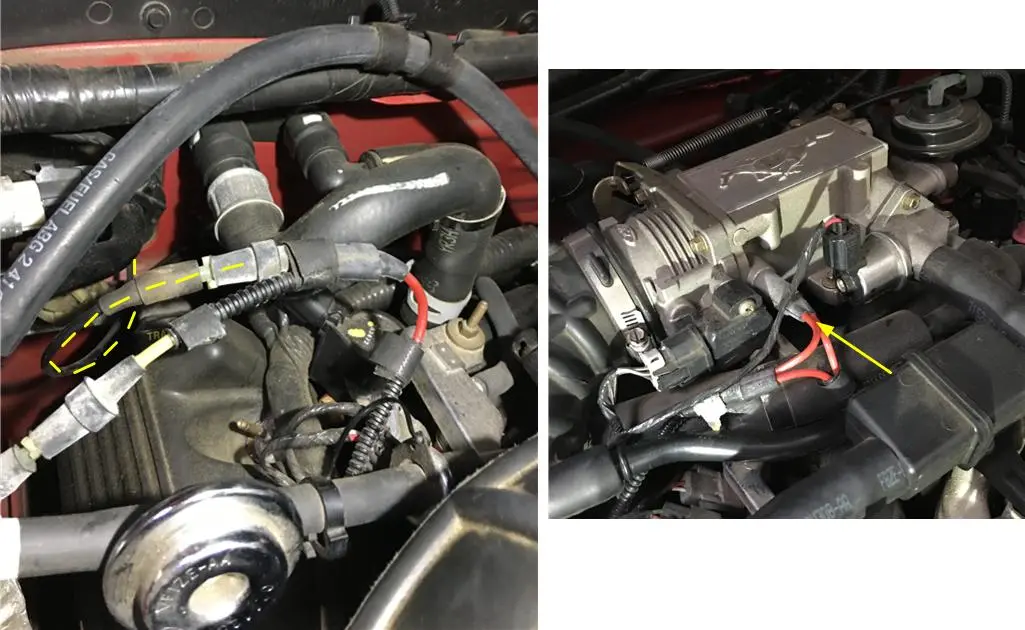

Regarding the heater mode selector, the dashed yellow line in the attached image is the vacuum hose for the heater/AC damper position actuators. It passes through the firewall on the passenger side just below the refrigerant lines. This 1/8" hose should eventually connect to the plenum, just after the throttle plate, where shown by the yellow arrow. I suspect this vacuum became disconnected during the intake swap.
As to the reverse lamps, speedometer, and odometer issues, a potential common cause is the transmission harness. The reverse lamp switch and output shaft speed sensor are mounted on the transmission (I do not know where, because I have an automatic). If the connector for this harness is disconnected, it can cause all of the 3 malfunctions you mentioned.
heater vacuum hose.jpg
