Wires above radio hole

Blueinfan

Member
Mar 18, 2021
71
5
18
20
Temecula
Hi All,

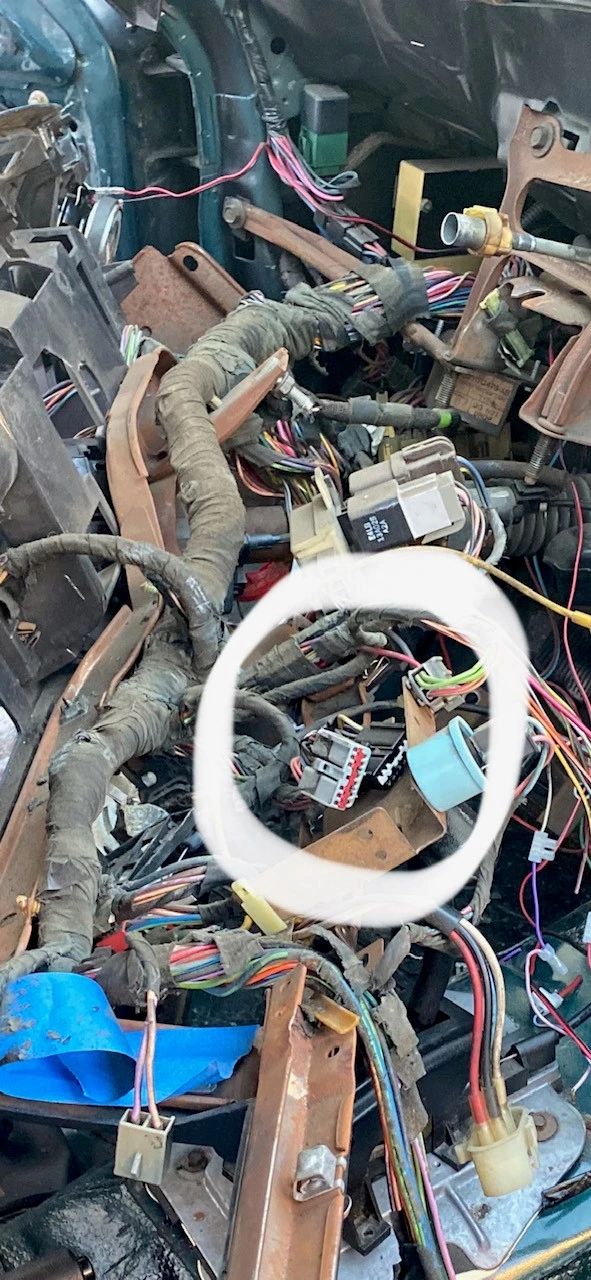

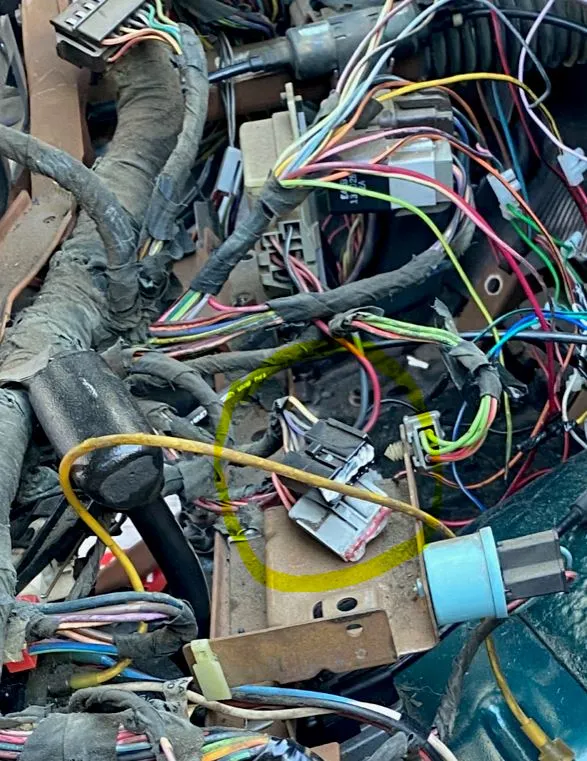

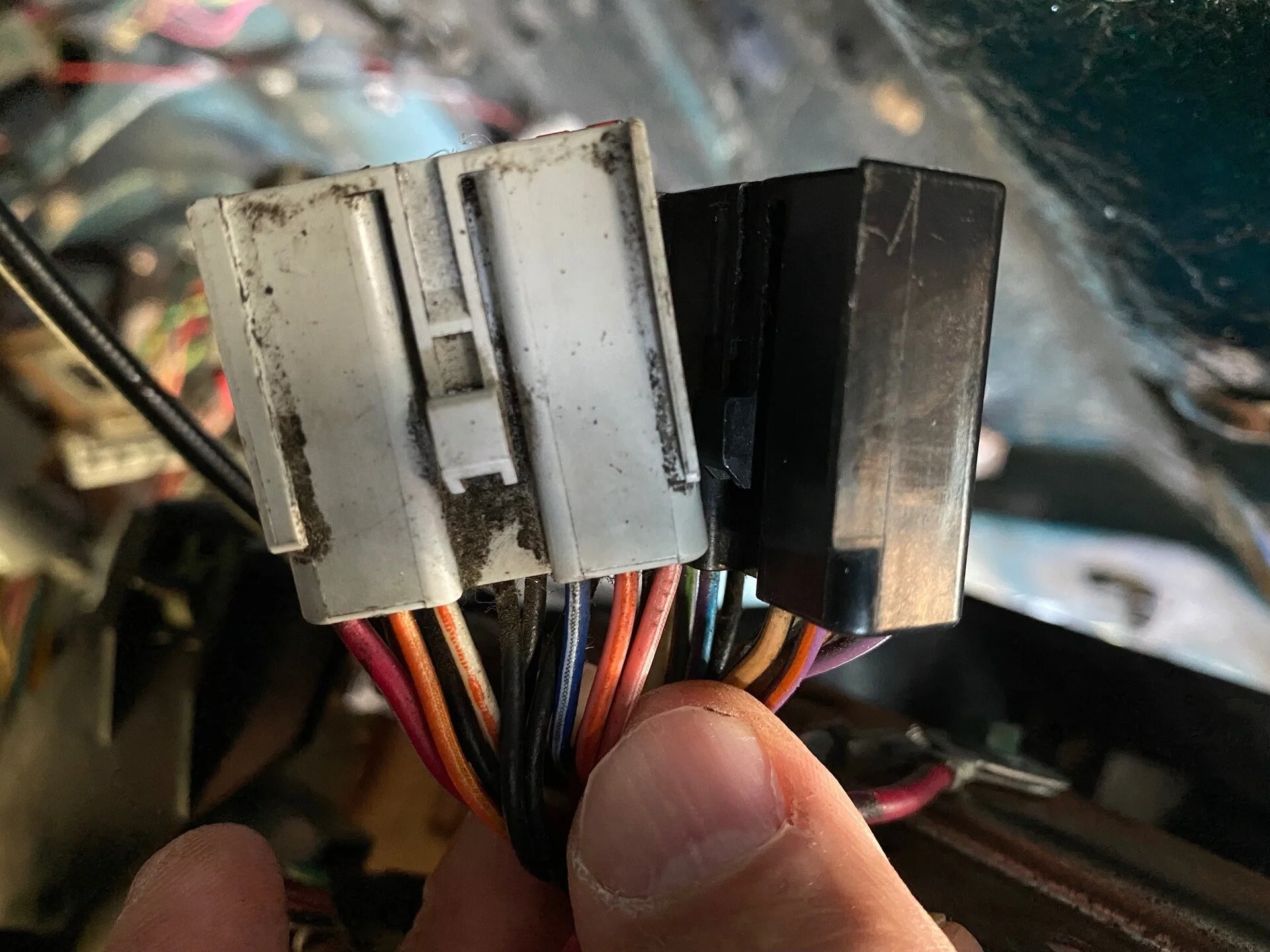

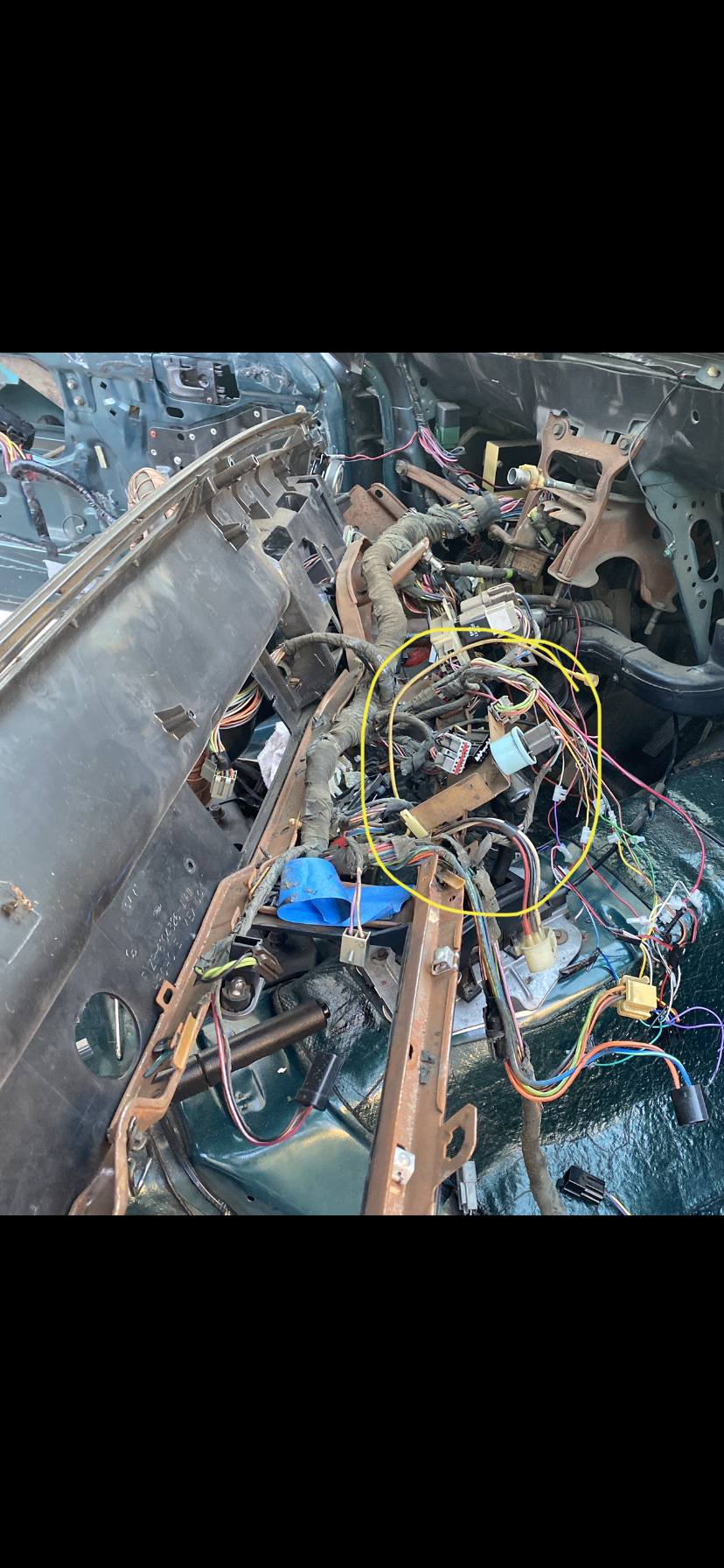

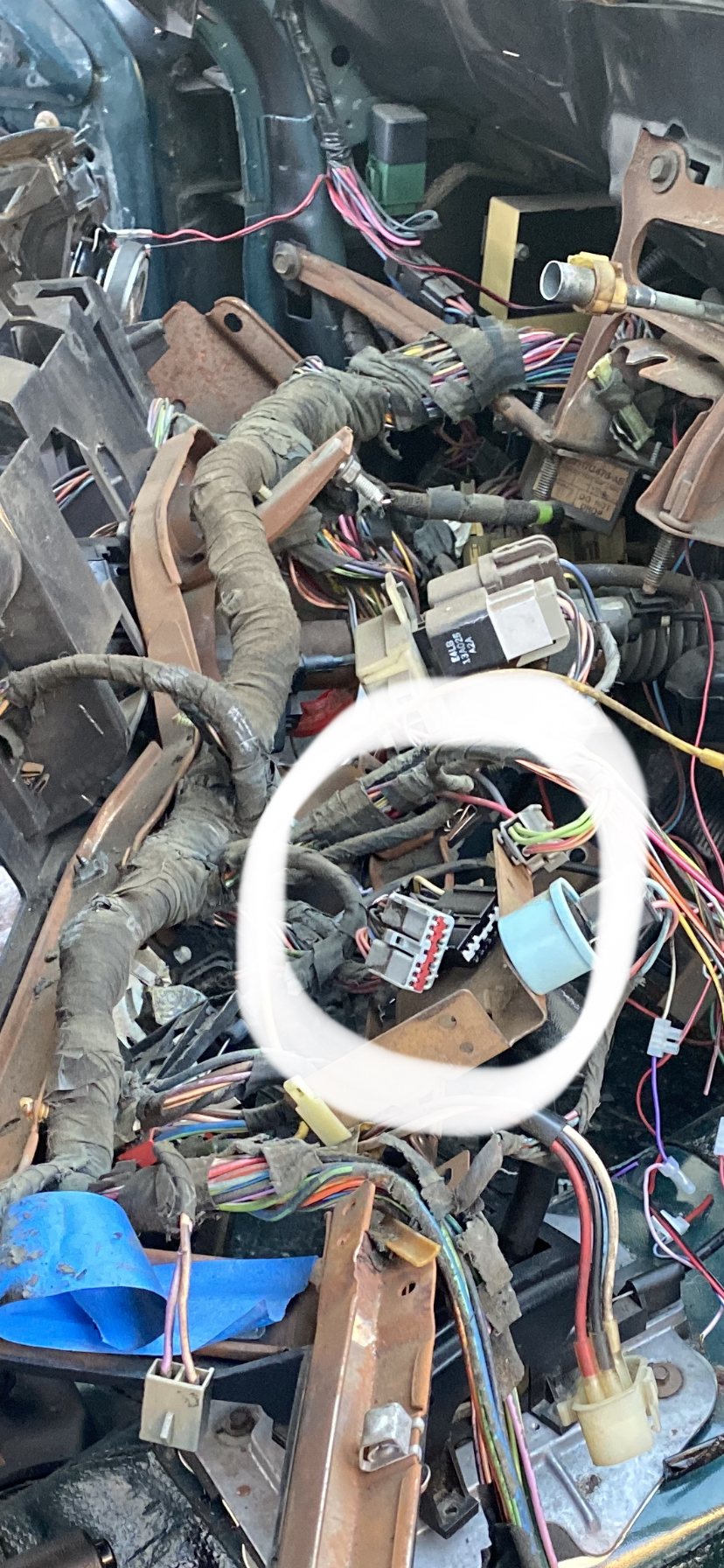

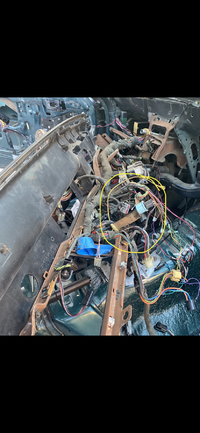

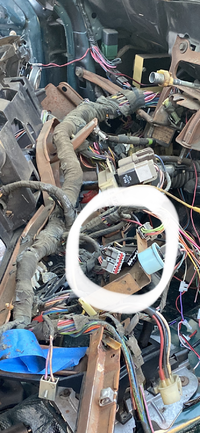

Need some help on determining where these wires are for. Took the dash out to replace heater n AC core n noticed these wires didn’t have another connection wire. One picture has a yellow circle n the other had a white circle to indicate the wires in question. I purchased the car like that. Some kid reworked the car n cut wires everywhere. Might need help later on on installing an aftermarket radio.
Thanks for all your support on this build!!!


Attachments

  • A6A703F1-B6E0-417A-AF61-4D3967138E58.jpeg
    1.1 MB · Views: 42
  • 4977AEB6-A1CA-43E4-9B12-96E53795B87A.jpeg
    1.6 MB · Views: 46
  • Sponsors(?)


StangNet created a new car social app called knowmoto! Add your Mustang or post a photo in the knowmoto app and enter for a chance at a $100 gift card from LMR. Click the LMR Logo for more about the knowmoto Mega Thread!

Ryuk

I love your drawers
Apr 22, 2017
927
726
103
55
First, what year is your car? Second, does it have a radio now?

You'll need a wiring diagram for your particular year. You might be able to find one online without paying. From there, trace the color and approximate location and you should have your answer.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
36,155
12,071
224
Massachusetts
Both pictures look like they are circling the same thing.

WHat year is the car? The wiring changed over the years. I beleive I know what they are, but there are too many variables to make guesses. Can you get a more close up pic of the two plugs in question and year of car?


KRUISR

5 Year Member
Apr 16, 2015
775
290
83
51
Plug shape looks like Air Bag Module.

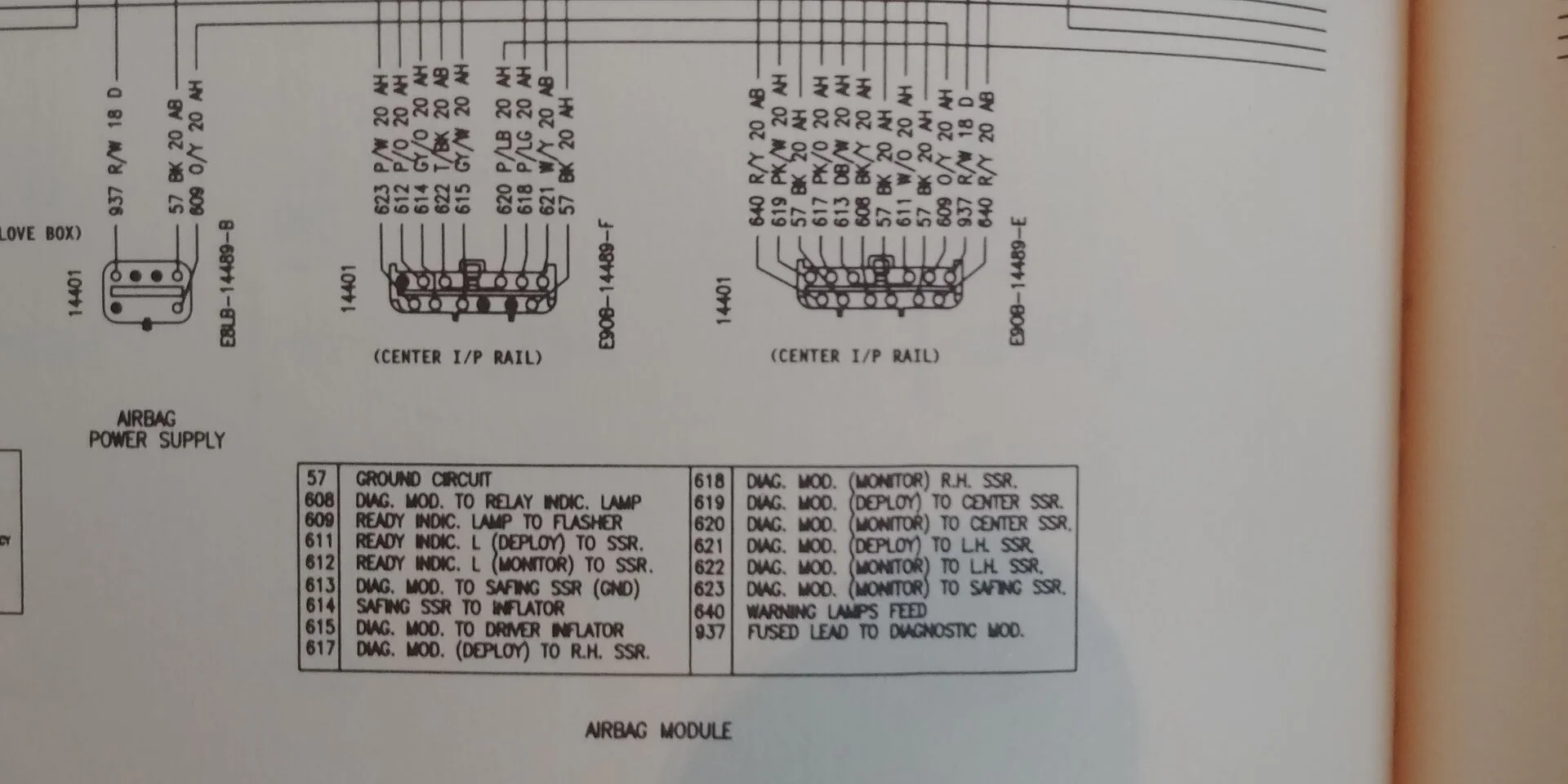

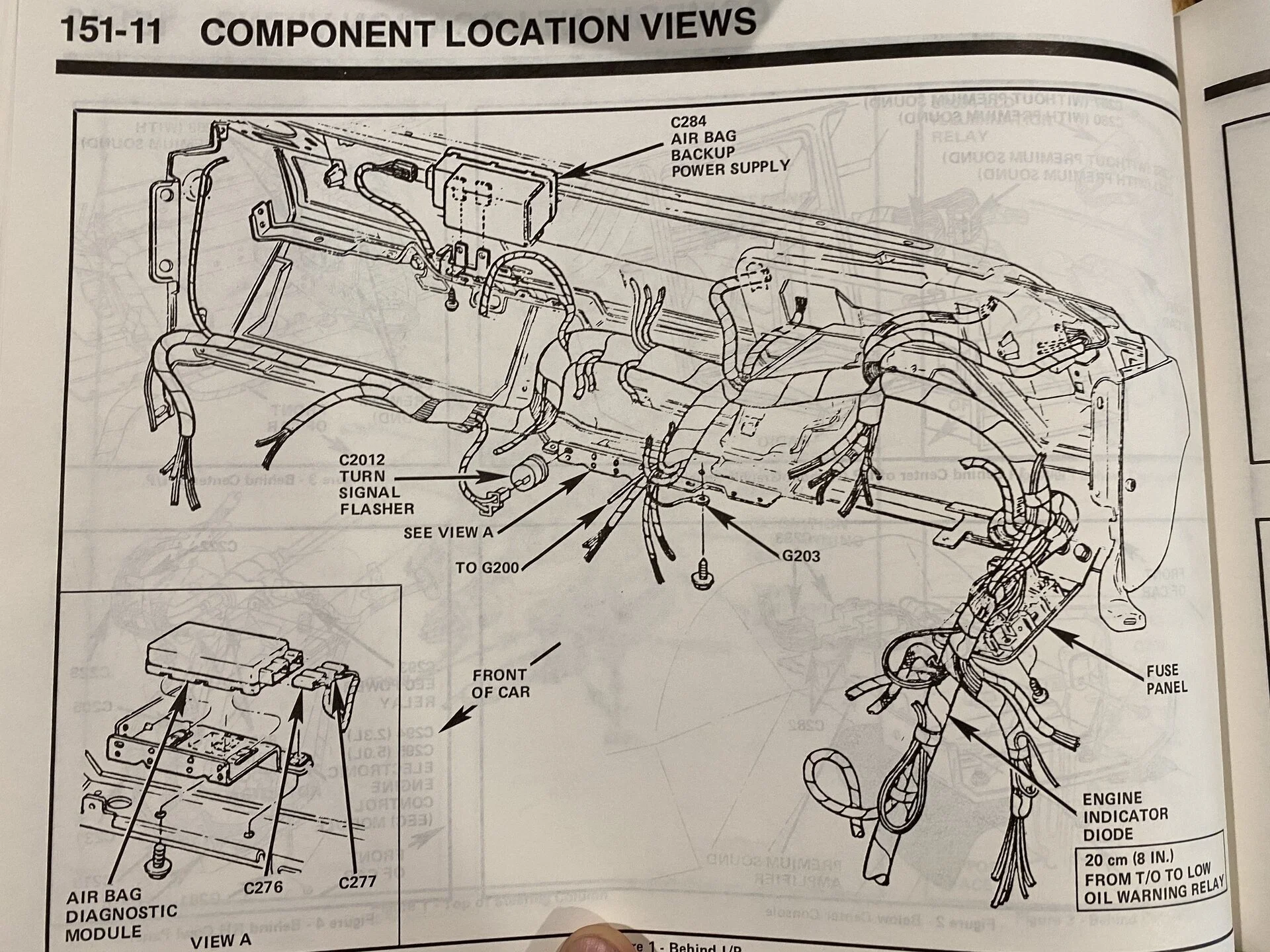

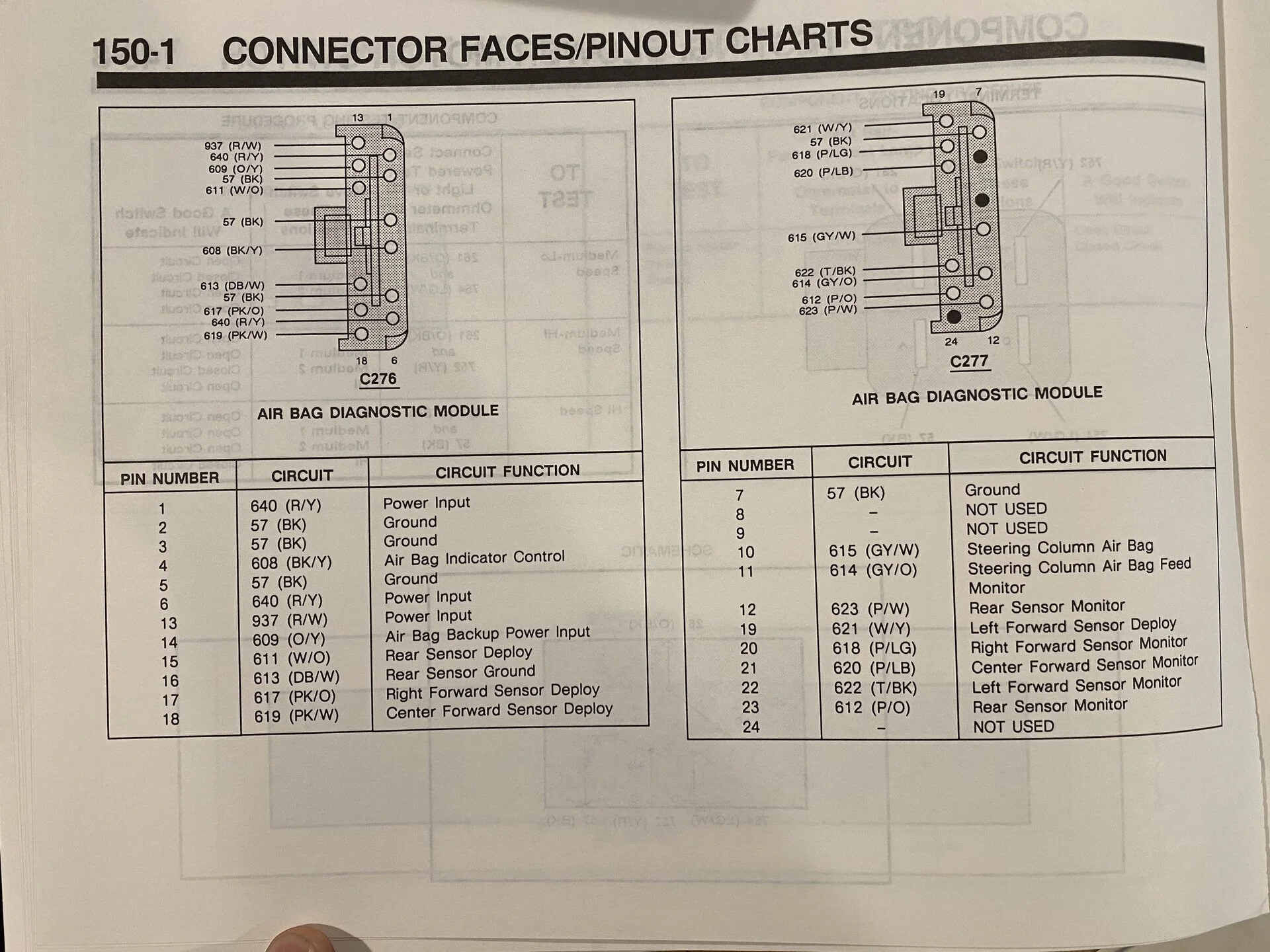

From my Chilton's Manual - 1991 Electrical Diagrams, page 5 of 22. Book page 6-88

Last edited:

Blueinfan

Member
Mar 18, 2021
71
5
18
20
Temecula
Both pictures look like they are circling the same thing.

WHat year is the car? The wiring changed over the years. I beleive I know what they are, but there are too many variables to make guesses. Can you get a more close up pic of the two plugs in question and year of car?
From a 1991 Ford Mustang LX 5.0


Attachments

  • wires.jpg
    269.3 KB · Views: 20

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
36,155
12,071
224
Massachusetts
Oops. Didn’t see that. When I clicked on the notification it went to the latest post skipping over


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
36,155
12,071
224
Massachusetts


Blueinfan

Member
Mar 18, 2021
71
5
18
20
Temecula

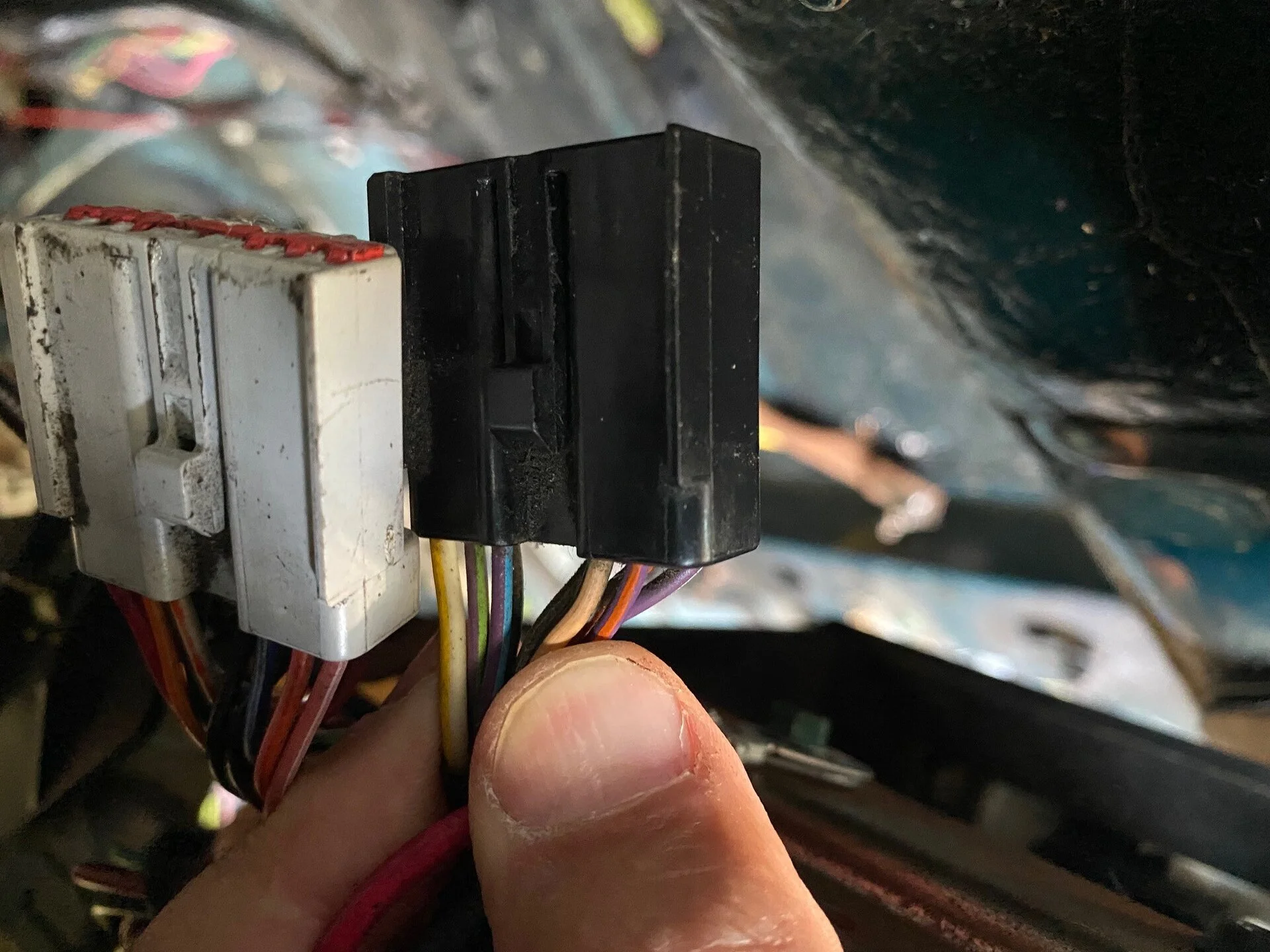

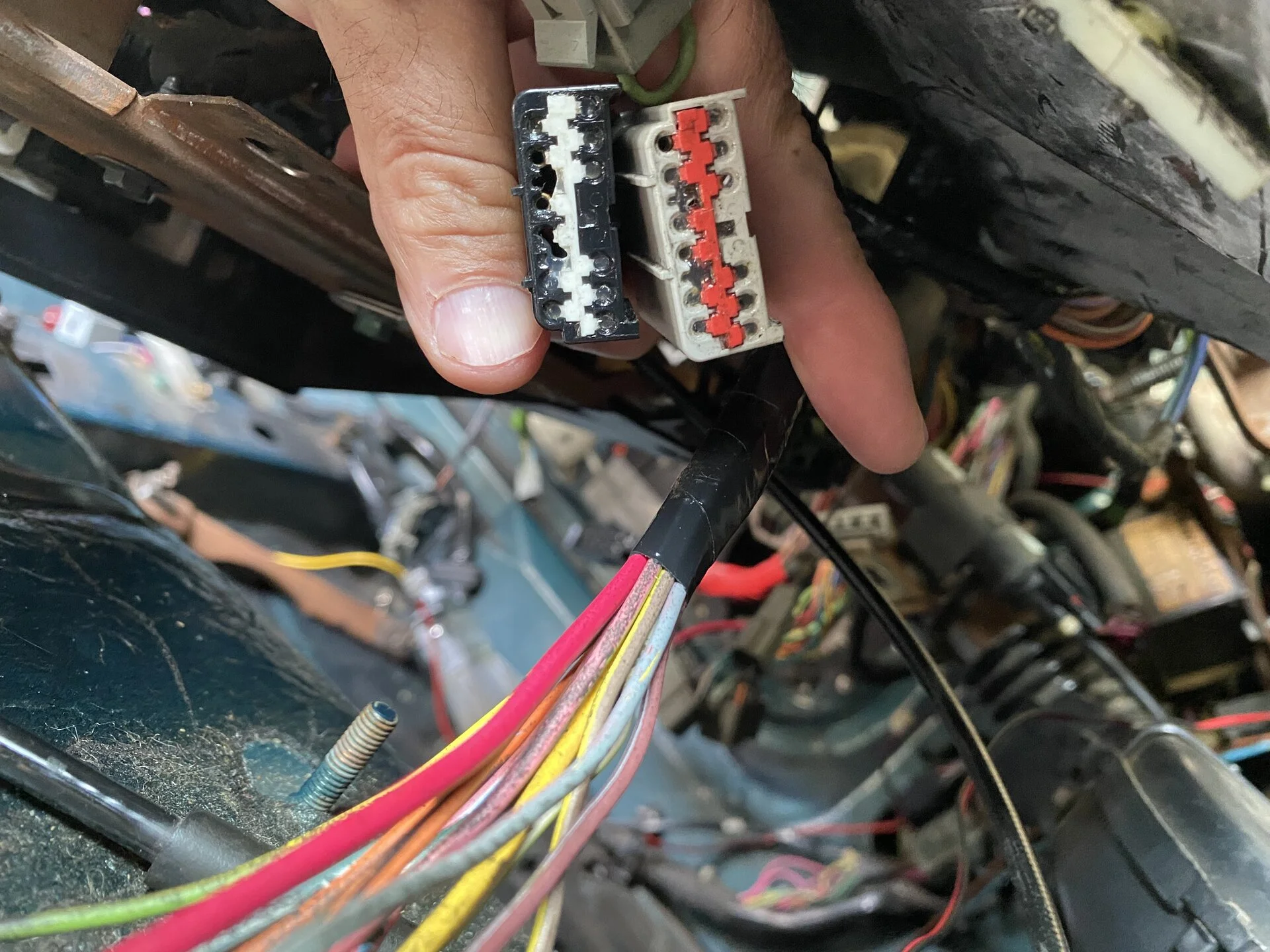

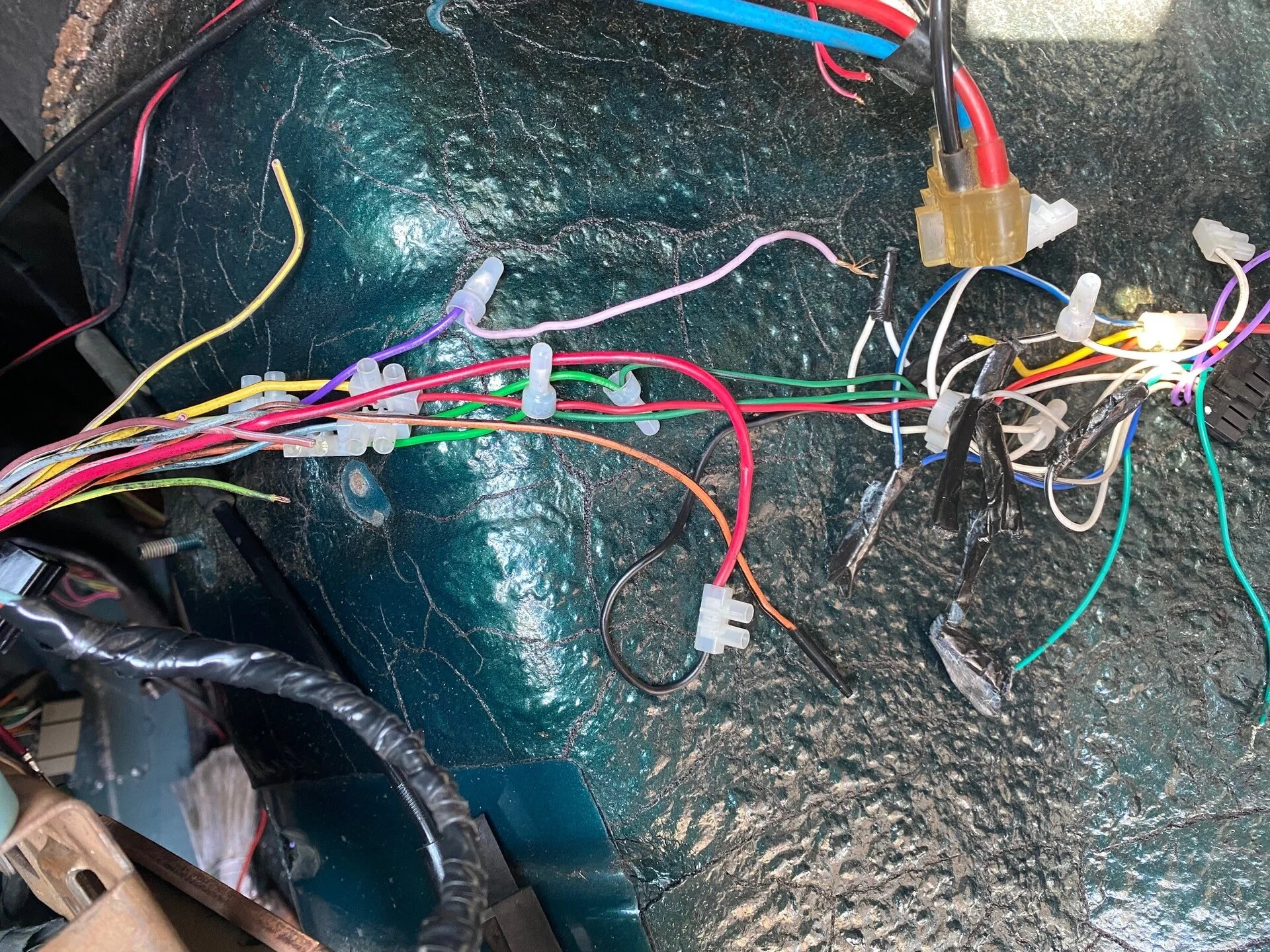

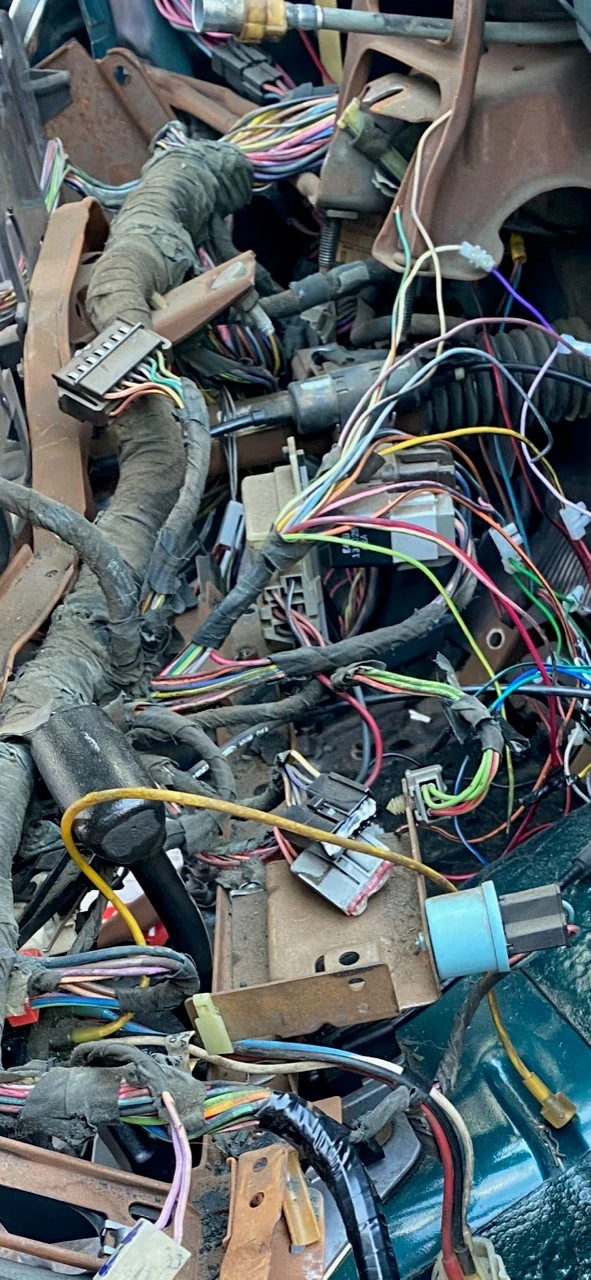

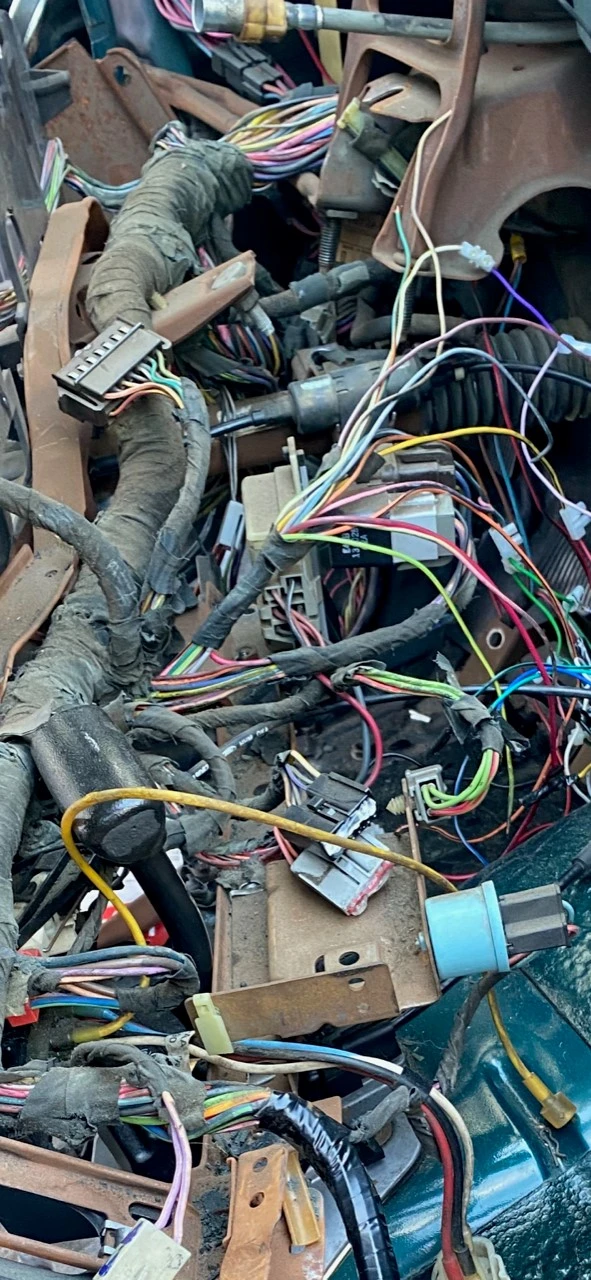

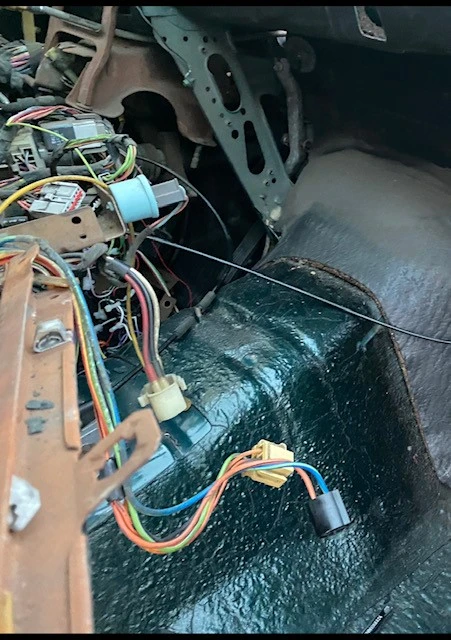

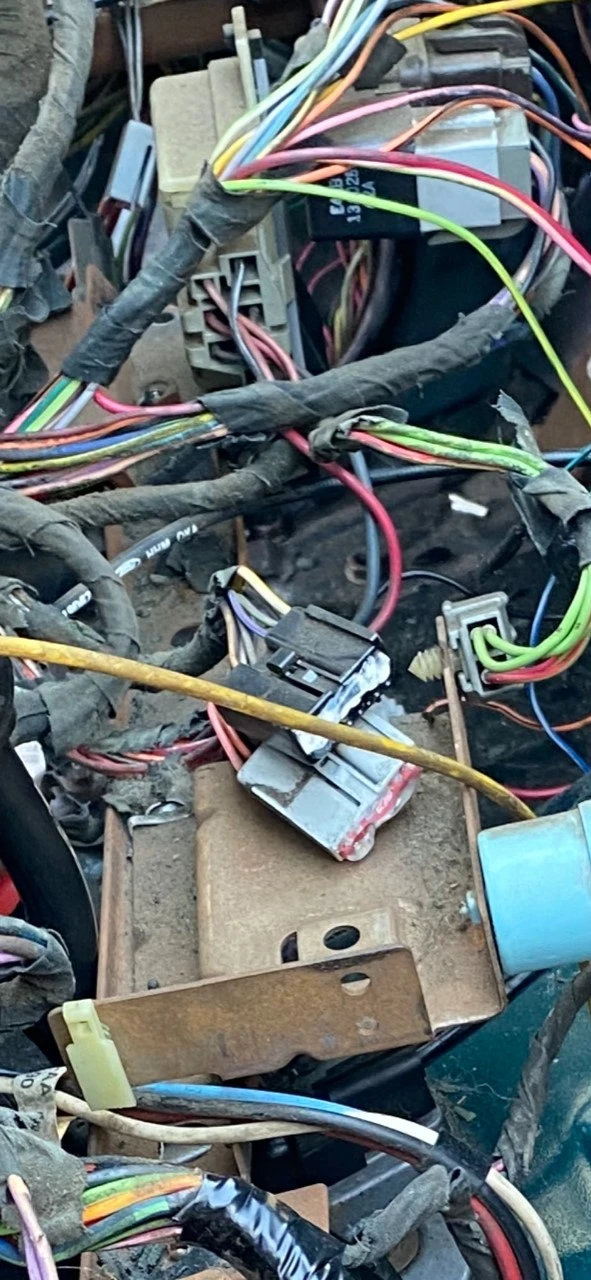

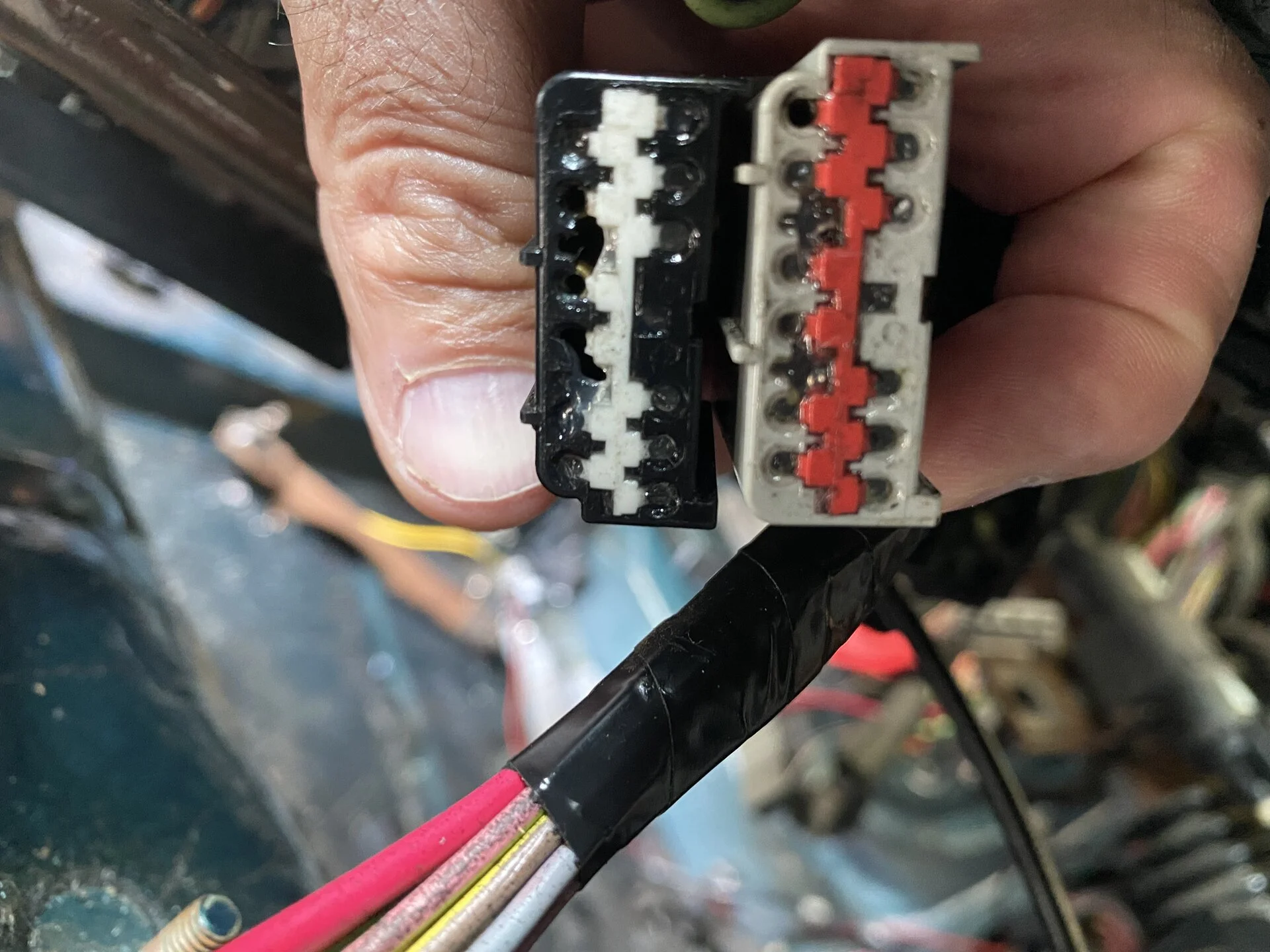

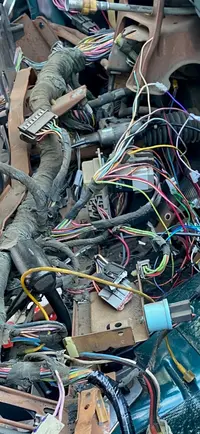

Hi All, Looks like the connectors are totally different than the radio connectors. I have more pictures. I tried some of the radio connectors I purchased and they are different. Some one mentioned crash sensor but could not find a sensor that ti would go connected to.
