Electrical Wiring diagram?

Andresquintana.mma

Active Member
Nov 28, 2014
150
15
28
30

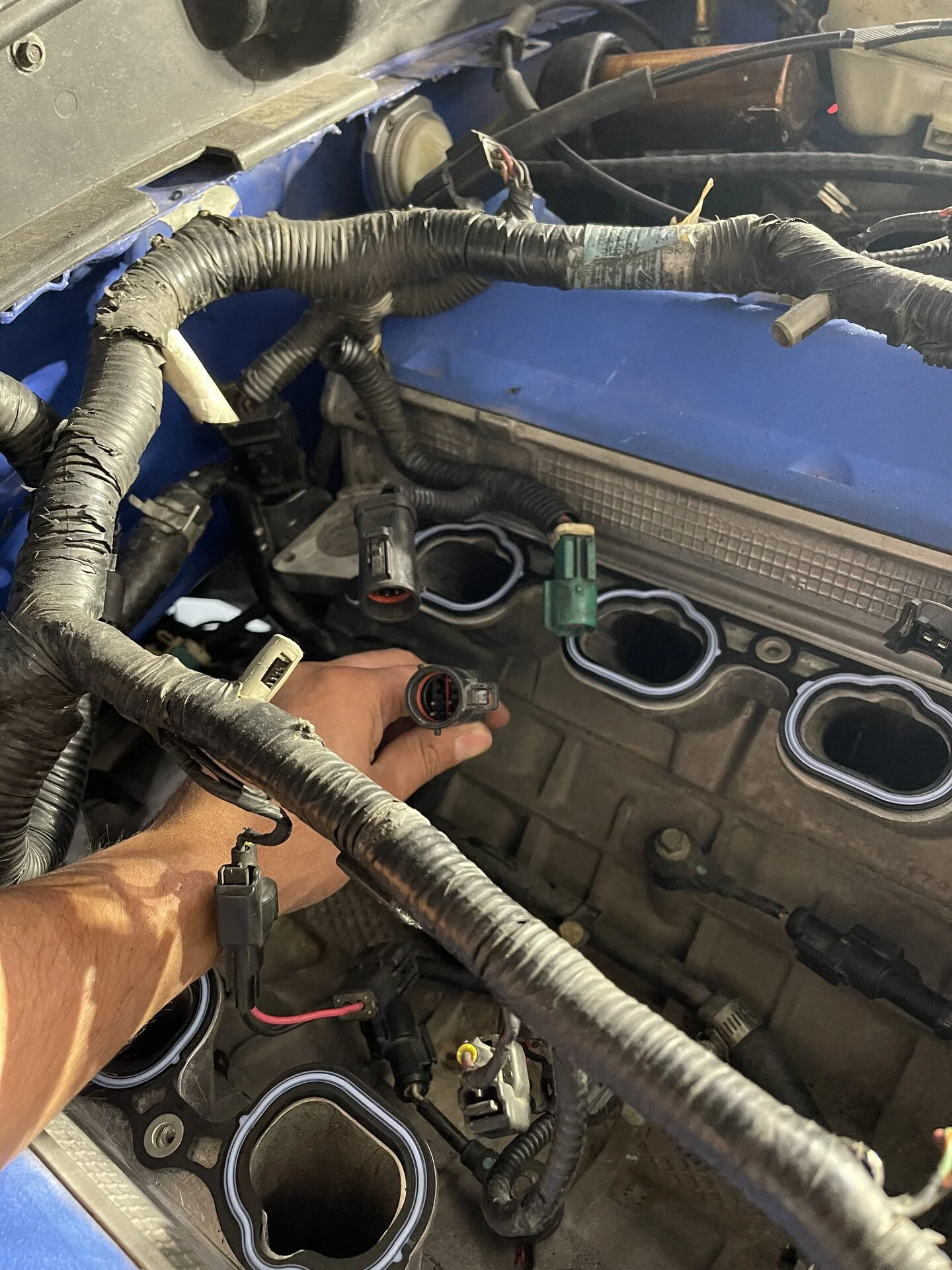

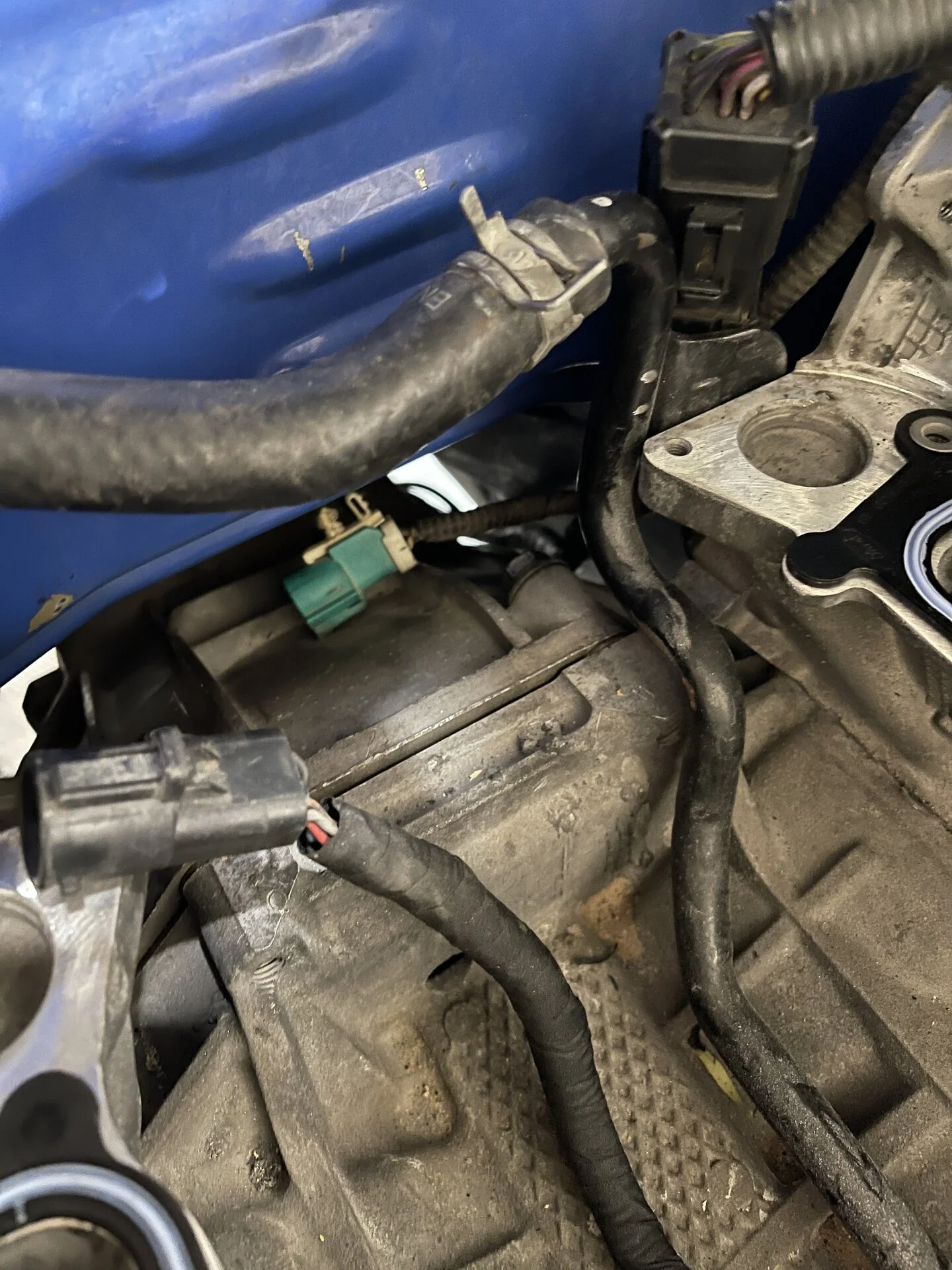

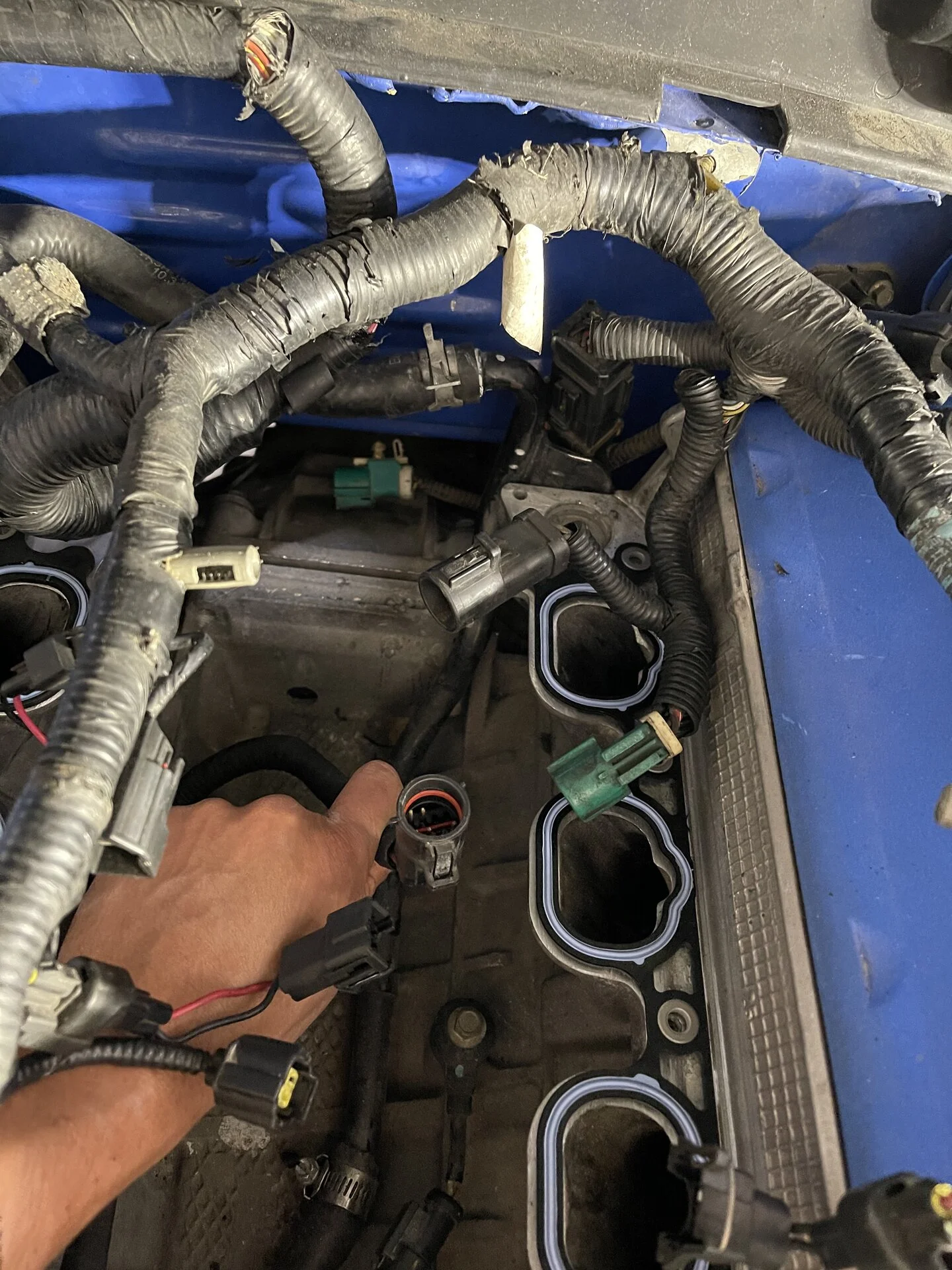

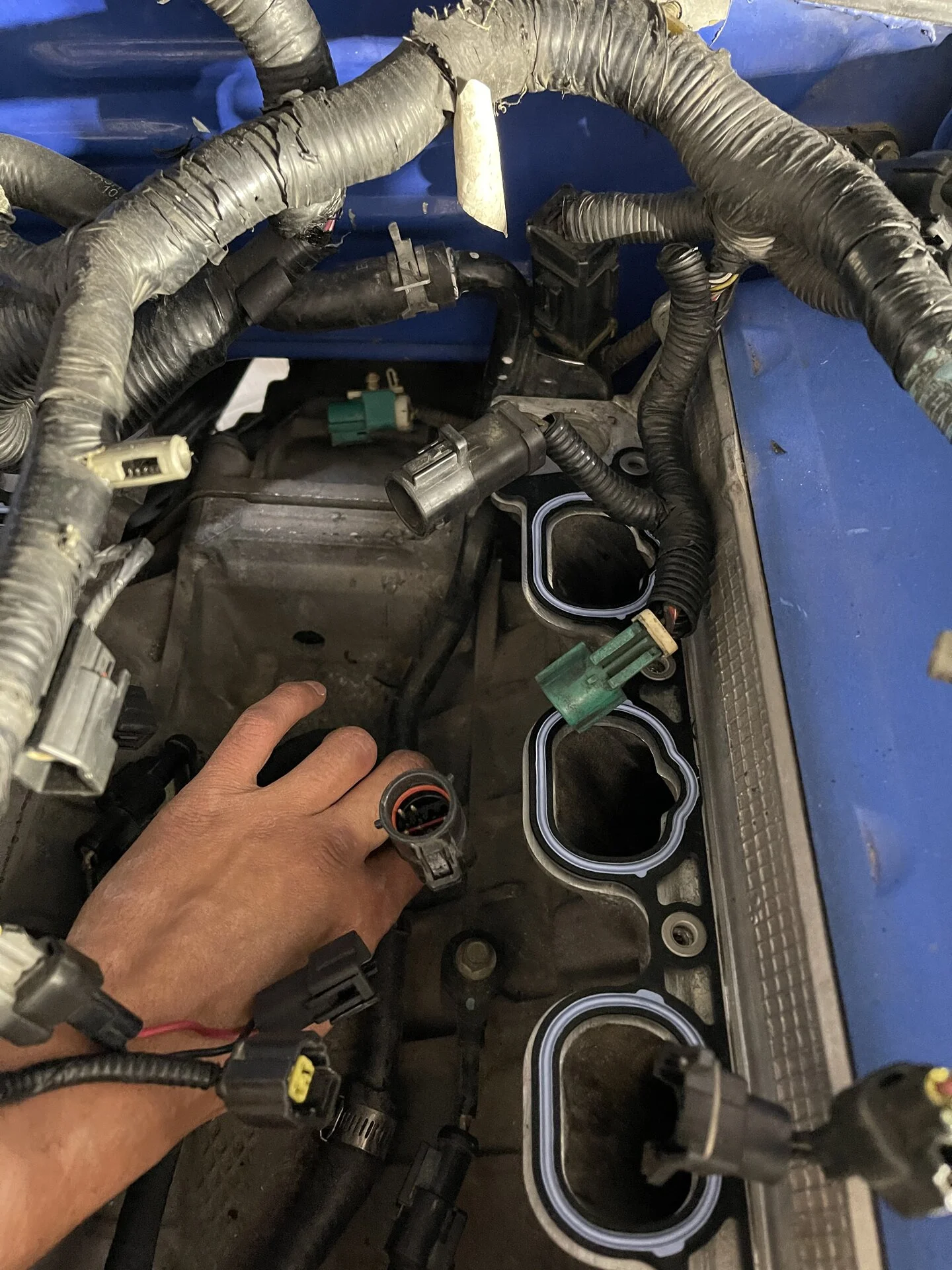

Can anyone tell me where these plugs go? Or if I’m missing a little harness somewhere? I bought an 04 Mach 1 roller and got an 04 Mach 1 engine and I’m putting it together. 1st time working on a modular. Almost done. Just have some connectors under the manifold off the knock sensor harness dangling. Not to sure where they go. I thought the two green ones would go together but they are both males.


Attachments

  • 78D609DB-19AE-4DFA-873B-F31B56C005A7.jpeg
    502.1 KB · Views: 19
  • 846D7407-8625-4ED4-8B5F-6F7A5386AA4C.jpeg
    522.1 KB · Views: 22
  • 6D4FDB88-8461-45EA-B2F6-A0F10BFCE822.jpeg
    520.3 KB · Views: 17
  • F9640A42-B3C5-4DCB-B542-A9089758A4F4.jpeg
    481.5 KB · Views: 19
