Electrical Wiring Help

wv109323

Member
Sep 11, 2008
100
1
18
Lenore ,WV
I bought a 1992 Gt with the interior removed. I am reinstalling and have two wiring connectors that I can not figure out. The first is a 5 wire connector that is near the steering column. The second is a 10 terminal plug very near the radio. The factory radio was removed along with the amp. I am thinking the one near the radio may have plugged into the factory radio. I need some help.

  • Sponsors(?)


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,430
12,338
224
Massachusetts
Wire colors of the 5-wire plug? Pic of the 10-pin?

not everything will get used depending on how the car is optioned out. I believe the 5-wire plug is the 2.3L fan controller plug, which obviously isn’t used. Wire colors would confirm. I don’t have my EVTM handy


wv109323

Member
Sep 11, 2008
100
1
18
Lenore ,WV

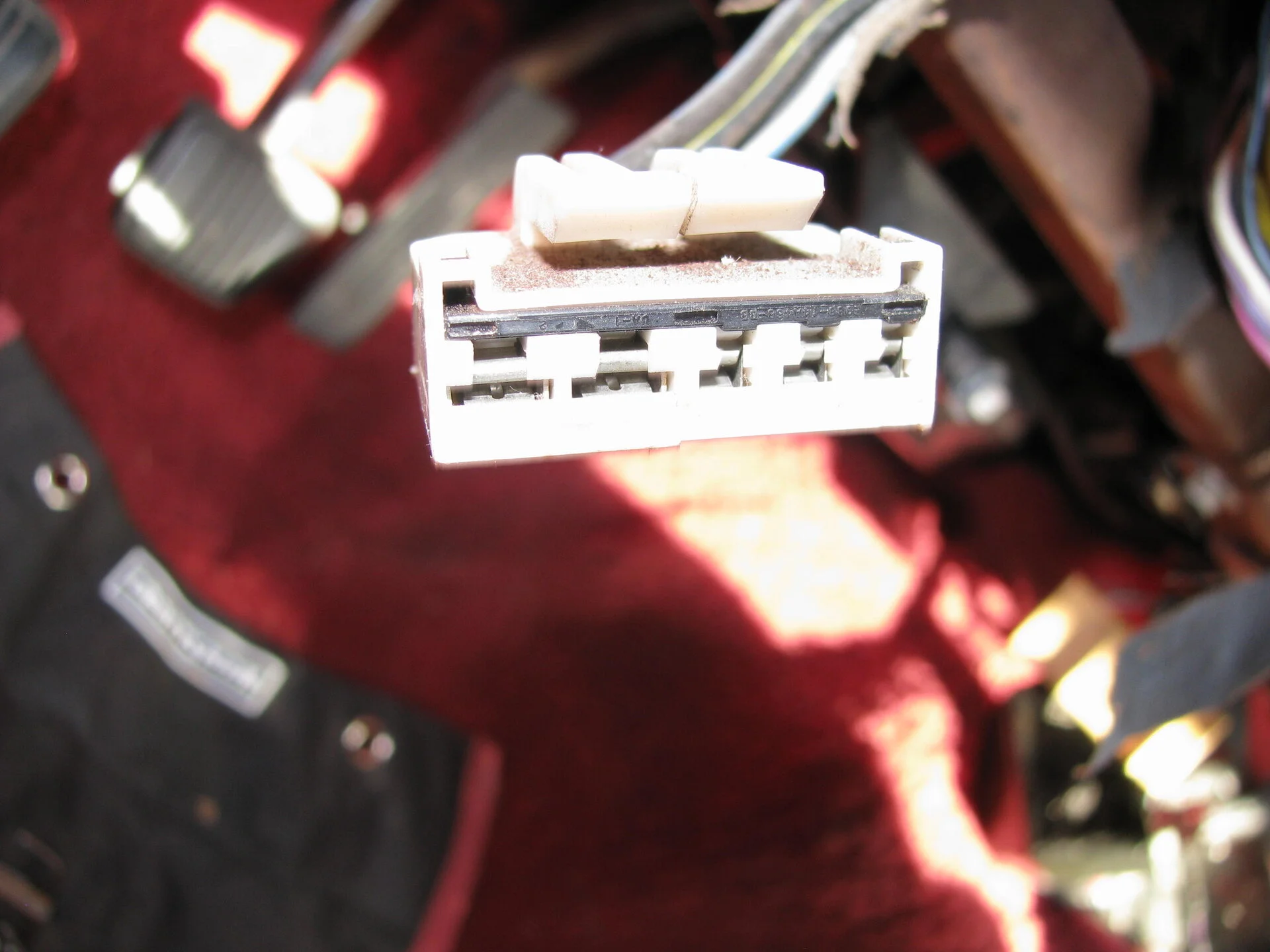

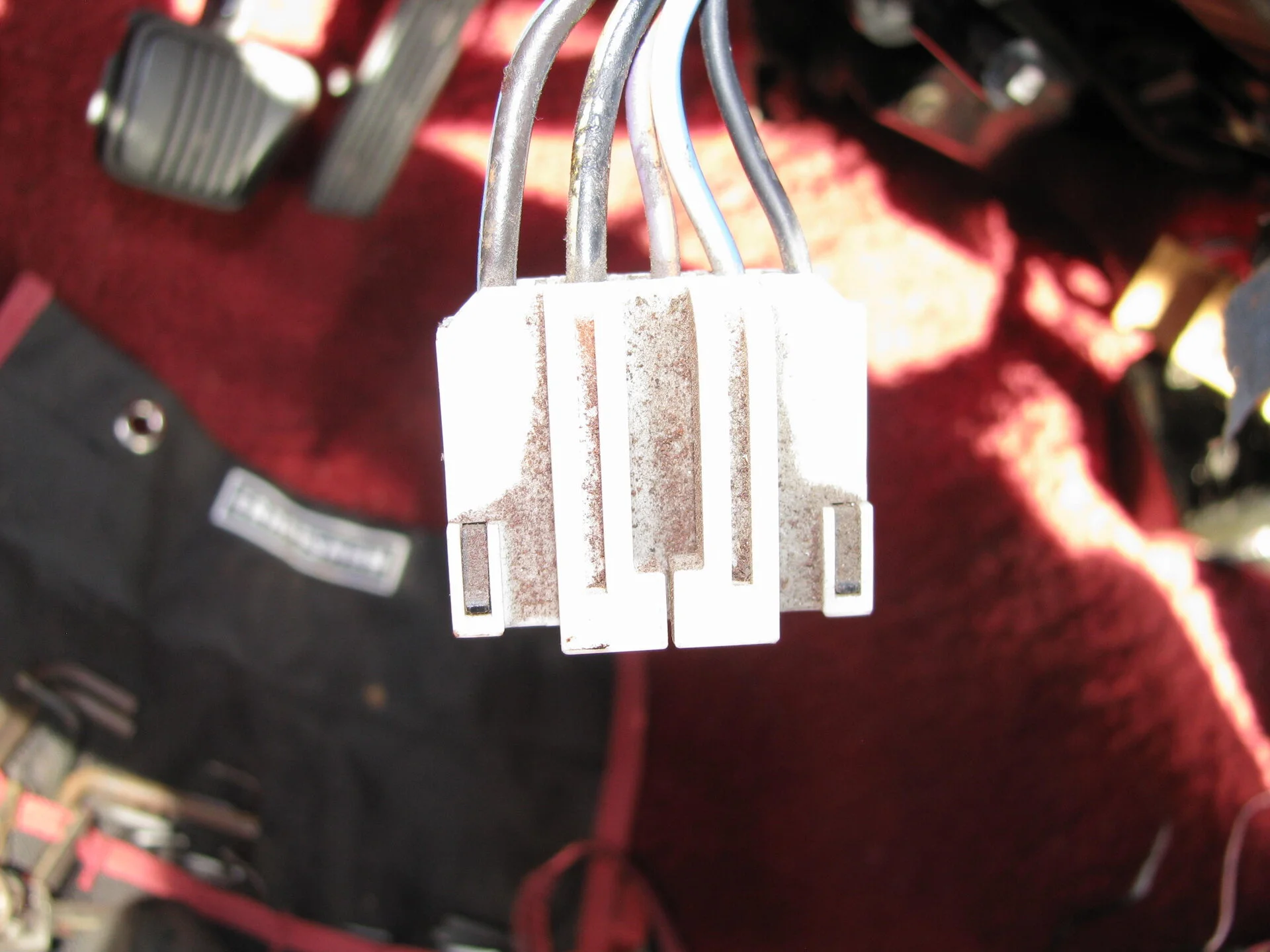

The wire colors on the 5 terminal connector are: left to right Black/blue Black/yellow Blue/pink Gray/blue Black

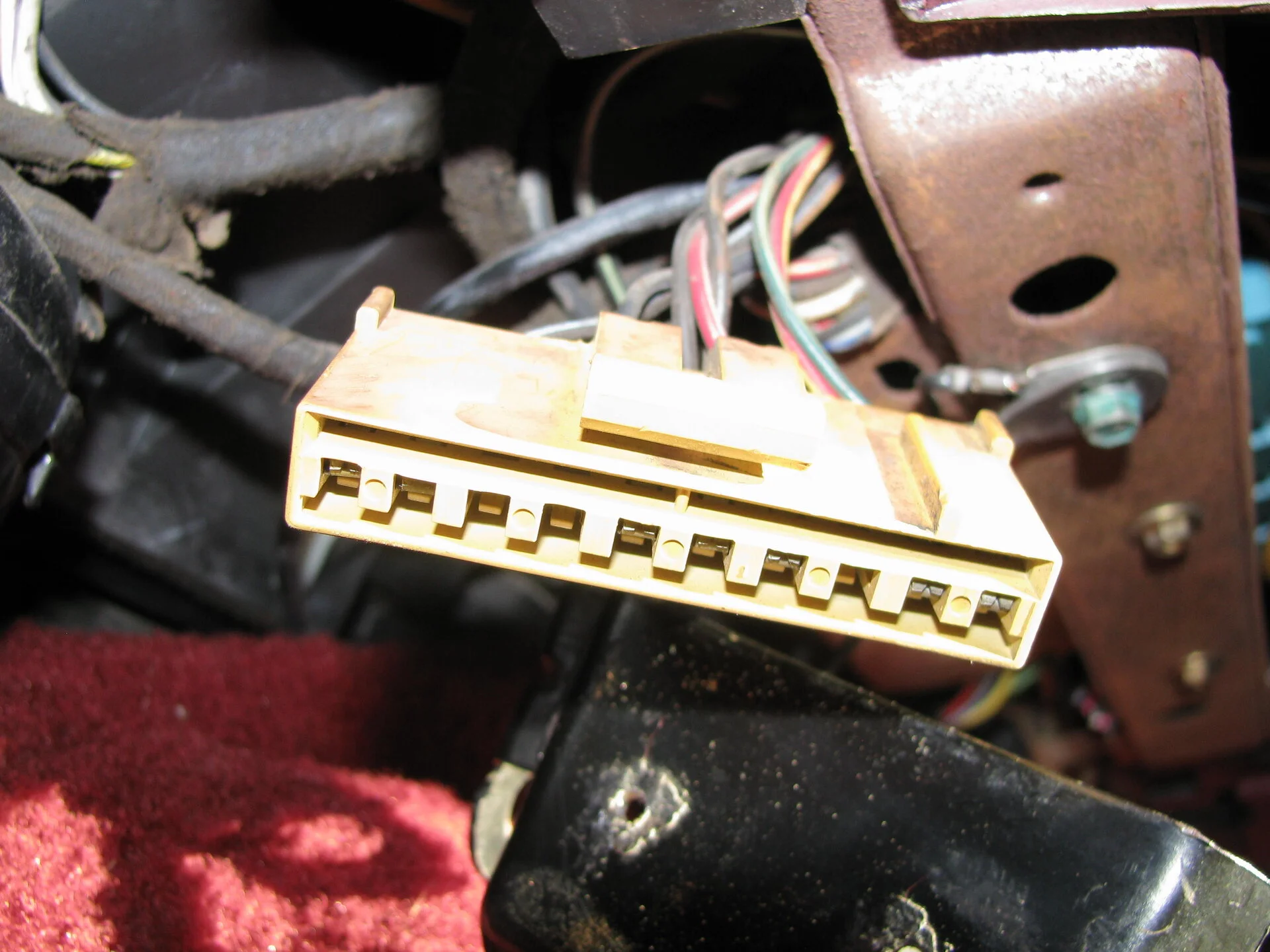

Somehow I left the picture of the 10 pin out of my original post. The wire colors again left to right are Green Blue Blank Blank Blue (2 wires. same slot) Green Pink Blank Red Blue /white. Again the 10 terminal is at the center console and only has 1 or 2 inches of slack.


Attachments

  • IMG_0164.JPG
    351.9 KB · Views: 32
