1992 LX Build thread!

Discussion in '2.3L (N/A & Turbo) Tech' started by Bansheeman6100, Mar 21, 2011.


  1. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    yeah, to be honest these stock alternators scare me enough stock, let alone putting a bigger fan on. we had problems alst week with my girlfriends 92 2.3 alternator not being strong enough.
  2. Delray Dude

    Delray Dude New Member

    Joined:
    Jul 7, 2010
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    I hear ya.... trust me - you will love the 3G. no problems at all with the electricity afterwards.

    I like this alternator so much - I'm modding one to work in my 69 Charger....way better than the original 65 amp that barely keeps up with the engine and lights on that car.
  3. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    im sure i'll love it, i ran one on my 92 5.0 F150 and on my 2000 5.4 F150 along with the Mark VIII fan currently. im not new to modding, just this little 2.3L

    thats why im not excited about wiring for the fan: ive done it before and am not a fan of it. lol
  4. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    So I have the 3G wiring down, and have a plan for it. Now I'm just trying to figure out the fan. We have no good junkyards around here and I just ordered a new fan relay. Is there a way to use the current one? Or am I going to have to Hastle with returning it (rockauto) and ordering a different one

    ETA: this is the relay i ordered if that helps at all. if i do need to return it, i need to find the right part on Rockauto

    http://www.rockauto.com/catalog/moreinfo.php?pk=39044
  5. Delray Dude

    Delray Dude New Member

    Joined:
    Jul 7, 2010
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    Not sure if that relay will help you out - does it come with a wiring diagram and can you fit termials on it?


    If you are looking for a new something like this is what to use:

    Pilot Automotive/40 Amps 12 Volts replacement relay (PL-RY2) | Relay Kit and Assembly | AutoZone.com

    simple wiring to it. run the positive lead that went to original fan to the 86 or 85 termial. run the other termial (86 or 85) to ground.

    Then run a positive fused from battery or starter termianl lead to either 87 or 30. then the other to the fan positive wire. then the other wire to ground.

    you will have to figure out which is the positive lead on the fan there are 3 wires. I found the one that spins the fan major fast and hooked it to that and the other to a nice ground. I could try to trace them and tell you which termial is which - but a few seconds with a battery will tell you the same thing....

    just taped up the 3rd wire and left it alone. i think that is the low speed fan wire - i don't use it...not sure if you would have a way to use it in the Mustang as the fan wiring was either on or off.
  6. Delray Dude

    Delray Dude New Member

    Joined:
    Jul 7, 2010
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    I do have a few OEM Ford yellow 40 amp relays I acquired from the yard - if you want a few I can send them to you for cost of postage.
  7. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    that would be very helpful if i need one. what i ordered is what comes up on rockauto under radiator fan relay. its basically a black box with a board inside, plugs right in. i just got it, have not installed it yey. also got my fan in today, early 90's taurus. it has the same plug on it as my factory fan. its seems slightly less beefy than my Mark VIII, but more so than my stock 2.3

    and just realized this fan has 2 plug, so im pretty sure its only a 1 speed fan
  8. MustangLX-5.0

    MustangLX-5.0 Founding Member

    Joined:
    Dec 3, 2000
    Messages:
    1,518
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Lehigh Acres Fla.
    Nice work. I'm going to keep an eye on this one.... just because. Sounds interesting. I do remember one guy on this board had spent a lot of time working on his 2.3 and he even had a progress thread. I can't remember the mans name. It's been a few years. Anyway, he was running N/A .. with Ranger head.. head was ported I think even. Cam from some other car, dont recall. He had a lot done.. wish I could find the thread he was running .. in the end, he dynoed and got 148HP or so to the wheels. He said he couldn't think of anything else to do, without turbo/SC etc. He was just trying to keep it N/A. Maybe you can finish where this man left off. Shrugs .. Would be interesting to see how much you can get out of it. Just whatever you do, NEVER use NOS in it. 2.3's will blow the head gasket in a snap and pool the coolant into the oil. I think actually, a 75 shot is about all that's safe in them.

    A good fan to use are the ones found in the Contour's . It's the dual fan setup and those things move a lot of air. Then probably a god idea to get something like an adjustable fan controller and relay. I know Derale used to make one. A lot of the 5.0 guys used this setup, with either the Contour fan or the Taurus fan. Both move a lot of air. But both need more amperage than stock.

    And I know this is off topic, but I recall one of you mentioning about having to get your emissions tested in Florida. I'm not sure where that comes in. I have lived here since '97 and Florida has never required emissions testing.... yet. Thank god. Or I'd be up ****es creek cause my cats are blown out on one car and gutted on the other.
  9. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    and is anyone proficient with photoshop? im thinking about painting the trim black all the way around. the center trim. anyone ever seen this on a Bimini Blue before?
  10. Delray Dude

    Delray Dude New Member

    Joined:
    Jul 7, 2010
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    We had emissions here in Florida right before you arrived. They ended it in 96 i think. But if we get it back or you move somewhere else, 8 ounces of acetone in the gas tank per 10 gallons of gas will do wonders for the test. Had to do that with a gutted cat on a 280zx turbo to get it to pass, then they did away with emissions....been guilt and cat free since then!
  11. MustangLX-5.0

    MustangLX-5.0 Founding Member

    Joined:
    Dec 3, 2000
    Messages:
    1,518
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Lehigh Acres Fla.
    The whole trim, or just the small groove in the middle of it that used to have orange painted stripe in it on earlier years? Hmm, can you take a little constructive criticism? Just a thought but I don't think having the entire trim black on a blue painted body would stand out right. It does seem like it would be a bit flashy. Idk.. just my opinion. Do you have a straight side shot of your car?


    Thanks Delray. yeah, I came down at the right time then. Haha
  12. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    i found a pic, and i think i really like it

    [​IMG]
  13. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17

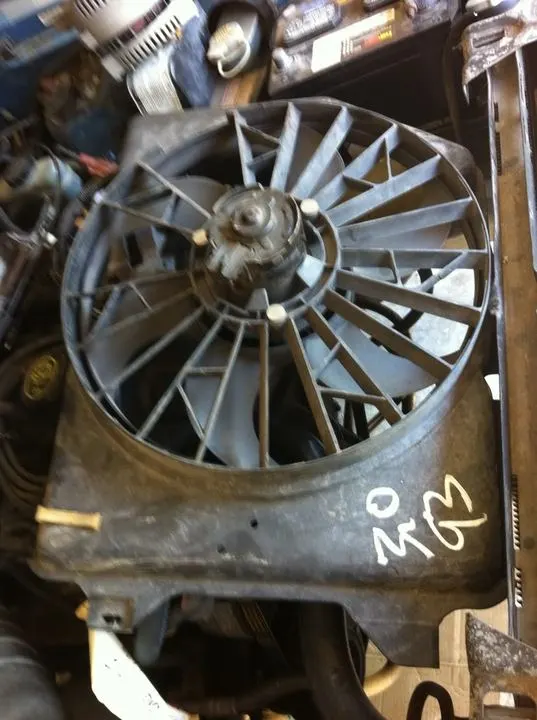

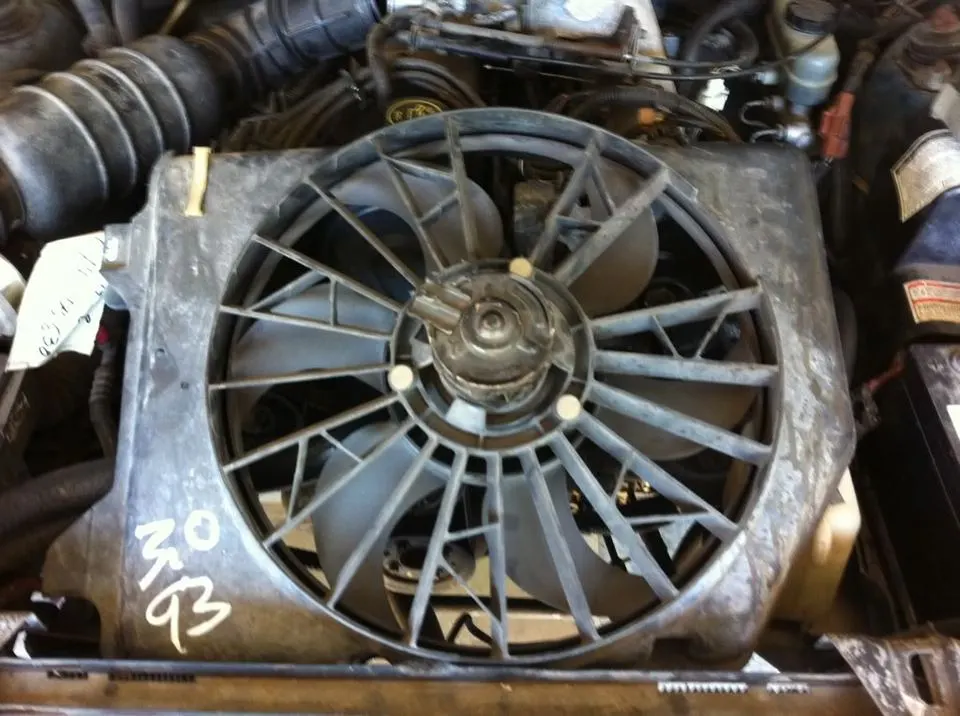

    and heres a picture of the fan. its from a 1993 Taurus. it seems like it pulls more air, but the motor looks to be the same aize and has the same plug. it does have a full shroud and 6 blades though. so even if it doesnt pull more air, i do believe it will cool better.

    [​IMG]

    [​IMG]


    i also received my 3G alternator today, and will start that swap next week along with mounting the fan. then need to pull the old trans, install new and install clutch cable. also ordered new shocks, going to do fluid change on everything including differential. hoping to have her on the road by the end of the month!
  14. MustangLX-5.0

    MustangLX-5.0 Founding Member

    Joined:
    Dec 3, 2000
    Messages:
    1,518
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Lehigh Acres Fla.
    Never mind. It was hard to picture correctly. It does look good. I just needed to see it in plain sight. Damn.. what the heck. My minds not working correctly right now.. lol. How could I even forget that. How lame I am. My '88 2.3 I had in '95 was the same exact color of blue yours is. And I had the black trim on the side, not body color painted. And the black trim had either orange tape or painted orange in the inset groove of the moulding. It's been too long and somehow I forgot. I'm useless in here LMAO!!

    What 3G alternator did you get? That PA Alt upgrade? I know on the 5.0's, I had to grind down the bracket. I'm just not sure if you gotta do that on the 4 cylinders. The Taurus engine is a 3.0L V6
  15. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    I'm not sure what the alternator is out of, but it's the same mounting pattern as the stock one. An I will need to grind the bracket down a little, not worried about that at all
  16. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    Also, the pulley on the new alternator is bigger, 2.75". so that will underdrive the alternator a bit and more power to the engine right?
  17. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    Well I got the fan mounted and the bracket for the alternator grinder down. Just need to get a linger bolt for the alternator and wire it up and extend the fan wiring slightly
  18. MustangLX-5.0

    MustangLX-5.0 Founding Member

    Joined:
    Dec 3, 2000
    Messages:
    1,518
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Lehigh Acres Fla.
    I doubt you will notice any power gains. Not sure where you picked up that alternator from. Where did you get it ? What is the size of the stock pulley? I think stock alternator is 100 amp for a 2.3. Or maybe it was 95 amp, I'm not sure . Perhaps someone else here can clarify.
  19. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17
    Hey Delray, you alive? Lol. Didn't get much done this weekend, I had drill and was told I'm getting promoted next month so still a good weekend. I did get the clutch safety switch and clutch cable installed. Now I can start to bolt the column and seat back in
  20. Bansheeman6100

    Bansheeman6100 Member

    Joined:
    Mar 15, 2011
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    17

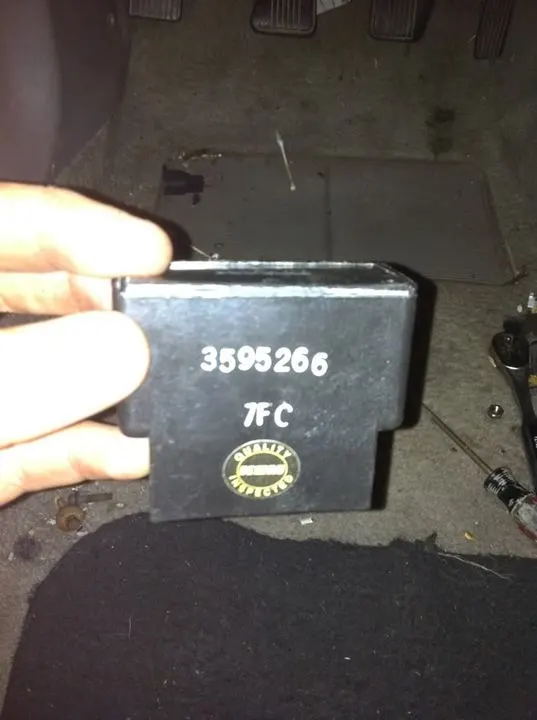

    Well I got the steering column bolted back up and clutch cable run. But I've run into a few issues. First being there are 2 plugs/harness I can not find where they plug into. And second being I can't find the location of this fan controller that Rock Auto sent me anywhere. Hopefully y'all can help me out

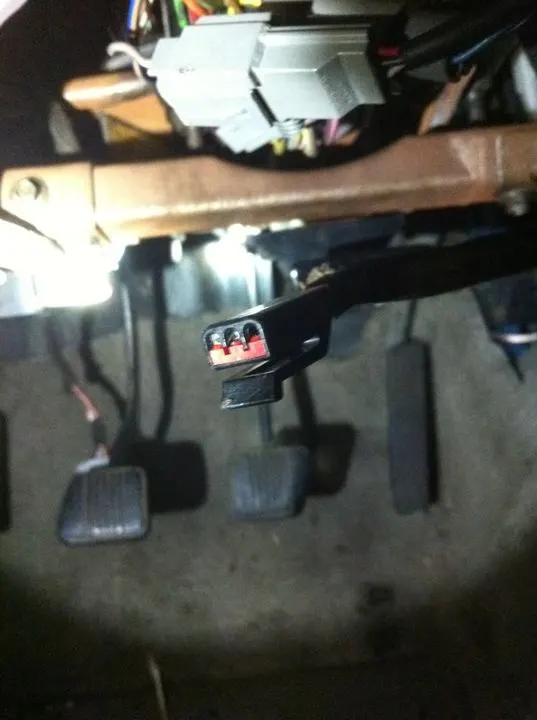

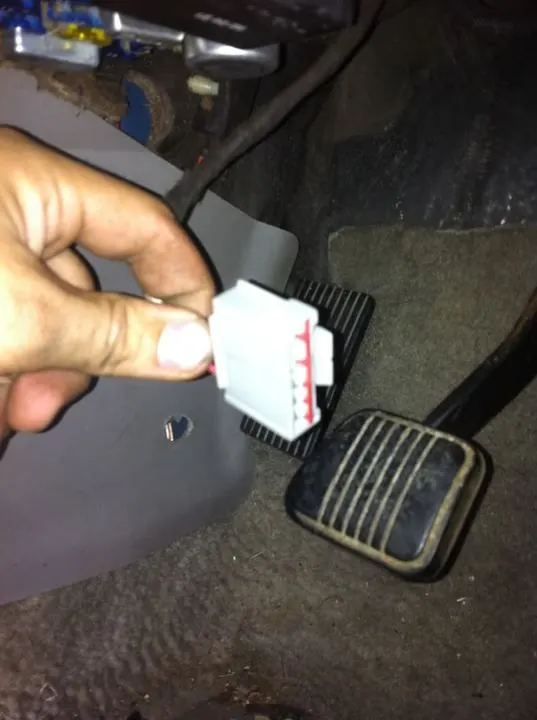

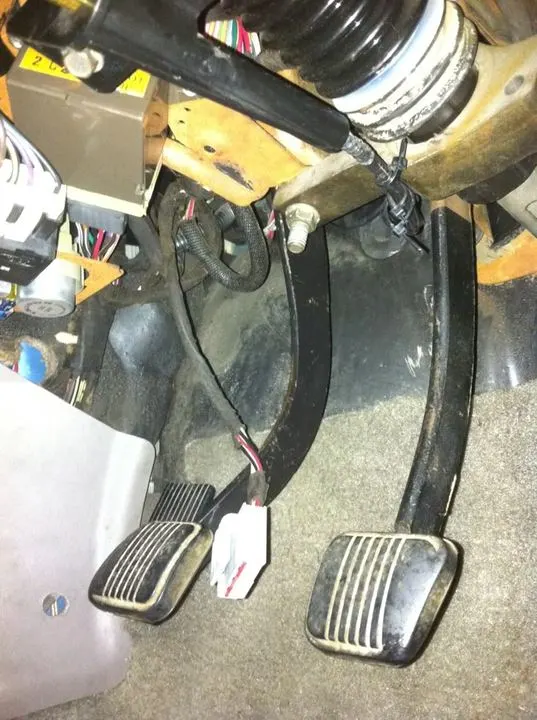

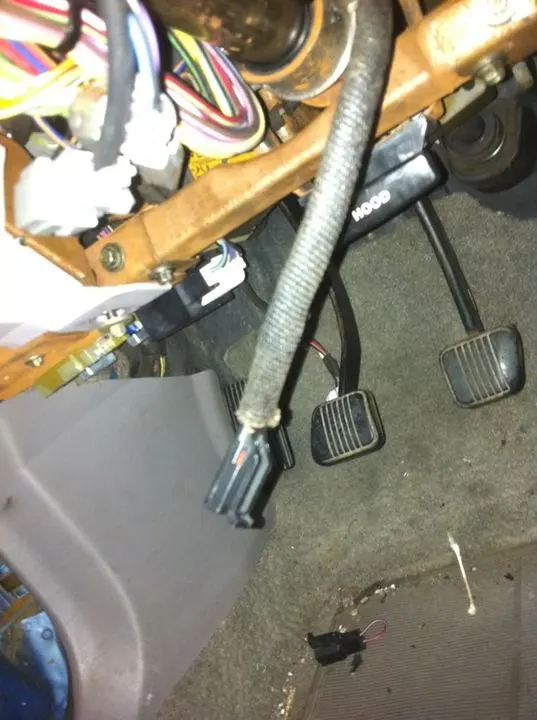

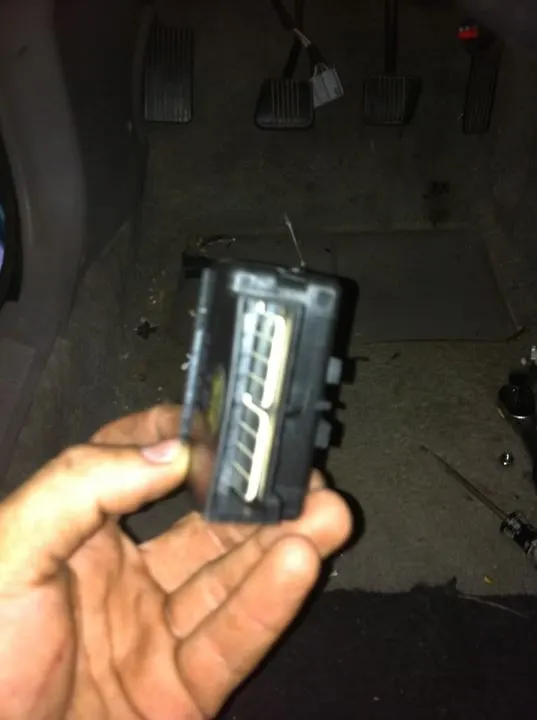

    The connectors. The first one comes out near the steering column and the second is near the brakes

    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
