68 Coupe / California Special Tribute

Discussion in 'Classic Mustang Specific Tech' started by mllud, Mar 11, 2013.

  1. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8
    I have been reading here for a while and thought I would share my project and learn from yours.

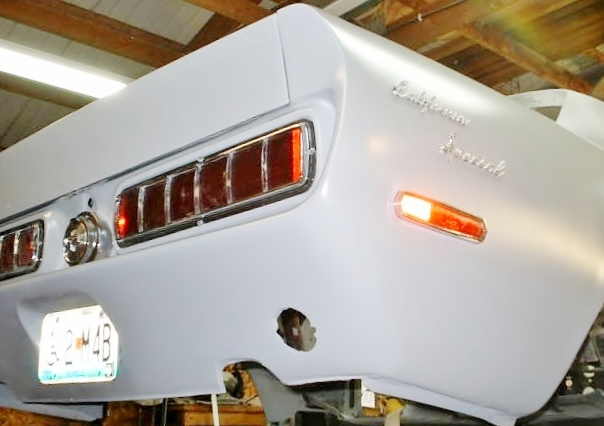

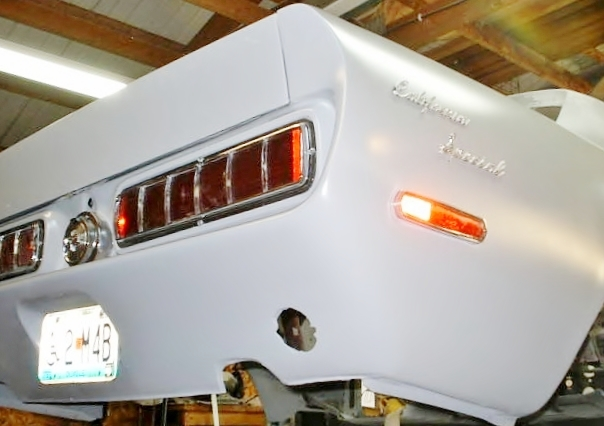

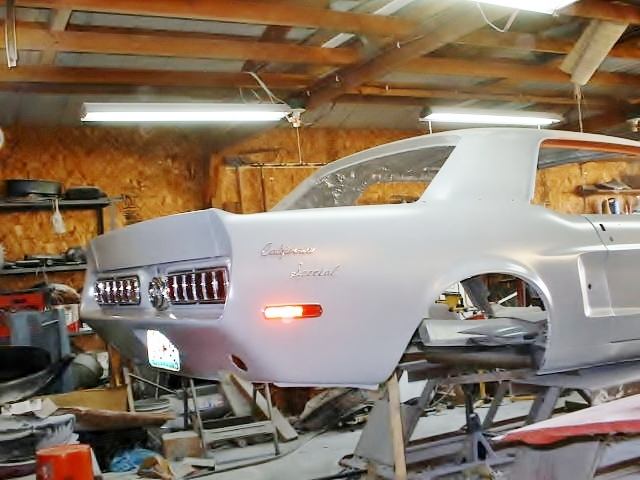

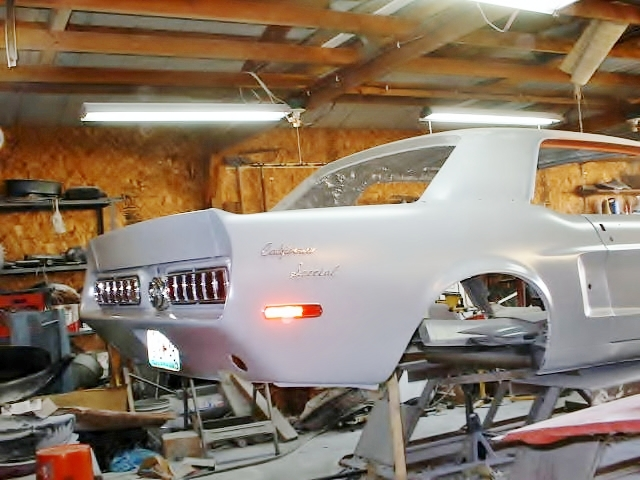

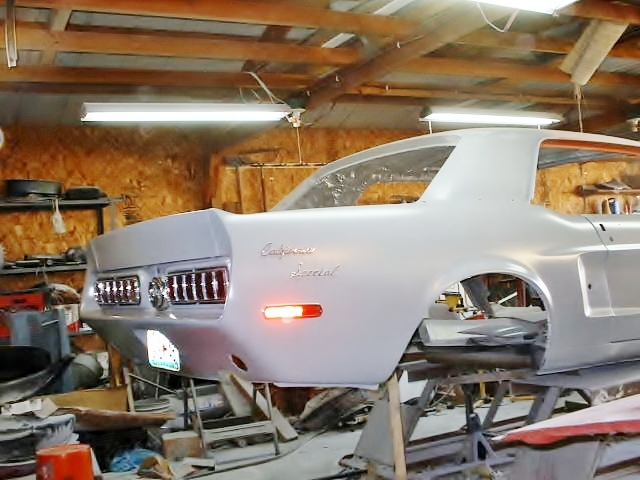

    My mustang isnt going to be a California Special Clone. More of a California Special Restomod.
    Mike

    #1
  2. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8

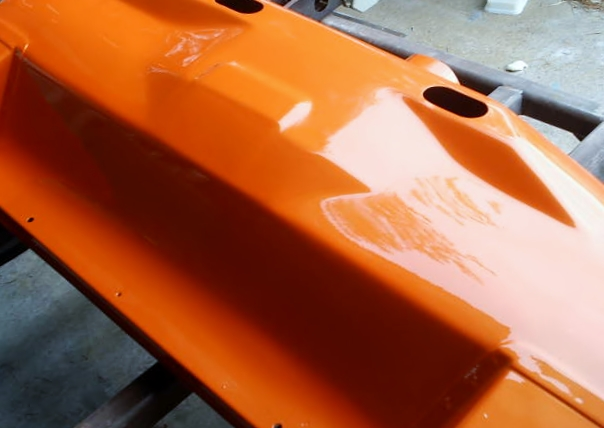

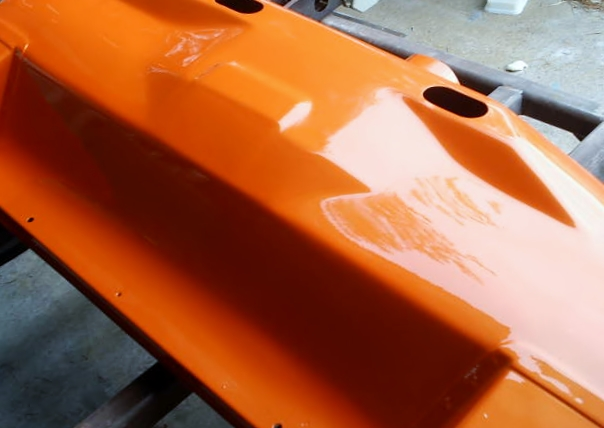

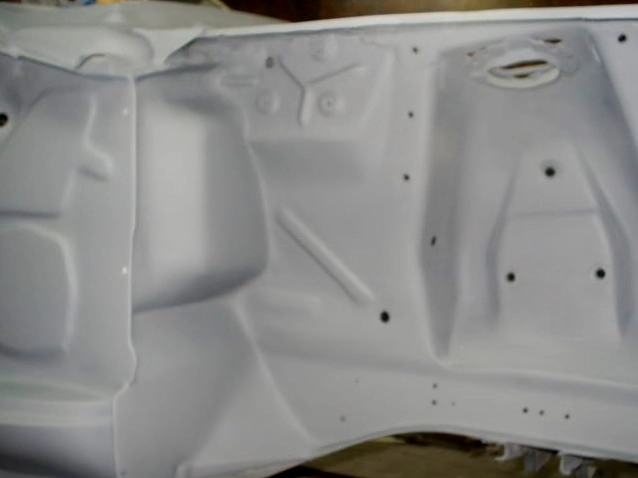

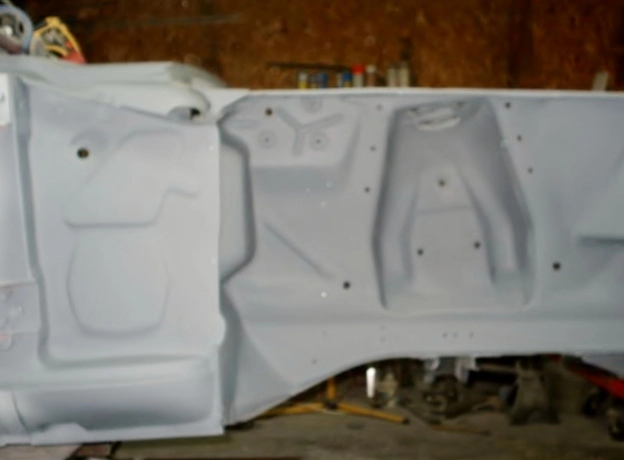

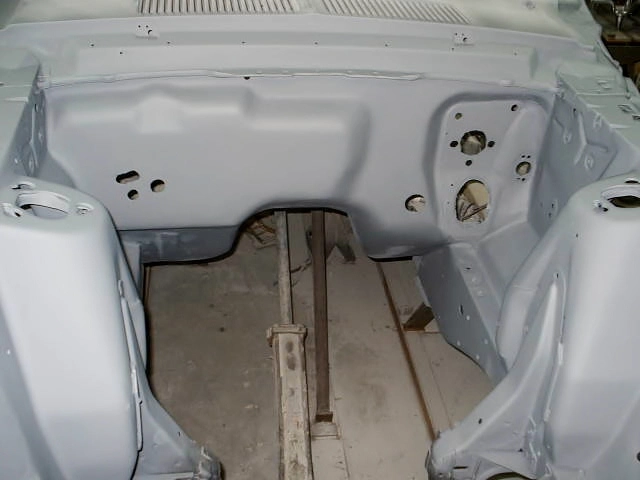

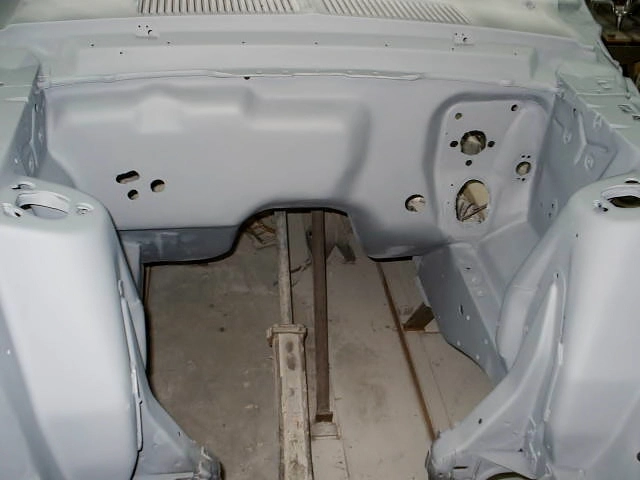

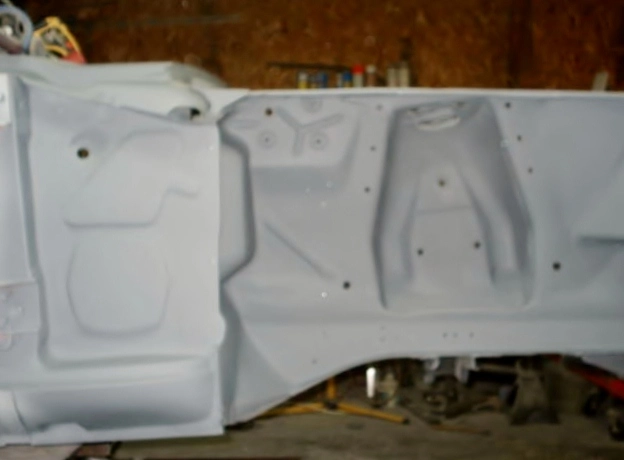

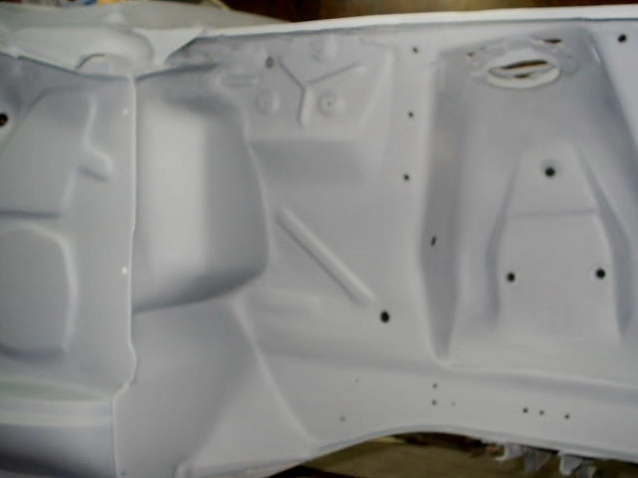

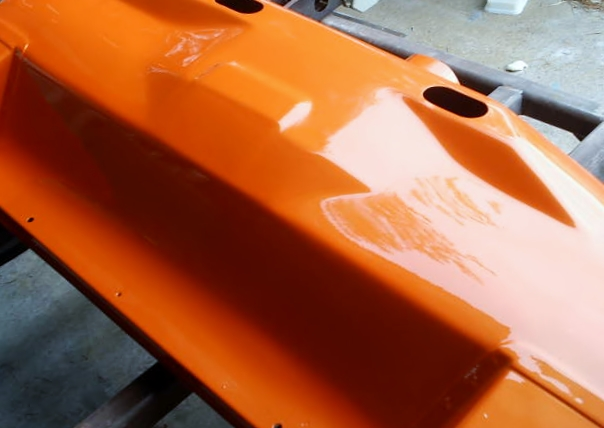

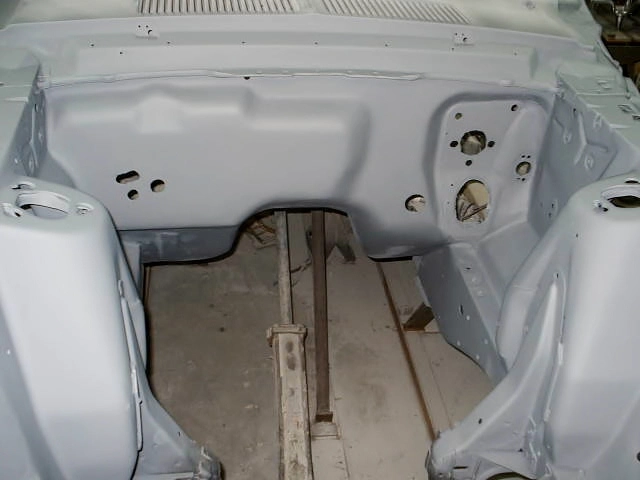

    I have the engine compartment ready to paint. Then I am going to install the engine and install all the front suspension.I still have some rough edges to clean up in these pictures. I am at a standstill with painting until it warms up. The pic below is the color the car will be.

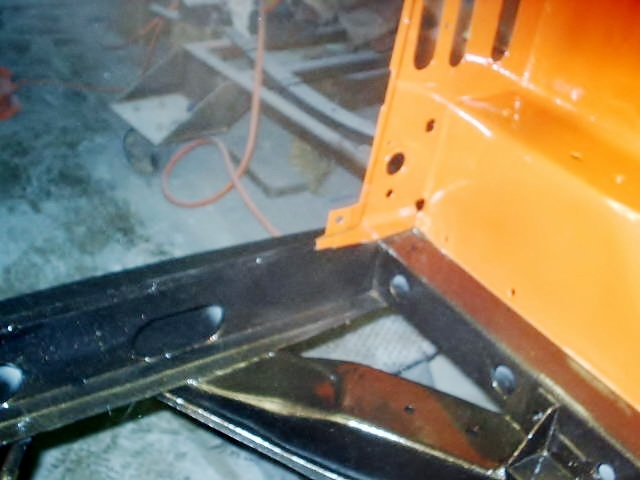

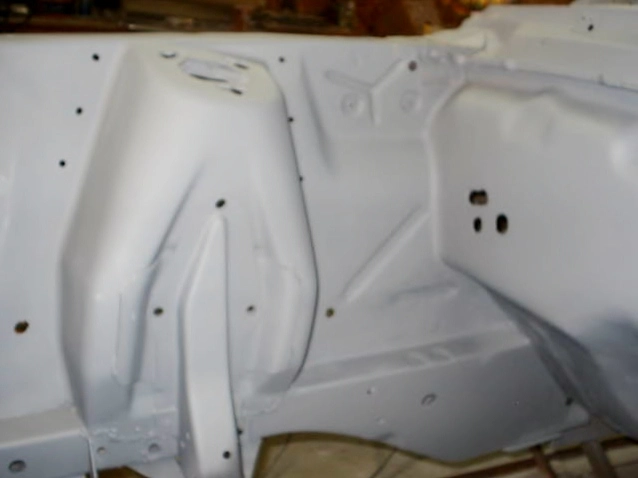

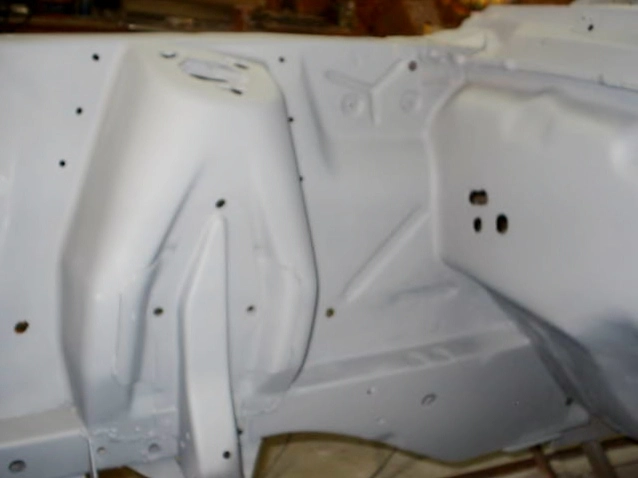

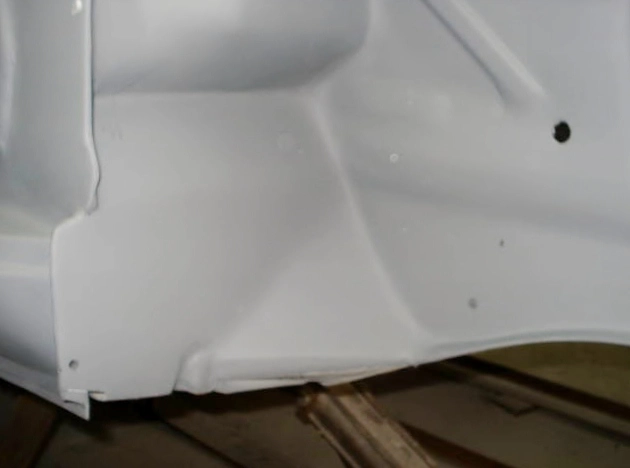

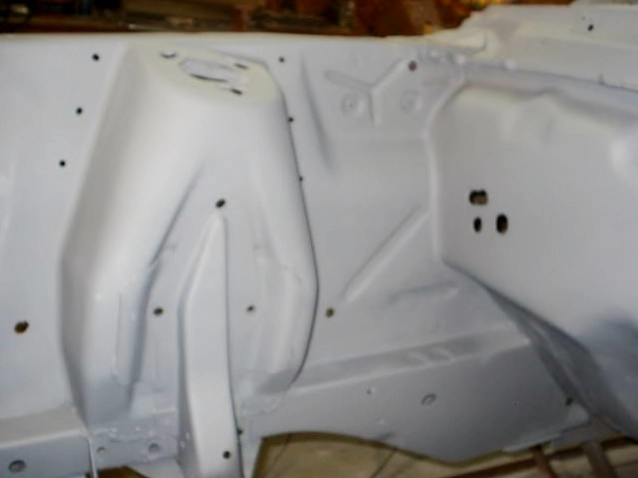

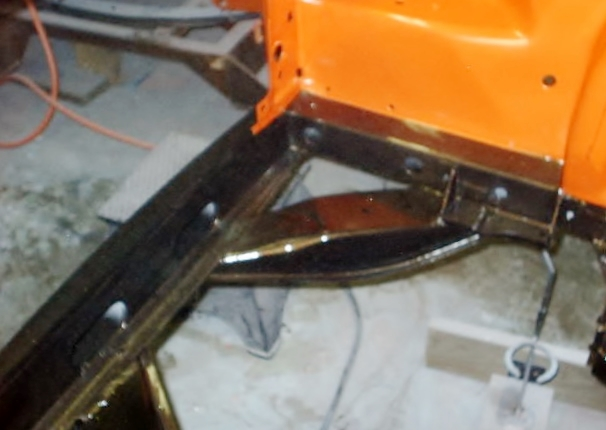

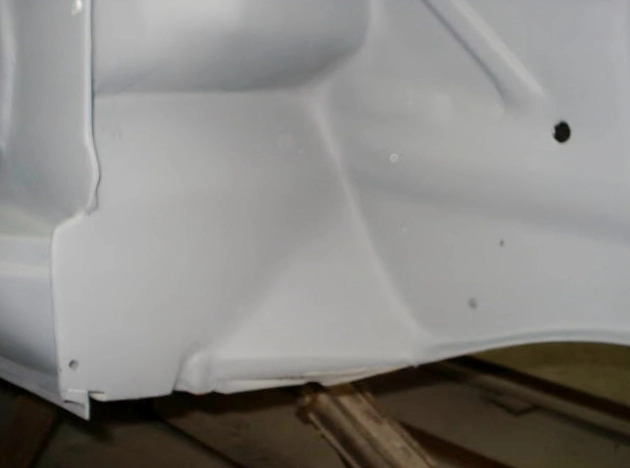

    In the pic below The triangle gusset was boxed in to add a little strength and keep the road dirt from collecting in the corner. Mike



    Attached Files:

    #2
  3. 68keyblr

    68keyblr Member

    Joined:
    Mar 17, 2003
    Messages:
    897
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    Arizona

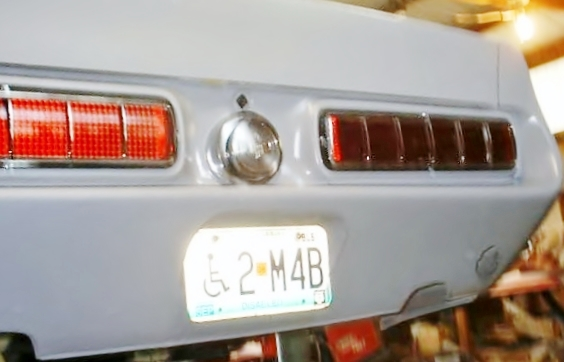

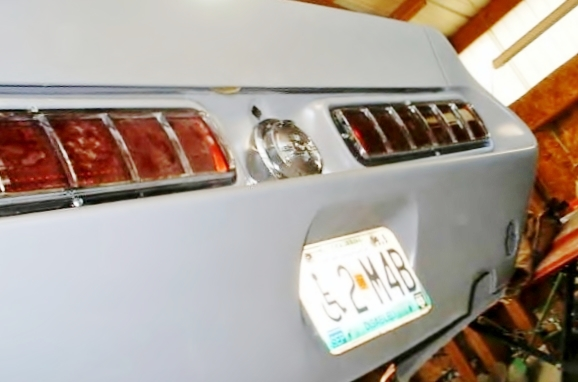

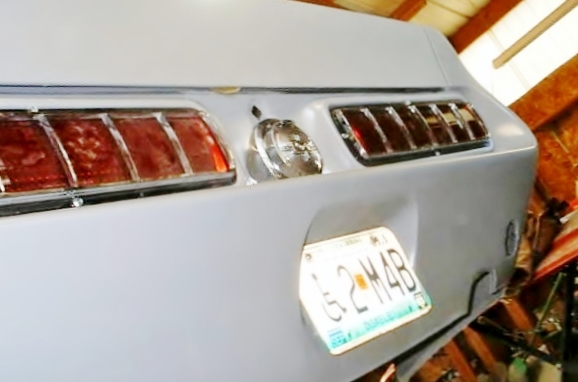

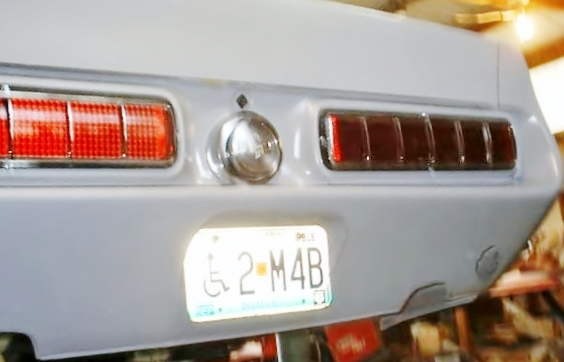

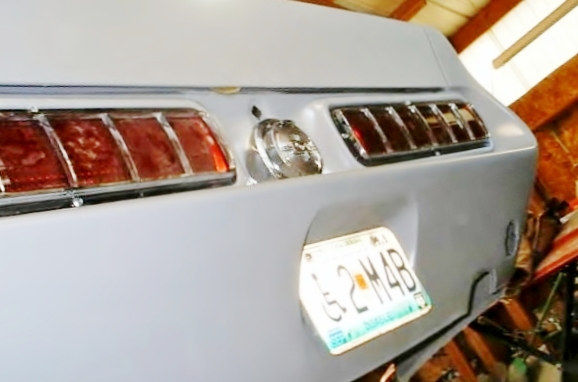

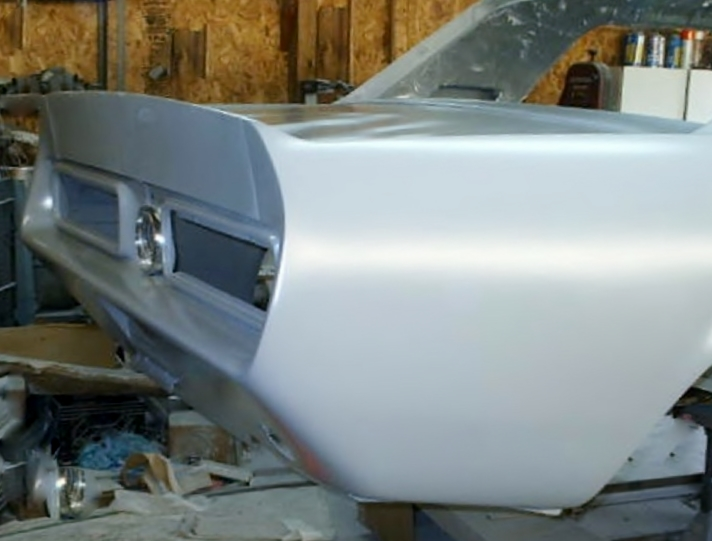

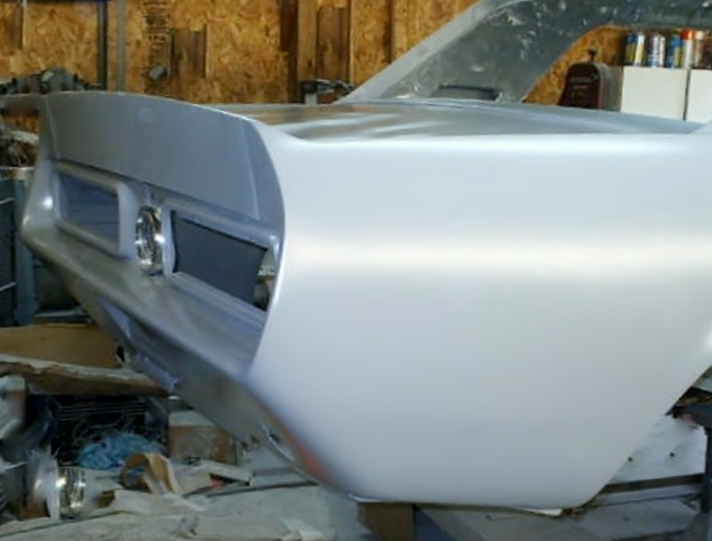

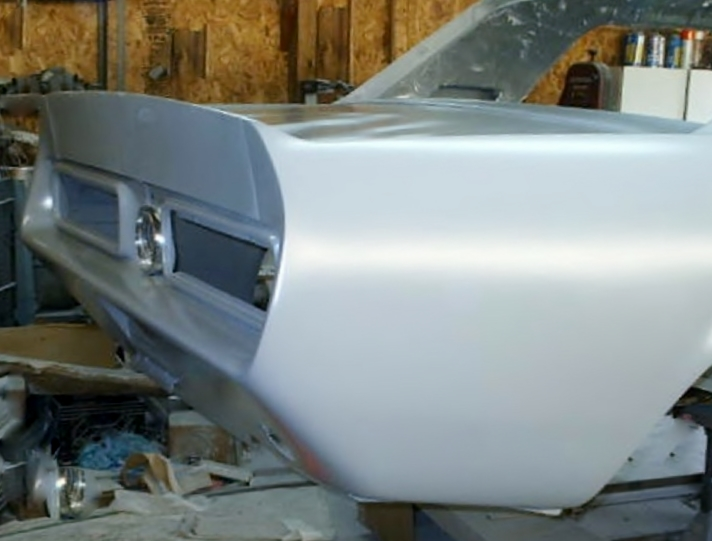

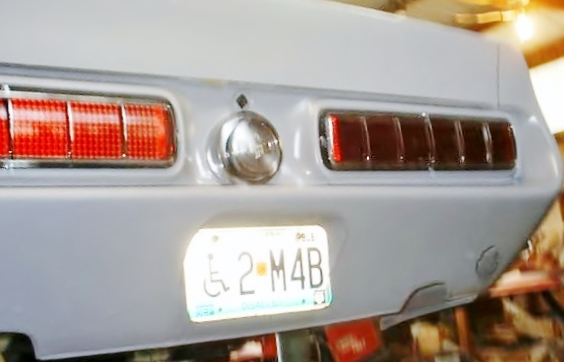

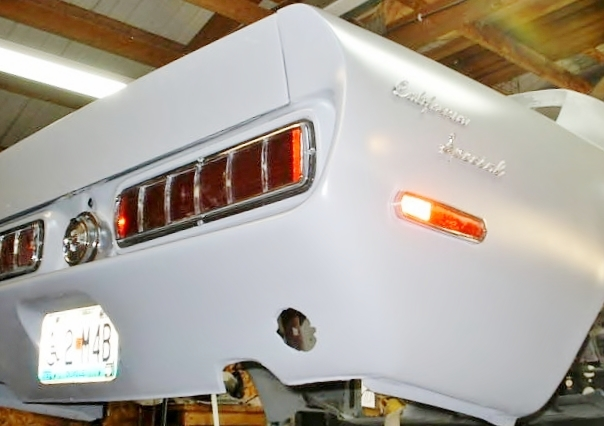

    Those are really cool custom touches. The rear end looks really clean and is very unique. Keep the pictures coming

    #3
  4. crane550

    crane550 Member

    Joined:
    Sep 17, 2007
    Messages:
    122
    Likes Received:
    3
    Trophy Points:
    19
    Very nice! I enjoy seeing your work so far. Keep it up!

    #4
  5. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8
    Thanks
    Nice mustang 68keyblr
    crane 550 I have been following your mustang modifications.
    For all those mustang fans that are not a fan of the quality of the lower Shelby side scoop I am in the process of making a pair for my 68. There are some aftermarket scoops out there I just wanted to make my own.
    The scoop in the pictures is not a finished product. IT was made using the original shelby scoop as a base and adding to it with bondo and fiberglass cloth.
    I will have to make a mold to make the finish product. I could make a mold and make them out of fiberglass . I have been looking into making them out of a pourable resin. I would like the finish product to be thick like the plug I made. It seems it would be a lot more stable than fiberglass.
    Any suggestions appreciated. Mike

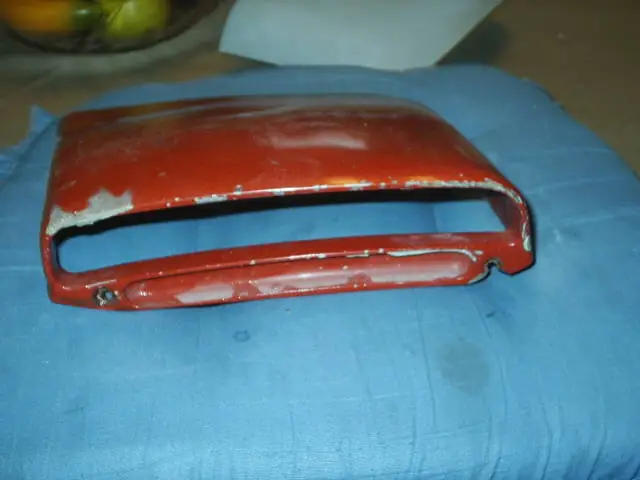

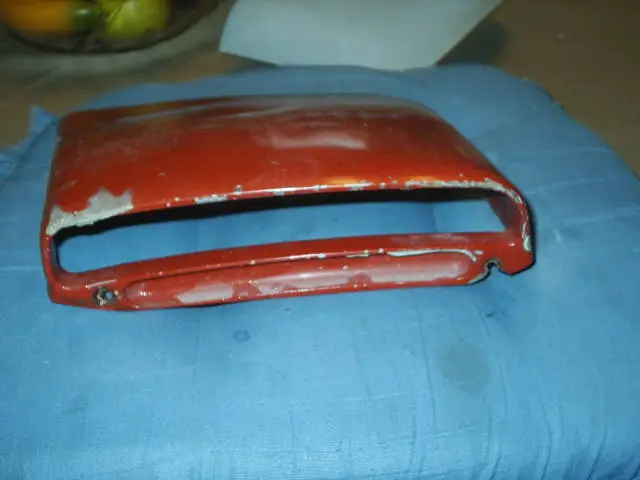

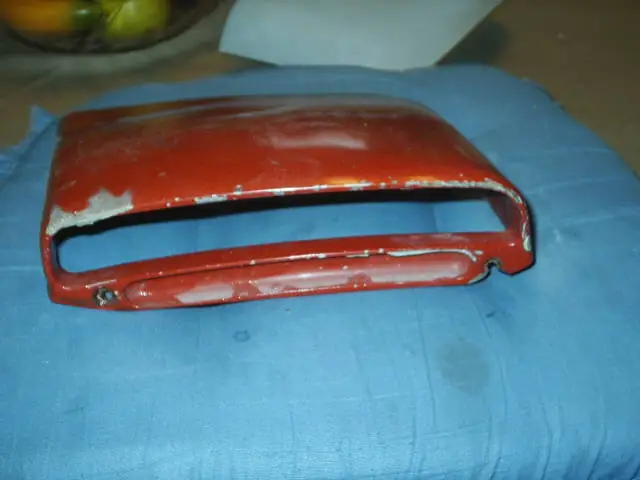

    This is the scoop I used as a base for the one in the picture.


    Attached Files:

    #5
  6. 68keyblr

    68keyblr Member

    Joined:
    Mar 17, 2003
    Messages:
    897
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    Arizona
    Very impressive work - how many hours do you have in that scoop? Looks perfect

    #6
  7. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8
    68keyblr
    Hours and hours.In the pictures it is a little crooked.Its not bolted on tight and I bumped it, and the door isnt aligned perfect yet. The top edge lines up better.
    Thats one of those jobs that you shouldnt count. I would guess about 12 to 15 hours. To get a perfect fit to the body line and get it to lay flush was time consuming. It is flush with the sharp edge of the C body line. Im one of those people thats never happy.
    The time involved is the reason I am making a mold so if I need another set I can make them.
    I would like to find a pourable resin that can be poured into a mold so I can make them the same thickness and would be a duplicate that would be more consistant than fiberglass.
    Now think of how many hours I will have in the mold. This is a hobby for me.
    Mike

    #7
  8. 68keyblr

    68keyblr Member

    Joined:
    Mar 17, 2003
    Messages:
    897
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    Arizona
    That's what makes this hobby fun and satisfying - the result after too many hours to count. I really like your work, keep the pictures and updates coming.

    #8
  9. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8

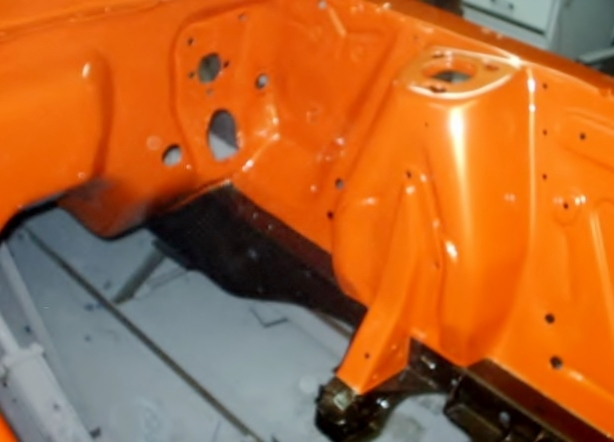

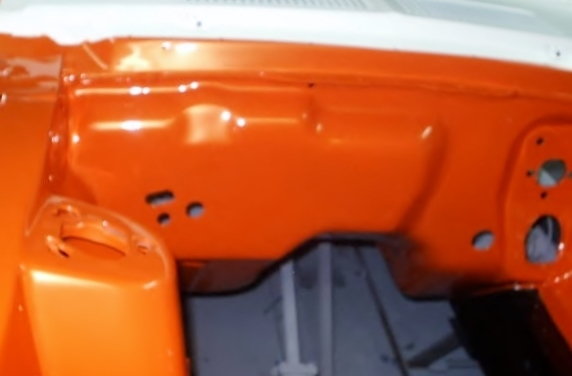

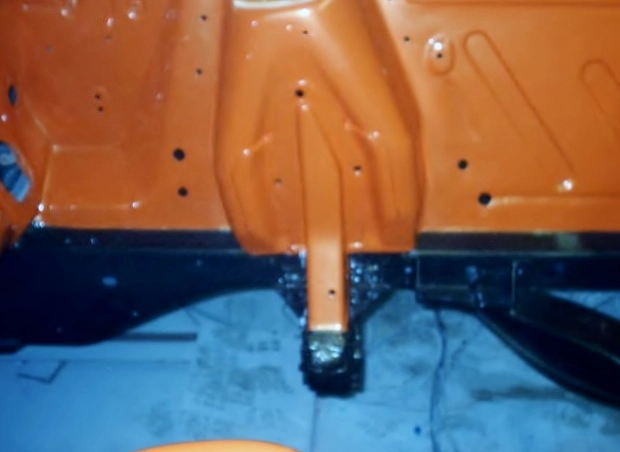

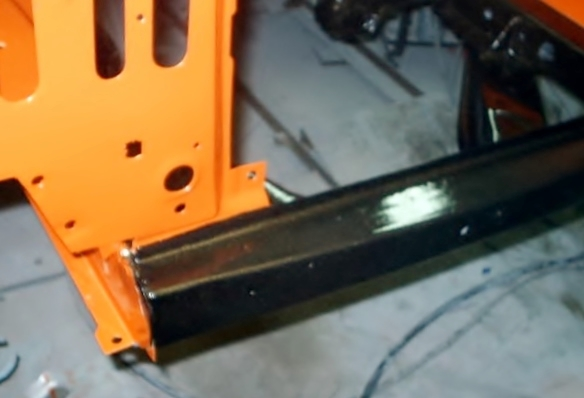

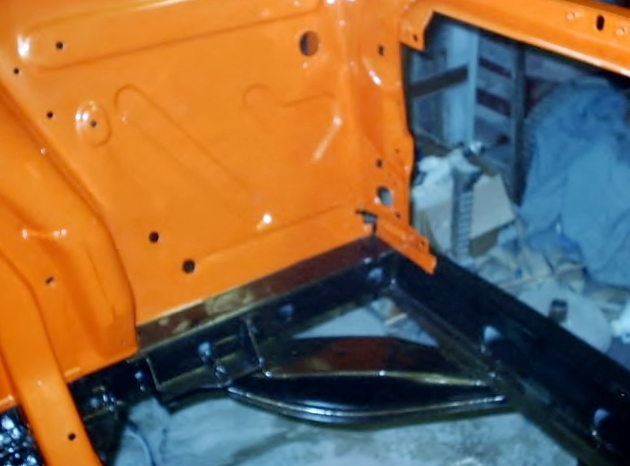

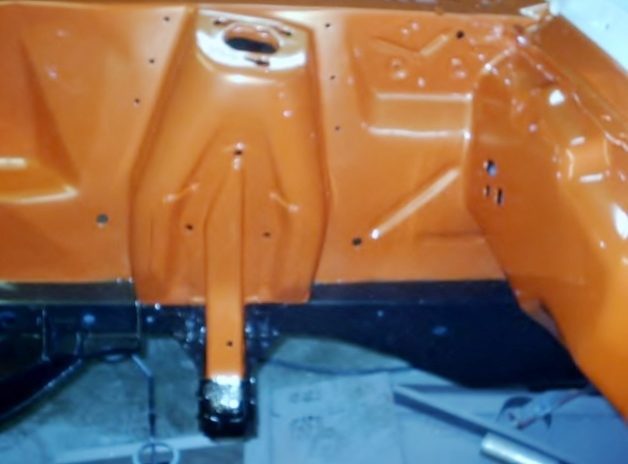

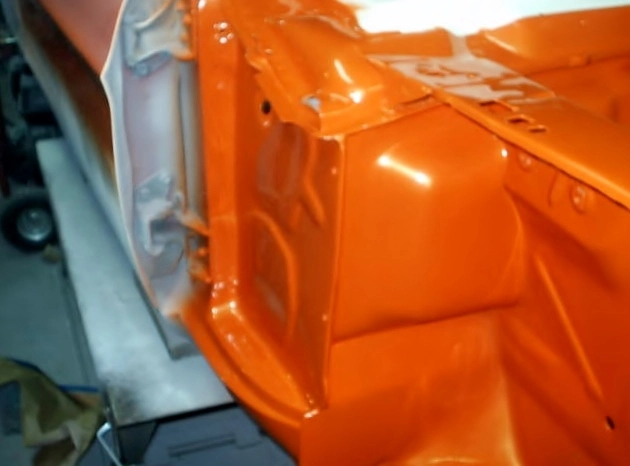

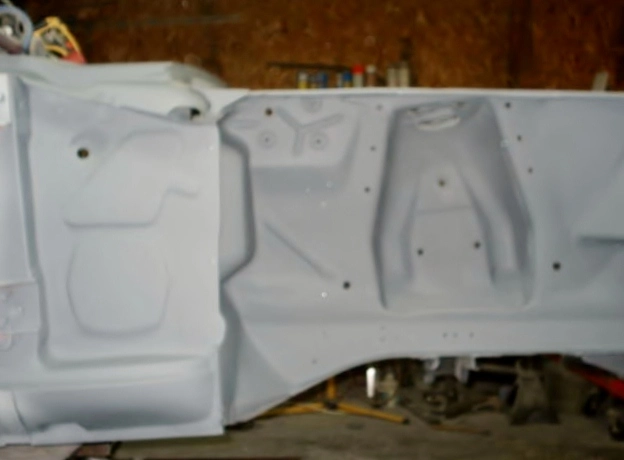

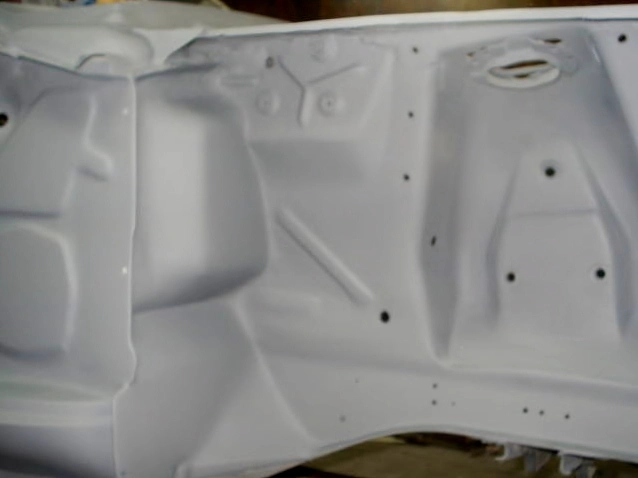

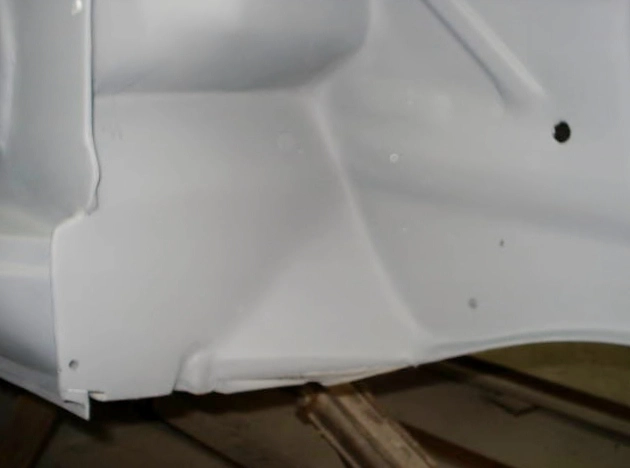

    I made some progress getting the engine compartment painted
    The pics. arent the best
    Mike S2010004_zps41774a8a.jpg










    #9
  10. Jake2012

    Jake2012 Member

    Joined:
    Jul 26, 2012
    Messages:
    35
    Likes Received:
    1
    Trophy Points:
    9
    Looks awesome, you should be very proud !!!

    #10
  11. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8
    Thanks Jake
    Its definitely a step forward. Now I can install the engine and front suspension , and work out all the componits in the engine compartment.
    Mike

    #11
  12. 68keyblr

    68keyblr Member

    Joined:
    Mar 17, 2003
    Messages:
    897
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    Arizona
    that came out great! Nice work.

    #12
  13. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8

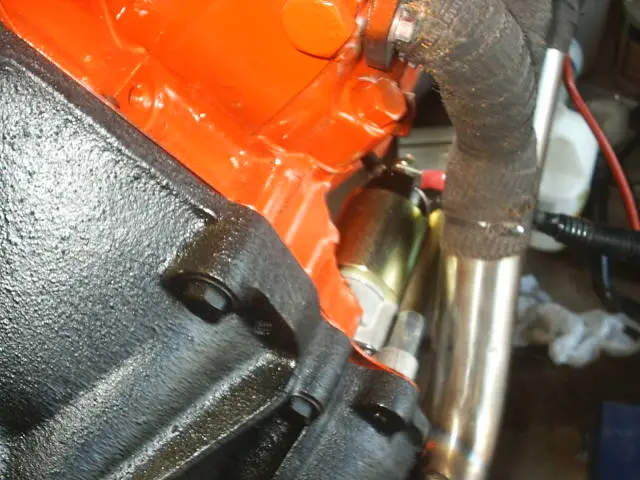

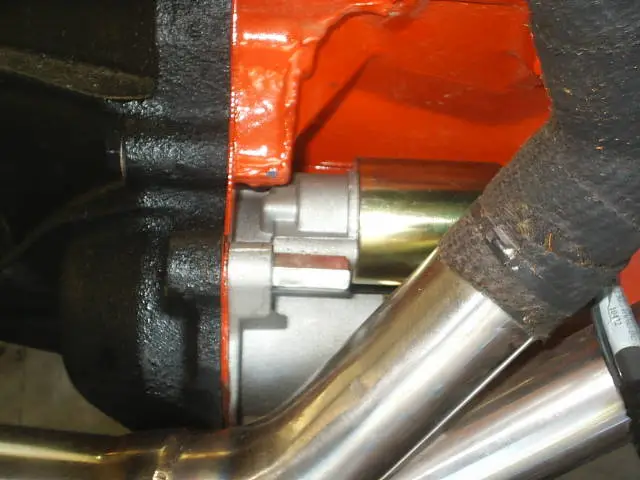

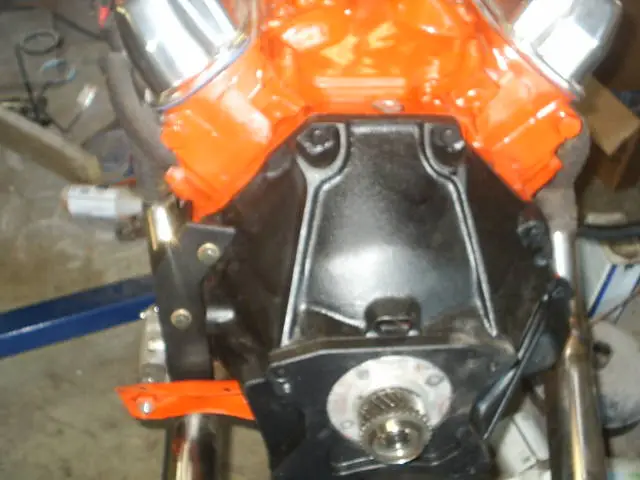

    I have been mounting my flywheel clutch and pressure plate to the 302 engine. I am doing a t5 swap so I had to order a different spacer plate for the back of the engine and had to buy a racing starter to clear the headers. I ground a little off the edge of the bellhousing just to get the bellhousing on.I have two questions.

    On a T5 does the gearbox mount to the bellhousing at a slight angle/tilt to the left? I sure hope so!

    If my header tube on each both sides make contact with the bellhousing is it going to rattle or create problems with heat? Very little surface contact.
    Thanks Mike

    #13
  14. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8
    Im still trying to get the clutch stuff worked out to Install the engine so I can get on with painting.

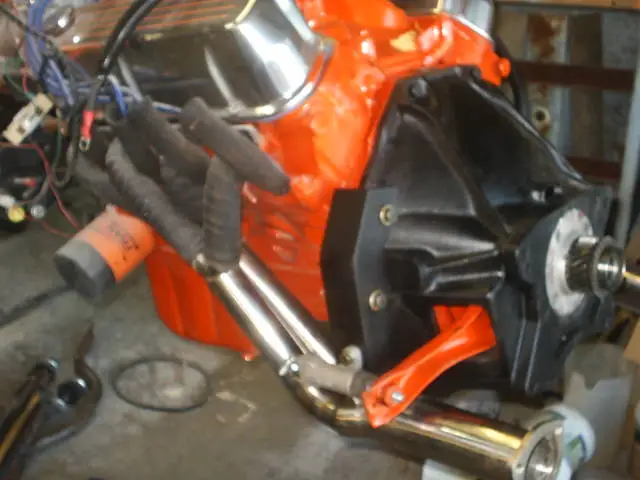

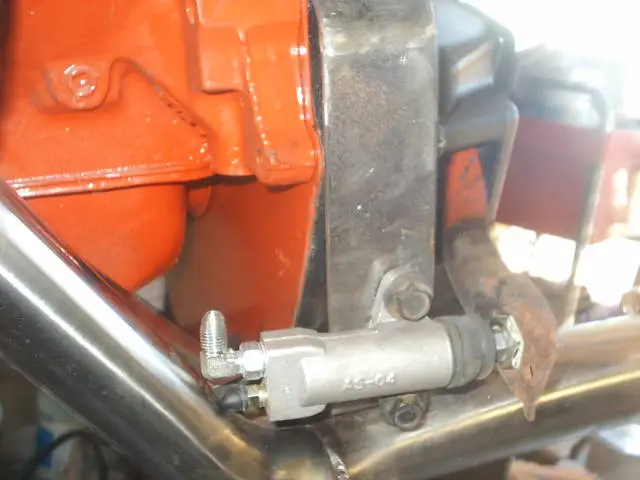

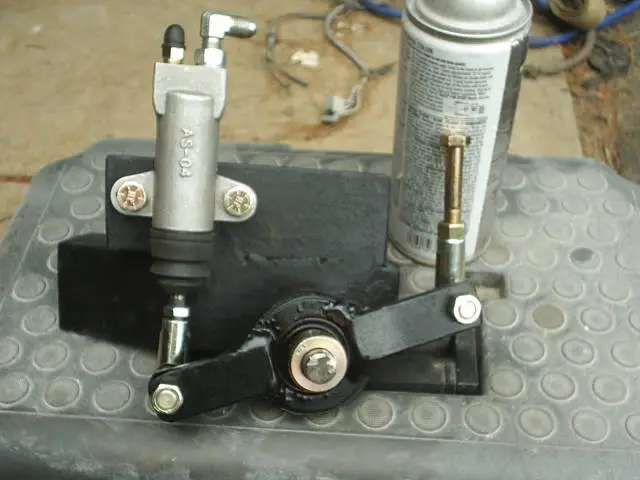

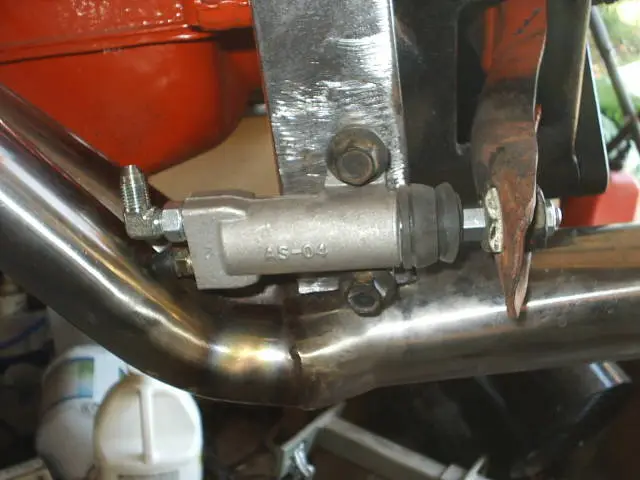

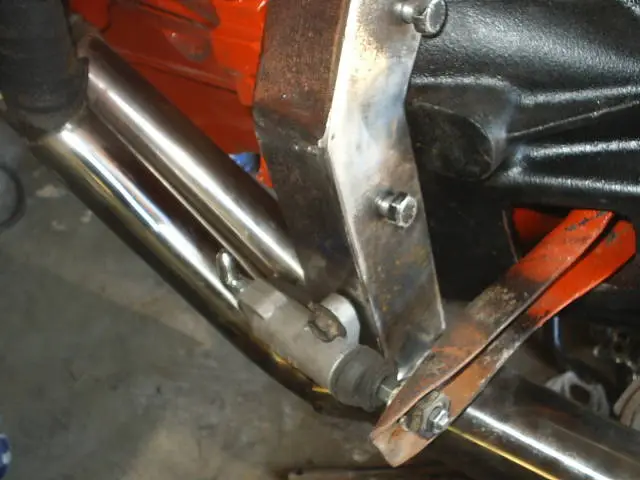

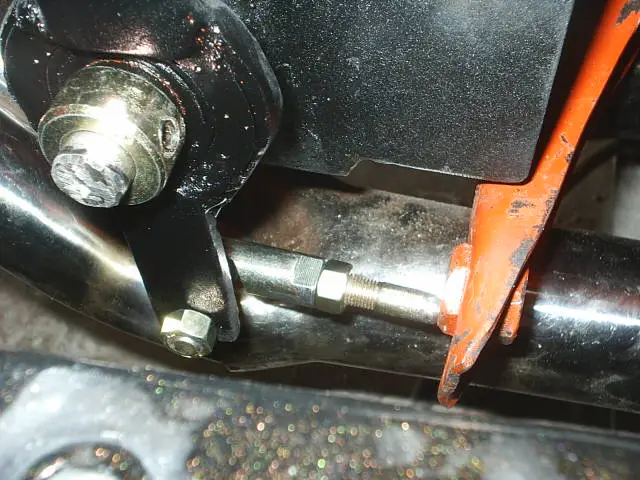

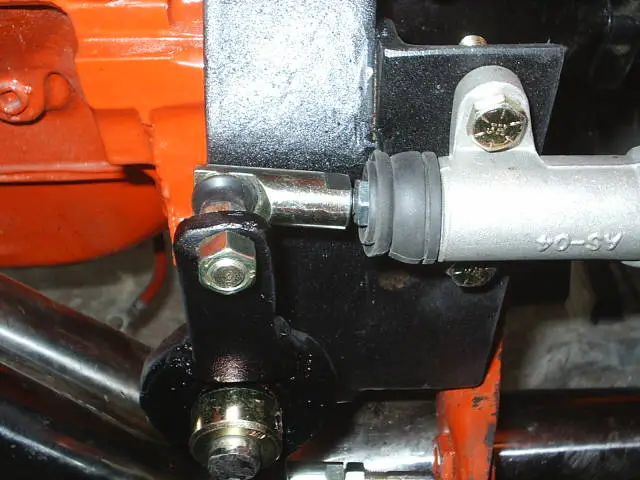

    Here are some pictures of a bracket I fabricated to mount the slave cylinder. Headers as usual made things difficult. I will wrap the headers and make a heat shield next. I will be back to painting this week.
    Do you think my bracket is strong enough? !/4 inch angle. The bracket is not bolted up tight yet. I need some longer bolts.
    Mike







    #14
  15. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 29, 1999
    Messages:
    4,920
    Likes Received:
    322
    Trophy Points:
    163
    Location:
    Wile Coyote's stunt double
    i had to do somthing similar on my 35 ford truck using the same cylinder
    the throw is not quite enough ,i need about a 1/4 inch more . i used the half ball from a 289 rocker for the pivot ball in the clutch release arm, it was a perfect fit. i have a 3/4 bore master cylinder and i am going to change to a 1 inch bore to see if it will throw a bit more it pushes real easy now so the 1 inch bore should not be to much different.

    #15
  16. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8
    horse sence
    This unit has not been tested. I bought it for this aplication so it should work. I cant remember who sold me the kit. It included a cantalever that mounts in the firewall and Included all the linkages to get it hooked up all the way tothe pedal,
    I am concerned with having enough throw. I can adjust my metal braket back and forth by putting washers behind the bracket or taking washers out. Plus the rod adjustment.
    I now have three washers behind the bracket and the throwout bearing is against the presure plate fingers with light pressure.
    I gave a lot of thought to adjustment and I hope I have enough in both directions to find the sweet spot.
    I finished up and am going to install the engine tomarrow. Its ready to plug in the T5 transmission
    Mike









    #16
  17. mllud

    mllud Member

    Joined:
    Mar 11, 2013
    Messages:
    32
    Likes Received:
    1
    Trophy Points:
    8

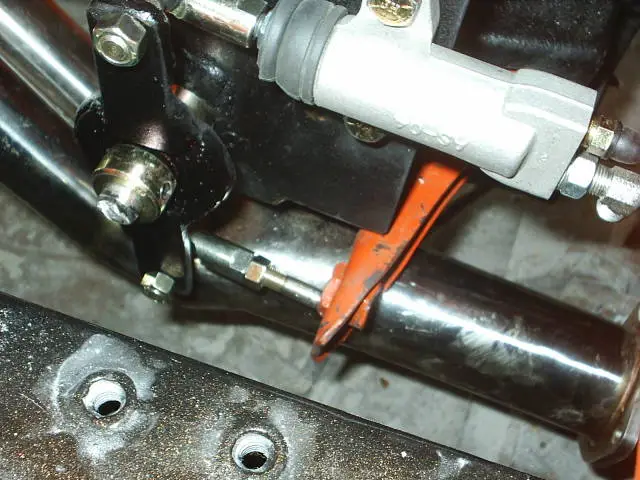

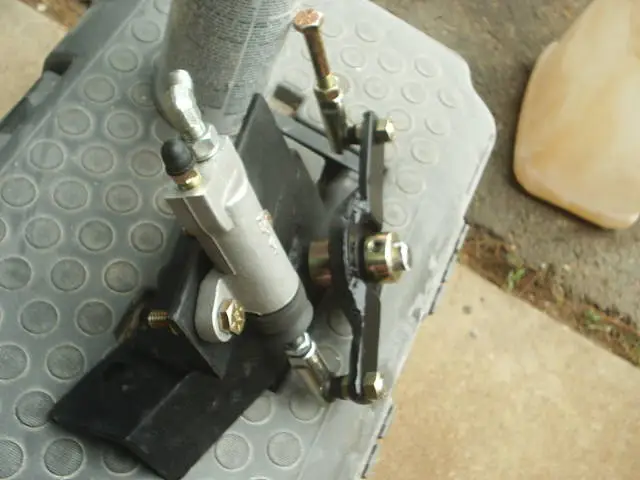

    I felt that the slave cylinder was to close to the exhaust so I made a linkage to get it away. There is very little room between the steering bix and the linkage. The bottom push rod needs to be longer and a round end to fit the clutch fork.
    Mike
