How does a clutch firewall adjuster work?

Discussion in 'Fox 5.0 Mustang Tech' started by TheFleshRocket, Jan 22, 2004.


  1. TheFleshRocket

    TheFleshRocket Founding Member

    Joined:
    Jul 10, 2002
    Messages:
    209
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Southern Ill Annoy
    The previous owner of my Stang said that he installed a firewall clutch adjuster. He has the clutch set to engage all the way near the top of the pedal travel, which I don't like.

    Soo.. a few questions:

    What does the adjuster look like?

    Is it located on the passenger compartment side of the firewall or on the engine side?

    How does the adjuster work?

    I'm assuming that these adjusters all work in the same way. I obviously don't know jack sheet about them, so any and all assistance is appreciated!
  2. jerry beach

    jerry beach Founding Member

    Joined:
    May 20, 2002
    Messages:
    2,670
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Ocala,FL
    Here, look between the AC hose and the brake booster. There is a blue aluminum FWA. You want to turn it clockwise to make you clutch engage closer to the floor. The adjustments are done from the engine side of the firewall.


    Sponsored Ad

  3. TheFleshRocket

    TheFleshRocket Founding Member

    Joined:
    Jul 10, 2002
    Messages:
    209
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Southern Ill Annoy
    Sweet, that helps alot!

    I'll adjust it this afternoon when I install my EBC Greenstuff pads and TriAx shifter.
  4. 91LX302

    91LX302 Founding Member

    Joined:
    Jun 22, 2002
    Messages:
    406
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Boston, MA
    The adjuster should have a small allen screw on the side of the part you want to turn. You have to unscrew it enough so that when you turn the adjuster the cable doesn't turn with it. It can be a pain in the ass to get at and I forget the size but it's small, the allen wrech came with my Steeda kit. Just make sure you tighten it back down before you drive it or it will come out of adjustment. Good Luck :nice:
  5. jerry beach

    jerry beach Founding Member

    Joined:
    May 20, 2002
    Messages:
    2,670
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Ocala,FL
    Thats funny, I have the steeda kit, no allen screw. Must be a new thing. Been nearly 2yrs I would guess since I bought mine. It says to apply a dab of grease to the threads so it doesnt move. Mine doesnt move, I think I sprayed it with white lithium. I drowned my cable in that stuff for hours while I was getting the old quad out.
  6. 91LX302

    91LX302 Founding Member

    Joined:
    Jun 22, 2002
    Messages:
    406
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Boston, MA
    must be a new design, got mine this past summer.

    [​IMG]
  7. OonDeanisS

    OonDeanisS Founding Member

    Joined:
    Jun 16, 2002
    Messages:
    891
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Danbury, CT
    i just got the UPR one and it is like that pic, but has a square base about a third of an inch thick with 3 holes in it plus the large hole thats tapped, with the screw part going into that with an extra loose circle disk nut to lock it in place so it can lock the attached one and bolt part in place. The circle goes up against the clutch, and that one has an allen screw in it.
  8. MSM0075

    MSM0075 Member

    Joined:
    May 14, 2003
    Messages:
    749
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Central Jersey
    I installed on my '82GT. Looked just like that picture but silver and did no include the 'allen' screw option..I don't know what compnay It is since my dad picked it out.
  9. TheFleshRocket

    TheFleshRocket Founding Member

    Joined:
    Jul 10, 2002
    Messages:
    209
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Southern Ill Annoy

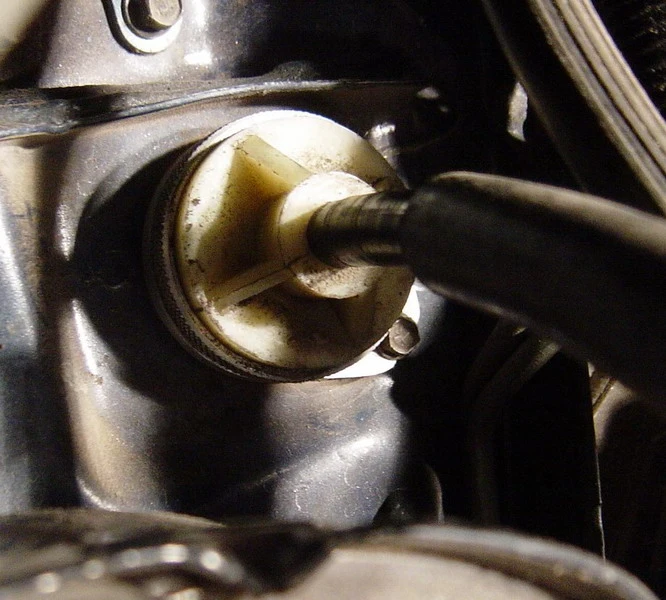

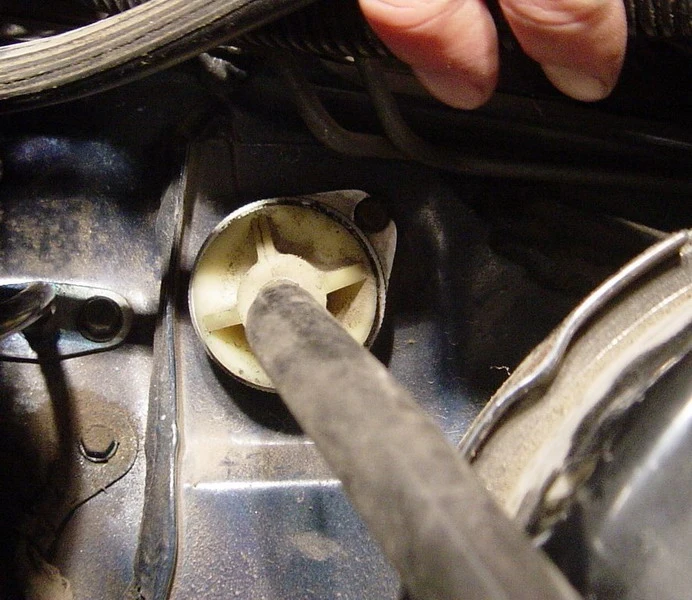

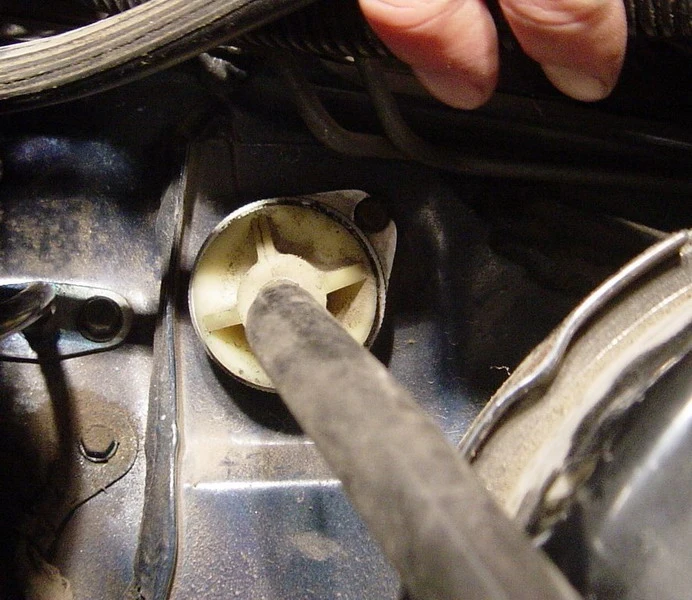

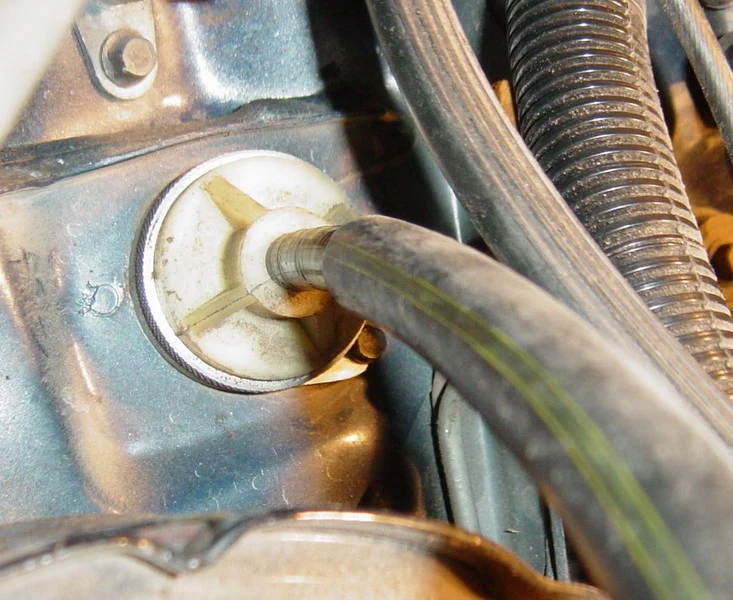

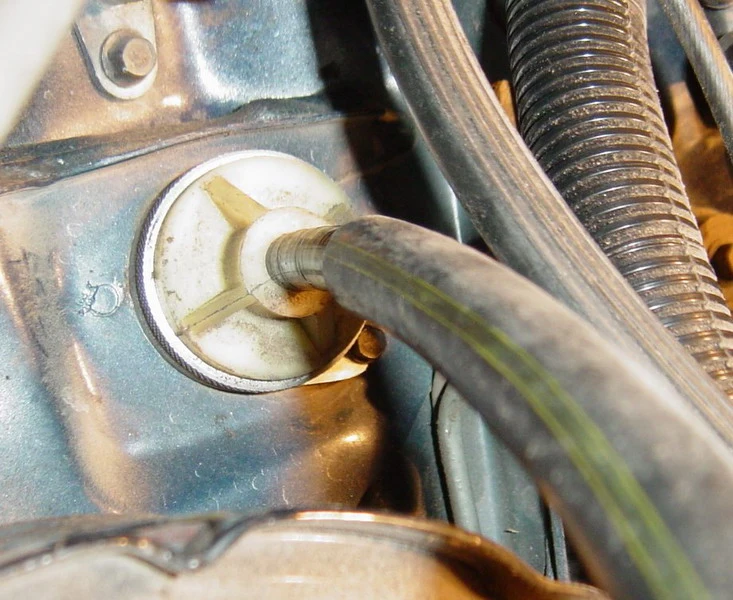

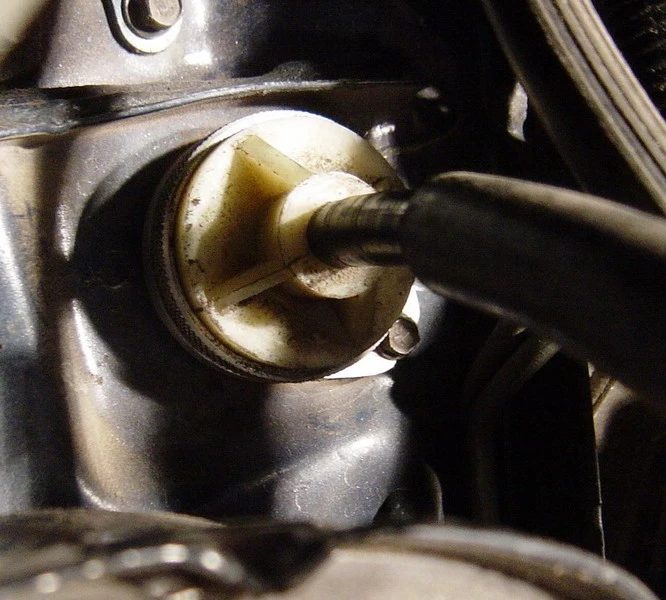

    Okay, I got in there and found my adjuster. Except I can't figure out how to adjust it. There's one tiny little nut on it, which is so close to the part that turns that I can't get a socket in there. I was able to move the part that turns a little to the left or right but it moves back to its position as soon as I let it go. The cable moves with the part that turns too.

    Has anyone seen this kind of adjuster and can tell me what I'm supposed to do with it?

    [​IMG]
    [​IMG]
    [​IMG]

    And for the life of me, I can't figure out why those links won't display as pictures. :mad:
  10. bgjohnson

    bgjohnson Founding Member

    Joined:
    Sep 2, 2002
    Messages:
    965
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    johnston,iowa
    you might have to hold the cable in place turn the lock ring counter clockwise then turn the bigger part clockwise or which ever way you need to adjust it.
  11. maverick0716

    maverick0716 Founding Member

    Joined:
    Jan 13, 2002
    Messages:
    3,949
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chilliwack, BC, Canada
    Fleshrocket - That looks like a stock clutch cable/firewall bracket to me.
  12. Stump1000

    Stump1000 New Member

    Joined:
    Apr 5, 2003
    Messages:
    505
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Morristown Tn
    I think its an adjuster its just screwed all the way in... just loosen it up
  13. OonDeanisS

    OonDeanisS Founding Member

    Joined:
    Jun 16, 2002
    Messages:
    891
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Danbury, CT

    So if its all the way in it should be closer to the floor? I just put mine in and it engaged all the way up, and i cant get it to engage closer to the floor, so i tried opening it up(counterclockwise) and that didnt seem to even change it. If thats all the way in and it still engages high, should i loosen or tighten the bolt on the tranny fork?? :shrug:
  14. jerry beach

    jerry beach Founding Member

    Joined:
    May 20, 2002
    Messages:
    2,670
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Ocala,FL
    Loosen the adj. nut at the fork. If thats not possible, or if its easier, you may want to choose a hook on the quadrant thats closer to the firewall. That should get your engagement point closer to the floor.
  15. OonDeanisS

    OonDeanisS Founding Member

    Joined:
    Jun 16, 2002
    Messages:
    891
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Danbury, CT
    oh thanks, i dont think its a double hook quadrant though
  16. TheFleshRocket

    TheFleshRocket Founding Member

    Joined:
    Jul 10, 2002
    Messages:
    209
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Southern Ill Annoy
    Ahhh okay. I could've sworn the previous owner said he put an aftermarket one in there but I guess not.

    So how do I go about adjusting the clutch engagement then? Thanks!
  17. maverick0716

    maverick0716 Founding Member

    Joined:
    Jan 13, 2002
    Messages:
    3,949
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chilliwack, BC, Canada
    I'm not 100% on that so I may be wrong.....I'll have to go check my stock one.
  18. bgjohnson

    bgjohnson Founding Member

    Joined:
    Sep 2, 2002
    Messages:
    965
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    johnston,iowa
    you pull it the clutch pedal towards you and push in like 5-10 times, but that only corrects it if it's out of adjustment.
  19. TheFleshRocket

    TheFleshRocket Founding Member

    Joined:
    Jul 10, 2002
    Messages:
    209
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Southern Ill Annoy
    I hate to sound dumb, but I don't understand what you mean.

    I'm pretty sure I must have to do something with the adjuster on the firewall. How will pushing on the clutch help if I don't mess with the adjuster itself?
  20. ironmedic

    ironmedic New Member

    Joined:
    Mar 18, 2003
    Messages:
    1,366
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Puyallup, WA
    that is a weird looking adjuster...i dont even think it has one!
    if you want to adjust it a different way, chase the cable down to the transmission and remove the fork cover that it goes into. from there take some wrenches and break the locking nut and back if off some. then start playing with the other nut.
