Name This Plug

[srtthis]

its on the passanger side with the MAF and HEGO plugs.
http://www.veryuseful.com/mustang/tech/engine/images/mustangMainHarness.gif
the Tmoss site has the fuel pump as pink/black blue/orange green/yellow red
mines white/blue black/yellow orange/blue red
AC WOT shut off is 3 wire so thats not it

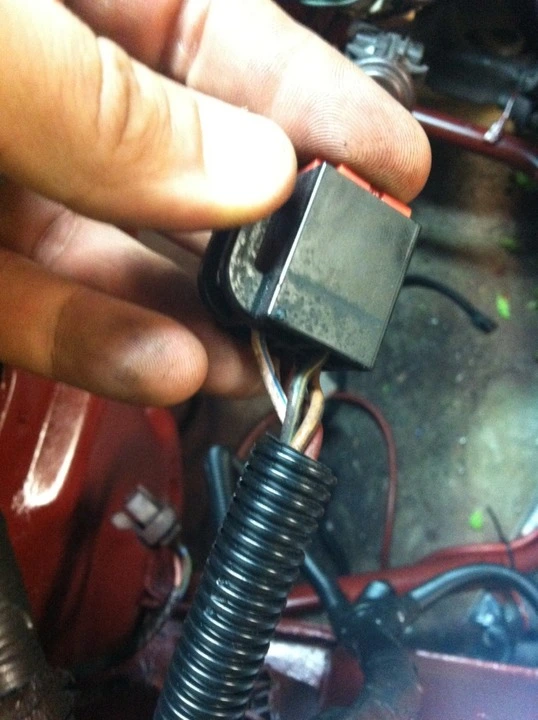

my harness

​



[Mr. Rustypwnz]

if its a 93, its the fuel pump relay plug.



[jcgafford]

only two possibly there are the WOT and the fuel relay....



[srtthis]

if its a 93, its the fuel pump relay plug.

cars an 88 no idea what year the harness is

only two possibly there are the WOT and the fuel relay....

fuel pump is the only 4 wire of those 2 but colors dont match



[jcgafford]

pull the relay and turn the key. no fuel pump prime and theres your answer.



[srtthis]

pull the relay and turn the key. no fuel pump prime and theres your answer.

only issue there is the fact i have everything apart



[jcgafford]

quick search and it looks like your fuel relay might actually be under the seat, WOT then? MY 92 WOT is four wire if i remember correctly...



[stykthyn]

You're all wrong. Flux capacitor plugs into that. Sheesh.



[jcgafford]

You're all wrong. Flux capacitor plugs into that. Sheesh.

19"88" Mustang. 88mph... damn He's right!



[stykthyn]

If my calculations are correct when that baby hits 88mph you're going to see some serious



[srtthis]

quick search and it looks like your fuel relay might actually be under the seat, WOT then? MY 92 WOT is four wire if i remember correctly...

i do have a relay under my seat... well under my carpet since i didnt cut that hole out

i guess i really need to get everything back together and see doesnt work with out it



[wht93gtEd]

Not that I'm helping in any shape or form, but doing the AOD to T5 swap in my 93, only 1 of the wire colors matched the diagram for the AOD reverse light/nss plug.

I had found this:
http://www.myrestomodmustang.com/articles/AOD_NSS/aod_nss_harness.html

Which showed which pins corresponded to which wire and was able to go by that. But the actual wiring on the car did not match what was "supposed" to be there.

Ok, not that I'm done not helping, continue on.



[Saleen0679]

The WOT relay has four wires and from the parts of the wires I can see those are a real close match.
