Drivetrain Pictorial Guide To Odometer Gear Replacement

Discussion in '1994 - 1995 Specific Tech' started by Jinx, Jan 3, 2006.


  1. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,587
    Showcase:
    2
    Albums:
    1
    Likes Received:
    1,985
    Trophy Points:
    173
    Location:
    Cat Country

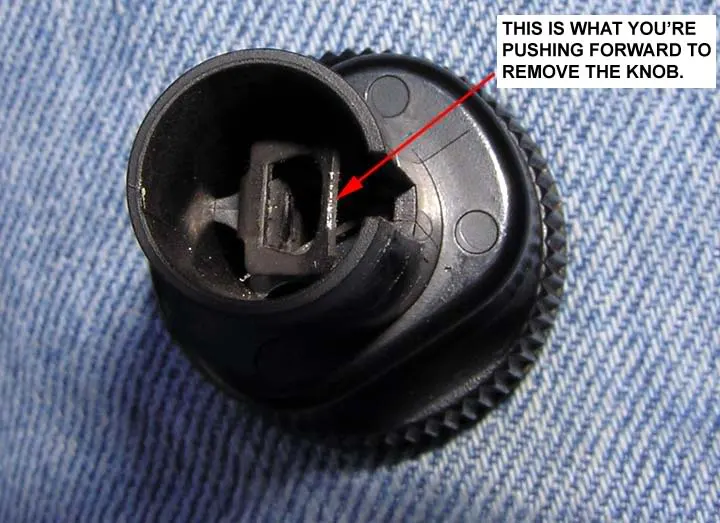

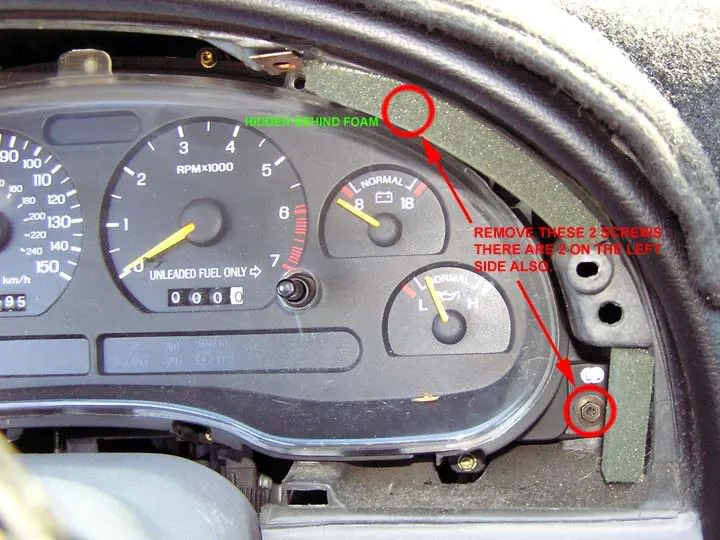

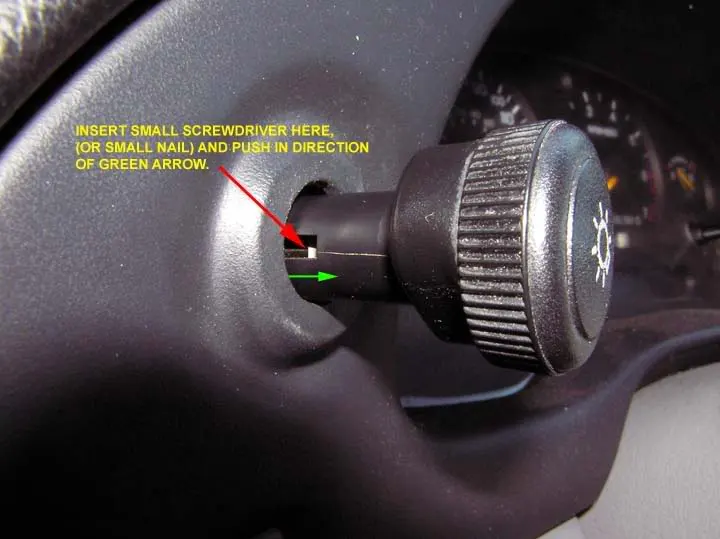

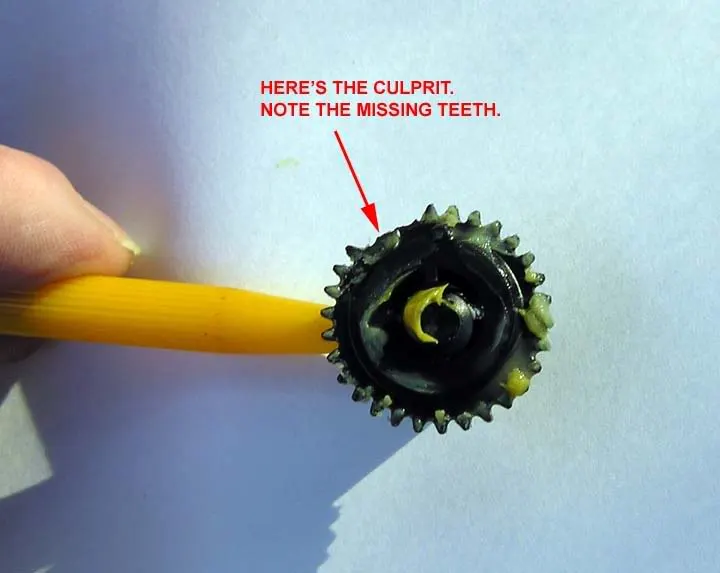

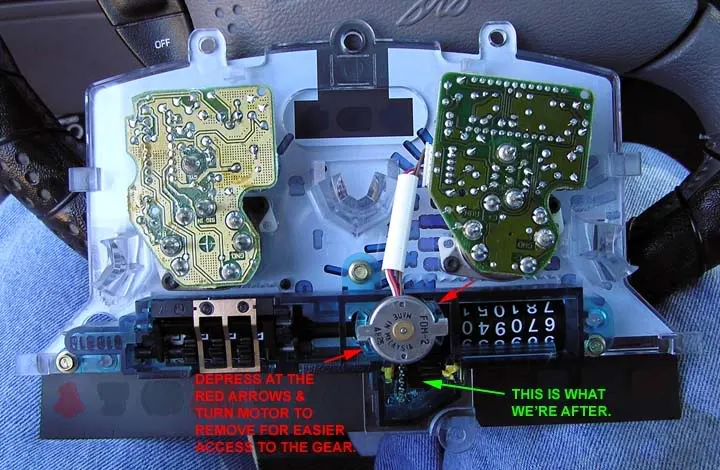

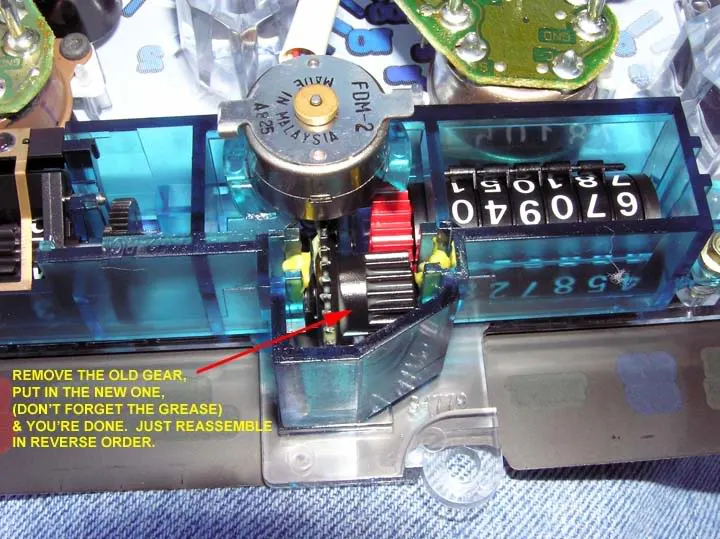

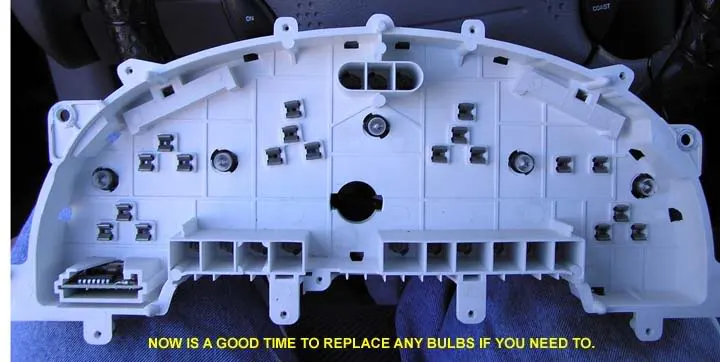

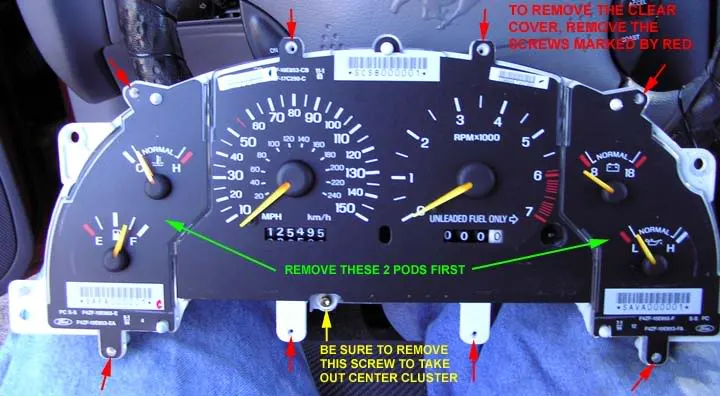

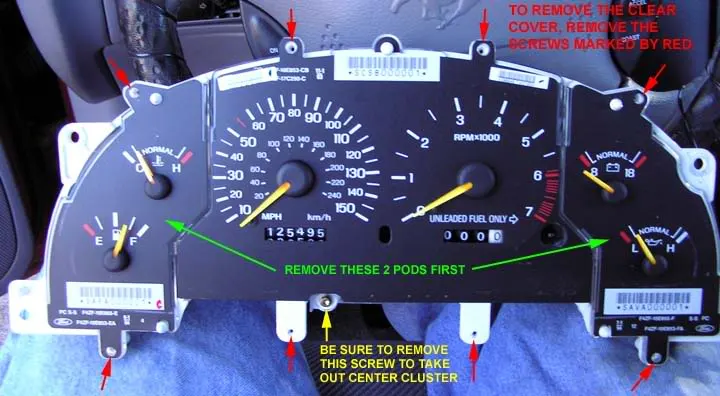

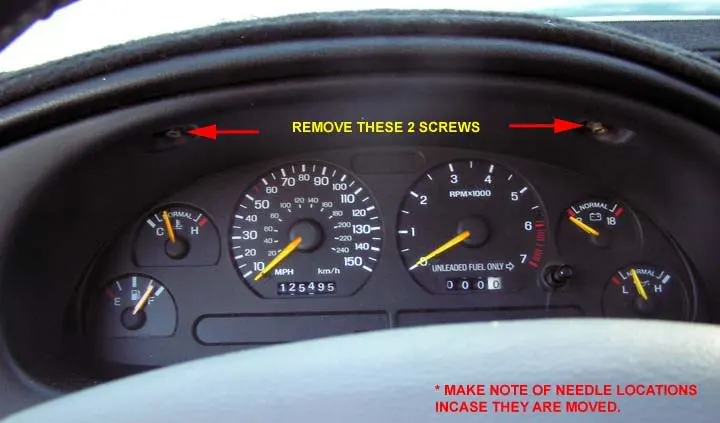

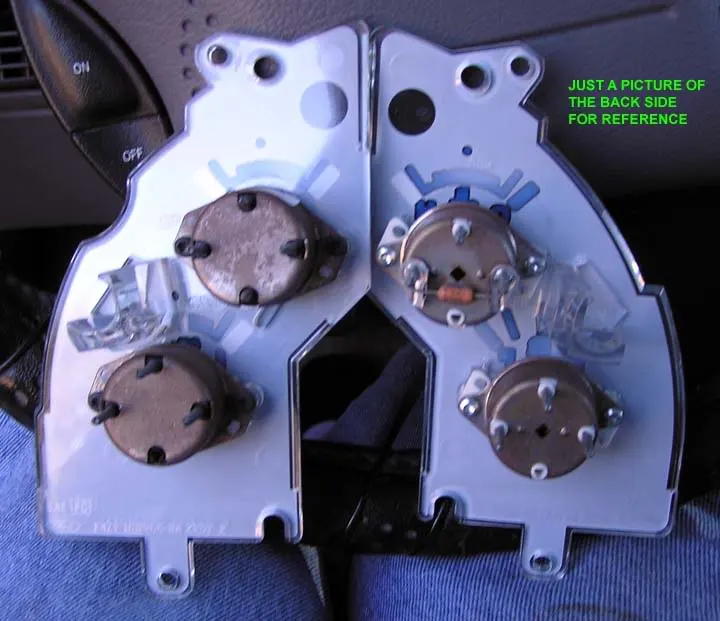

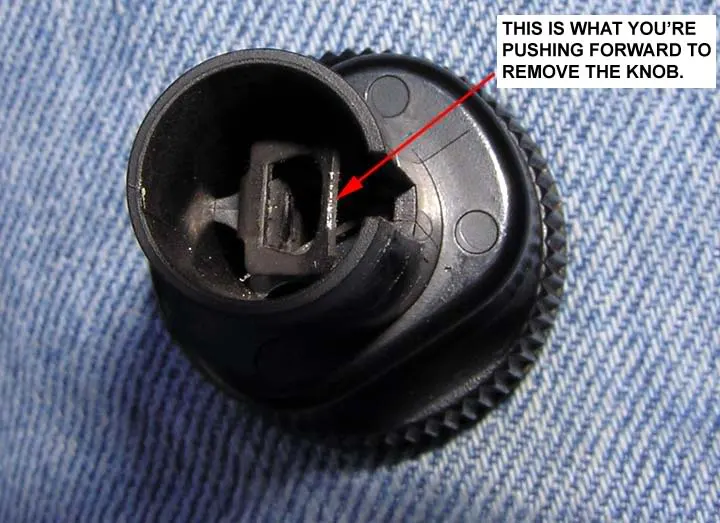

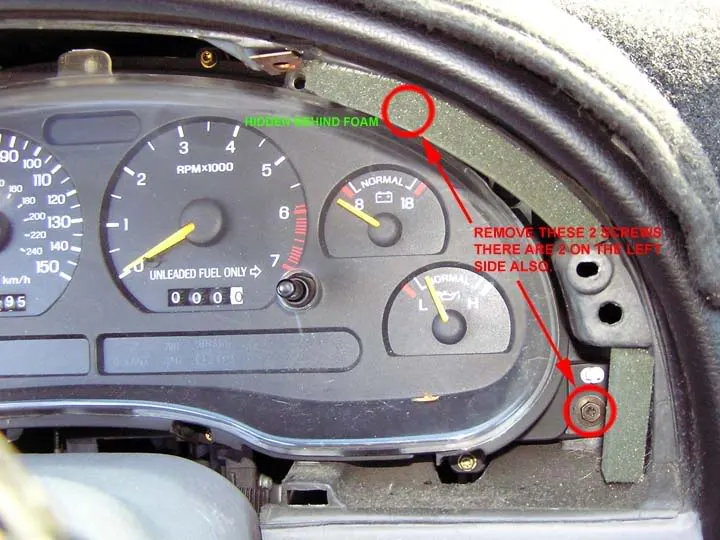

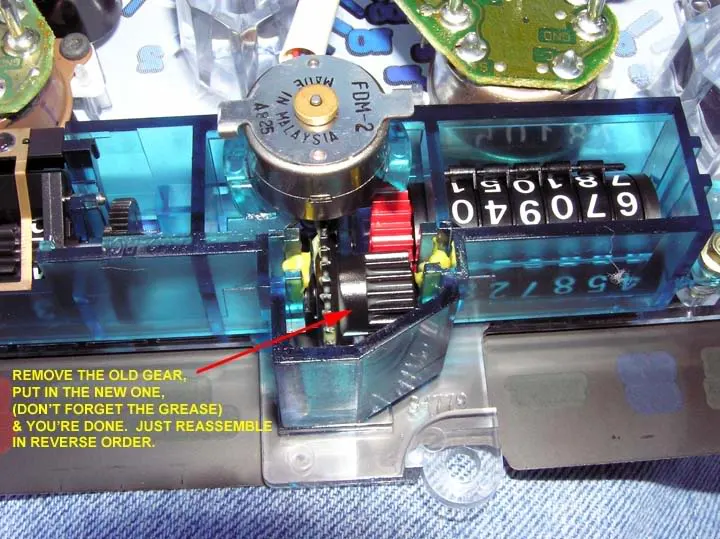

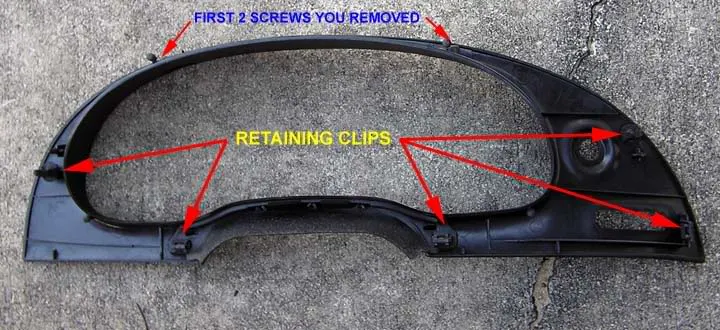

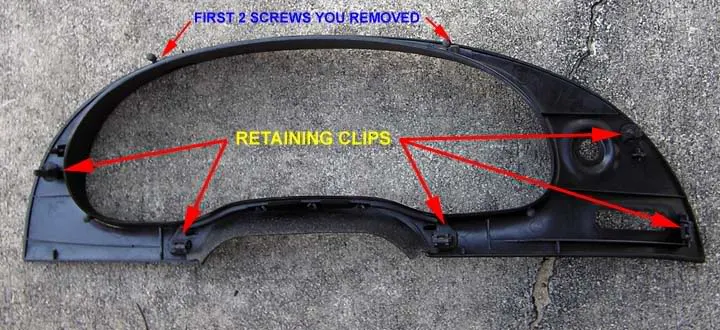

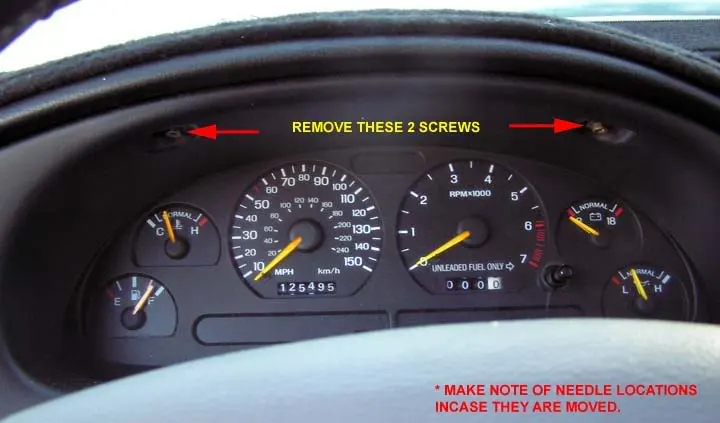

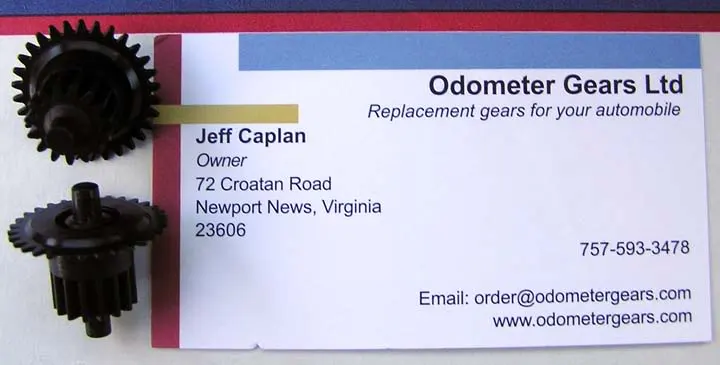

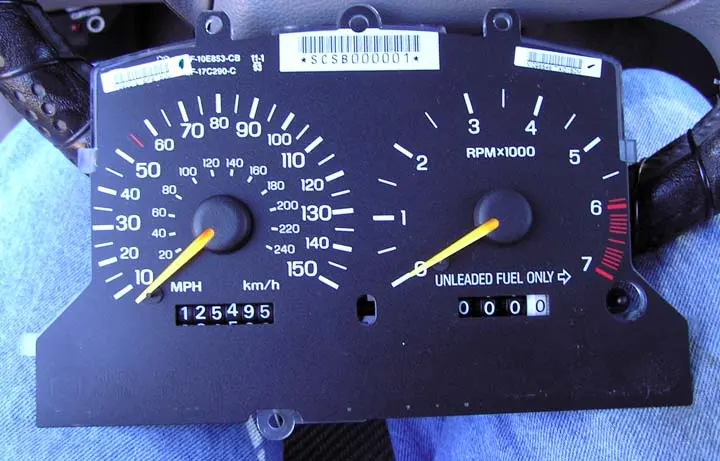

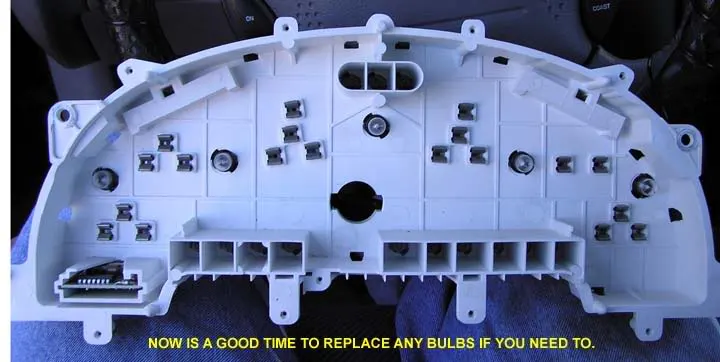

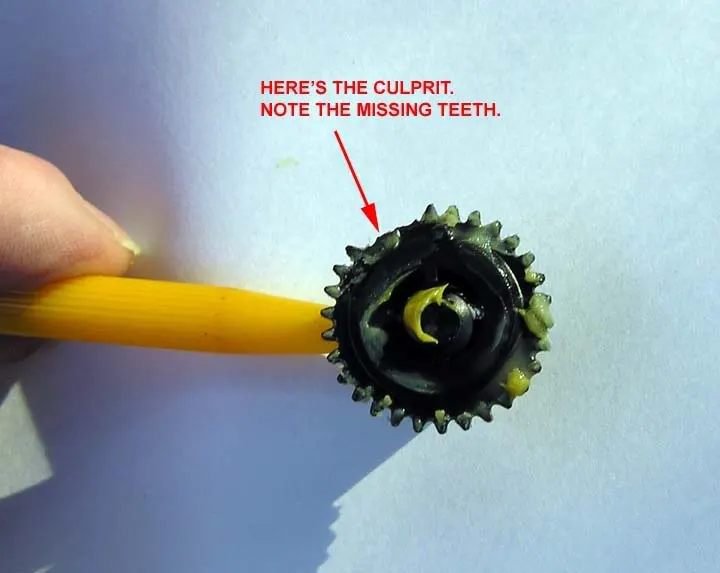

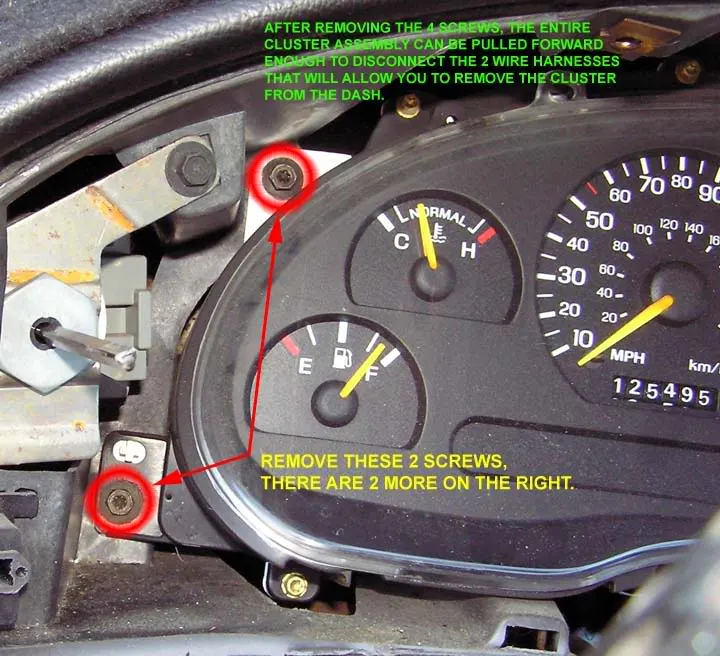

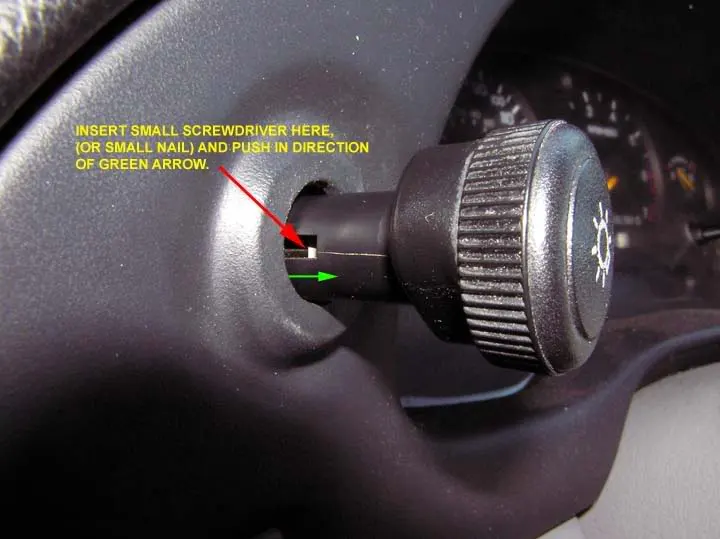

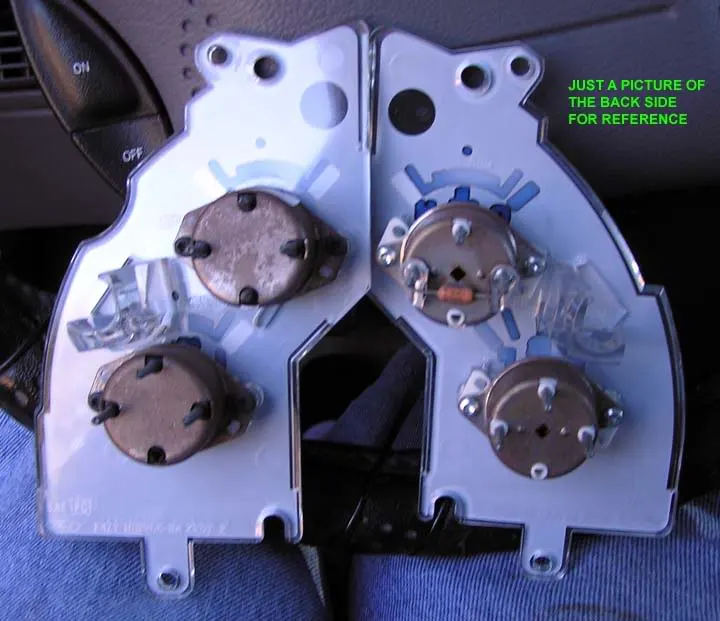

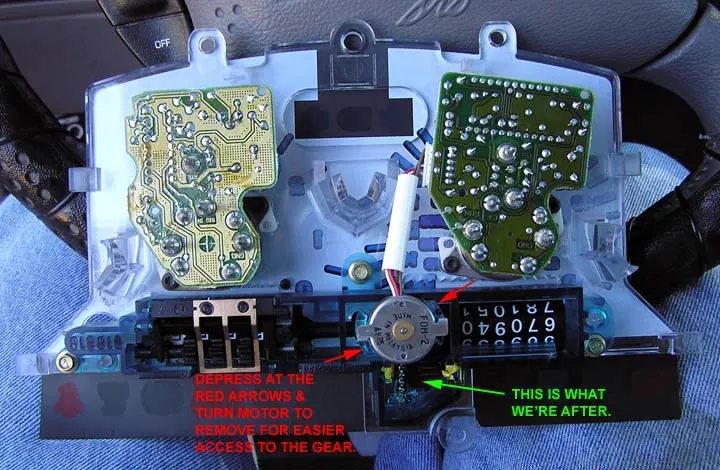

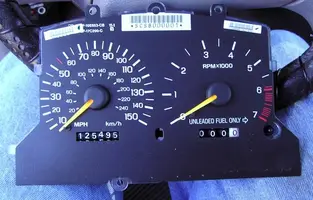

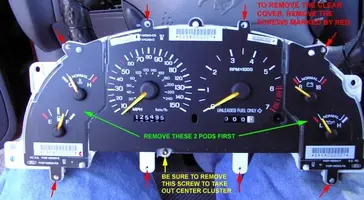

    I replaced my Moms during the Holiday break and took pictures to help others.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    [​IMG]

    #1
    aar0s and mrbigapetoe like this.
  2. zZsKyZz

    zZsKyZz Member

    Joined:
    Dec 1, 2005
    Messages:
    497
    Likes Received:
    0
    Trophy Points:
    17
    This is what I need to do if i switch to 4.10's or other rear gears.. Correct?

    #2
  3. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,587
    Showcase:
    2
    Albums:
    1
    Likes Received:
    1,985
    Trophy Points:
    173
    Location:
    Cat Country
    No. This is for replacing the gear when the Odometer stops functioning. What you need is to replace the gearing (usually in the transmission housing) to correct your speedometer and odometer.

    #3
  4. blk9450

    blk9450 Founding Member

    Joined:
    Jan 31, 2002
    Messages:
    1,508
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    your moms bed

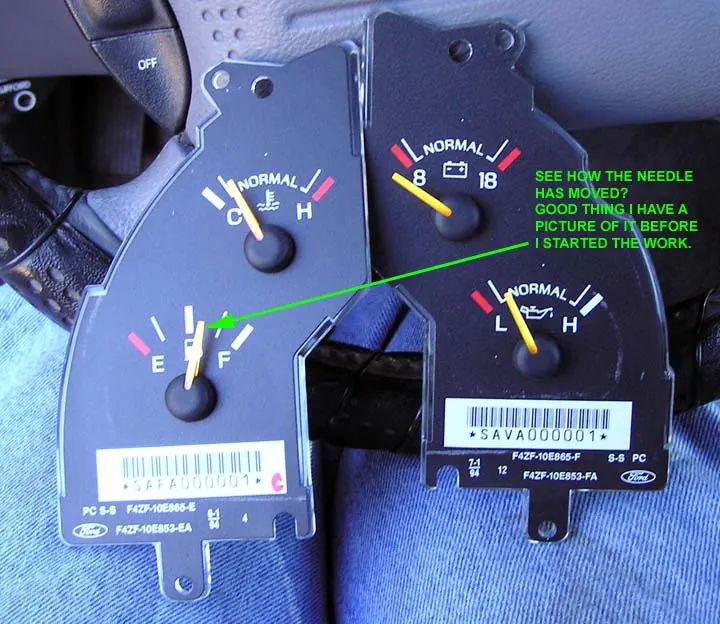

    you do not need to worry about the needle placement unless you physically pull the needles off their shafts. they reset themselves

    #4
  5. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,587
    Showcase:
    2
    Albums:
    1
    Likes Received:
    1,985
    Trophy Points:
    173
    Location:
    Cat Country
    Good point, this is true.:nice: I was not sure if it was (so I took pictures), but after putting it all back together and reconnecting the battery, the needles did reset themselves to the correct position.

    #5
  6. 94GTLaserRC

    94GTLaserRC Squint as you approach, lest you be blinded by my

    Joined:
    May 7, 2002
    Messages:
    11,187
    Likes Received:
    8
    Trophy Points:
    79
    Location:
    Ernan Says "here it comes... dushbag"
    :Word:

    And you shouldnt need to...MOst of the aftermarket gauges are made to slide over those.

    RC

    #6
  7. wytstang

    wytstang Mustang Master

    Joined:
    Mar 14, 2004
    Messages:
    5,150
    Likes Received:
    1
    Trophy Points:
    78
    Location:
    Summerville,SC missing South Fl. weather :(
    Awesome write thank you :flag:

    #7
  8. The Green GT

    The Green GT No 13 year olds are safe around me.

    Joined:
    Jan 8, 2006
    Messages:
    3,534
    Likes Received:
    7
    Trophy Points:
    69
    Location:
    Louisiana
    Bookedmarked cause i will need this soon. Thanks. :nice:

    #8
  9. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,587
    Showcase:
    2
    Albums:
    1
    Likes Received:
    1,985
    Trophy Points:
    173
    Location:
    Cat Country
    Your all welcome. I saw a lot of post on this topic when I was getting ready to replace my Mom's, and I thought it would be great to show what was going on. As you know... A picture is worth 1,000 words, and I thought this would be able to help alot of people. :D

    #9
  10. Green 94 5.0

    Green 94 5.0 Founding Member

    Joined:
    Mar 25, 2002
    Messages:
    2,596
    Likes Received:
    6
    Trophy Points:
    49
    Location:
    Ft. Lauderdale, FL
    this should be added to the sticky up top. think you can merge the how to part of this thread with the how-to thread joe?

    #10
  11. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,587
    Showcase:
    2
    Albums:
    1
    Likes Received:
    1,985
    Trophy Points:
    173
    Location:
    Cat Country
    I did a while back. It's a link to this post :nice:

    #11
  12. blue302stang

    blue302stang New Member

    Joined:
    Jan 23, 2006
    Messages:
    61
    Likes Received:
    0
    Trophy Points:
    0
    would something like this work on the fox mustangs too, i have tried to fic everything and my speedo and odometer are still off

    #12
  13. Blackened302

    Blackened302 New Member

    Joined:
    Jul 21, 2005
    Messages:
    1,477
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    McAllen, South TX
    that is freakin awesome, man! thanks!!!!

    #13
  14. urban96

    urban96 bubb rubb says:"woo woooooo" Founding Member

    Joined:
    Sep 25, 2002
    Messages:
    4,234
    Likes Received:
    1
    Trophy Points:
    69
    Location:
    Syracuse, NY
    my trip stopped working (stays at 0) but my mileage still works. any harm in that?

    #14
  15. 99FiveOh

    99FiveOh Advanced Member

    Joined:
    May 21, 2006
    Messages:
    2,175
    Likes Received:
    49
    Trophy Points:
    69
    Location:
    J-Ville, FL
    Very good info here, thanks! I'll be doing this soon myself.

    #15
  16. timeless2

    timeless2 Vi Veri Veni Versum Vicus Vici Admin Dude

    Joined:
    Nov 30, 1999
    Messages:
    10,314
    Likes Received:
    96
    Trophy Points:
    89
    Location:
    the Shadow Gallery
    I had to do this on my '95 Cobra. 'Twas a PITA working on such small parts.

    Jinx, you should link to this in the tech sticky in here. Nice job. :)

    #16
  17. Leezure

    Leezure New Member

    Joined:
    May 10, 2005
    Messages:
    104
    Likes Received:
    0
    Trophy Points:
    0
    Phenomenal write up! The pictures are great and can be used for anything gauge related. I wish this was here before I tore into mine!

    Nice Job!

    #17
  18. Jinx

    Jinx I like cats. Cats like me. Cats & I fully agree Cat Lover

    Joined:
    Oct 2, 2003
    Messages:
    9,587
    Showcase:
    2
    Albums:
    1
    Likes Received:
    1,985
    Trophy Points:
    173
    Location:
    Cat Country
    I don't see any harm in it, But if your like me and want everything working like it should... I can see a cluster repair in your future. :D

    I could not find this information when I did mine and decided to do a write-up myself. Not bad for my first one either :cool:

    #18
  19. Bugman.dave

    Bugman.dave Founding Member

    Joined:
    Apr 1, 2001
    Messages:
    321
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Ottawa, Canada
    I think the Mustang has created more technical writers than any other vehicle!

    #19
  20. 89 blue lx

    89 blue lx Founding Member

    Joined:
    Nov 18, 2001
    Messages:
    1,959
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    FSU in tallahassee GO SEMINOLES!
    can you get this gear at a discount or autozone?

    #20
