Picture of Engine Request

Discussion in 'Mustang II' started by 76_Cobra_II, Feb 22, 2004.

  1. 76_Cobra_II New Member

    Member Since:
    Dec 27, 2003
    Message Count:
    189
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Clayton, NC
    Could someone send me a picture of what their 302 looks like right around the Carb area? I specifically need to see the throttle linkage and carb area around where the throttle spring is attached near the rear (firewall area) of the engine.
    76_Cobra_II, Feb 22, 2004
    #1

  2. Stang 78 New Member

    Member Since:
    Jan 24, 2003
    Message Count:
    23
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Québec
    Check your PM
    Stang 78, Feb 23, 2004
    #2

  3. COBRA 7 Founding Member

    Member Since:
    May 19, 2000
    Message Count:
    445
    Likes Received:
    1
    Trophy Points:
    18
    Location:
    Bangor, Maine
    My throttle return spring is made onto the throttle cable.
    COBRA 7, Feb 23, 2004
    #3

  4. 76_Cobra_II New Member

    Member Since:
    Dec 27, 2003
    Message Count:
    189
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Clayton, NC
    Let me post what I have....Cause it looks different from y'alls pics!

    Attached Files:

    76_Cobra_II, Feb 23, 2004
    #4

  5. danimaltheanima New Member

    Member Since:
    Dec 4, 2003
    Message Count:
    181
    Likes Received:
    0
    Trophy Points:
    0
    probably looks differant cuz most guys are probably using Holley Dbl pumpers. I C you aren't using a kick down (bar) cable either. Looks like an awfully small carb your runnin to me.
    danimaltheanima, Feb 28, 2004
    #5

  6. 76_Cobra_II New Member

    Member Since:
    Dec 27, 2003
    Message Count:
    189
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Clayton, NC
    Its an Edelbrock 4bbl carb. I dont know what cfm though! Could this be solved pretty easily? I am still learning about the V8's. Thanks for the help, and remember pictures and Drawings will help ALOT!
    76_Cobra_II, Feb 29, 2004
    #6

  7. welder4956 Member

    Member Since:
    Nov 29, 2003
    Message Count:
    179
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Birmingham, AL

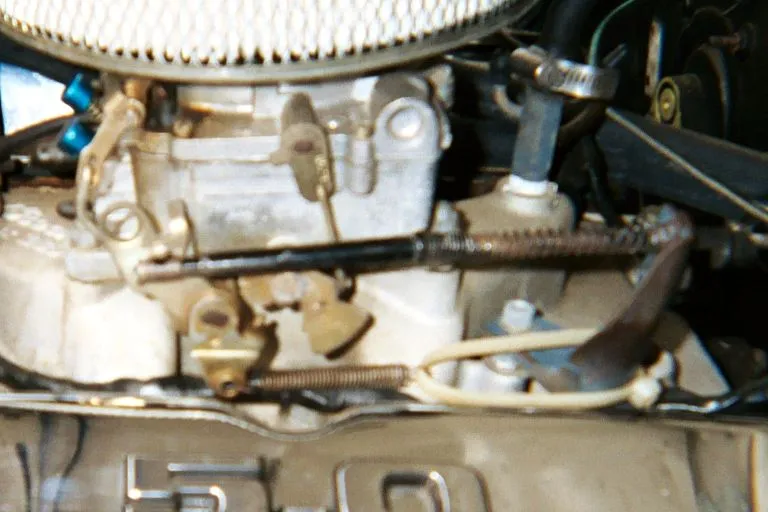

    Here's what mine looks like:
    welder4956, Mar 1, 2004
    #7
