    Replacing a Heater core 56k warning!

    Alright so here it is as per Daggars request. The entire breakdown of heater core installation. Before I start, I will say that there is a lot of talk about this process taking about 10 hours. This is totally false. Some of this info is sourced from a real good mag that I picked up, but as long you know where all of the screws are, it's a breeze. I'm working with a roller, but if you have a motor with a/c, lines have to be disconnected. I just finished and the whole deal took me about an hour and a half. The cluster was already out when I got the car, but there was still plenty to do. If you want to get real technical, let's call it two hours and that's only because my house is in the path of the sun and I kept getting paper towels and lemonade. Also, I had to memorize where the screws went so that I could ensure that they all went back in their proper place (so you may get a chance to beat my time). If there is anything that you find unclear, PM me and let me know so that I can make the changes.

    Here are the tools that were used:
    Torx and Philips Screwdriver - The majority of this process involves these two main tools
    Wrench set.

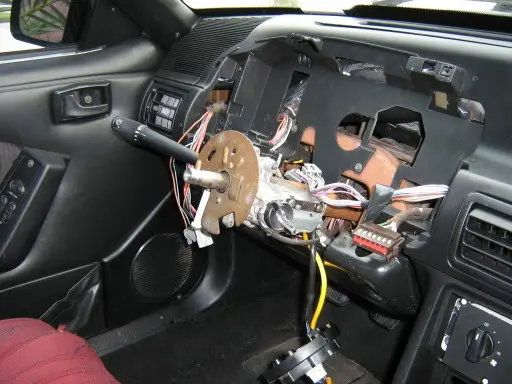

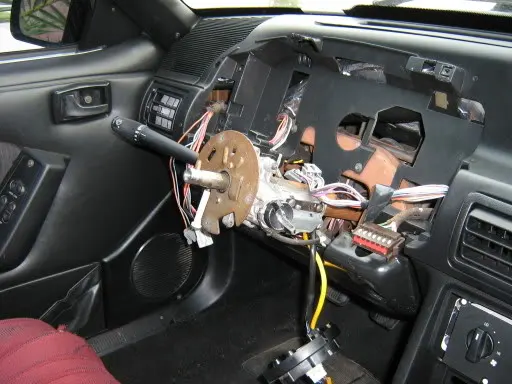

    First things first. Disconnect the battery. You have to break down the cluster and all of the dash controls. You don't have to remove the steering wheel. I'm putting a Grant Wheel in. However, you do have to drop the steering column about an inch. There are four easy to find bolts in the column path that will help you acheive this. Don't take the bolts out. Just loosen.
    [​IMG]

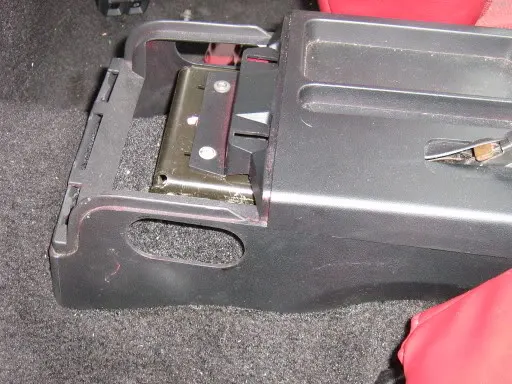

    Once that's done, it's time to bust down the center console. Start by removing the four bolts that hold the armrest in place. It'll slide right out. I'll add that it is a heavy piece. I see an armrest delete in my future.
    [​IMG]

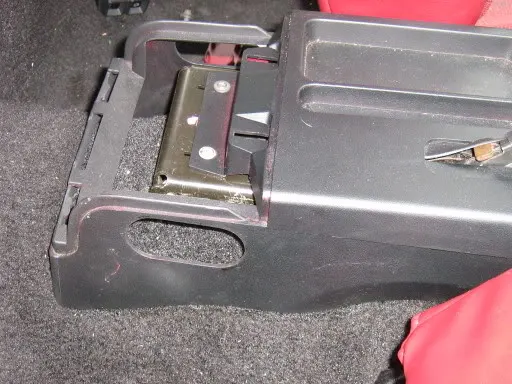

    Next is the Ashtray/E-brake cover. 6 Philips screws hold it in place. 2 in the rear and four in the front.
    [​IMG]

    Now, you can disconnect the cables for the lighter and the mirror switch.
    [​IMG]

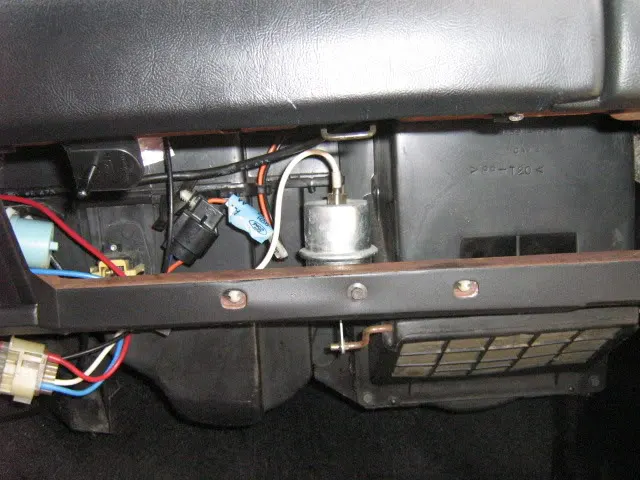

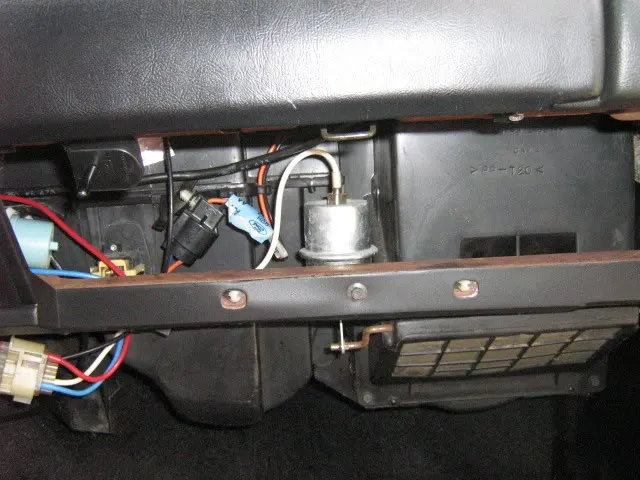

    Before you can go any futher, you have to remove the glovebox and you'll see why in a sec. Two torx screws on the underside hold it in place.
    [​IMG]

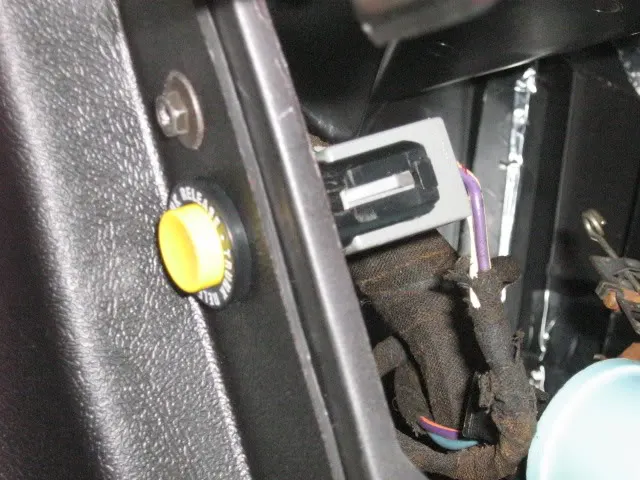

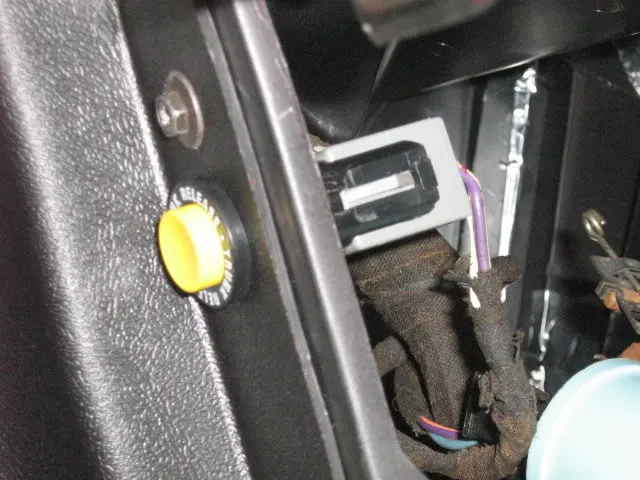

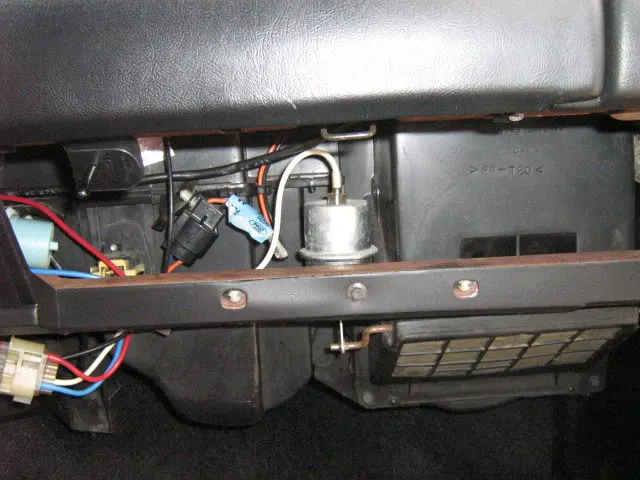

    Now that it's out, you can clearly see the hatch release switch (and gas door switch if you have it). The wire have to be disconnected. Notice the torx screw above the button. That has to come out along with the one below it. There are two more on the drivers side just like it.
    [​IMG]

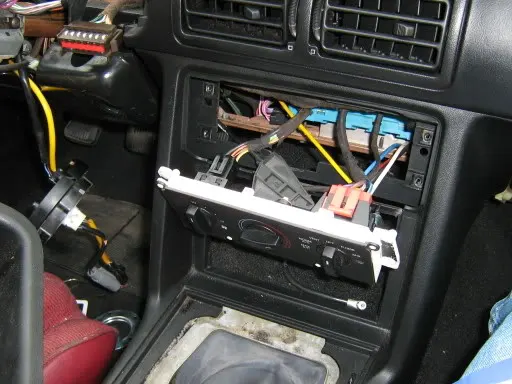

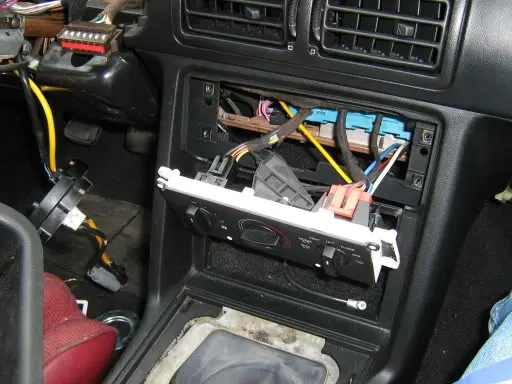

    Next, take out the stereo and the loosen the A/C control unit. The is no need to remove it, but be mindful of the vacuum lines attatched to it.
    [​IMG]

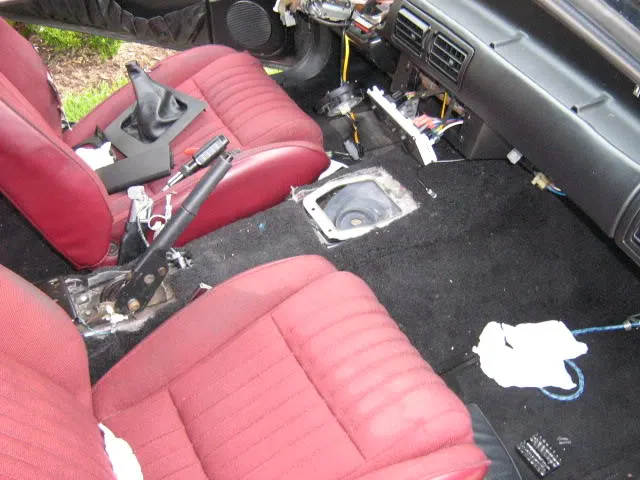

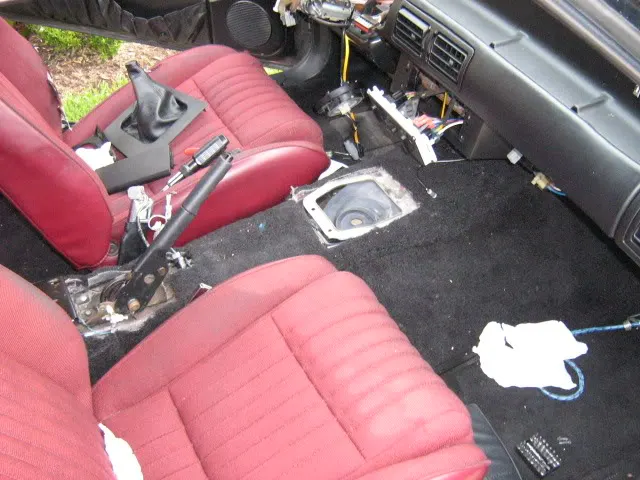

    Two more bolts at back of the console and finally, it can come out. Be careful. It's very light and fragile plastic. HANDLE WITH CARE!!! OR BE :owned:
    [​IMG]

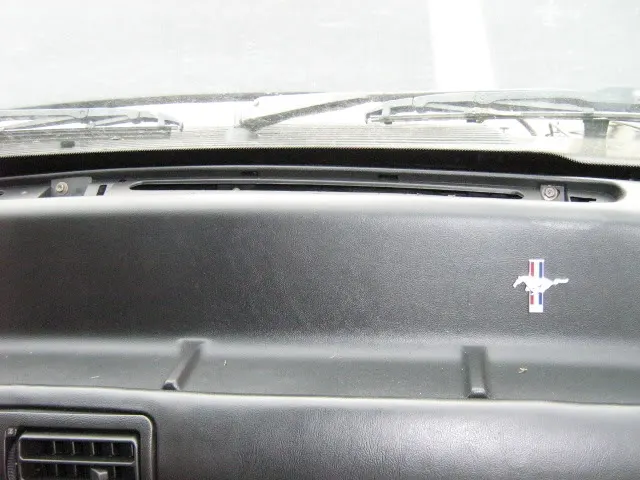

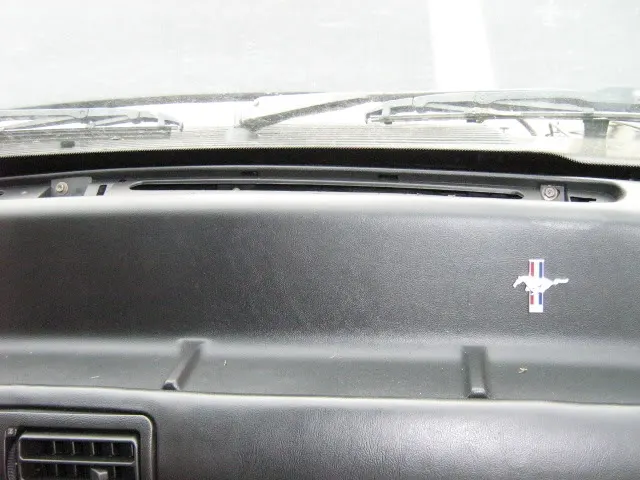

    Now we can dive into the dash.....I mean remove more screws to get the damn dash out. :bang: If it hasn't occured to you already, the dash speaker grills gotta go. Those screws can be found on the side of the dash. If your sitting in the seat (get of your lazy arse!!!! lol ), you should have easy access to the Windshield defog air vent. Pop that out and yup, you guessed it. More torx screws.
    [​IMG]

    Note: As I mentioned earlier, a lot of this info can be found in a Tech Article in Mustang Monthly. They did a great job of documenting, but to save space, they omitted some info about locations of particular screw. This may be in part to the fact that they are for the most part, dead in front of you. But those who may be more near sighted than I am, the next few pics cover those screws in depth. Most of them are on the drivers side:

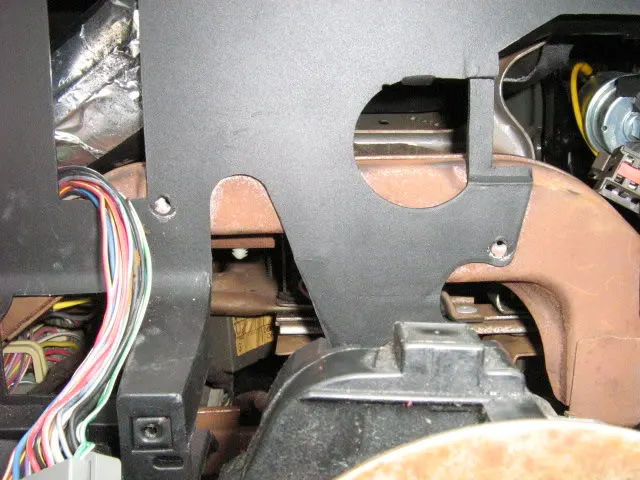

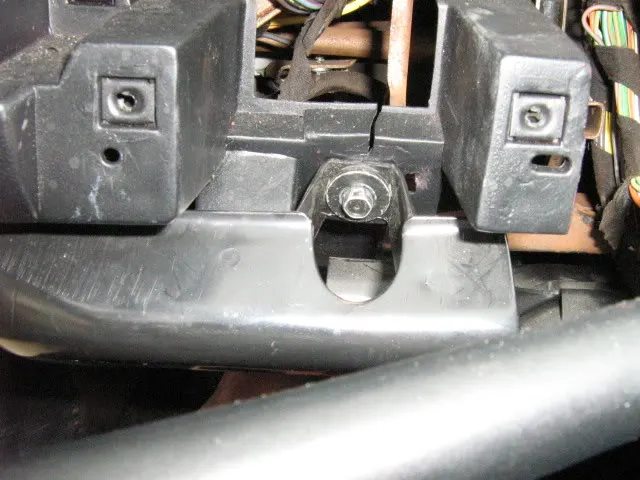

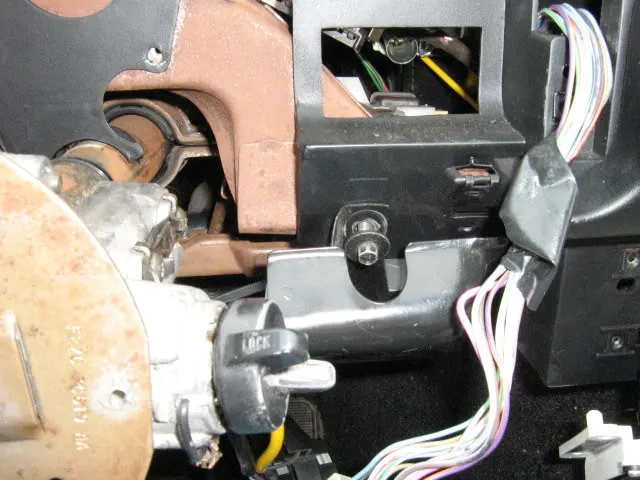

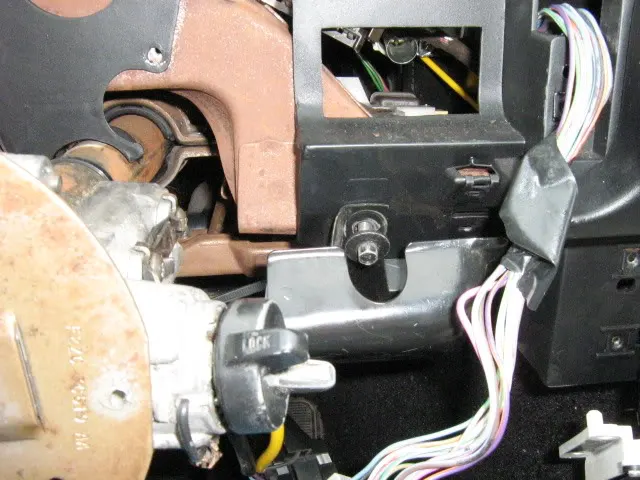

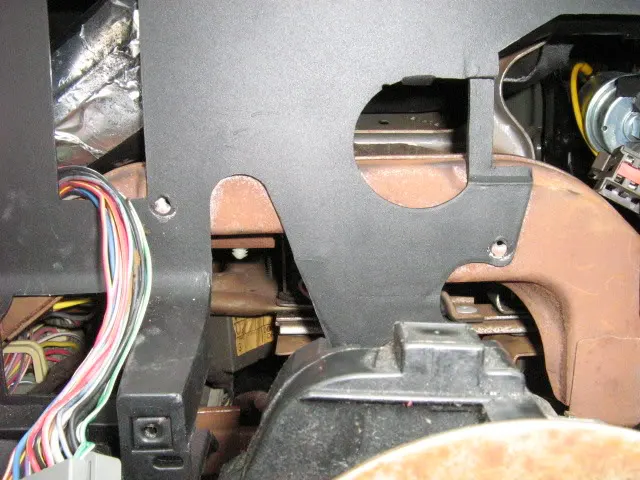

    Two about the steering column
    [​IMG]

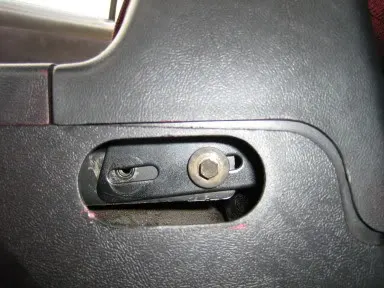

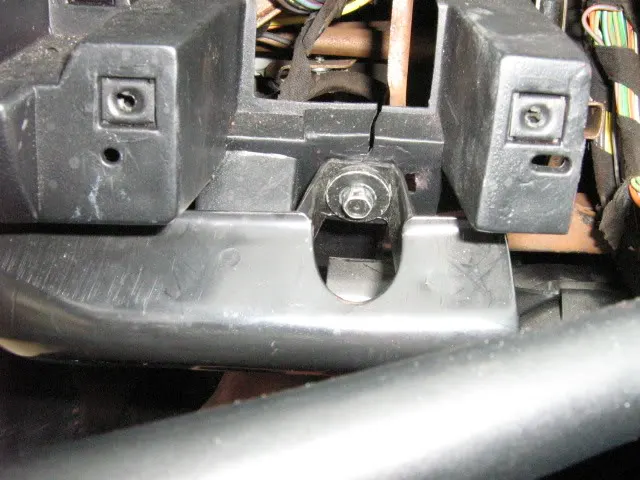

    Two big bolts to the left and right of the column
    Left:
    [​IMG]

    Right:
    [​IMG]

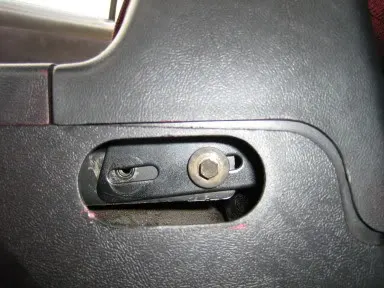

    One hidden behind the dash door:
    [​IMG]
    There is one more hidden above there near the latch. Maje sure to get that one.

    There are two more, one in each dash spear area behind the grills. There are more in the speaker housing, but those can stay. It connect to the defogger.

    Now, very gently, wriggle that **** forward. Upon bringing my dash forward, I came to a startling discovery. The (insert obsinity here, here, here, here and here. Oh yeah, one more for good measure) that sold me the car, which I am sad to say is a member of this forum, took the girlie mans route to removing the heater core. Rather than getting the bolts, he cut a huge hole in the evaporator case and yanked it out.

    [​IMG]

    I guess he figured that I would forget where he lives. Fortunately, I have a photographic memory. (pfft, maybe I should have been a detective.............................. naaaaaaaaah)

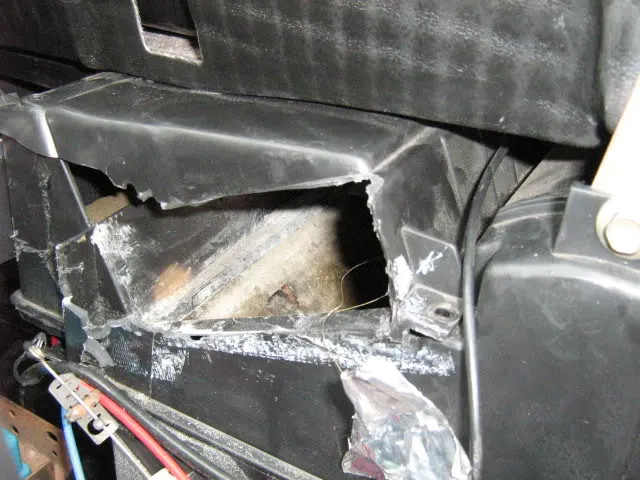

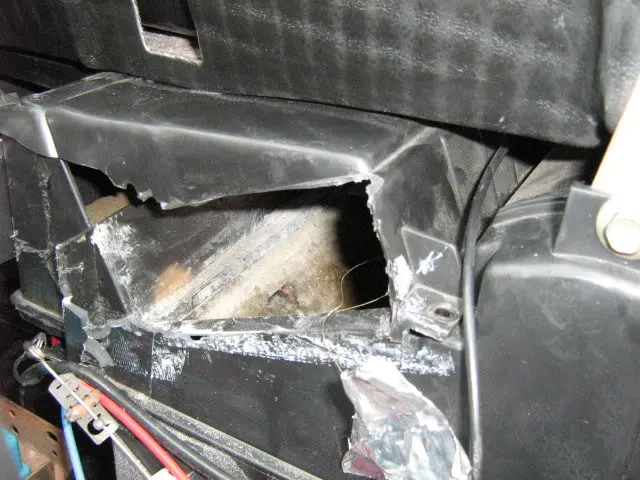

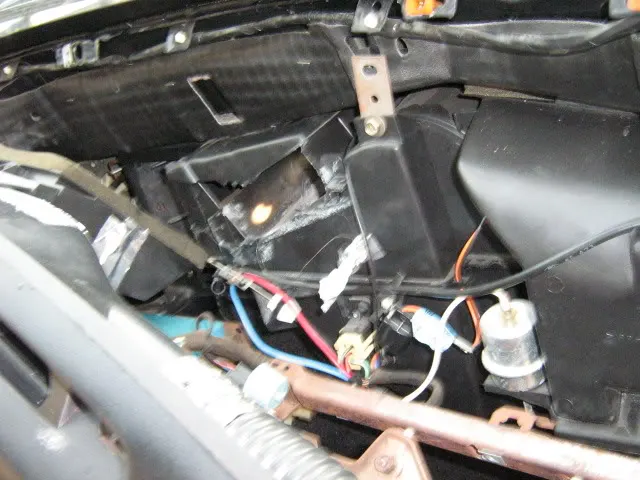

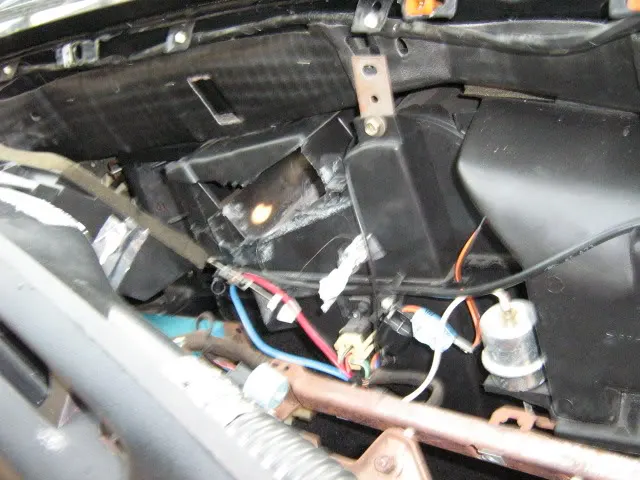

    Anyway, moving on, here is the dash moved forward, fully exposing what the #### is left of the evaporator case. I would like to mention here that this case opens by lifting the case lid up. Depending on what year Fox you have, it will open differently. The one in the article opns from the side.

    [​IMG]

    Notice the rusty metal plate with the bolt in it. There is another bolt that goes in that I took out, but you want to take the bottom one out instead. Trust me on the one. There is another set with a longer bar to the right of the on in the pic. Remove the top one from there. The reason for this is to gain leverage when prying the case open to get the core out. You can also go under the hood and get two more bolts there. There is also one more at the bottom of the dash near the floor. I didn't go for that one because my hads are big and I didn't have a good extension for my wrench. Now, all you have to do is take off the bolts that hold the case shut and pry it open. Tak out the old core and clean up in there since you have the oppurtunity.

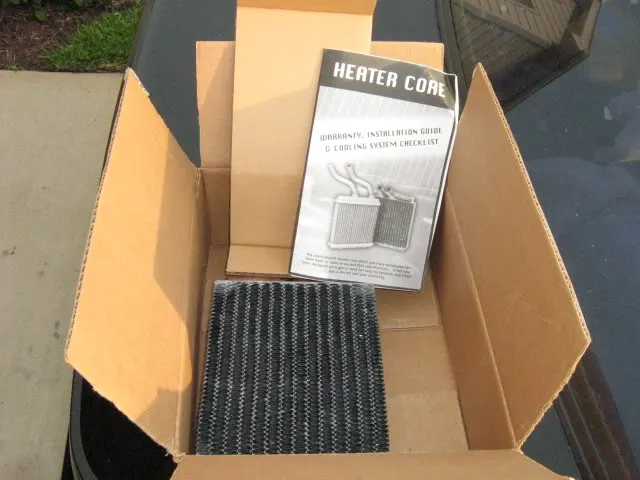

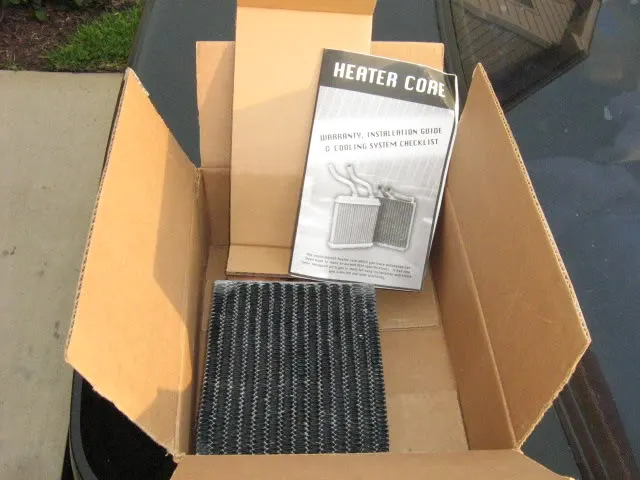

    Here's the new core
    [​IMG]

    If it's defective....be afraid.....be very afraid.

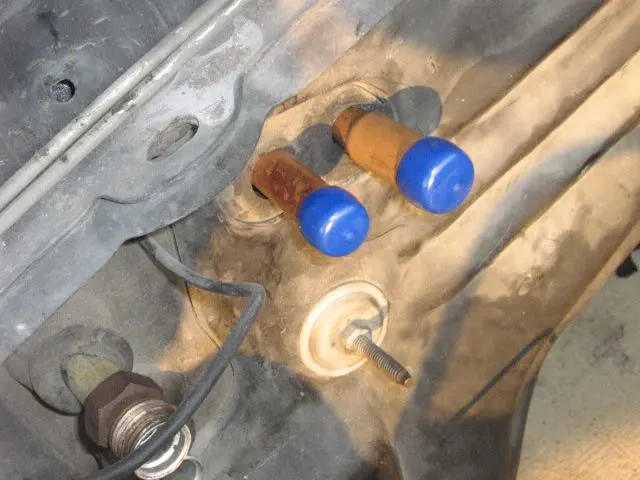

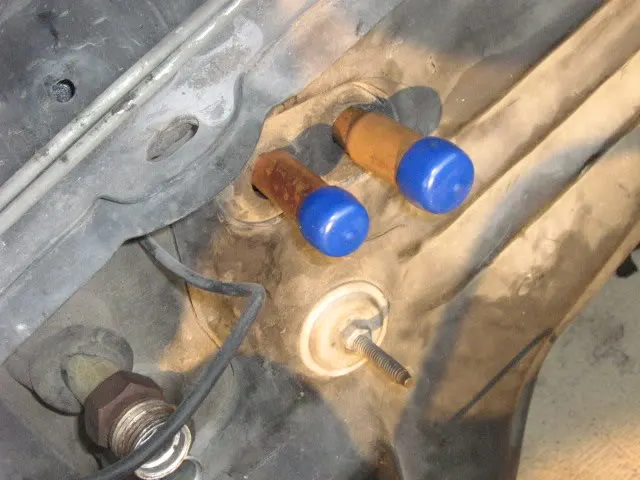

    Slide in the new core. Go under the hood and giive the tubes a light tug to make sure it's completely in place.

    [​IMG]

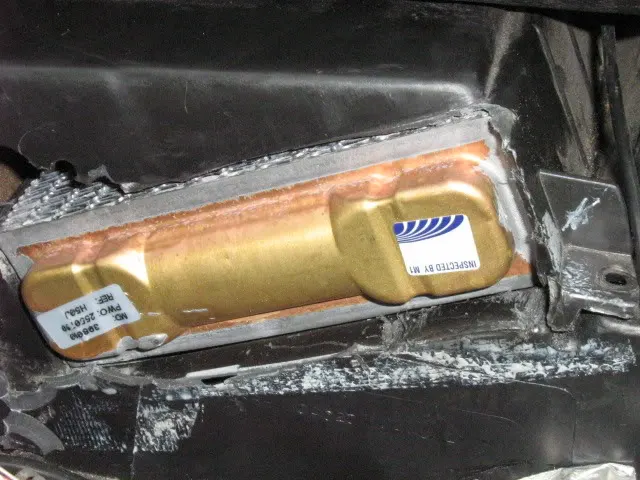

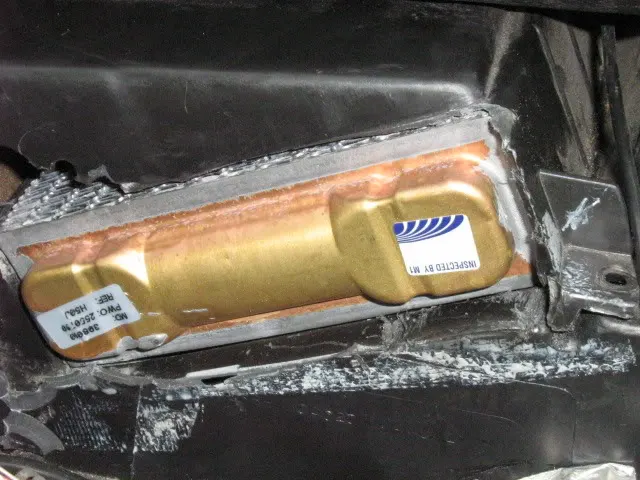

    Here it is from the dash side
    [​IMG]

    Now it's just a complete reversal of everything that you just did. Go slow and make sure that you get ALL of the screws back in place.

    Note: when putting the dash back in place, make sure that everything is pushed back UP in it's proper position so that all of the scew holes line back up. And there it is with just enough time to flag down the ice cream man for a cold treat.

    I didn't put my dash back all the way because the CPU and main harness are going in after I get off of work tomorrow. But that's another story.

    #1
  2. 8950HO

    8950HO New Member

    Joined:
    Mar 31, 2005
    Messages:
    766
    Likes Received:
    1
    Trophy Points:
    0
    2 hours maximum,yeah sure.I don`t think Superman could pull this off.

    I`ve replaced 2 heater cores myself on my 89 with ac so far and theres no way it can be done that fast imo.Theres way too much bs involved getting to and removing the core.

    A garage that specializes in heat/ac can`t do it this fast either.

    #2
  3. Don Fiveolio

    Don Fiveolio New Member

    Joined:
    Apr 23, 2005
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    Well, my house is in the direct path of the sun and Houston is like Hell during the summer. no wait....we got hell beat. On top of that, the car is black. I waited till the sun started to go down and the clouds started to gather before I got started. I was still sweating gallons. From 6:30 to 8. Scout honor. :D

    #3
  4. Don Fiveolio

    Don Fiveolio New Member

    Joined:
    Apr 23, 2005
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    Also, keep in mind that I'm working on a roller. No motor. Meaning no A/C to play with, but even then, with the right tools it shouldn't take much to disconnect two lines.

    #4
  5. 8950HO

    8950HO New Member

    Joined:
    Mar 31, 2005
    Messages:
    766
    Likes Received:
    1
    Trophy Points:
    0
    On a AC 5.0L fox body car you don`t have to disconnect the ac lines and discharge the system to remove the heater core.

    You can bend the mounting brackets on the accumulator forward to allow the extra clearance needed to get to the heater box cover screws.

    It can be done without discharging the AC system,which is a bonus.

    #5
  6. Roland69

    Roland69 Sergeant Tangnet

    Joined:
    Sep 17, 2005
    Messages:
    3,102
    Likes Received:
    3
    Trophy Points:
    58
    Location:
    Port Elgin, Ontario
    this should be a sticky fore sure......

    I don't have A/C (factory A/C delete for teh win) I have been told all I need to do is remove the glove box and a few other little things not the whole dash is this true.

    #6
  7. Don Fiveolio

    Don Fiveolio New Member

    Joined:
    Apr 23, 2005
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    The whol shabang has to be unscrewed and moved forward. Otherwise you'll never be able to see it. I did a lot of research before I got started. This is the only way without spending $400 bucks to have a mechanic do it for you. Even then, he has to go the exact same route. At least this way, you know all of the screws are going back in the proper place.

    :SNSign:

    #7
  8. mattmcdan

    mattmcdan Member

    Joined:
    Apr 20, 2006
    Messages:
    189
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Okeechobee, Florida
    Awesome job on this, most useful to me so far. I am about to do a T5 swap so I need to remove the dash anyway to aid in installing pedals. While in there I need to do heater core and install a new wire harness for the engine.

    #8
  9. 8950HO

    8950HO New Member

    Joined:
    Mar 31, 2005
    Messages:
    766
    Likes Received:
    1
    Trophy Points:
    0
    ^^^ I think this only pertains to 86 and earlier cars which are easier to do than the 87-93`s from what I`ve read.
    87-93 is going to be a pita.

    Some guys cut a hole in the heater box to get at the core,but this is the hack job method.I`d rather pull the dash and do it right.

    #9
  10. 5.0Droptop

    5.0Droptop ...all those nights we shared, and you're a dude??

    Joined:
    May 16, 2002
    Messages:
    8,628
    Likes Received:
    1,082
    Trophy Points:
    173
    Location:
    Indiana
    I can change a heater core in a fox in 1.5 hrs I have done it several times, YOU DO NOT NEED TO REMOVE ALL THE STUFF HE REMOVED. Basically you losen the dash pull it up and wedge it with a 2x4 on the passingerside. This will allow enough room to remove the cap off the heater box slide the core out and reinstall. Its not hard when you have experience. My buddy owns a resto mod shop and he almost crapped his pants when I pulled in had napa drop off a heater core and was done is 1.5 hr.

    Now he calls me when he wants one done.

    #10
  11. Don Fiveolio

    Don Fiveolio New Member

    Joined:
    Apr 23, 2005
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    It's true, but I want to be thorough so that all could see it. As I mentioned, I have a steering wheel that I'm putting in and I'm changing out the stock cluster LED's for some blue ones along with a few other custom goodies. Also, I'm 6'3 and I have real Big hands. Better to make it easy on myself. If you have a quicker method, why not post pics.

    #11
  12. Don Fiveolio

    Don Fiveolio New Member

    Joined:
    Apr 23, 2005
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    See, that's the killer part. This fool told me that he was going to mechanics school so that he can work on cars. He is the reason why I am a DIY'er. I was going to call that dude to help with my t-5 install. pfffft. :nonono:

    #12
  13. 5.0Droptop

    5.0Droptop ...all those nights we shared, and you're a dude??

    Joined:
    May 16, 2002
    Messages:
    8,628
    Likes Received:
    1,082
    Trophy Points:
    173
    Location:
    Indiana
    Never thought to take pics. I remove the screws along the top and then take out the passinger side bolts screws etc. pull dash up and pry it out.Under the hood I loosen the heater box nuts so as to allow the heater box to be pulled out some and dropped down a little. then reach up in there and do my work.

    You did it the CORRECT way. If you want to do it fast and still do it correct it can be done.

    #13
    Jontue Harris likes this.
  14. HAWK89GT

    HAWK89GT New Member

    Joined:
    Jan 7, 2004
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Hawkinsville, GA
    Great Post. Thanks!

    #14
  15. Don Fiveolio

    Don Fiveolio New Member

    Joined:
    Apr 23, 2005
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    Thanks. Al ot of blood sweat and tears went into that installation....Well sweat and tears anyway. It's officially in the tech thread so it's easily searchable. If there is anything that anybody finds unclear, let me know so that the correct changes can be made.

    :SNSign:

    #15
  16. Reed

    Reed New Member

    Joined:
    Mar 31, 2005
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    BC, Canada
    I am about to change my heater core this weekend. When the guys say to loosen the dash and prop it on the passenger side are you still loosening the stuff on the drivers side? What I want to know, is can this be done with out removing the gauge cluster.

    #16
  17. 5.0Droptop

    5.0Droptop ...all those nights we shared, and you're a dude??

    Joined:
    May 16, 2002
    Messages:
    8,628
    Likes Received:
    1,082
    Trophy Points:
    173
    Location:
    Indiana
    you dont need to remove the cluster or radio or anything. just loosen the dash enough to pry it out and lift it up.

    #17
  18. One Owner

    One Owner New Member

    Joined:
    Aug 18, 2006
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Quincy IL
    Just discovered my heater core is leaking. Great thread here. Will try and order a core tomorrow at Ford. Mine is an A/C car so hopefully I can get one.
    Dan

    #18
  19. 310stanger

    310stanger New Member

    Joined:
    Aug 16, 2006
    Messages:
    181
    Likes Received:
    1
    Trophy Points:
    0
    i think this should get stickied. everyone in here that hasnt done one yet will have to eventually. talk about an awesome post! thanks for the great info. finally a step by step way to do it.

    #19
    Jontue Harris likes this.
  20. rugerbp

    rugerbp New Member

    Joined:
    May 22, 2006
    Messages:
    81
    Likes Received:
    0
    Trophy Points:
    0
    not to hijack the thread but was wondering after you loosen up the entire dash and pull it forward how much more do you have to do to pull the entire dash outta the car,, i am swapping to a all black interior and need to know how much more time/effort it is going to take to get it out, right now i have now center console, or gauge cluster in, while im in there ill replace the heater core too, if anyone has information please post it, thanks,
