The completed Turbo/T5 Swap....pics!

Discussion in '2.3L (N/A & Turbo) Tech' started by bonestock87, Sep 30, 2011.


  1. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN

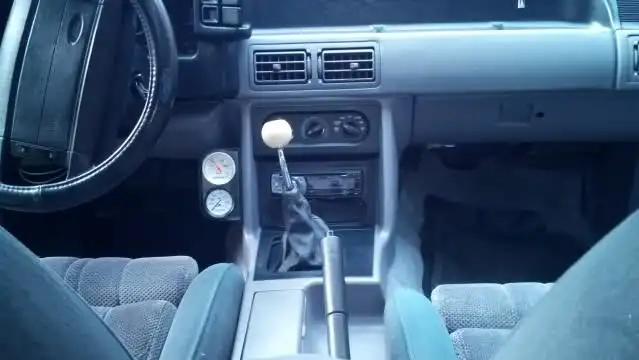

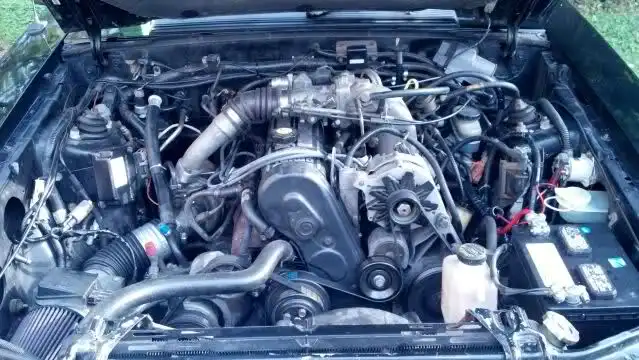

    My 93 Mustang with an 86 TC engine/T5. If you have questions, just ask. I never did post any worhtwhile pics. I'll be adding an oil pressure gauge and putting all three gauges under the radio. I used the TC seats, even though they are blue/gray, they are very comfortable. I was able to retain the A/C too! It runs great, finally. Installing a new wastegage acuator tomorrow to correct a "no boost limit" issue. Here are a few, enjoy:nice:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #1
  2. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    Some pics of the depths that this car started at and then new paint. Taken with a 2 megapixel camera phone about a year ago.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Now has new carpet, headliner, tires, brakes, exhaust, stereo and all 6 speakers replaced.

    #2
  3. vristang

    vristang Advanced Member

    Joined:
    Mar 31, 2005
    Messages:
    4,671
    Likes Received:
    7
    Trophy Points:
    69
    Location:
    Seattle
    Looks awesome!

    #3
  4. Stanger93Curt

    Stanger93Curt Member

    Joined:
    Aug 7, 2011
    Messages:
    36
    Showcase:
    5
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Indiana
    Dan man. I take it you did know what you were talking about in the other thread. :) looks good buddy. Do you recommend paint before or after job? I was thinking after.
    Will take a year or so to get money and parts. Probably get an engine stand and rebuild the 2.3T in the garage. It'll look pretty too.

    #4
  5. mg man

    mg man Member

    Joined:
    Jun 25, 2006
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    16
    Nice looking. Maurice

    #5
  6. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    Thanks for the kind remarks!:nice:

    Still sorting out a random rough idle issue, and still haven't installed my new wastegate actuator (not due to laziness, part didn't fit right, chasing down solutions). Other than that I'm very happy with the power it makes.

    Immediate plans call for new struts and shocks. I recently added the rear sway bar from my '86 TC donor but haven't had a chance to see how it has improved handling. I'll also be swapping on the quad shocks. When I have the time, I'm going to remove the locking unit from the TC's rear and install it in my diff. to retain 3.73:1 gearing. On the exterior I still need to rebadge it and replace a piece of trim moulding on the driver's fender. It needs new sunroof weatherstripping, door belt moulding and a passenger side window run channel. I also have the dreaded door droop, and the real fix is welding on a new lower hinge since new hinge bushings ain't gettin it.:( I'd also like to install a new windshield since the previous owner apparently used to clean it with 80 grit sandpaper.

    That's my plans for now........:flag:

    #6
  7. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    Double Post

    #7
  8. TripleBlk

    TripleBlk Member

    Joined:
    Nov 13, 2002
    Messages:
    312
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    Cape Canaveral FL
    Kudos

    Very, very nice. Good job ! You should be proud. Did you do the paint yourself ?:nice:

    PS I like the Hurst "chrome" shifter, too. I put one on the '79 Capri I built

    #8
  9. Red_LX

    Red_LX I’m not much help unless you’re looking for porn! Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    10,709
    Showcase:
    2
    Albums:
    1
    Likes Received:
    35
    Trophy Points:
    89
    Location:
    Morgantown, WV...where couches meet their doom
    Looks good!

    Probably a good idea on using the TC seats- for some reason they seem to be built better than the Mustang seats, I never got the annoying seatback "twist" with mine.

    Also- if your '86 TC was a 5 speed...it didn't have 3.73's. In fact, I thought that all pre-'87 TC's came with 3.45's regardless of transdmission. Can't remember now, I know the '87-88 5 speeds came with 3.55's and autos had 3.73's.

    #9
  10. tca7291

    tca7291 I can see your wieners.

    Joined:
    Sep 2, 2011
    Messages:
    1,452
    Likes Received:
    463
    Trophy Points:
    103
    Location:
    Raleigh, NC
    Car looks great man!! I really do like those seats too, I think I might have to try to find a pair with the same colors, I think they would look great in mine with the crystal blue interior already! But seriously top notch work,:nice: thanks for posting the pics!

    #10
  11. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    Thanks guys! I appreciate the kind words. I'm currently fighting with a crazy once in a while issue, but other than that, this car is a ton of fun!!

    To answer some questions/comments:
    I didn't do the actual spraying of the paint, I just did all the prep work. This was the 2nd Mustang I've had painted, I'm getting better at it. The key is to remove as much trim as possible, it makes the final product look so much better. From 10 feet she's a beut, but it does have some orange peel. For what I paid the guy, I'm satisified.

    The rear end is the stock 7.5 inch open diff, which because it was an automatic car it has 3.73's. What I am going to do is just take the trac-lok unit out of the 86 turbo coupe (which Red LX is correct, had 3.45's) and put into my rear end. So voila, 3.73 w/trac-lok rear!:nice:

    The seats are comfortable as can be. I dont' have the gangsta lean, just the driver's seat creaks. When money permits I'd like to recover them and at that point fix the creak. I'm also trying to figure a way to tastefully mount the 8-way adjustable controls so I can have both seats be powered just as they were in the TC.

    Although I do like the Hurst look, I've ordered a new shifter boot, bezel and knob from LRS to make it look factory. The turbo coupe's boot and shift knob looked like poo, so I had the Hurst laying around from a prior stang. I'm a little bit of a melvin, I like things to look like they at least "could" have come that way from the factory.

    #11
  12. mg man

    mg man Member

    Joined:
    Jun 25, 2006
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    16
    #12
  13. LRSJustin

    LRSJustin Platinum Sponsor Premium Sponsor

    Joined:
    Oct 26, 2011
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    6
    Car looks great....very simple and clean.

    #13
  14. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    Thanks Justin! I've gotten a ton of my restoration stuff for this and other fox body's and new edge stangs from you guys. I love the fact that guys like you and AM exist. For the record, I looked to you guys for my gauge/radio mount and was surprised to see you guys don't carry that anymore. I'm sure there'd be a huge market for you all to carry these. Here's a pic of what I was looking for except I got one with 3 gauges, not 2 plus switches. Thanks!


    Attached Files:

    #14
  15. LRSJustin

    LRSJustin Platinum Sponsor Premium Sponsor

    Joined:
    Oct 26, 2011
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    6
    #15
  16. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    You know what, I think I've got AM mixed up with LRS on that particular part. It was AM that doesn't carry it anymore. IIRC, that item was the only one I needed at the time and I was being cheap and didn't want to pay $14.95 shipping at LRS on a $40 item.:rolleyes:

    However I'll be in the market for a set of 16" pony wheels/tires in the spring and I'll be glad to pay $14.95 shipping!

    #16
  17. LRSJustin

    LRSJustin Platinum Sponsor Premium Sponsor

    Joined:
    Oct 26, 2011
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    6

    Ahhh shipping on that part would only be $6.99! Sorry we lost you on that one, but let me know when you need some wheels and we will make it up.

    Thanks

    #17
  18. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    My bad!!! I thought every order was $14.95 to ship. I will pay closer attention in the future. There's been several times in the past that I needed a relatively inexpensive item and I didn't pull the trigger because of that. That's my screw up. Thanks for letting me know Justin!:nice:

    #18
  19. LRSJustin

    LRSJustin Platinum Sponsor Premium Sponsor

    Joined:
    Oct 26, 2011
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    6
    Not your screw up, we had recently re-vamped that whole system to accommodate for things like that. Pretty much if the part is under $100 and is a small package, a pound or so in weight, it ships for 6.99 and still goes UPS vs. USPS like others are doing.

    #19
  20. bonestock87

    bonestock87 Founding Member

    Joined:
    Dec 19, 2001
    Messages:
    733
    Likes Received:
    1
    Trophy Points:
    16
    Location:
    East TN
    Excellent news!:nice:

    #20
